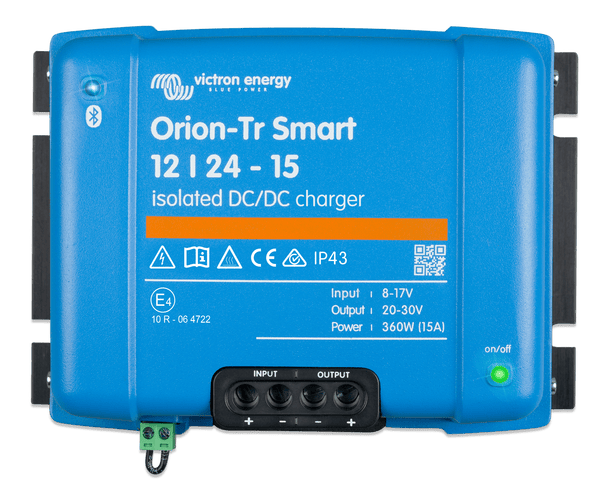

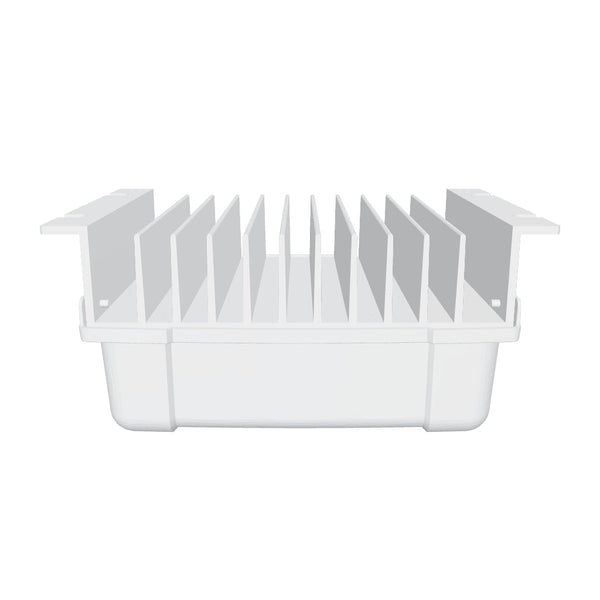

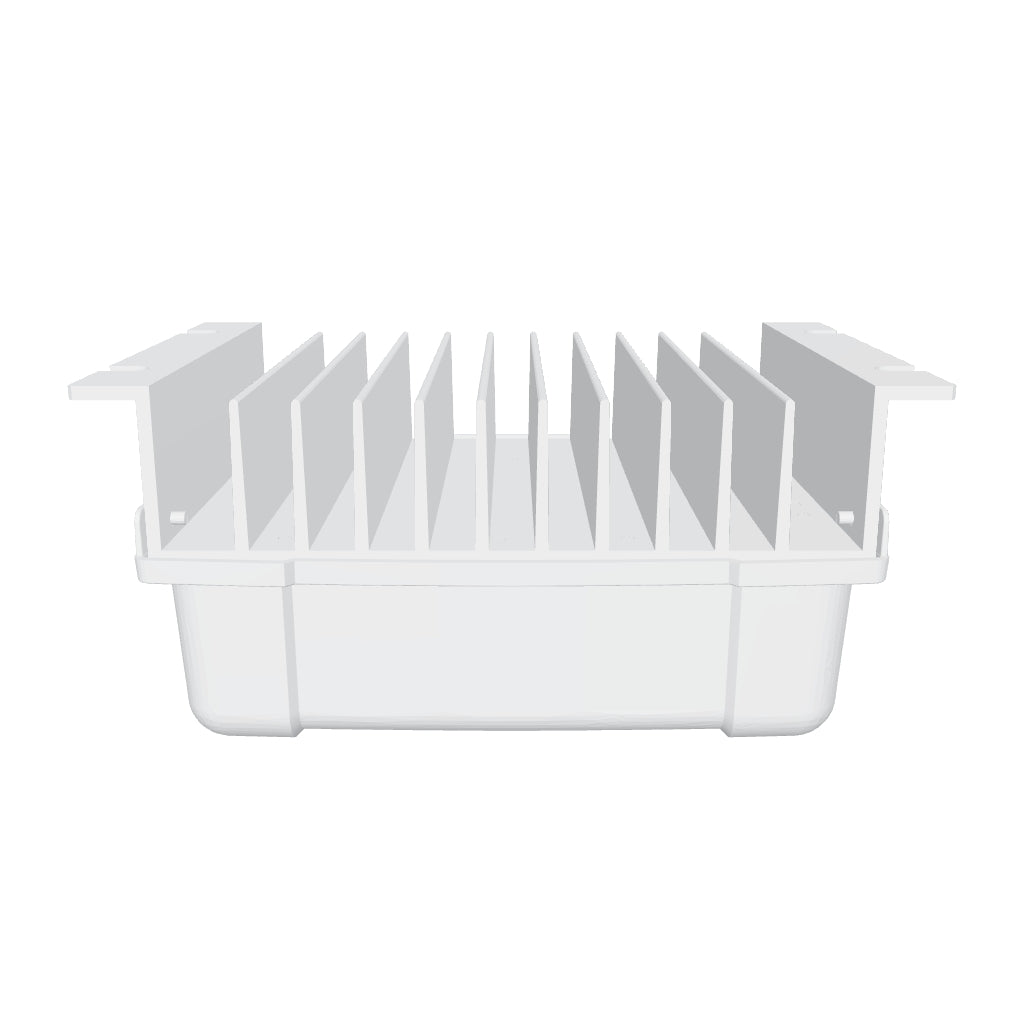

Victron 12V to 24V Orion-Tr Smart 12/24-15A Isolated DC-DC Charger
Victron 12V to 24V Orion-Tr Smart 12/24-15A Isolated DC-DC Charger

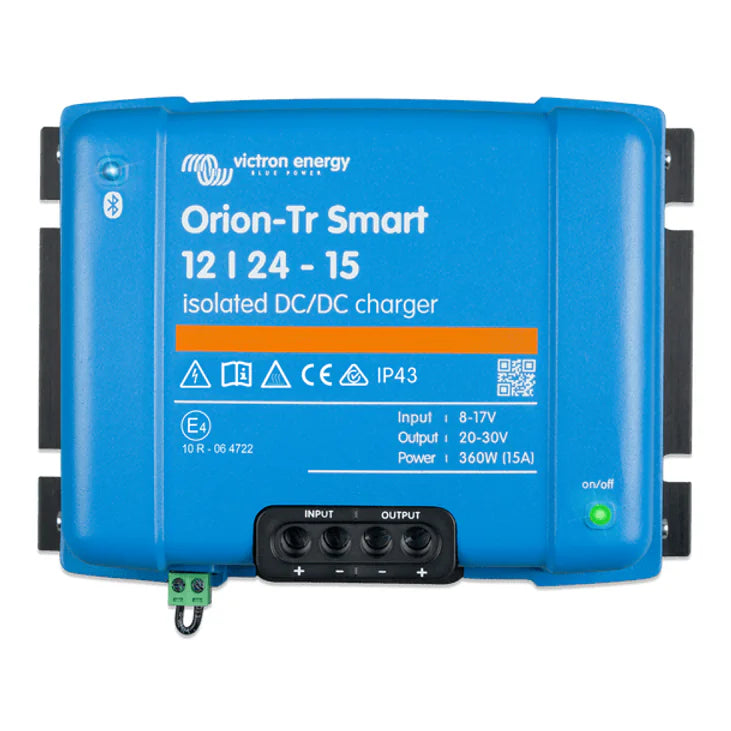

12V to 24V Isolated DC-DC Charger with Bluetooth | 15A Continuous, 25A Peak

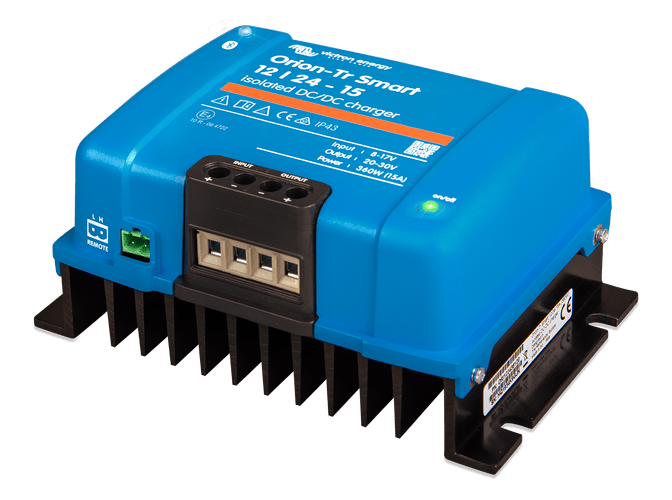

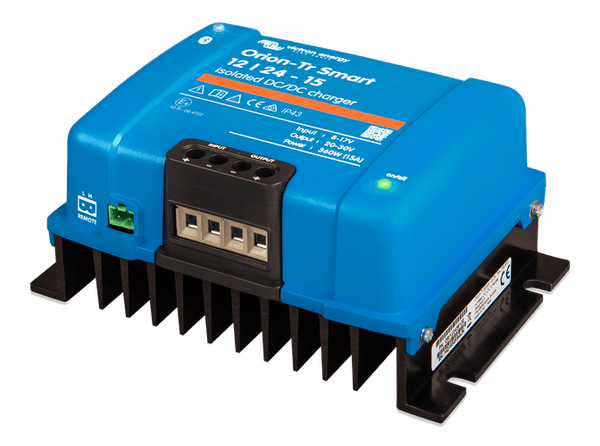

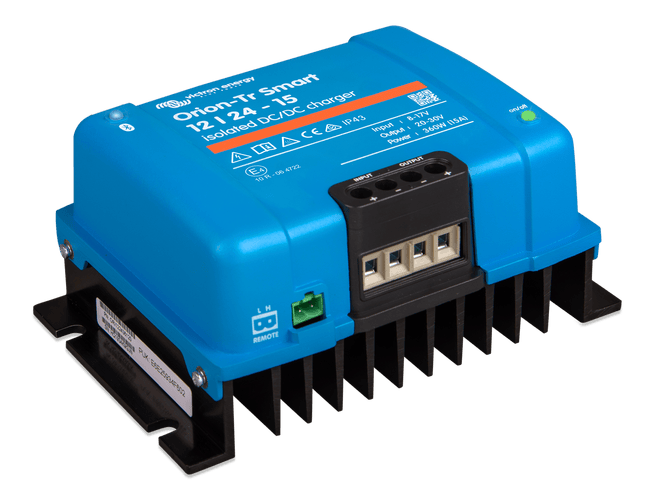

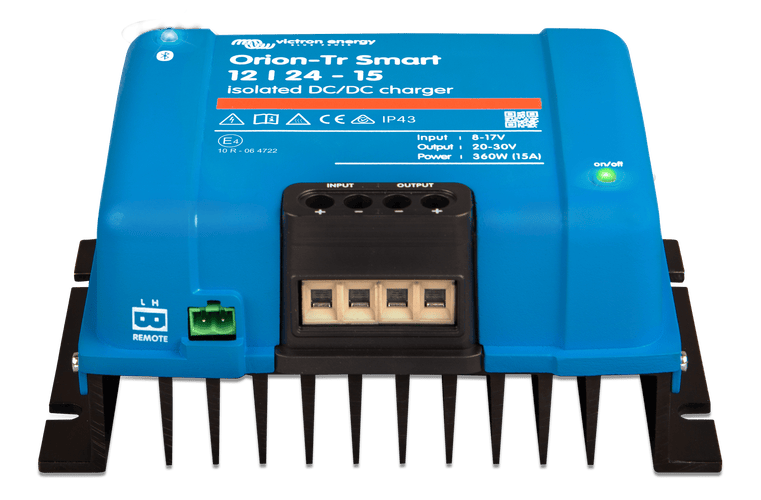

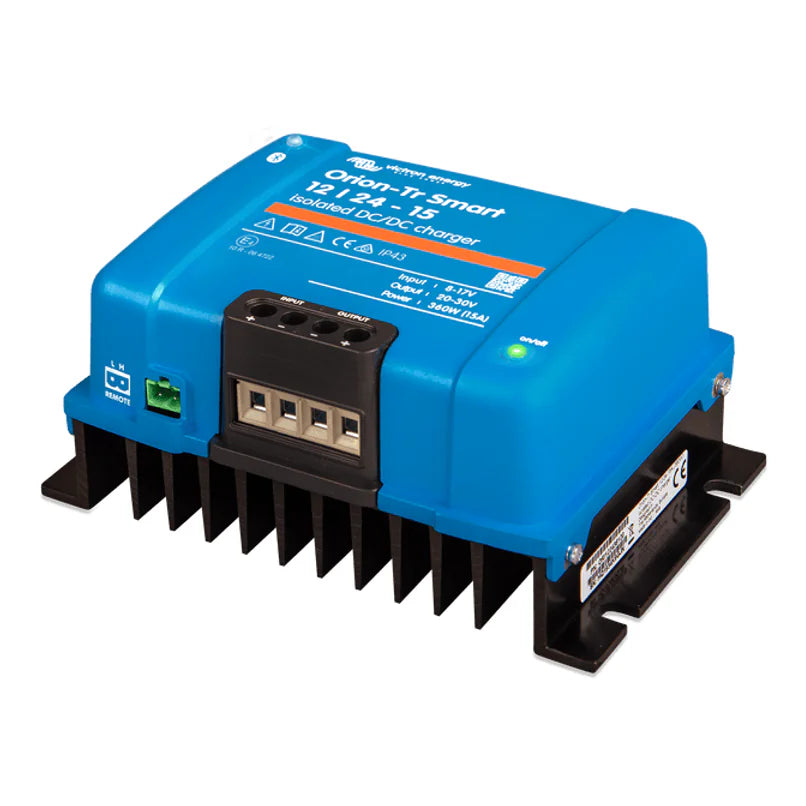

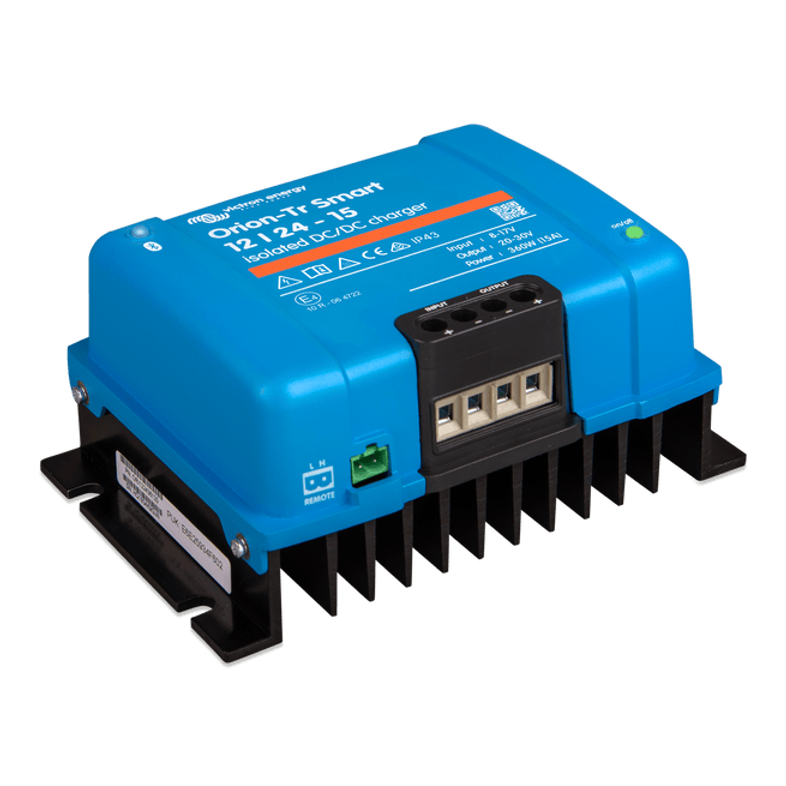

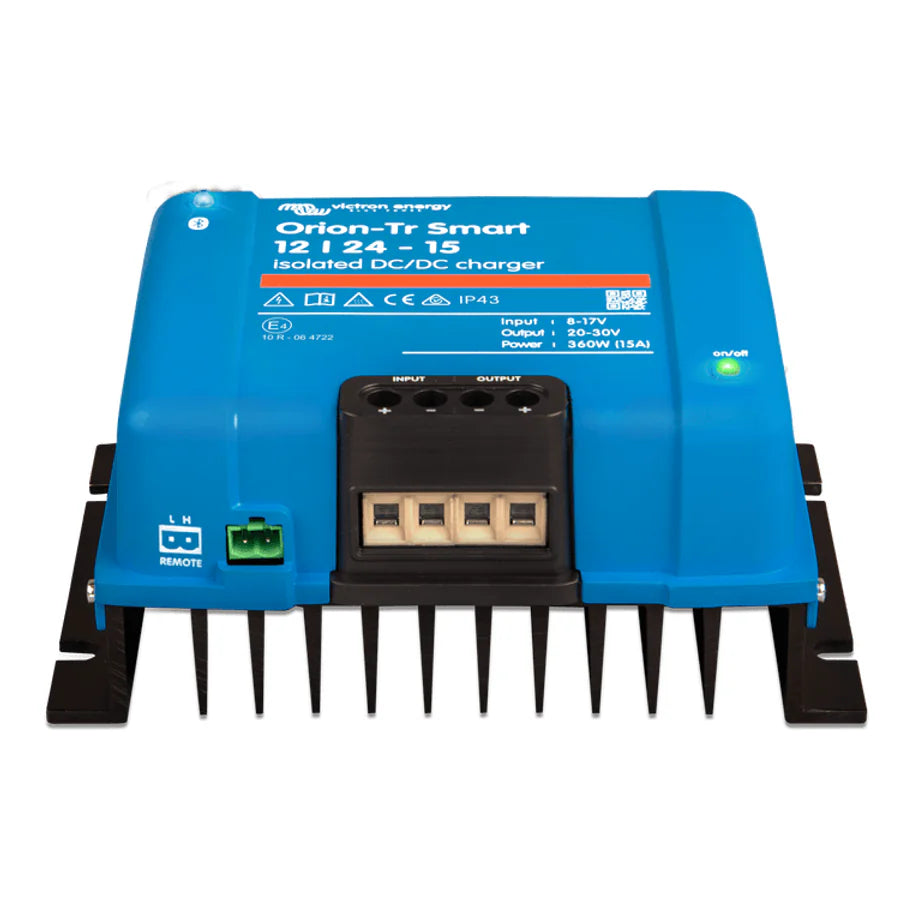

Highlights:Bluetooth Connectivity: Integrated Bluetooth for wireless monitoring and configuration via VictronConnect,Remote on/off: Green terminal for remote switch or engine start detection wiring,Screw Terminals: High-current screw terminals for secure input and output power connections,Status LED: LED indicator for system on/off and operational status,Integrated Heatsink: Large aluminium heatsink for efficient thermal management during high power charging.
Crucial warning notice specifying that this model requires a 12V input and 24V output only. Using incorrect voltages will damage the unit or the battery bank.
Key features: Configurable 10-17V input voltage range, Adjustable 20-30V output voltage range, Continuous 15A output at 40 degrees Celsius, Screw terminal DC connections for up to 16mm2 cable, Galvanic isolation up to 200V DC between input and case.

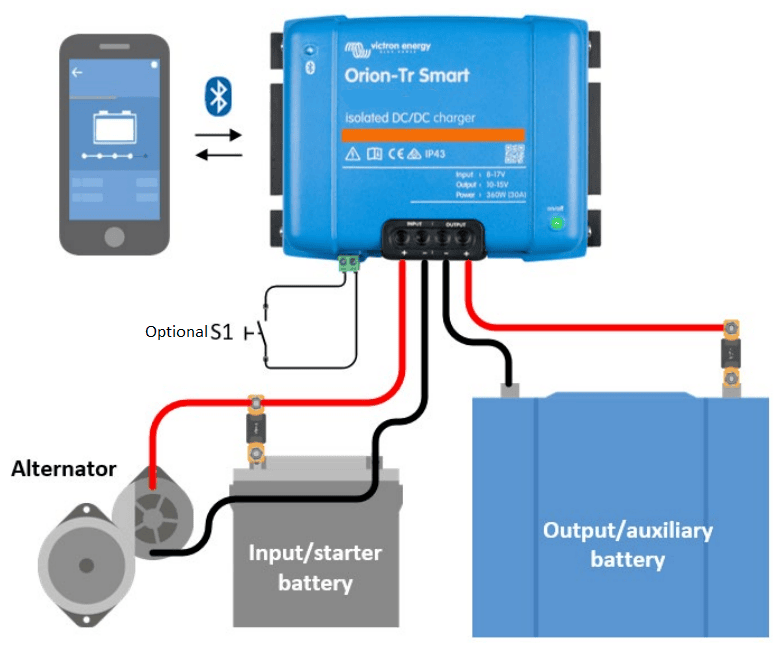

Isolated DC-DC charger wiring diagram showing the connection from the 12V alternator and starter battery through the Orion-Tr to a 24V auxiliary battery bank.

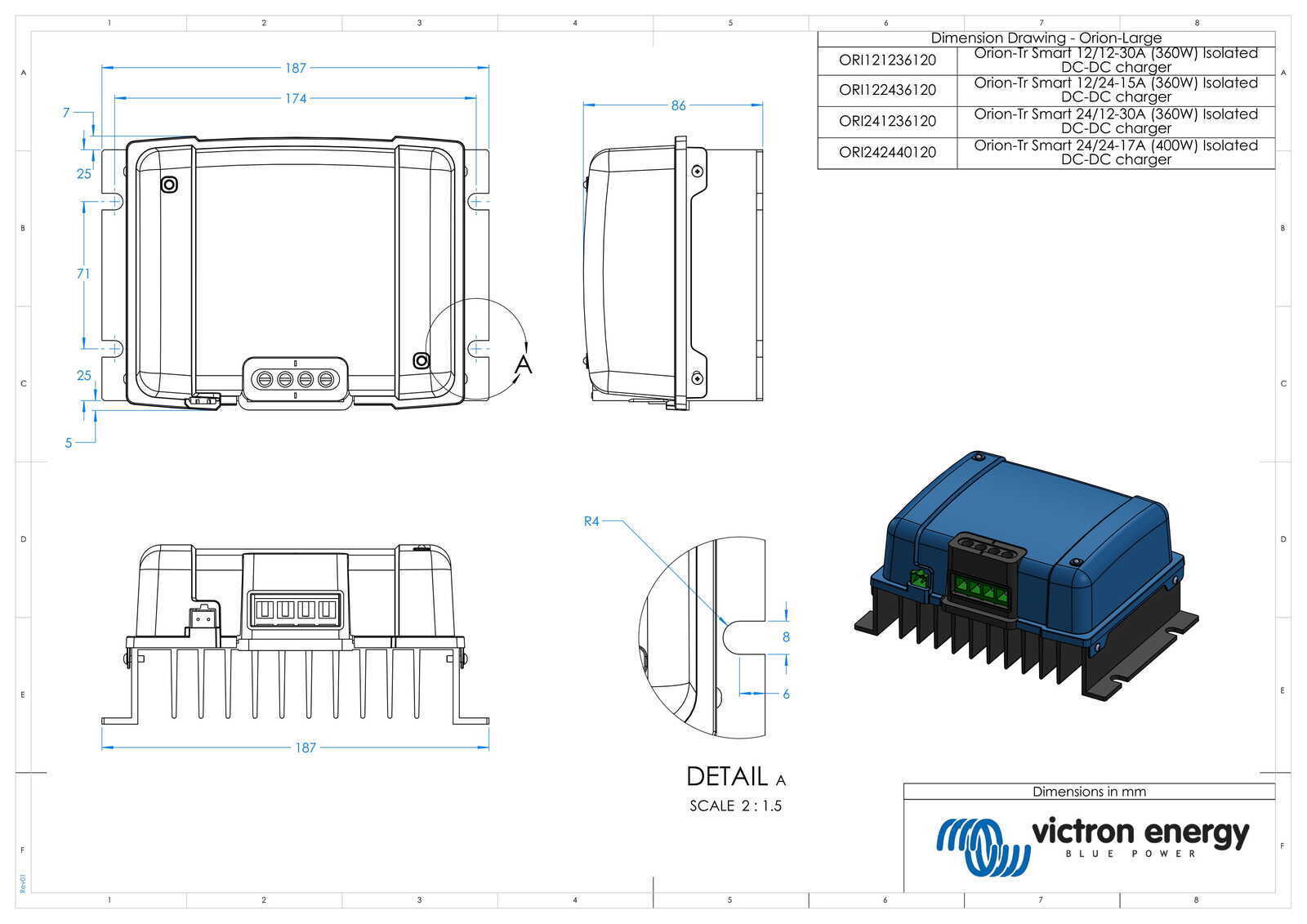

Detailed engineering dimensional drawing for the Orion-Tr Smart 360W model, showing a width of 186mm, height of 130mm, and a depth of 80mm with mounting points.


DESCRIPTION
Victron 12V to 24V Orion-Tr Smart Isolated DC-DC Charger: Intelligent Power Conversion for Dual-Battery Systems
Efficient 12V to 24V DC-DC Charging with Adaptive 3-Stage Algorithm and Bluetooth Control
The Victron Orion-Tr Smart Isolated DC-DC Charger delivers precise, regulated power conversion from a 12V alternator or battery bank to a 24V auxiliary system. Designed for vehicles, marine vessels, and off-grid installations, this charger solves the common challenge of safely stepping up voltage while maintaining battery health. Unlike basic converters that risk overcharging or undercharging, the Orion-Tr Smart uses an adaptive 3-stage charge algorithm (Bulk, Absorption, Float) to extend battery life and ensure reliable starts every time.
With 15A of continuous current and a peak output of 25A for short surges, it handles demanding loads such as fridge compressors, lighting, and communication equipment. The integrated Bluetooth Smart interface allows full configuration and monitoring via the VictronConnect app, eliminating the need for additional displays or complex wiring. This isolated design provides galvanic isolation up to 200V DC between input, output, and case, protecting sensitive electronics from ground loops and voltage spikes—a critical advantage in mixed-voltage systems.
Smart Alternator Compatibility and Programmable Charge Profiles
Modern vehicles with Euro 5/6 compliant smart alternators often output variable voltage, which can confuse standard DC-DC chargers. The Orion-Tr Smart features an engine detection mechanism that prevents unwanted discharge of the starter battery when the engine is off. You can program custom charge profiles to match your battery chemistry—whether AGM, Gel, Flooded, or Lithium—ensuring optimal charging without manual intervention. The adjustable output voltage range of 20-30V provides flexibility for sensitive loads or specific battery requirements.
Robust Design for Harsh Australian Conditions
Built to withstand the rigours of outback travel and coastal marine environments, the Orion-Tr Smart features an IP43 protection rating when installed with screw terminals facing downward. The extruded aluminium heatsink provides efficient passive cooling, allowing continuous operation at full rated power up to 40°C ambient temperature. Screw terminals accept cables up to 16 mm² (AWG6), ensuring low-resistance connections and minimal voltage drop over long cable runs. The compact footprint of 130 x 186 x 80 mm and weight of 1.8 kg simplifies installation in tight spaces such as under-bonnet, behind panels, or in battery compartments.
Key Features
- Adaptive 3-stage charge algorithm with programmable battery presets for AGM, Gel, Flooded, and Lithium
- Bluetooth Smart for wireless monitoring, configuration, and firmware updates via VictronConnect app
- Galvanic isolation (200V DC) eliminates ground loop interference and protects against voltage transients
- Engine detection prevents starter battery drain when the alternator is not running
- Remote on/off terminal for integration with battery management systems or manual switches
- Parallel operation supported for higher current requirements
- Wide input voltage range of 10-17V accommodates voltage fluctuations in 12V systems
- Short circuit, over-temperature, and reverse polarity protection
Applications
This charger is ideal for powering 24V house batteries in trucks, buses, motorhomes, and boats with 12V electrical systems. It also suits off-grid solar installations where a 12V battery bank needs to supply 24V loads, or in industrial equipment requiring stable 24V power from a 12V source. The isolated design makes it safe for use in systems with sensitive communication or navigation electronics.
Whether you're upgrading a dual-battery system in a 4WD, fitting out a marine electronics suite, or building a remote power system, the Victron Orion-Tr Smart provides the reliability and intelligence needed for critical power conversion. Order your Victron Orion-Tr Smart Isolated DC-DC Charger today and experience seamless 12V to 24V power management with full app control.

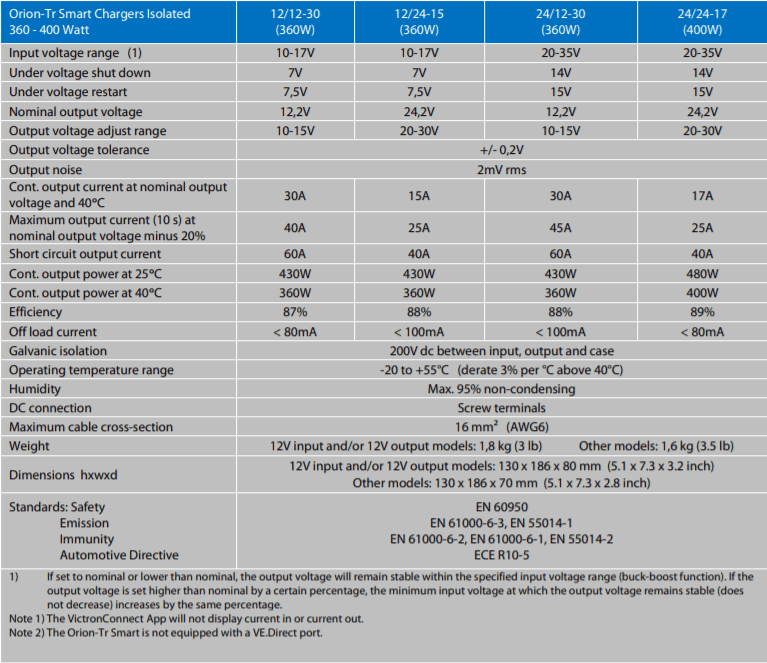

SPECIFICATIONS

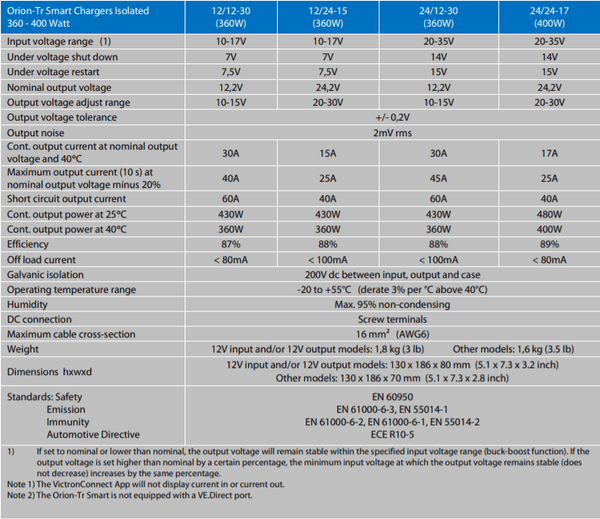

Specifications
| Model | 12/24-15 (360W) Orion-Tr Smart DC-DC Charger Isolated |
|---|---|
| Input voltage range (1) | 10-17V |
| Under voltage shut down | 7V |
| Under voltage restart | 7.5V |
| Nominal output voltage | 24.2V |
| Output voltage adjust range | 20-30V |
| Output voltage tolerance | +/- 0.2V |
| Output noise | 2mV rms |
| Cont. output current at nominal output voltage and 40°C | 15A |
| Maximum output current (10 s) at nominal output voltage minus 20% | 25A |
| Short circuit output current | 40A |
| Cont. output power at 25°C | 430W |
| Cont. output power at 40°C | 360W |
| Efficiency | 88% |
| Off load current | <100mA |
| Galvanic isolation | 200V dc between input, output and case |
| Operating temperature range | -20 to +55°C (derate 3% per °C above 40°C) |
| Humidity | Max. 95% non-condensing |
| DC connection | Screw terminals |
| Maximum cable cross-section | 16 mm² (AWG6) |
| Weight | 1.8 kg (3 lb) |
| Dimensions hxwxd | 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch) |
| Standards: Safety, Emission, Immunity, Automotive Directive | EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5 |
- If set to nominal or lower than nominal, the output voltage will remain stable within the specified input voltage range (buck-boost function). If the output voltage is set higher than the nominal by a certain percentage, the minimum input voltage at which the output voltage remains stable (does not decrease) increases by the same percentage.
Note 1) The VictronConnect App will not display current in or current out.
Note 2) The Orion-Tr Smart Charger is not equipped with a VE.Direct port.
| SKU: | VIC-ORI122436120 |
| Barcode: | 8719076047704 |
| Model #: | ORI122436120 |
| MPN: | ORI122436120 |
