Victron 48V 4500W MultiPlus-II 48/4k5/55-32 GX Inverter/Charger
Victron 48V 4500W MultiPlus-II 48/4k5/55-32 GX Inverter/Charger
Highlights:Integrated LCD Display: Backlit screen showing real-time battery percentage, power usage, and voltage,GX Controller Interface: Integrated monitoring and control for local or remote system management,Functional Diagram: Visual schematic printed on the enclosure showing internal power flow and connection logic,IP21 Steel Enclosure: Durable blue steel housing designed for indoor wall-mounted installations,Cable Access Point: Bottom entry for secure M8 battery bolts and 13mm² AC screw terminals.

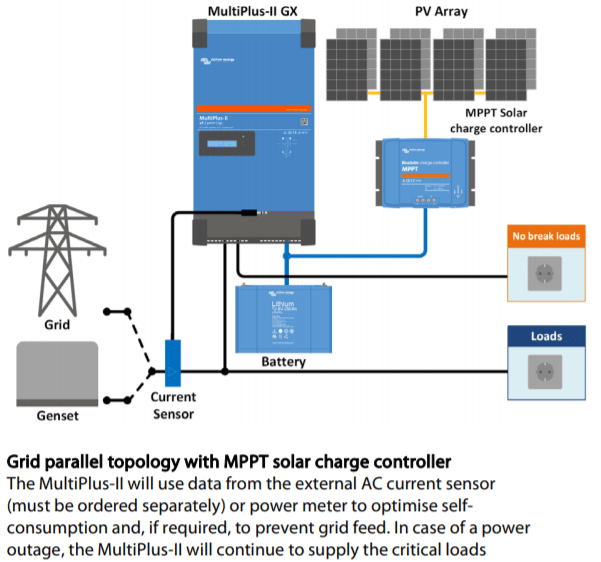

Key features: Optimised self-consumption with external AC current sensor support, Seamless integration with MPPT solar charge controllers and PV arrays, Automatic transfer to backup power for critical loads during outages, Parallel grid topology for efficient energy management and battery storage.


DESCRIPTION
Victron MultiPlus-II 48/4k5/55-32 230V GX - Intelligent Inverter/Charger with GX Integration
More power per kg and per dm³, and better high temperature performance compared to other MultiPlus-II models.
Advanced Energy Management for On-Grid and Off-Grid Systems
The Victron MultiPlus-II 48/4k5/55-32 230V GX is a high-performance inverter/charger engineered for professional marine, mobile, and off-grid installations. It seamlessly integrates with solar panels, micro-scale combined heat and power systems, and battery storage to provide uninterrupted AC power during grid outages. Excess energy from sustainable sources is automatically used to charge batteries, while energy shortfalls are compensated from the battery for continuous supply.
Smart Monitoring and GX Integration

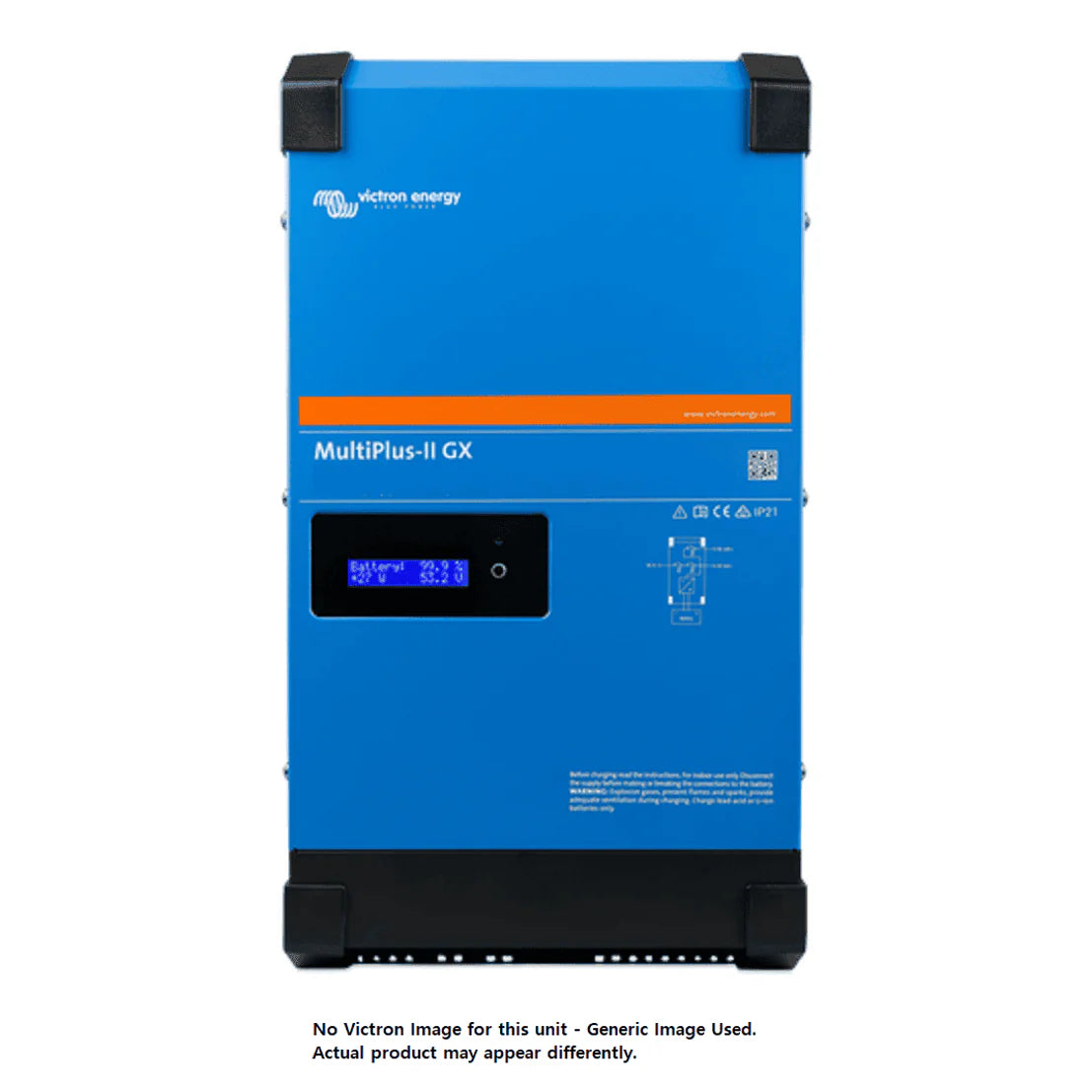

Equipped with a backlit 2x16 character GX LCD display, this system provides clear visibility of system parameters. Ethernet and WiFi connectivity allow for local and remote monitoring, while full integration with Victron's VRM portal enables long-term system performance tracking. The built-in Battery Monitor supports autonomous operation with programmable start/stop conditions based on battery voltage, load, or state of charge.
Uninterrupted Power & Dual AC Outputs

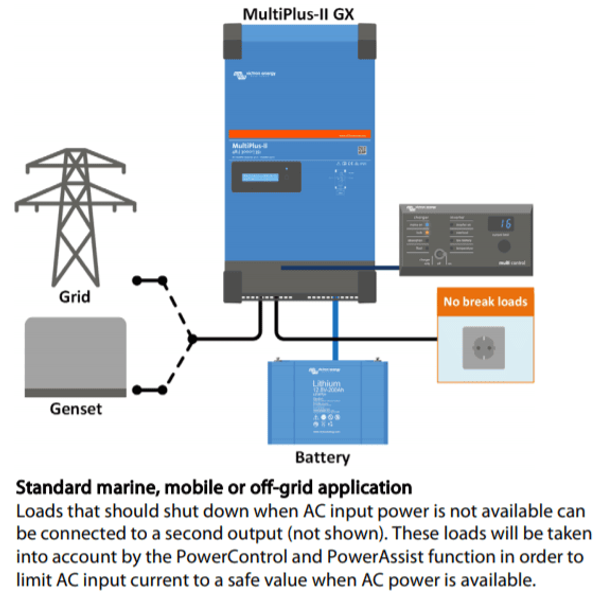

Two AC outputs ensure intelligent load management: the main uninterruptible output powers critical loads continuously, while the auxiliary output disconnects non-essential loads when operating on battery power alone. This configuration allows devices like electric boilers to operate only when AC input is available, optimizing energy use.
Three-Phase Capability & Scalability
The unit supports parallel and three-phase configurations for large-scale installations, with up to six sets of units connectable in three-phase operation. PowerControl and PowerAssist functions enable maximum use of limited AC input and temporary compensation from battery energy during peak load demands.
Adaptive Battery Charging
The MultiPlus-II 48/4k5/55-32 GX intelligently manages lead-acid, Li-ion, and other compatible batteries. Features include adaptive 4-stage charging, BatterySafe mode to prevent over-gassing, storage mode to reduce self-discharge, and voltage compensation for cable losses. Lithium batteries are integrated through BMS-CAN or SmallBMS interfaces for precise remote control.
Programmable Features & Integration
The system includes programmable relays and analog/digital I/O ports for custom automation, including integration with allow-to-charge and allow-to-discharge BMS functions. External current transformer options allow enhanced PowerControl and PowerAssist functionality for grid-parallel solar installations.
Applications
- Marine and yachting installations requiring reliable, uninterrupted AC power
- Mobile energy systems and off-grid homes
- Hybrid solar + storage systems for residential and commercial setups
- Backup power for critical equipment in buildings or industrial sites
- Grid-interactive systems with demand-response and energy feed-in capabilities
Upgrade to the Victron MultiPlus-II 48/4k5/55-32 230V GX for intelligent energy management, autonomous grid support, and seamless integration with renewable and battery storage systems.
SPECIFICATIONS

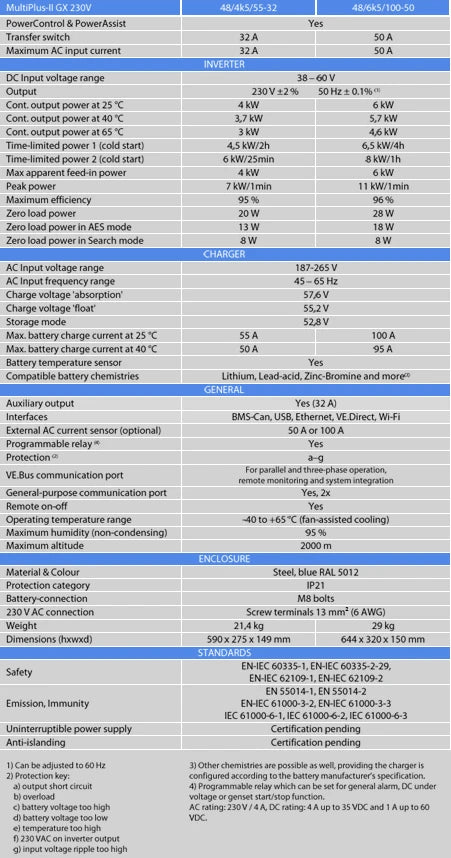

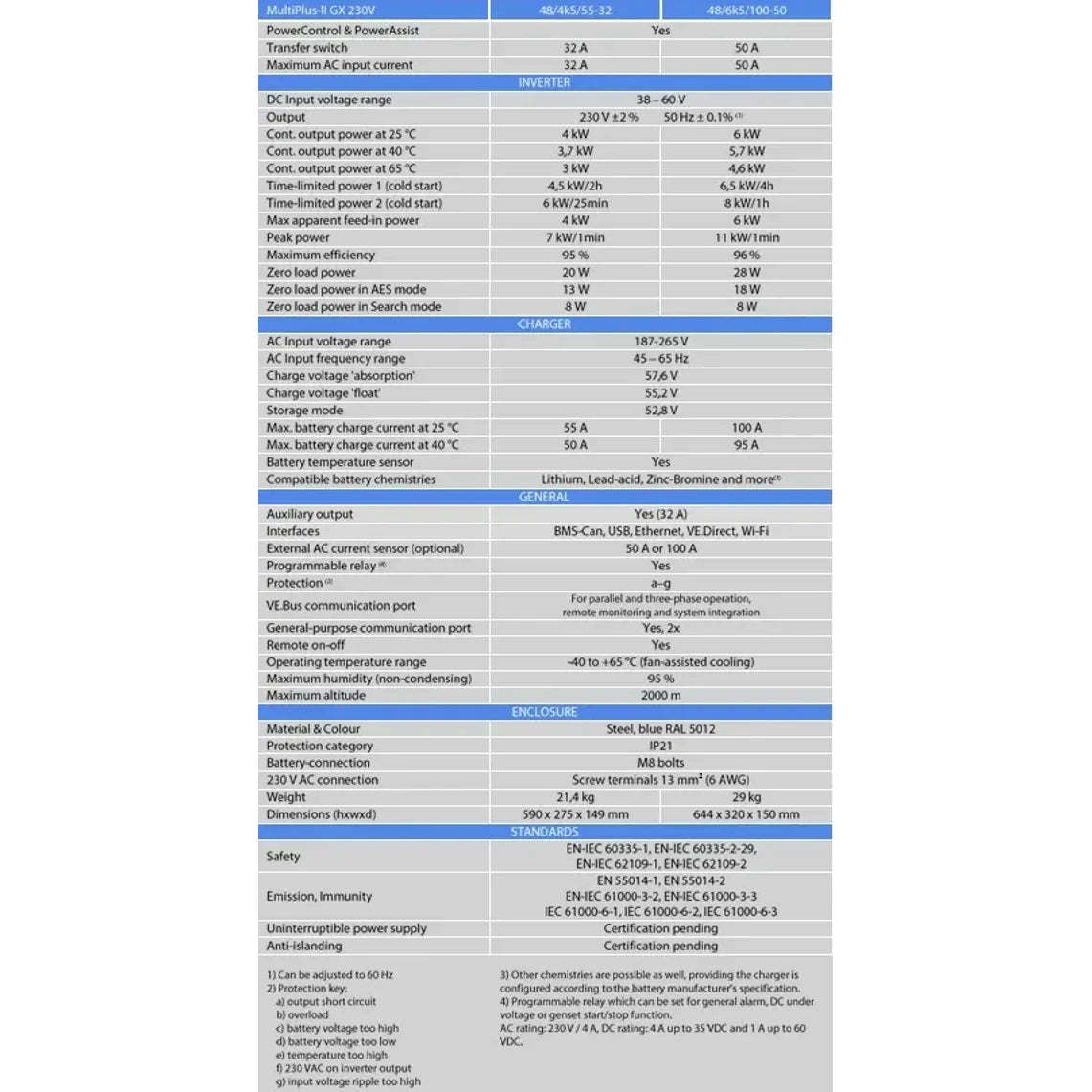

Specifications
| MultiPlus-II GX 230V: 48/4k5/55-32 | |
|---|---|
| PowerControl & PowerAssist | Yes |
| Transfer switch | 32 A |
| Maximum AC input current | 32 A |
| INVERTER | |
| DC Input voltage range | 38 – 60 V |
| Output | 230V ± 2% 50 Hz ± 0.1% (1) |
| Cont. output power at 25 °C | 4 kW |
| Cont. output power at 40 °C | 3.7 kW |
| Cont. output power at 65 °C | 3 kW |
| Time-limited power 1 (cold start) | 4.5 kW/2h |
| Time-limited power 2 (cold start) | 6 kW/25min |
| Max apparent feedin power | 4 kW |
| Peak power | 7 kW/1min |
| Maximum efficiency | 95% |
| Zero load power | 20 W |
| Zero load power in AES mode | 13 W |
| Zero load power in Search mode | 8 W |
| CHARGER | |
| AC Input voltage range | 187-265 V |
| AC Input frequency range | 45 – 65 Hz |
| Charge voltage 'absorption' | 57.6 V |
| Charge voltage 'float' | 55.2 V |
| Storage mode | 52.8 V |
| Max. battery charge current at 25 °C | 55 A |
| Max. battery charge current at 40 °C | 50 A |
| Battery temperature sensor | Yes |
| Compatible battery chemistries | Lithium, Lead-acid, Zinc-Bromine and more (3) |
| GENERAL | |
| Auxiliary output | Yes (32A) |
| Interfaces | BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi |
| External AC current sensor (optional) | 50 A or 100 A |
| Programmable relay (4) | Yes |
| Protection (2) | a-g |
| VE.Bus communication port | For parallel and three-phase operation, remote monitoring and system integration |
| General-purpose communication port | Yes, 2x |
| Remote on-off | Yes |
| Operating temperature range | -40 to +65 °C (fan-assisted cooling) |
| Maximum humidity (non-condensing) | 95% |
| Maximum altitude | 2000 m |
| ENCLOSURE | |
| Material & Colour | Steel, blue RAL 5012 |
| Protection category | IP21 |
| Battery-connection | M8 bolts |
| 230 VAC connection | Screw terminals 13 mm² (6 AWG) |
| Weight | 21.4kg |

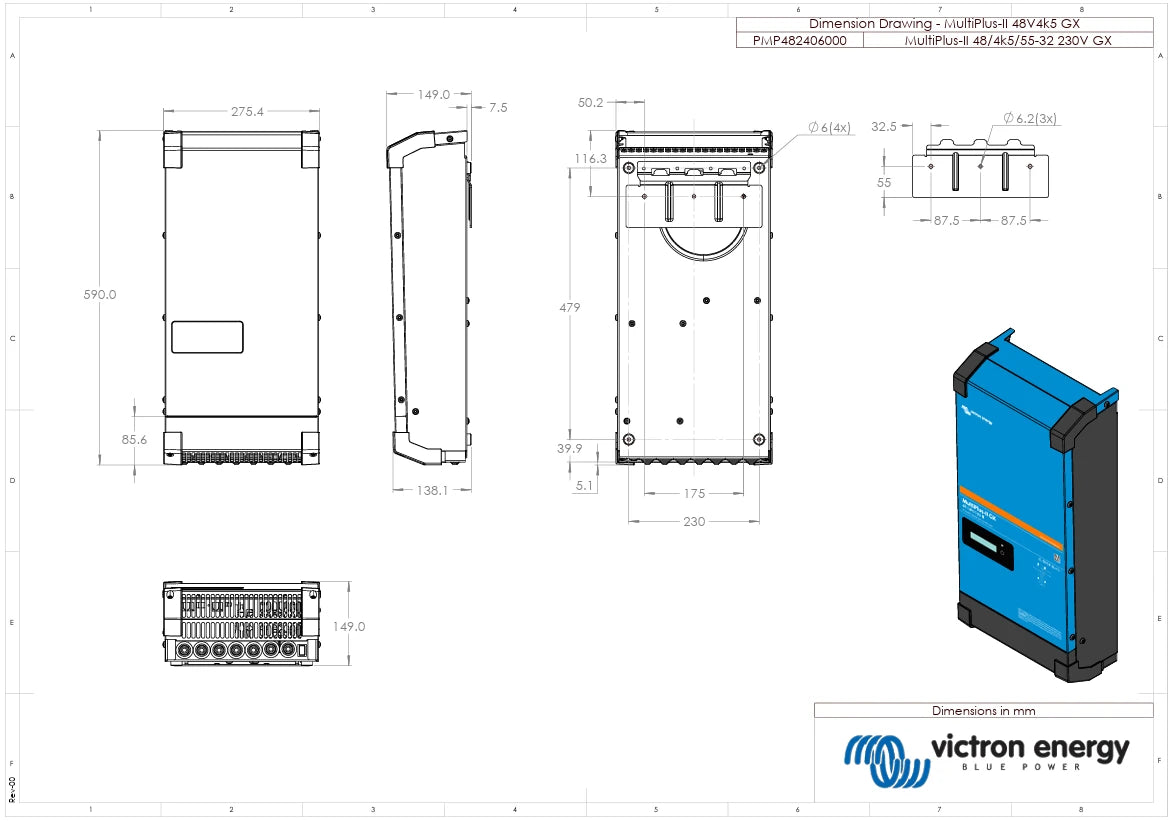

| Dimensions (hxwxd) | 590 x 275 x 149 mm |
| STANDARDS | |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission, Immunity | EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Uninterruptible power supply | Certification pending |
| Anti-islanding | Certification pending |
|
1) Can be adjusted to 60 Hz 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) 230 VAC on inverter output g) input voltage ripple too high 3) Other chemistries are possible as well, providing the charger is configured according to the battery manufacturer's specification. 4) Programmable relay which can be set for general alarm, DC under voltage or genset start/stop function. AC rating: 230V / 4 A, DC rating: 4 A up to 35VDC and 1 A up to 60 VDC. |
|
| SKU: | VIC-PMP482406000 |
| Barcode: | 8719076066491 |
| Model #: | PMP482406000 |
| MPN: | PMP482406000 |
