Victron MPPT Control LCD + 5m VE.Direct Cable
Victron MPPT Control LCD + 5m VE.Direct Cable

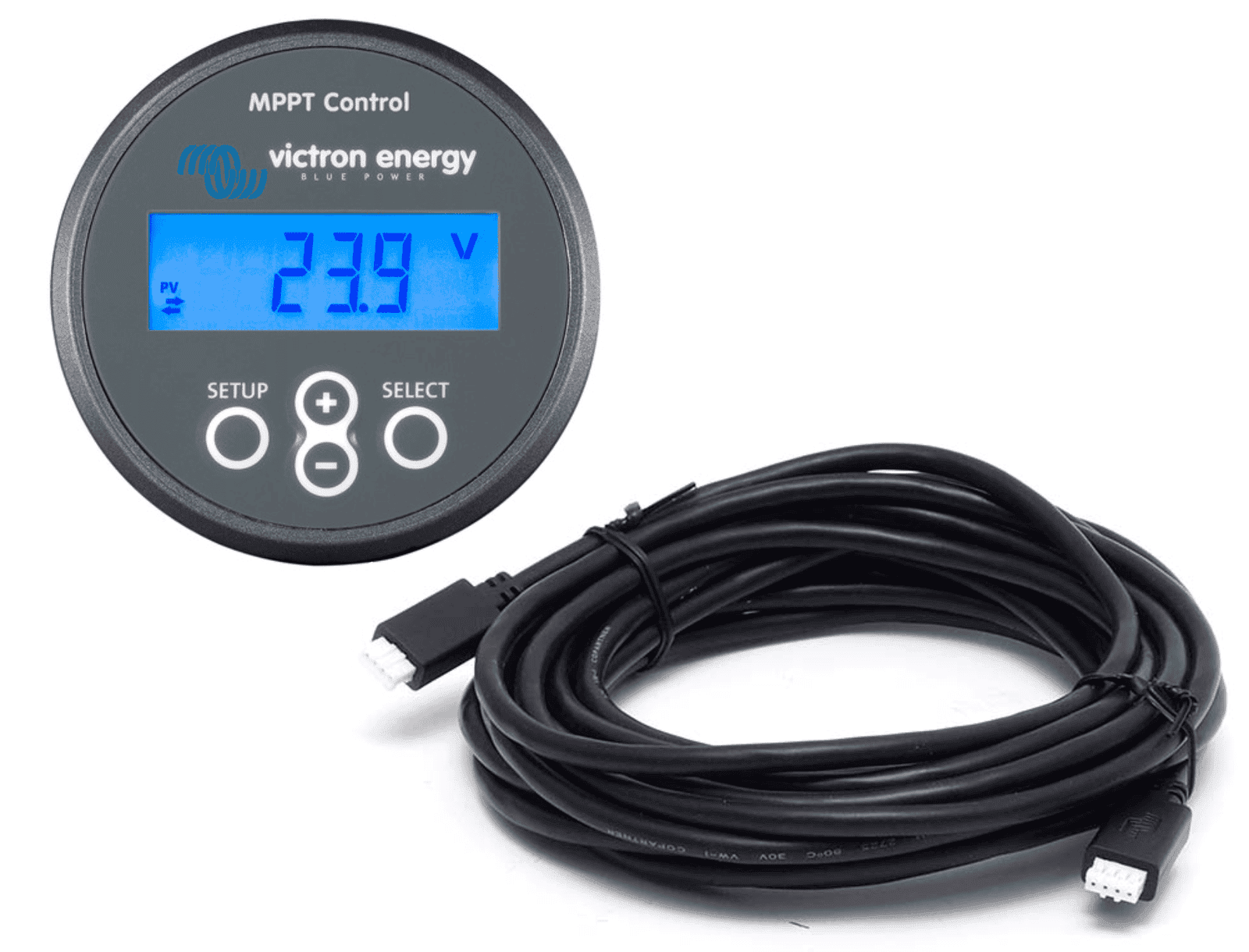

Backlit LCD, 5m VE.Direct Cable, Flush Mount, 63mm Front
Key features: Real-time monitoring of MPPT solar charge controller data, High-contrast blue backlit LCD display for easy reading, Includes 5-metre VE.Direct cable for plug-and-play installation, Simple 4-button interface for system setup and navigation.

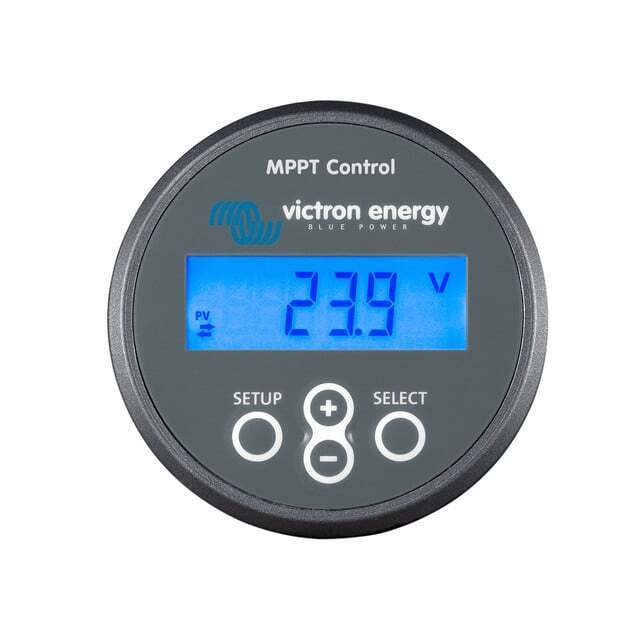

Highlights:Backlit LCD Display: Provides live status information including voltage and PV performance,Setup Button: Enter the configuration menu to adjust device settings,Select Button: Toggle between different data parameters on the screen,Navigation Controls: Plus and minus buttons to scroll through menus and change values.

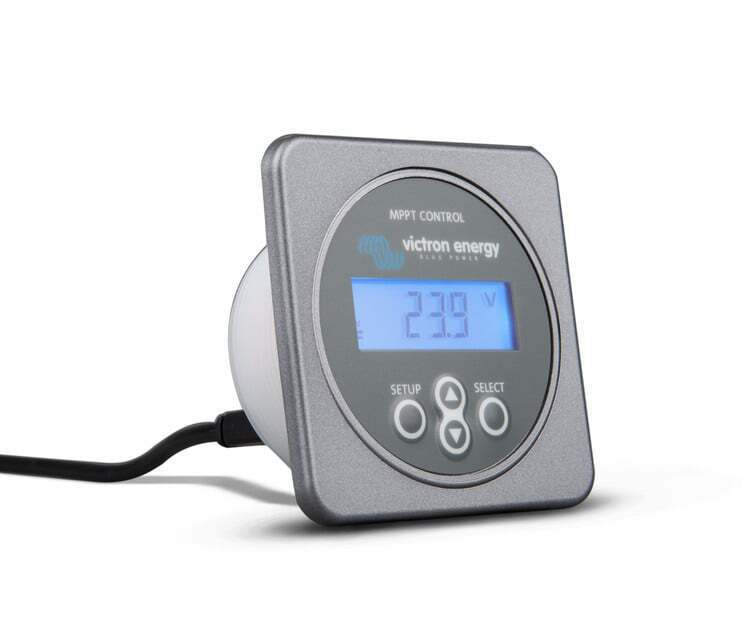

This Victron MPPT Control panel is shown with a square mounting bezel, highlighting the compact rear enclosure and secure VE.Direct port connection for simple system integration.

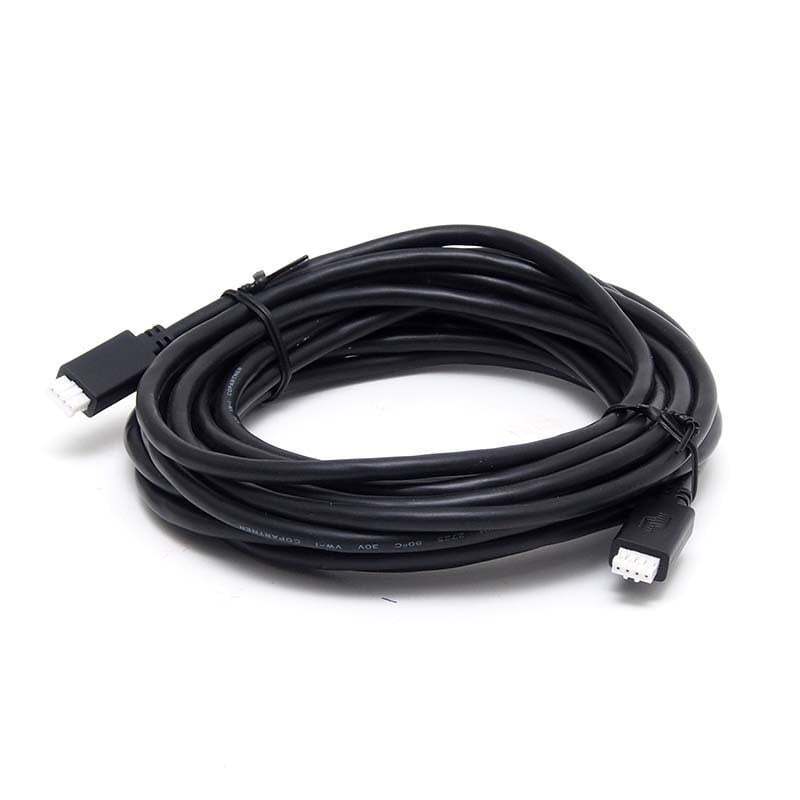

A 5-metre VE.Direct communication cable featuring durable black insulation and standard 4-pin connectors for linking controllers to displays or GX devices.
DESCRIPTION
Victron MPPT Control LCD Display with 5m VE.Direct Cable
Real-Time Monitoring and Configuration for Victron BlueSolar and SmartSolar MPPT Charge Controllers
The Victron MPPT Control is a dedicated remote panel that provides live status information and full setup access for Victron BlueSolar MPPT and SmartSolar MPPT solar charge controllers equipped with a VE.Direct communication port. This combination package includes a 5-metre VE.Direct cable, allowing flexible placement of the display up to 5 metres from the controller—ideal for installations where the charge controller is mounted in a compartment, engine room, or other hard-to-reach location.
With its high-contrast blue backlit LCD screen, the MPPT Control delivers clear, at-a-glance readings of critical parameters such as PV voltage, battery voltage, charge current, and charge stage. The simple four-button interface enables intuitive navigation through menus, making it easy to adjust settings, review historical data, and optimise system performance without needing a smartphone or additional software.
Key Features
- Live system monitoring – View real-time solar yield, battery status, and charge controller data on a bright backlit display
- Full configuration access – Adjust charge parameters, load output settings, and network preferences directly from the panel
- 5-metre VE.Direct cable included – Enables remote mounting of the display away from the charge controller for convenient access
- Wide compatibility – Works with all current Victron BlueSolar MPPT and SmartSolar MPPT models (except the discontinued BlueSolar MPPT 70/15)
- Low power consumption – Draws less than 0.05 W with backlight off, minimising impact on battery reserves
- Flush-mount design – Compact 63 mm front diameter with a 69 x 69 mm bezel for a clean, professional installation
Simplified System Management Without Additional Tools
Unlike generic charge controller displays that offer limited readouts, the Victron MPPT Control provides comprehensive access to both live and logged data. It eliminates the need to connect a laptop or mobile device for routine adjustments, reducing setup time and complexity. The backlit screen remains readable in direct sunlight or low-light compartments, and the straightforward menu structure reduces the risk of configuration errors.
The included 5-metre VE.Direct cable uses secure 4-pin connectors, ensuring a reliable data link between the controller and display. This length is particularly useful in larger vehicles, vessels, or fixed off-grid installations where the charge controller is located near the battery bank but the display is needed at a central monitoring point.
Designed for Demanding Off-Grid and Mobile Environments
Victron Energy products are engineered for durability in harsh conditions, and the MPPT Control is no exception. The flush-mount housing protects internal electronics from dust and moisture, while the simple button interface remains functional even when wearing gloves. Whether you are managing a caravan solar system, a marine power setup, or a remote off-grid installation, this display provides the visibility and control needed to maintain optimal charging performance.
Take Control of Your Solar Charging System
Add the Victron MPPT Control with 5m VE.Direct cable to your installation today and gain convenient, real-time oversight of your solar charge controller. Monitor performance, fine-tune settings, and ensure your batteries are charged efficiently—all from a single, easy-to-use panel.
SKU: Vic-MPPT-CTRL-COMBO5M-01
SPECIFICATIONS
Specifications
| Included VE.Direct Cable Length | 5 m |
|---|---|
| Supply Voltage Range When Powered From Battery | 6.5 - 95 Vdc |
| Supply Voltage Range When Powered Via VE.Direct Cable | 5 Vdc |
| Power Consumption With Back-light Turned Off | < 0.05 W |
| Power Cable Fuse Rating | 100 mA |
| Installation Type | Flush Mount |
| Front Diameter | 63 mm (2.5") |
| Front Bezel | 69 x 69 mm (2.7 x 2.7") |
| Body Diameter | 52 mm (2.0") |
| Body Depth | 31 mm (1.2") |
| Power Cable Length | 1.5 m |
| Maximum VE.Direct Cable Length | 10 m |
| Weight | 50 g |
| Suitability | Suitable for the entire Victron Energy BlueSolar MPPT and the SmartSolar MPPT solar charger range, with the exception of the discontinued BlueSolar MPPT 70/15. |
| SKU: | Vic-MPPT-CTRL-COMBO5M-01 |
