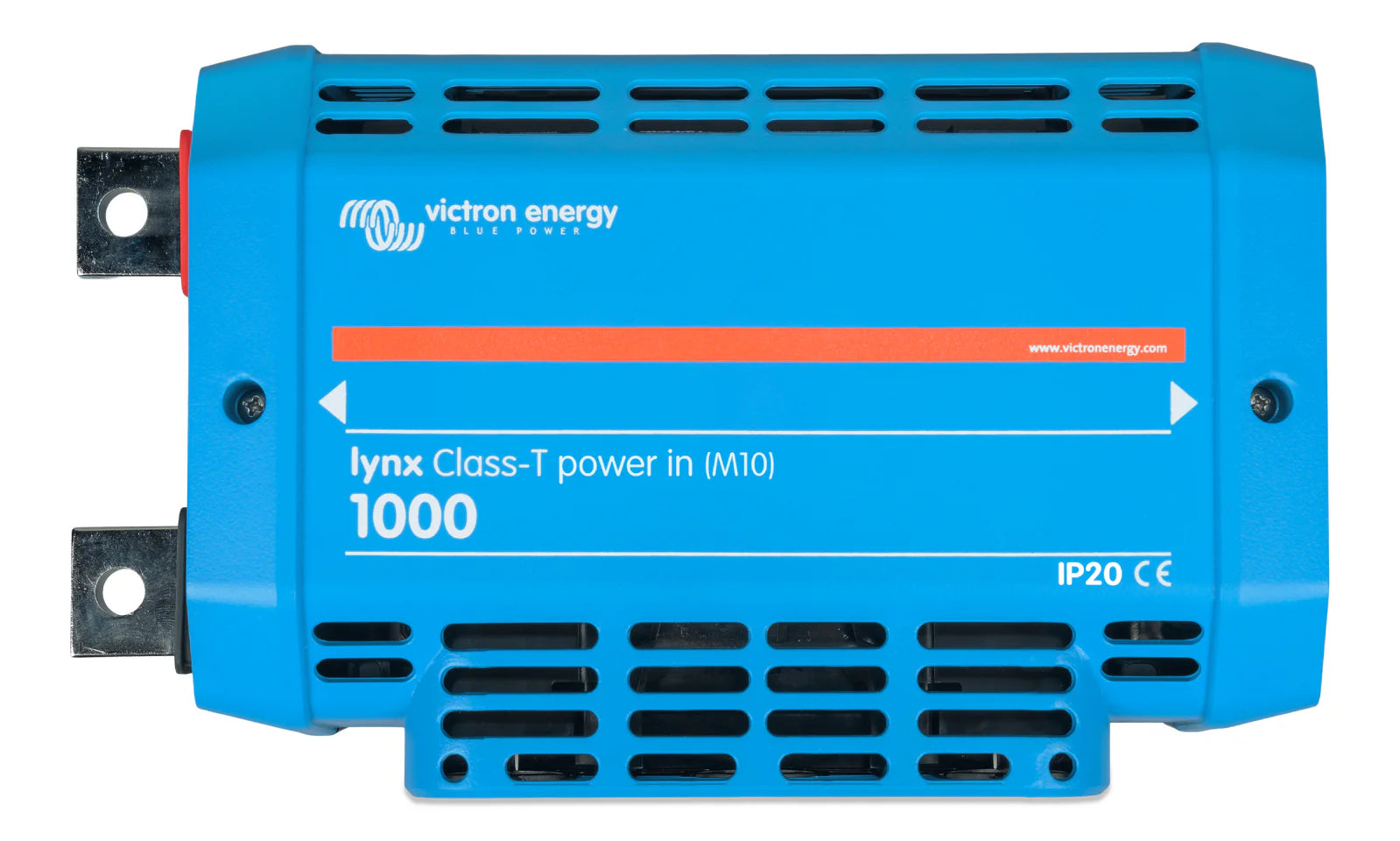

Victron 1000A Lynx Class-T Power In M10 Busbar
Victron 1000A Lynx Class-T Power In M10 Busbar
1000A Continuous Busbar with Dual Class-T Fuse Mounts - 290x170x80mm
Key features: 1000A DC continuous current rating, 9-60V DC voltage range, IP22 protection rating, Tinned copper busbar material, ABS enclosure material.

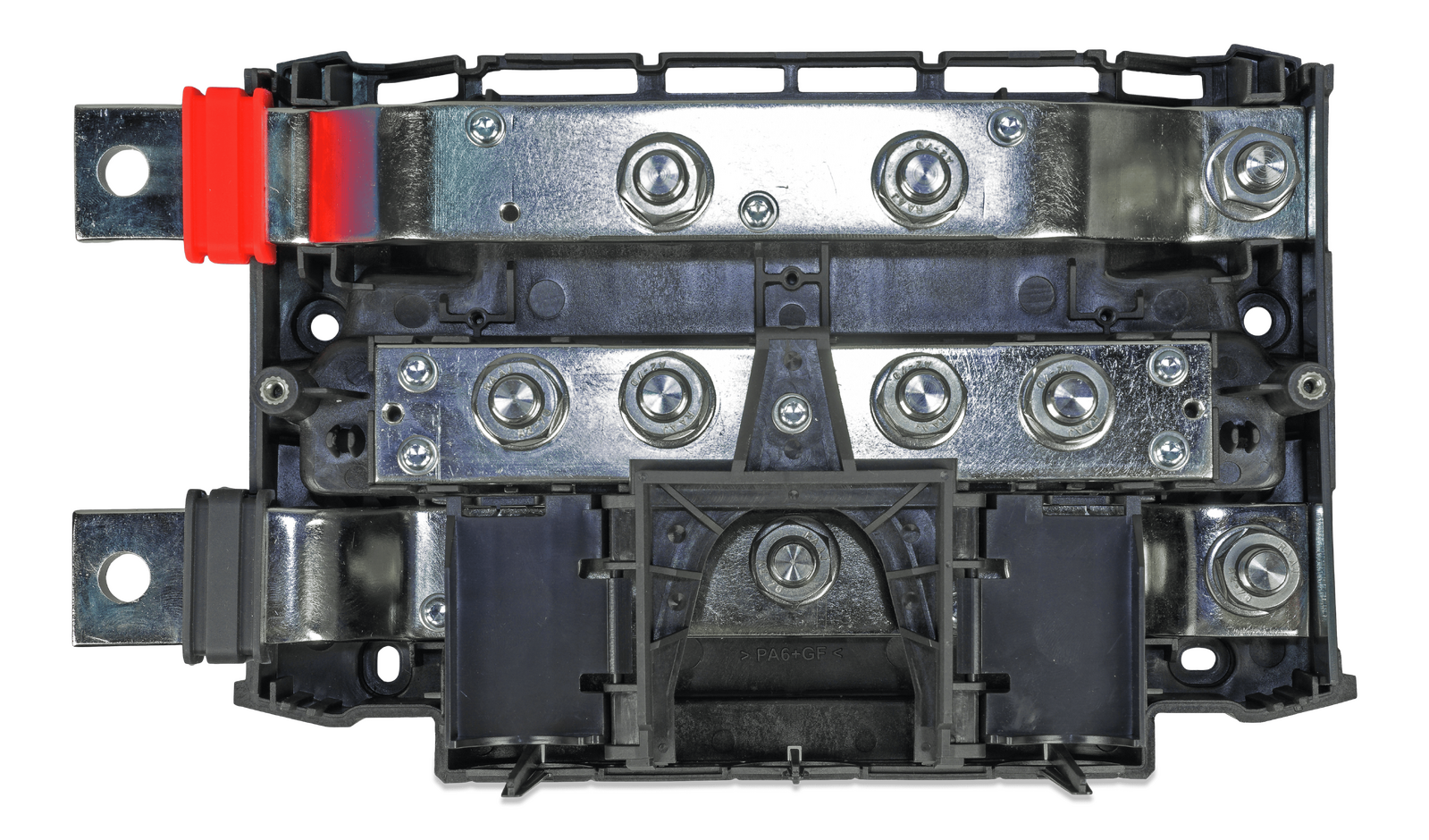

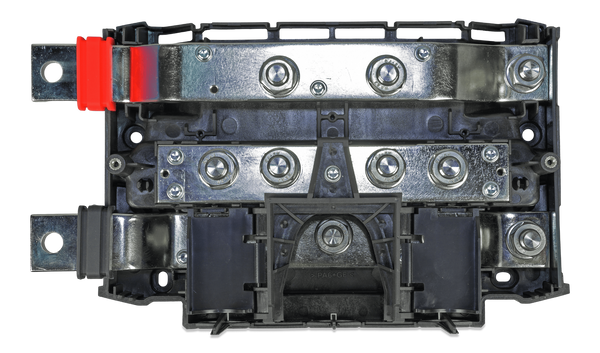

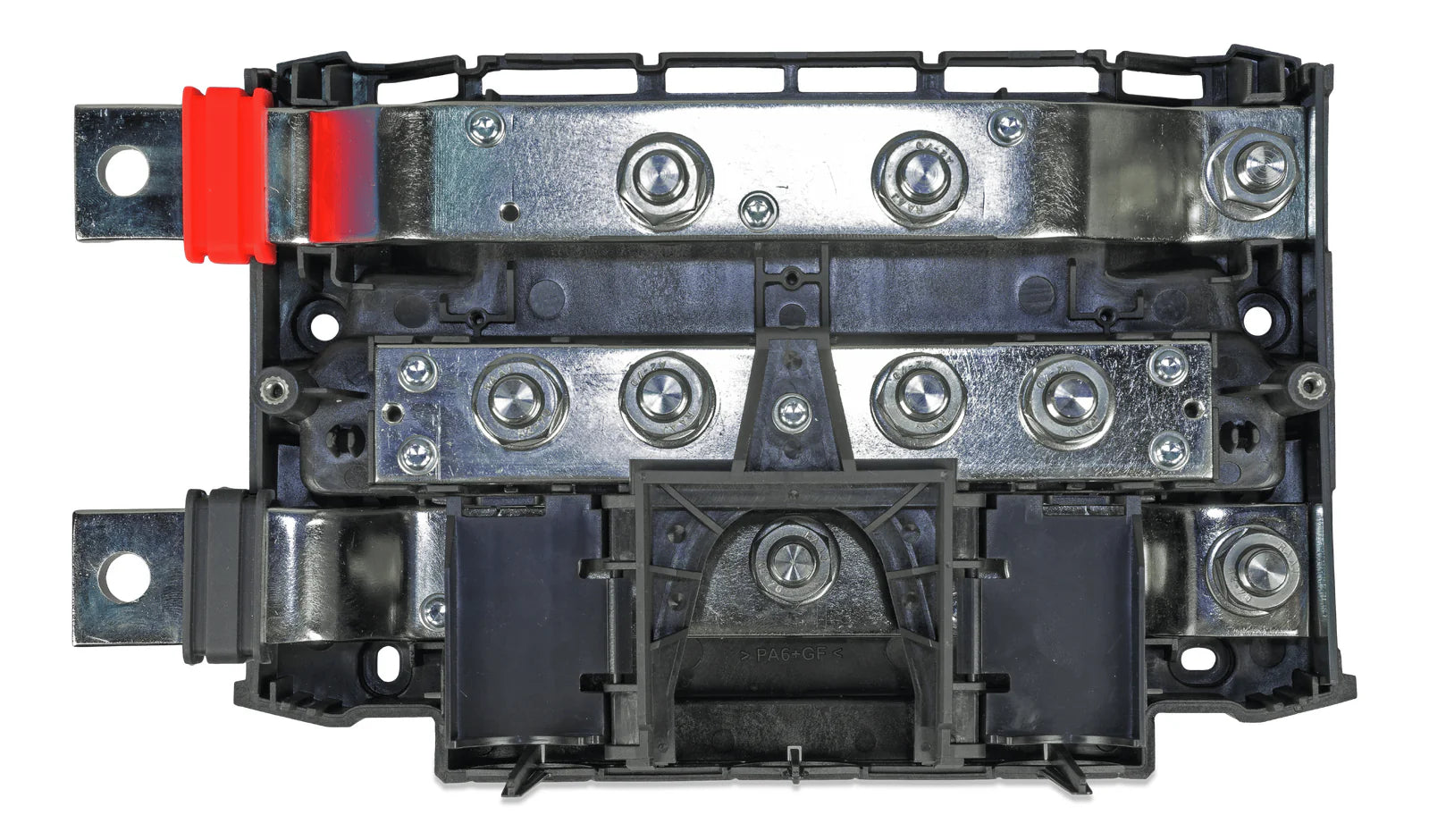

Highlights:Positive Terminal: Left-side positive input terminal connection point,Top Busbar: Main tinned copper busbar section for fuse mounting,Fuse Mounting Stud: M10 stud for securing Class-T fuses,Bottom Busbar: Lower tinned copper busbar connection point,Negative Terminal: Left-side negative input terminal connection point.

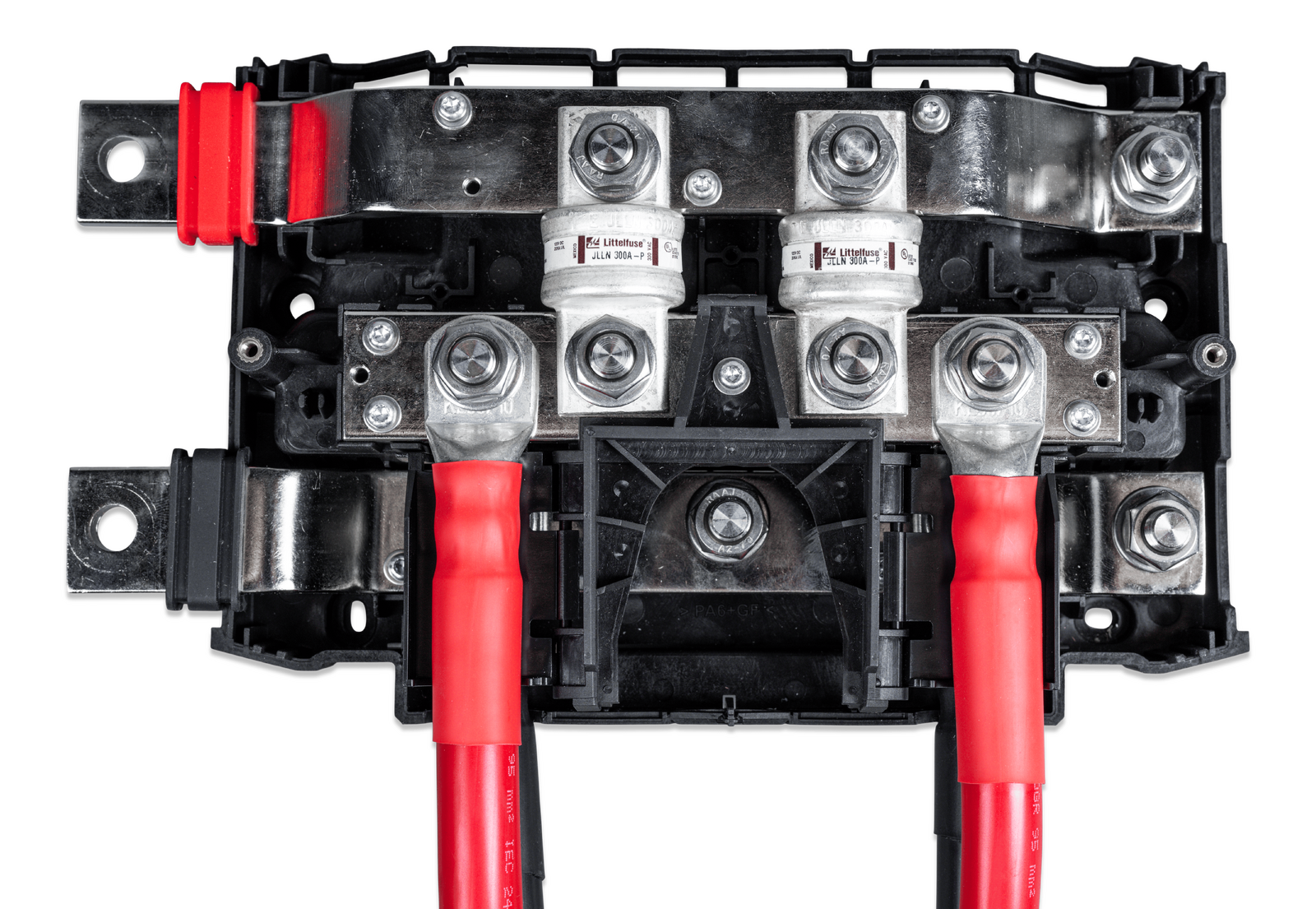

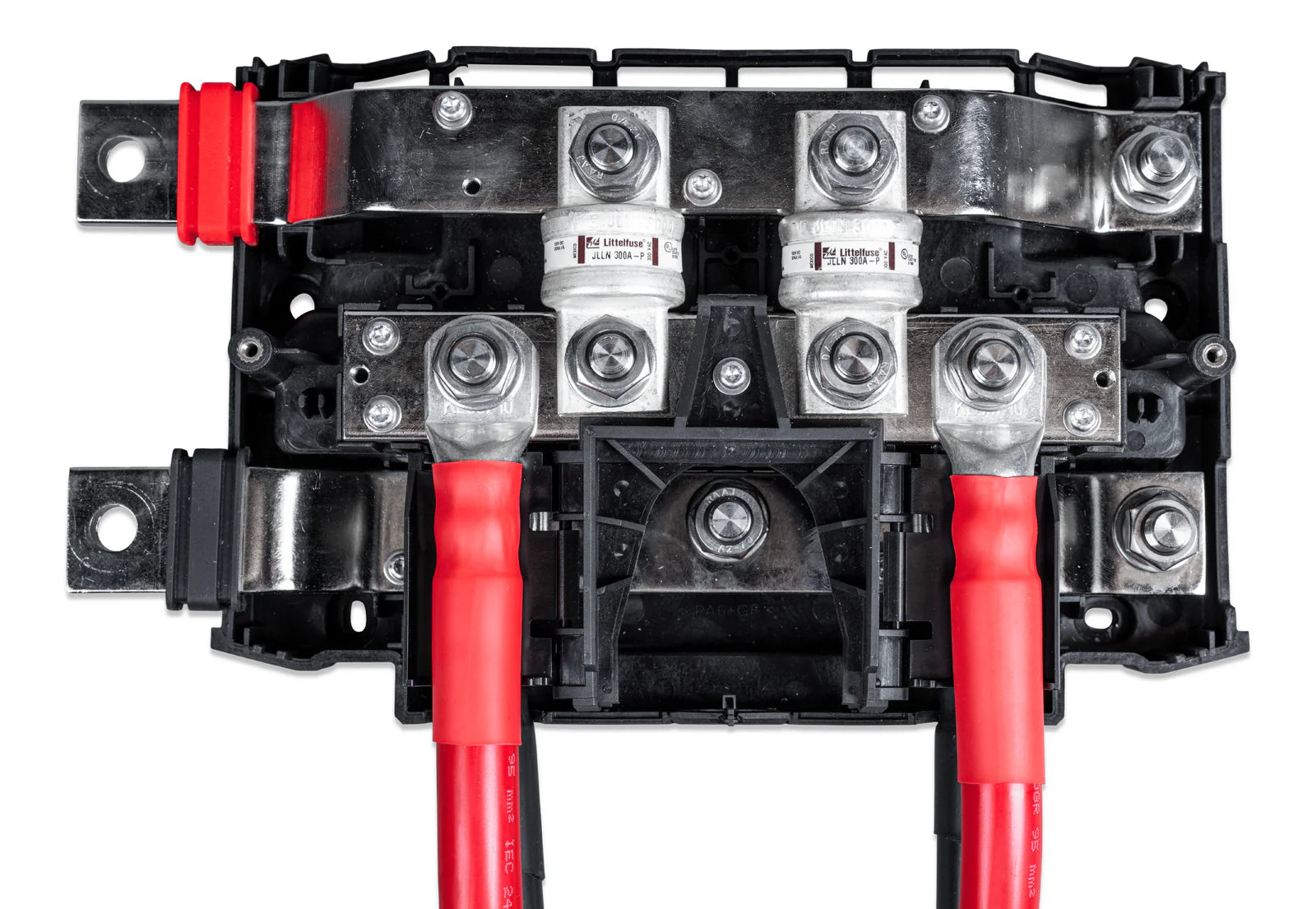

Detailed interior view showing two 300A Littelfuse Class-T fuses and heavy-duty battery cables installed within the Victron Lynx Power In system via M10 lugs.

DESCRIPTION
Victron Lynx Class-T Power In (M10): High-Current DC Busbar with Integrated Class-T Fuse Protection
Centralised Power Distribution for Multi-String Lithium Battery Systems
The Victron Lynx Class-T Power In (M10) is a purpose-built DC busbar module designed to connect and fuse up to two strings of Lithium batteries within the modular Lynx Distribution system. It combines a positive and negative tinned copper busbar with dedicated mounting for Class-T fuses, delivering a streamlined, space-efficient solution for high-current DC power distribution in demanding off-grid, marine, and vehicular installations.
Engineered for continuous 1000A DC operation across a 9-60V DC range, this module is ideally suited for large-scale 12V, 24V, and 48V battery banks. By integrating fuse holders directly into the busbar, the Lynx Class-T Power In eliminates the need for separate fuse blocks, reducing wiring complexity, voltage drop, and potential failure points. This integrated approach enhances system reliability and simplifies installation, making it a preferred choice for professional installers and serious DIY enthusiasts building robust lithium battery systems.
Why Class-T Fuses? Superior Protection for Lithium Batteries
Class-T fuses are recognised for their high interrupting capacity and fast-acting response, essential for protecting sensitive Lithium Iron Phosphate (LiFePO4) and other lithium chemistries. Unlike slower-acting alternatives, Class-T fuses rapidly clear high fault currents, minimising the risk of damage to battery cells, busbars, and connected equipment. The Lynx Class-T Power In accepts widely available 225A, 250A, 350A, and 400A Class-T fuses (sold separately), allowing precise matching to your battery bank's short-circuit protection requirements.
This level of protection is critical in systems where battery fault currents can exceed tens of thousands of amps. The integrated fuse mounting on the 8x30mm tinned copper busbar ensures a low-resistance, mechanically secure connection, maintaining system efficiency even under sustained high loads.
Seamless Integration with the Lynx M10 Ecosystem
As part of the Victron Lynx M10 family, this module connects directly to other Lynx components such as the Lynx Shunt VE.Can, Lynx Distributor, and Lynx Power In using the included M10 bolts and rubber couplers. This modular approach allows you to build a customised, scalable DC distribution system without custom busbar fabrication. For installations with three or more battery strings, simply add additional Lynx Class-T modules in series.
The ABS enclosure (IP22) provides basic protection against solid objects, while the compact footprint (290x170x80mm) fits neatly into standard electrical compartments. A dedicated ground connection point simplifies DC system earthing, enhancing safety and compliance with installation standards.
Key Features
- Integrates two Class-T fuse holders directly onto a 1000A continuous-rated busbar
- Connects and fuses up to two lithium battery strings in a single compact module
- Compatible with 225A, 250A, 350A, and 400A Class-T fuses for tailored protection
- Modular design links with all Victron Lynx M10 products for scalable system building
- Tinned copper busbars (8x30mm) resist corrosion and ensure low-resistance connections
- Includes M10 stud terminals for secure, high-current cable lugs
- Dedicated ground connection point for DC system earthing
- Operating temperature range: -40°C to +60°C for harsh environments
Built for Demanding Environments
Victron Energy designs its Lynx series for reliability in mobile and stationary applications. The Lynx Class-T Power In features a robust ABS enclosure and corrosion-resistant tinned copper busbars, suitable for marine, RV, and off-grid solar installations. With an operating range from -40°C to +60°C and up to 95% non-condensing humidity, it withstands the temperature swings and moisture levels common in Australian conditions.
By centralising battery connections and fuse protection, this module reduces the risk of loose connections, accidental shorts, and uneven current sharing between parallel battery strings. The result is a safer, more maintainable power system that protects your investment in premium lithium batteries.
Simplify Your High-Current DC Installation
Whether you're upgrading a marine electrical system, building a large off-grid solar array, or outfitting a commercial vehicle with lithium power, the Victron Lynx Class-T Power In (M10) delivers the integrated protection and modular flexibility required for professional-grade results. Pair it with a Victron Lynx Shunt VE.Can for complete battery monitoring, and a Lynx Distributor for fused DC loads.
Order the Victron Lynx Class-T Power In (M10) today and build a safer, more efficient DC distribution backbone for your lithium battery system.
SKU: VIC-LYN060404010
Visit Victron's Official Victron 1000A Lynx Class-T Power In M10 Busbar Webpage Here
SPECIFICATIONS
Specifications
| Power | |
|---|---|
| Voltage range | 9 - 60Vdc |
| Current rating 1000Adc | 1000Adc continuous |
| Physical | |
| Enclosure material | ABS |

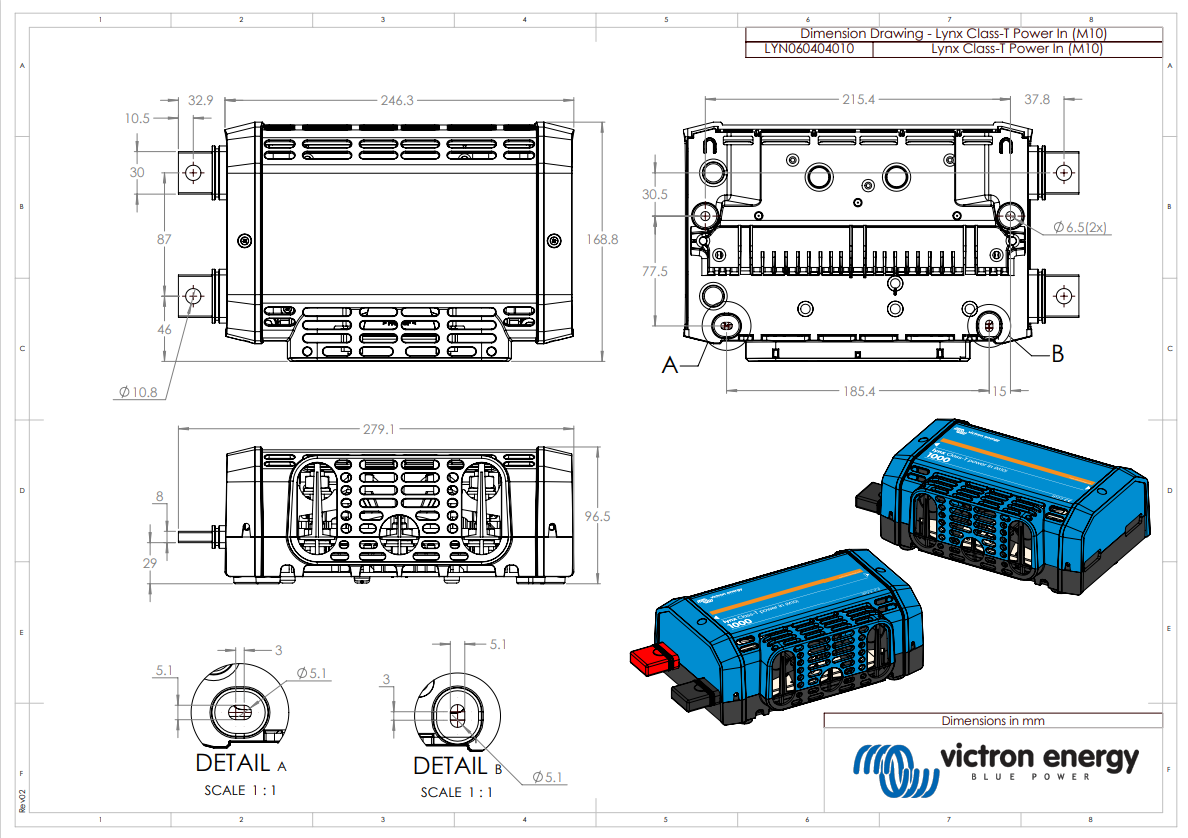

| Enclosure dimensions (hxwxd) | 290 x 170 x 80mm |
| Unit weight | 2.1kg |
| Busbar material | Tinned copper |
| Busbar dimensions (hxw) | 8 x 30mm |
| Environmental | |
| Operating temperature range | -40°C to +60° |
| Storage temperature range | -40°C to +60° |
| Humidity | Max. 95% (non-condensing) |
| Protection class | IP22 |
| SKU: | VIC-LYN060404010 |
| Barcode: | 8719076062967 |
| Model #: | LYN060404010 |
| MPN: | LYN060404010 |
