Victron 12V 200Ah SuperPack NG Lithium Battery
Victron 12V 200Ah SuperPack NG Lithium Battery
Next Generation Lithium

Highlights:M8 Power Terminals: Threaded M8 inserts for secure high-current cable connections,User Interface: Push button for On/Off control with integrated Bluetooth and Error status LEDs,EFS Connector: External Feedback Signal port for wired system communication,Integrated Handles: Reinforced rope handles for easier lifting and transport of the 21kg unit.


DESCRIPTION

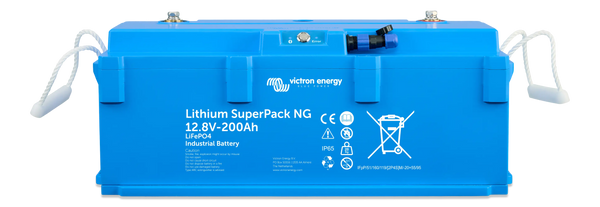

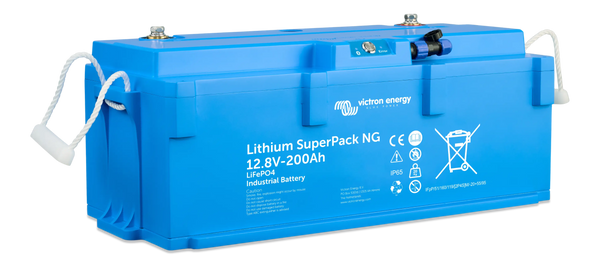

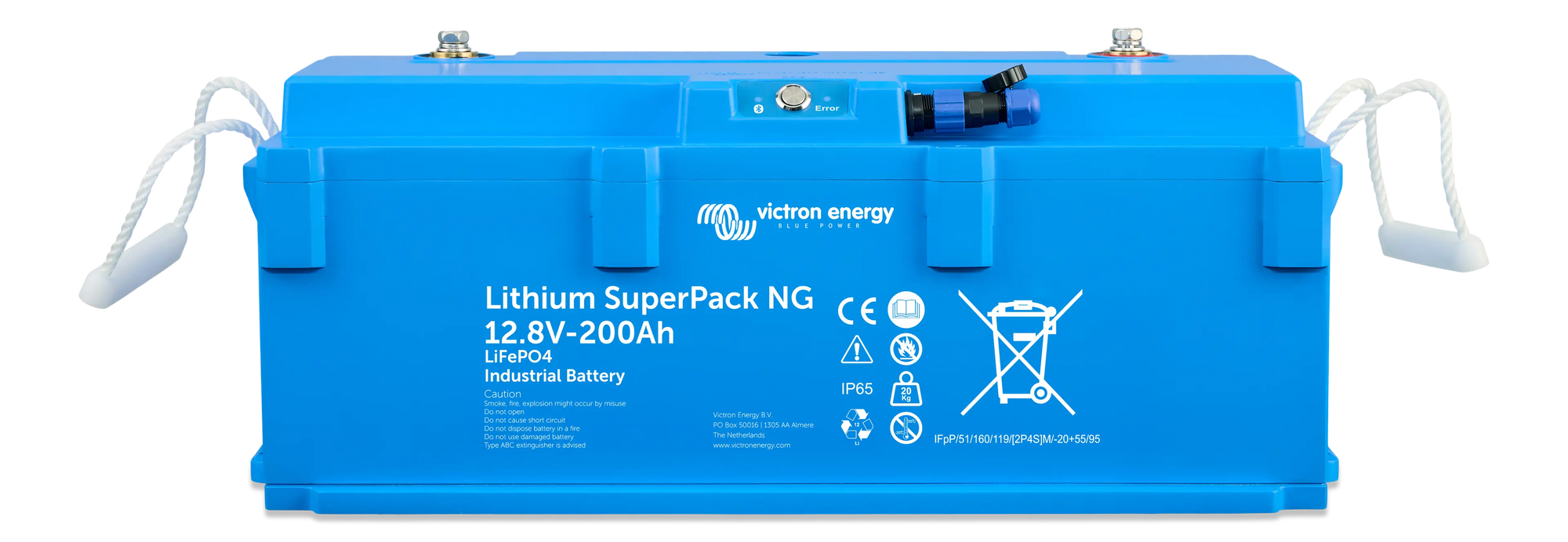

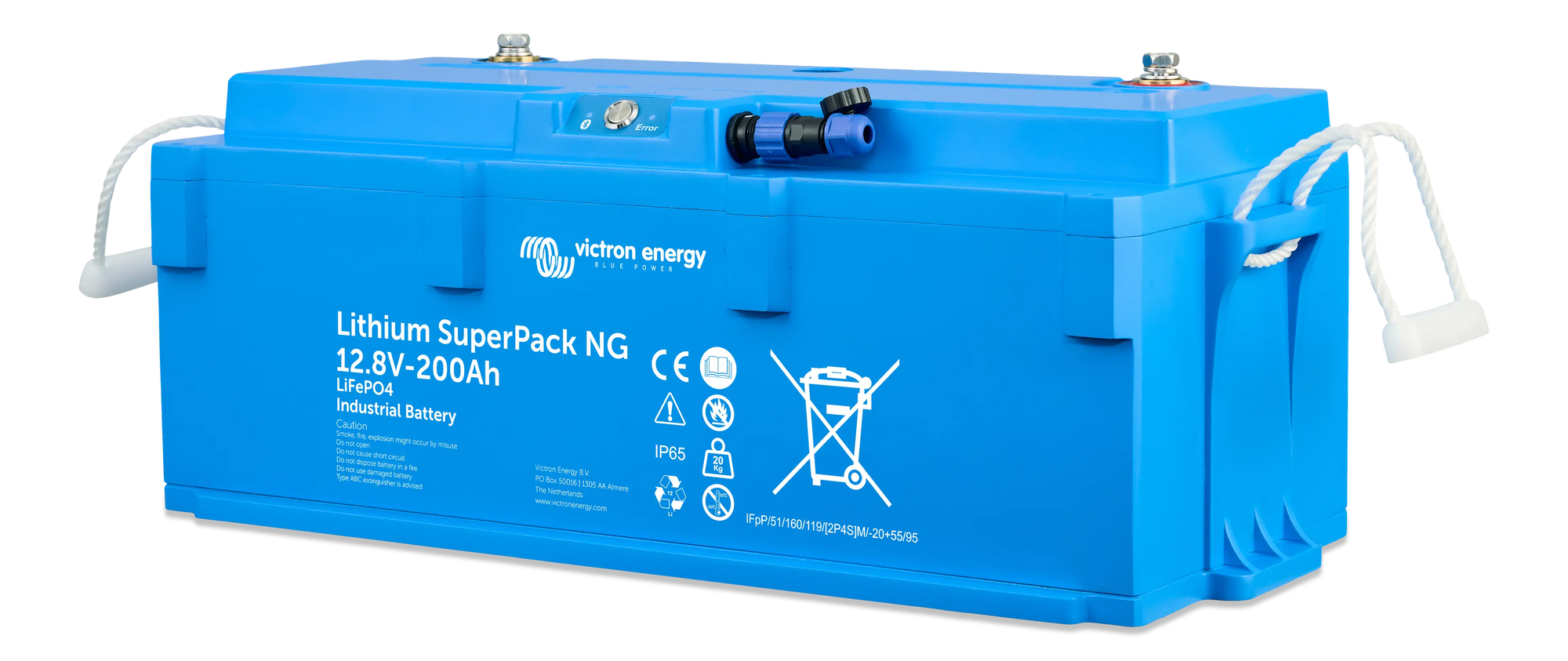

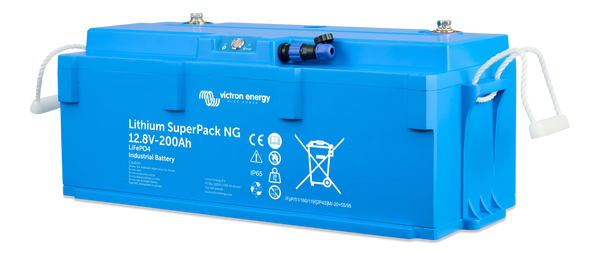

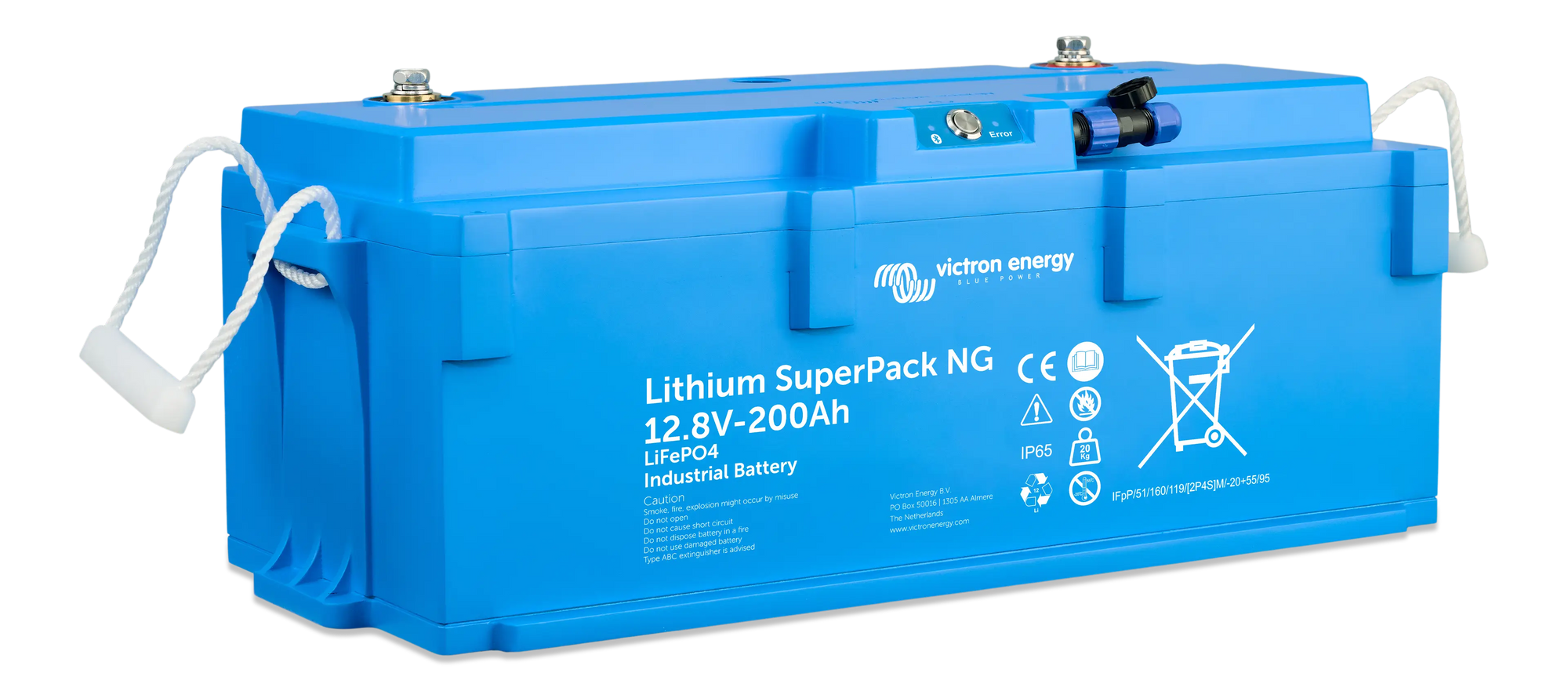

Victron SuperPack NG 12V 200Ah - High-Performance Lithium Battery
Premium Lithium Iron Phosphate (LiFePO₄) Technology
The Victron Lithium SuperPack 12,8V/200Ah offers a robust energy solution for high-demand off-grid and mobile applications. With a nominal voltage of 12,8V and a capacity of 200Ah, it provides 2560Wh of energy storage while maintaining an exceptional 93% round-trip efficiency. Designed for ease of installation, its BCI Group 49-compatible form factor and weight of 20.5 kg make it a seamless drop-in replacement for lead-acid batteries in caravans, RVs, trucks, and industrial vehicles.{index=2}.
Advanced Battery Management System (BMS) & Safety
Safety and longevity are at the core of this battery. Key features include:
- Integrated BMS with overvoltage, undervoltage, overcurrent, and temperature protection
- Self-restoring mechanisms for short circuits and overcurrent events
- Configurable discharge floor to protect battery life while maintaining reserve energy
- External Feedback Signal (EFS) output for system monitoring or triggering alarms.
These features ensure maximum safety and reliability for off-grid systems, tiny homes, and mobile power solutions.
Smart Monitoring & Control via Bluetooth
The VictronConnect app provides seamless management of your battery:
- Real-time monitoring of voltage, current, state of charge (SoC), temperature, and amp-hour consumption
- Push-button On/Off control for safe operation and storage with less than 3% monthly self-discharge
- LED status indicators for Bluetooth connectivity, warnings, and firmware updates
- Ability to connect EFS to alarms or devices, enabling visible or audible alerts for low SoC or protection event.
This advanced interface gives you complete oversight of your energy system wherever it’s deployed.
High Performance & Flexible Installation
Engineered for demanding energy requirements, the Victron Lithium SuperPack 12,8V/200Ah offers:
- Continuous discharge currents up to 2C (400A peak) and maximum charge currents of 1C (200A)
- Unlimited parallel expansion for higher energy capacity, with total system current limited to safe operation
- Operation across extreme temperatures from -30°C to 60°C, with self-heating to enable charging in cold climates
- IP65-rated housing to protect against dust and water jets for off-grid, marine, or industrial applications.
Applications
Ideal for:
- Caravan, RV, and mobile living systems for reliable off-grid energy
- Marine and boating applications
- Industrial power backup and remote monitoring systems
- Solar and off-grid energy storage setups
- Tiny homes and specialized mobile power applications
Upgrade your power system with the Victron SuperPack NG 12V 200Ah Lithium Battery for maximum energy, efficiency, and smart battery management
SKU: VIC-BAT512120740
Visit Victron's Official Victron 12V 200Ah SuperPack NG Lithium Battery Webpage Here
SPECIFICATIONS

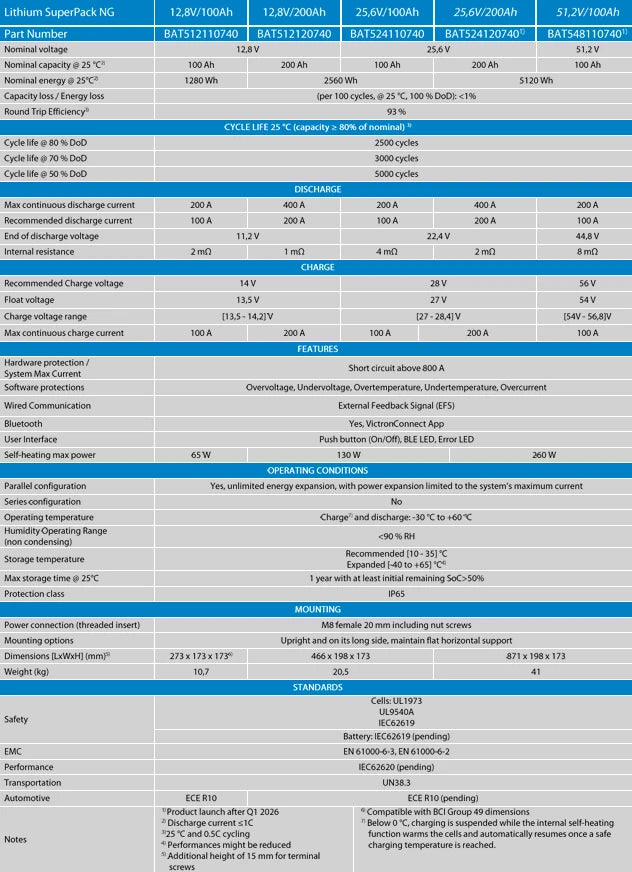

Specifications
| Battery Model | SuperPack 12.8V/200Ah NG |
|---|---|
| Part Number | BAT512120740 |
| Nominal Voltage | 12.8 V |
| Nominal Capacity @ 25°C | 200 Ah |
| Nominal Energy @ 25°C | 2560 Wh |
| Capacity Loss | <1% |
| Energy Loss | <1% |
| Round Trip Efficiency | 93% |
| Discharge Current ≤1C | Yes |
| CYCLE LIFE | |
| 80% DoD | 2500 cycles |
| 70% DoD | 3000 cycles |
| 50% DoD | 5000 cycles |
| DISCHARGE | |
| Max Continuous Discharge | 200 A |
| Recommended Discharge Current | 100 A |
| End of Discharge Voltage | 11.2 V |
| Internal Resistance | 2 mΩ |
| CHARGE | |
| Recommended Charge Voltage | 14 V |
| Float Voltage | 13.5 V |
| Charge Voltage Range | 13.5 – 14.2 V |
| Max Continuous Charge | 100 A |
| FEATURES | |
| Hardware Protection | Short circuit protection (>800 A) |
| Software Protections | Overvoltage, Undervoltage, Overtemperature, Undertemperature, Overcurrent |
| Wired Communication | External Feedback Signal (EFS) |
| Bluetooth | Yes, via VictronConnect |
| User Interface | Push button (On/Off), BLE LED, Error LED |
| Self-heating Max Power | 65 W |
| OPERATING CONDITIONS | |
| Parallel Configuration | Yes (unlimited energy expansion, system current limits apply) |
| Series Configuration | No |
| Operating Temperature | Charge & Discharge: -30°C to +60°C |
| Humidity (non-condensing) | <90% RH |
| Storage Temperature | Recommended 10°C – 35°C (Expanded -40°C to +65°C) |
| Max Storage Time @ 25°C | 1 year (with SoC >50%) |
| Protection Class | IP65 |
| MOUNTING | |
| Power Connection | M8 threaded inserts |
| Mounting Options | Upright or on its long side (flat horizontal support required) |
| Dimensions (L x W x H) mm | 345 x 173 x 240 |
| Weight | 21 kg |
| STANDARDS | |
| Safety | Cells: UL1973, UL9540A, IEC62619 (pending) |
| EMC | EN 61000-6-3, EN 61000-6-2 |
| Performance | IEC62620 (pending) |
| Transportation | UN38.3 |
| Automotive | ECE R10 (pending) |
| SKU: | VIC-BAT512120740 |
| Barcode: | 8719076076414 |
| Model #: | BAT512120740 |
| MPN: | BAT512120740 |
