Victron GX Touch 70 Flush - 7" Display
Victron GX Touch 70 Flush - 7" Display
Slim Profile Touch Screen Monitor for Cerbo GX Energy Systems
Key features: 7-inch touch screen interface, Real-time power and tank monitoring, Integrated HDMI and USB connection cable, Flush mounting for low-profile installation.

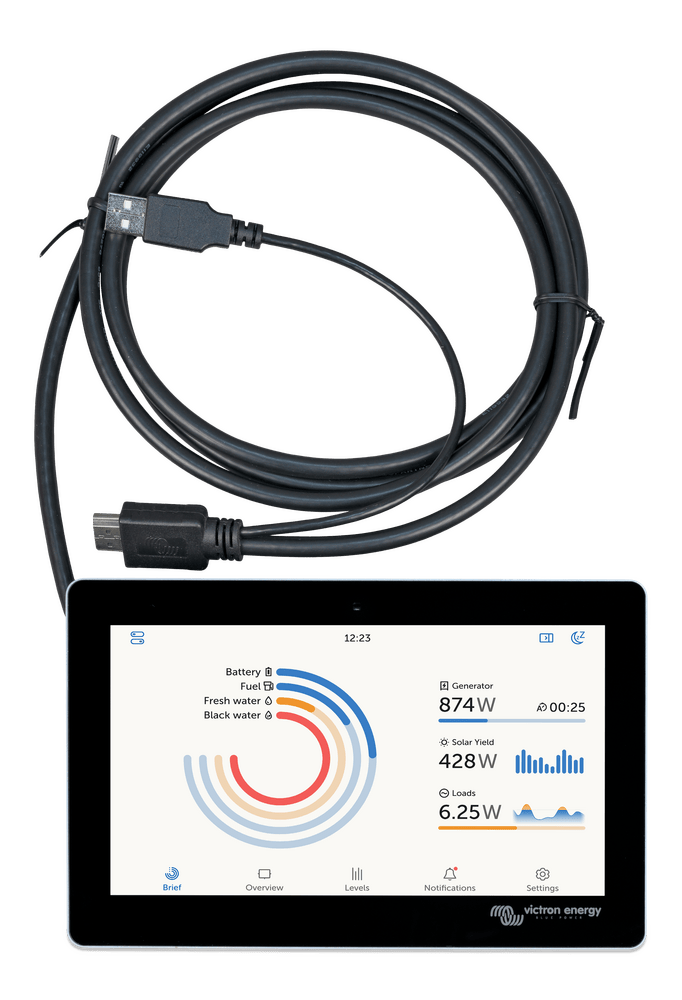

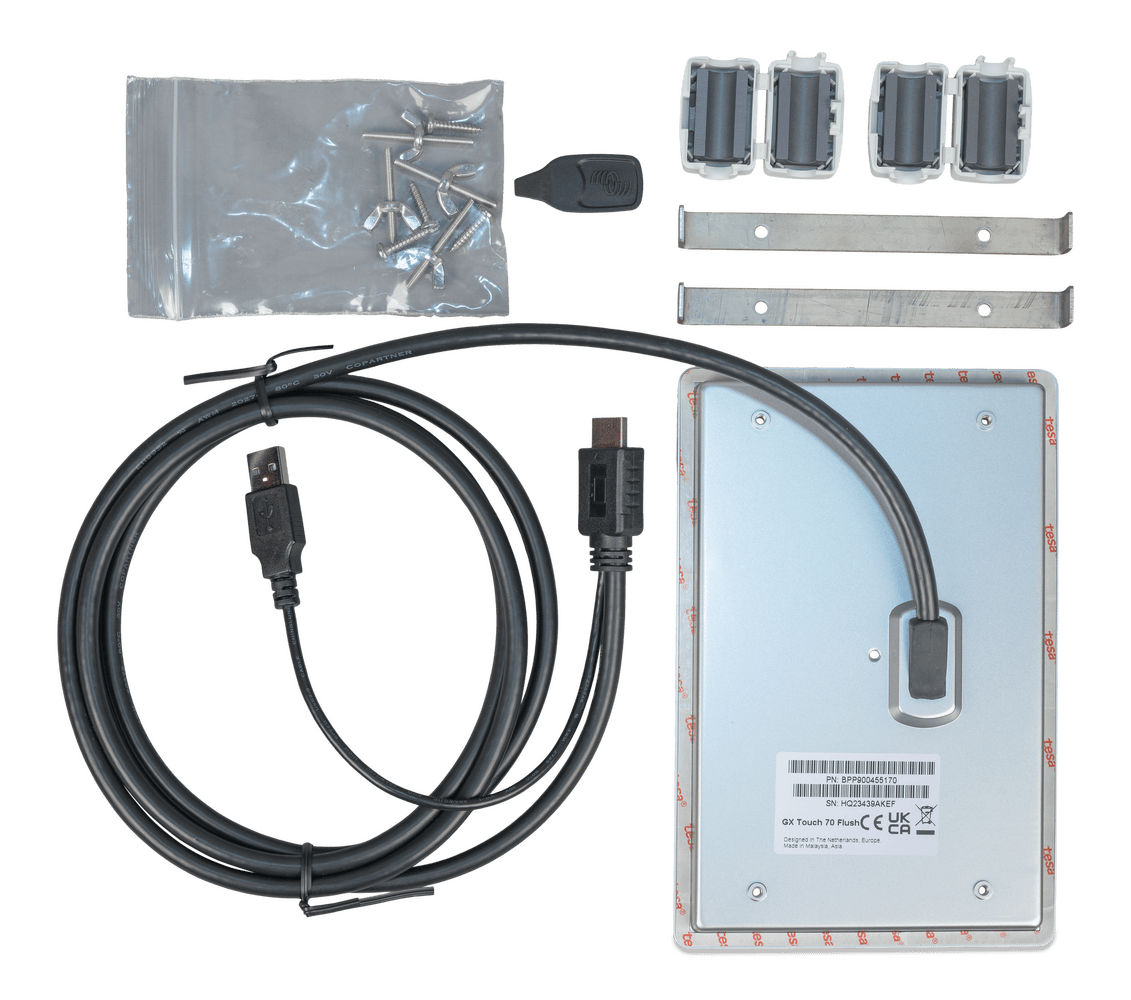

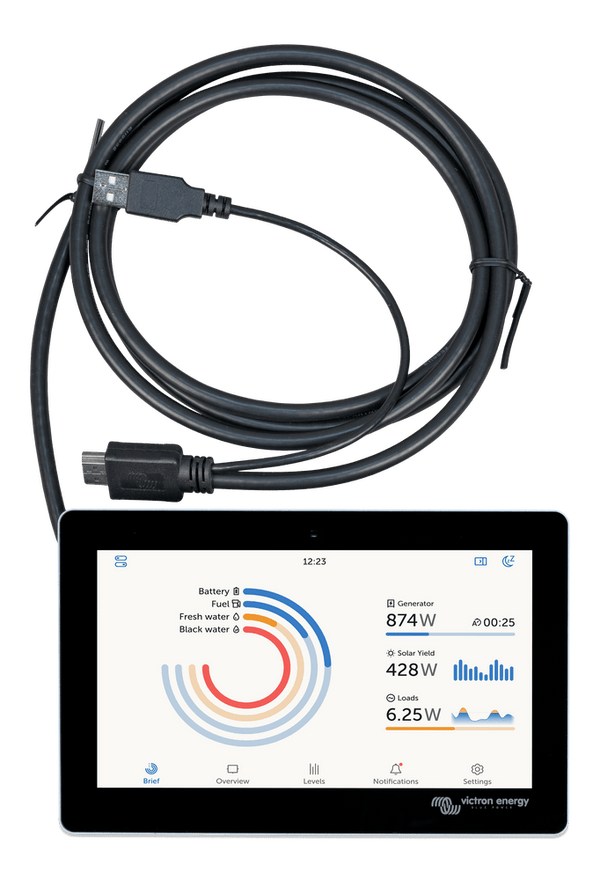

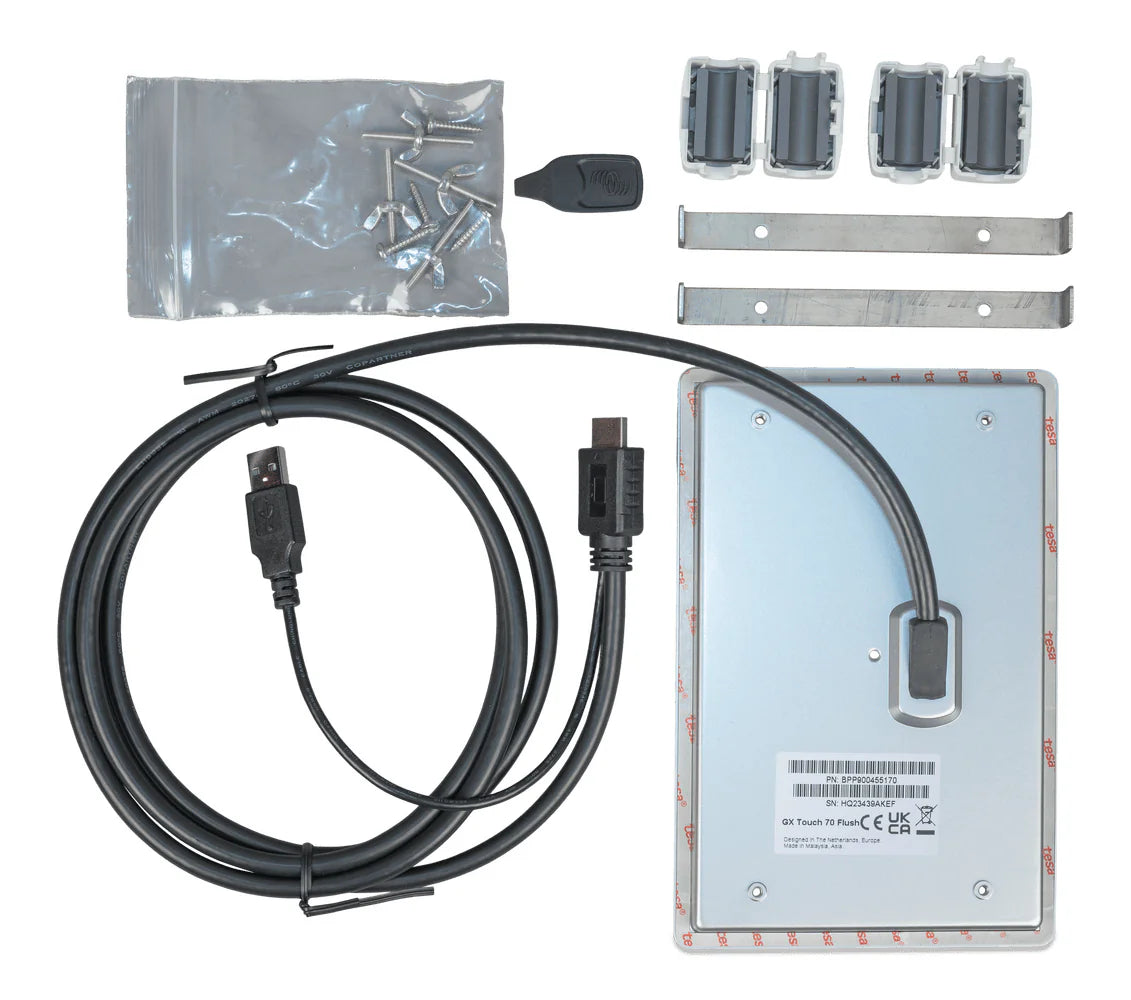

Highlights:Mounting Screws: Bag of screws and wingnuts for flush installation,Ferrite Cores: Snap-on ferrites for reducing electronic interference,Mounting Brackets: Steel brackets to secure the screen from the rear,Display Rear Panel: Rear casing of the 7-inch touch display unit,Integrated Cable: Coiled connection cable with USB and HDMI connectors.

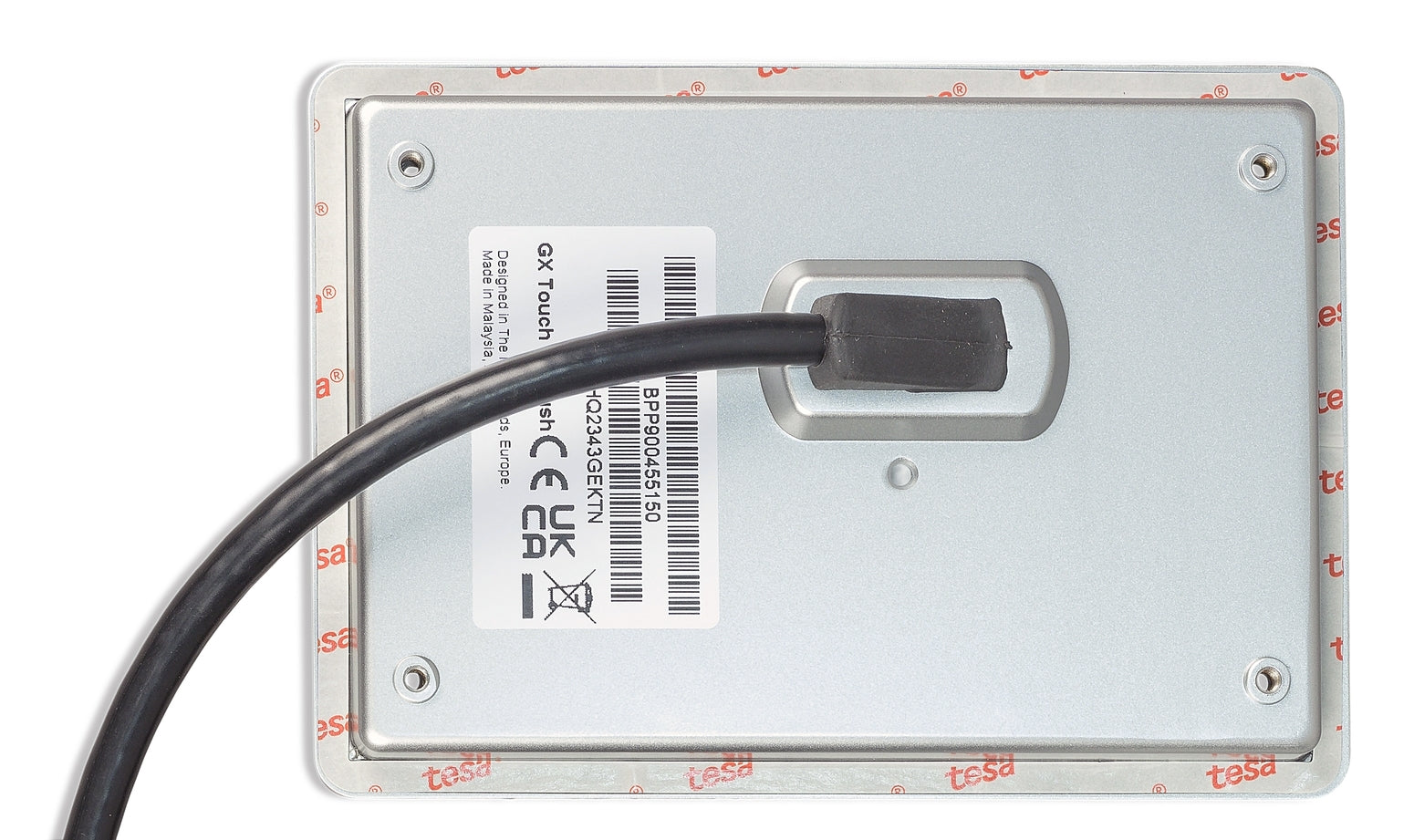

Detailed view of the integrated power and data cable entry point and technical identification label on the rear of the flush-mount GX Touch 70 display panel.

DESCRIPTION

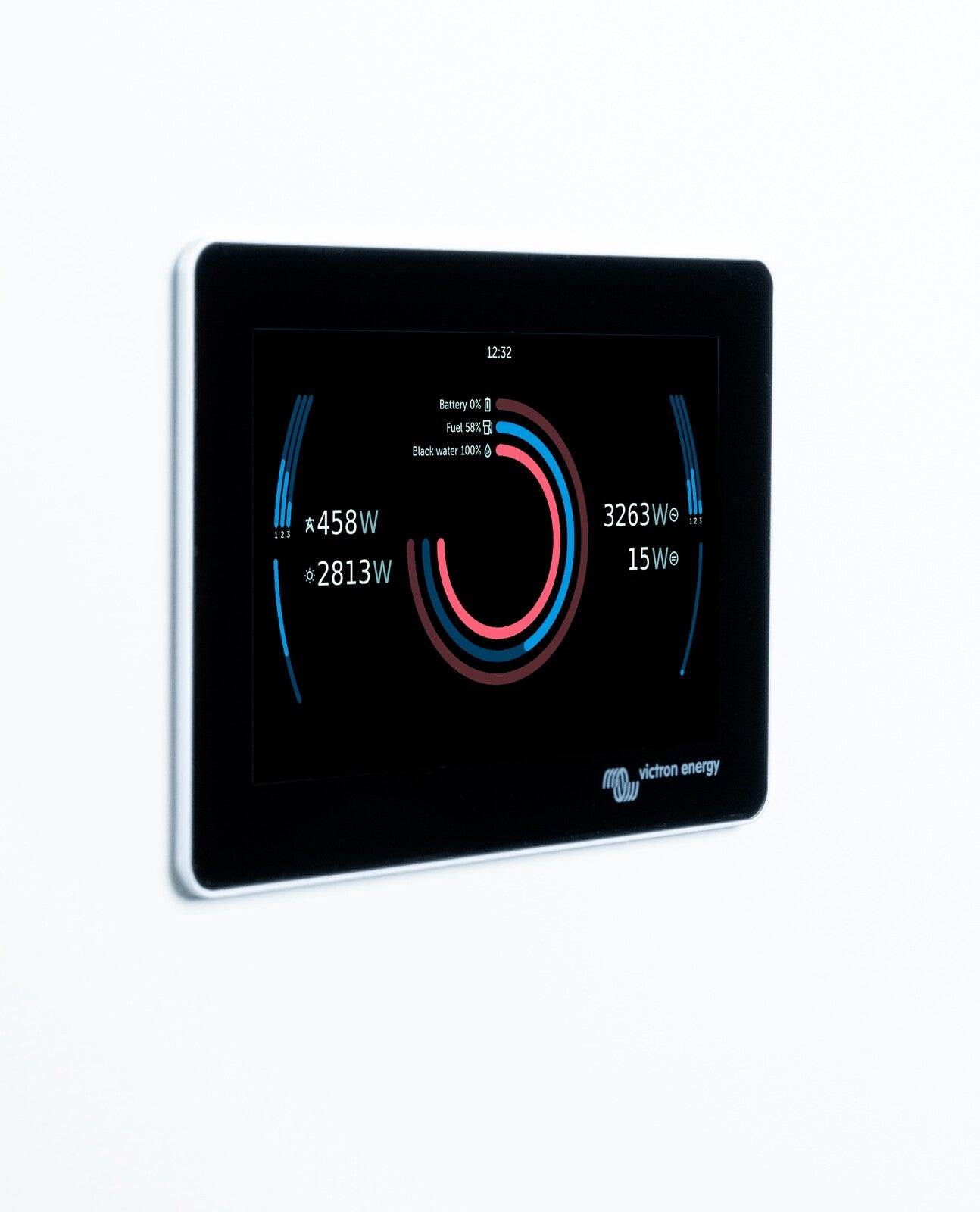

Advanced System Monitoring with the Victron GX Touch 70 Flush Mount
Take complete command of your energy setup with this highly responsive victron display panel. Designed exclusively as the interactive visual companion to the Cerbo GX, this high-resolution flush mount touch screen monitor provides an instant, comprehensive overview of your power system. Whether you are managing an off-grid solar installation, a marine vessel, or a caravan power network, having critical data accessible at a glance ensures your system operates at peak efficiency.
Crystal Clear 7-Inch Touchscreen Interface
Upgrading to the victron 7 inch display allows for a significantly improved user experience. The larger format ensures that on-screen elements, battery levels, power generation metrics, and tank levels are highly visible and easy to interact with. For users who need to read system status from a distance or prefer a less cluttered screen layout compared to smaller displays, this model offers outstanding clarity. The expanded interface reduces the time spent navigating menus, making adjustments to your system configuration fast and intuitive.
Sleek Profile and Simplified Installation
A major advantage of the victron gx touch 70 flush mount is the drastically simplified installation process. Traditional panel installations often require intricate dashboard cut-outs and meticulous measurements. In contrast, this screen features a smart, bolt-on, top-mountable design. You only need to drill straightforward holes for the mounting points and the single integrated connection cable. This sleek approach not only saves time but also results in a sophisticated, low-profile finish that complements modern vehicle dashboards, boat helms, and off-grid control panels.

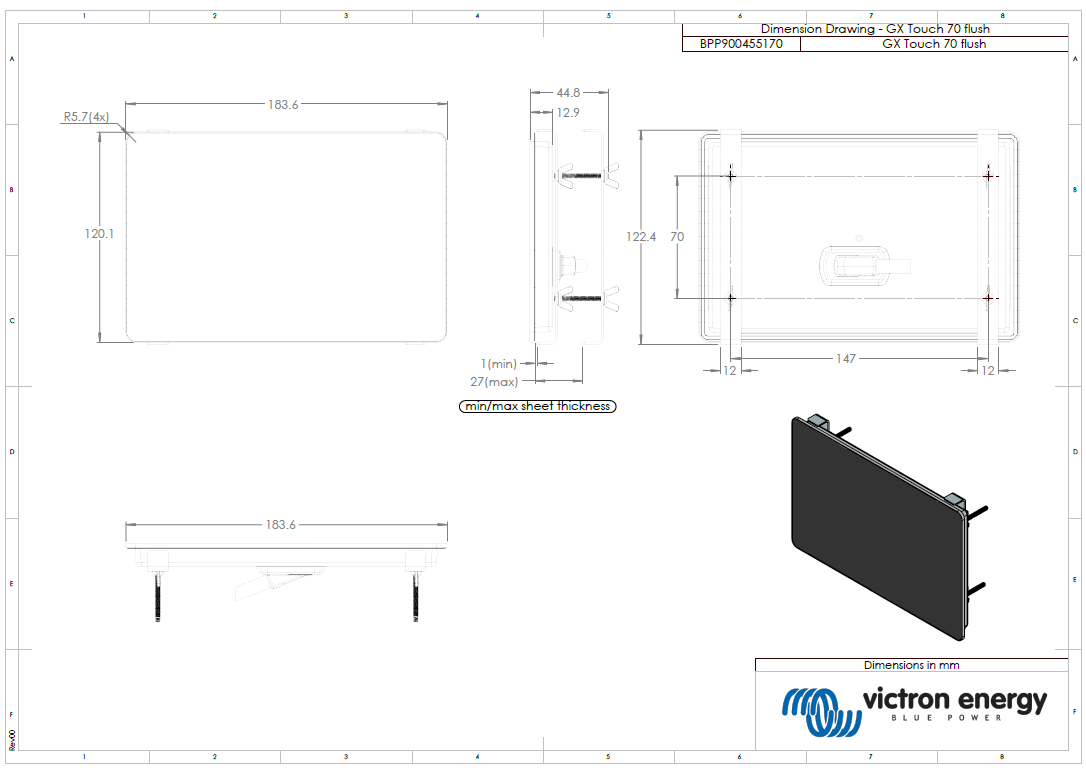

When considering the victron gx touch 70 dimensions and installation footprint, its super slim exterior profile ensures it does not intrude into your living or working space. A single cable handles both the high-definition video signal (HDMI) and touchscreen control data (USB), routing directly back to your Cerbo GX module. This removes the need for multiple complex wiring harnesses behind your mounting surface.
Seamless Synergy with the Cerbo GX
As a dedicated gx display, this unit is engineered specifically to interface directly with the Victron Cerbo GX. The Cerbo GX acts as the intelligent communication centre for your power system, gathering data from your solar charge controllers, inverters, batteries, and tank senders. The touch screen brings this data to life in real-time.
It is important to note that the display itself does not house Bluetooth connectivity or a direct internet connection. Instead, it relies on the processing power of the Cerbo GX. This modular approach keeps the display slim and robust, while the Cerbo GX manages complex remote connectivity through the Victron Remote Management (VRM) portal and local networking via the VictronConnect app.
Key Features
- Expansive 7-Inch Display: High-visibility touchscreen for intuitive navigation and instant system overview.
- Flush Mount Design: Low-profile aesthetics requiring no complex panel cut-outs for installation.
- Single Cable Connectivity: Integrated HDMI and USB connection minimizes wiring complexity behind the dashboard.
- Cerbo GX Companion: Purpose-built to unlock the full potential of your Cerbo GX communication centre.
- Versatile Application: Perfect for monitoring marine, automotive, and off-grid solar architectures.
Take Control of Your Power System
Optimise your energy management with clear, accessible data. Add the Victron GX Touch 70 Flush to your Cerbo GX setup today and ensure your off-grid or mobile power system is always operating exactly as intended.
SPECIFICATIONS
Specifications
| Mounting | Flush mount or embossed (totally flush) |
|---|---|
| Protection cover | No |
| Display resolution | 1024 x 600 |
| IP Rating | IP65 (when installed with the included rubber gasket) |
| Outer dimensions (h x w x d) | 120 x 184 x 13 mm |
| Cable length | 2 meter |
| SKU: | Vic-BPP900455170 |
| Barcode: | 8719076062875 |
| Model #: | BPP900455170 |
| MPN: | BPP900455170 |
WARRANTY
Victron Energy Limited Warranty Policy
Direct Customers
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
End-Users
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Warranty
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
- Reversed battery polarity.
- Inadequate connection.
- Mechanical shock or deformation.
- Contact with liquid or oxidation by condensation.
- Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
- Breakage or damage due to lightning.
- Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
- For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
Life Support Policy
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
Warranty on repairs for products outside their warranty period
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
Applicable law
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
Contact details
Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
