Victron GlobalLink 520 (New Version)

Includes 5 Years Pre-Paid 4G LTE-M Connectivity & VRM Access


Regular price $333.56
$409.20
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

5

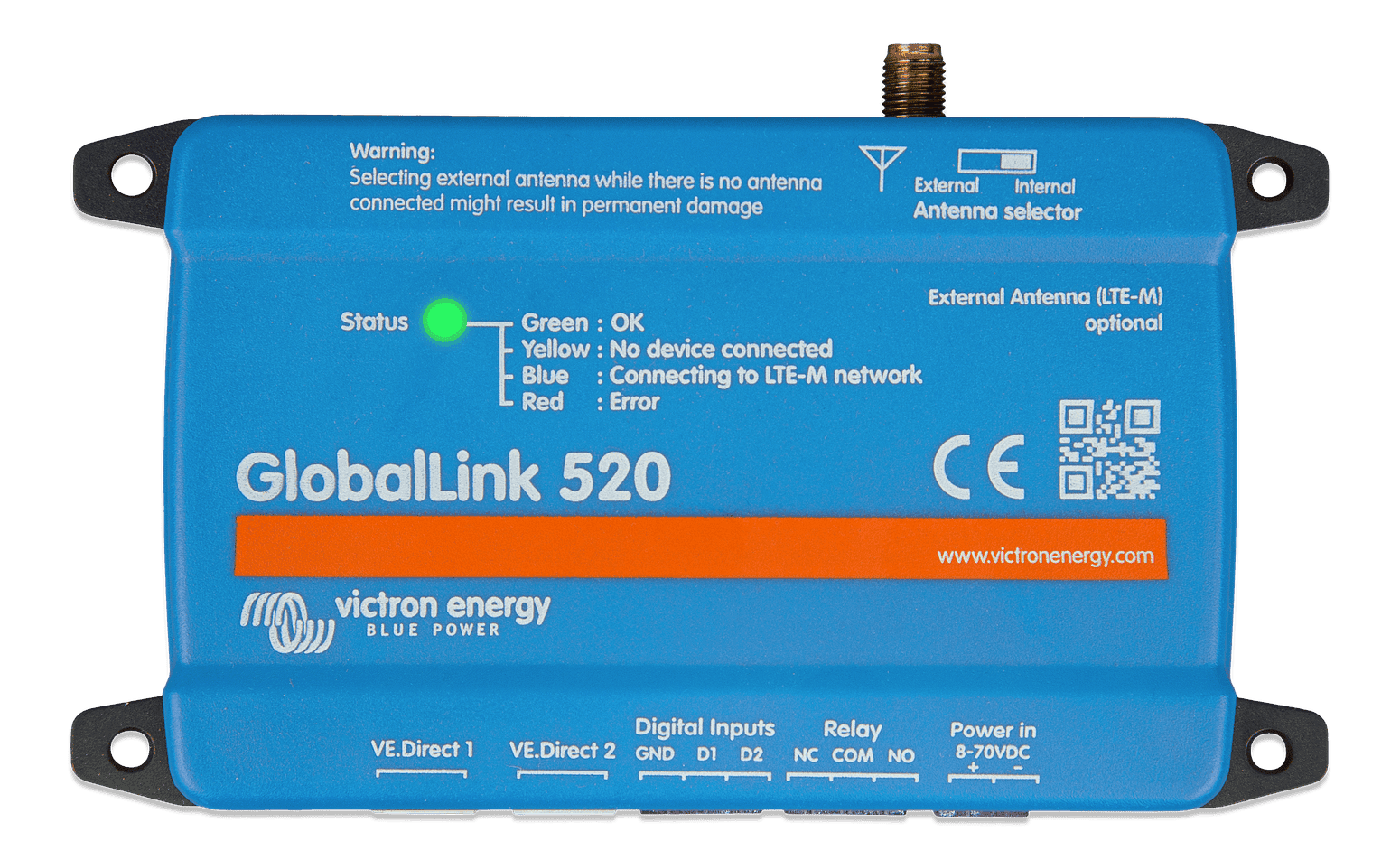

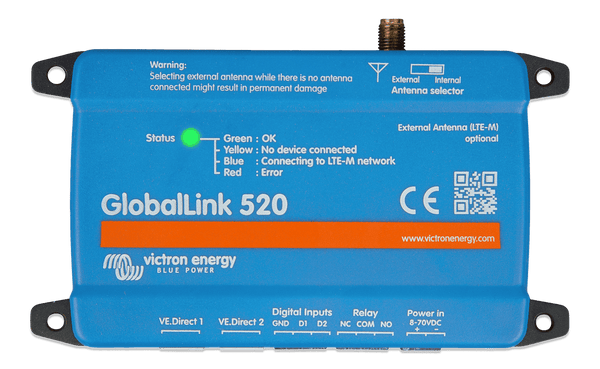

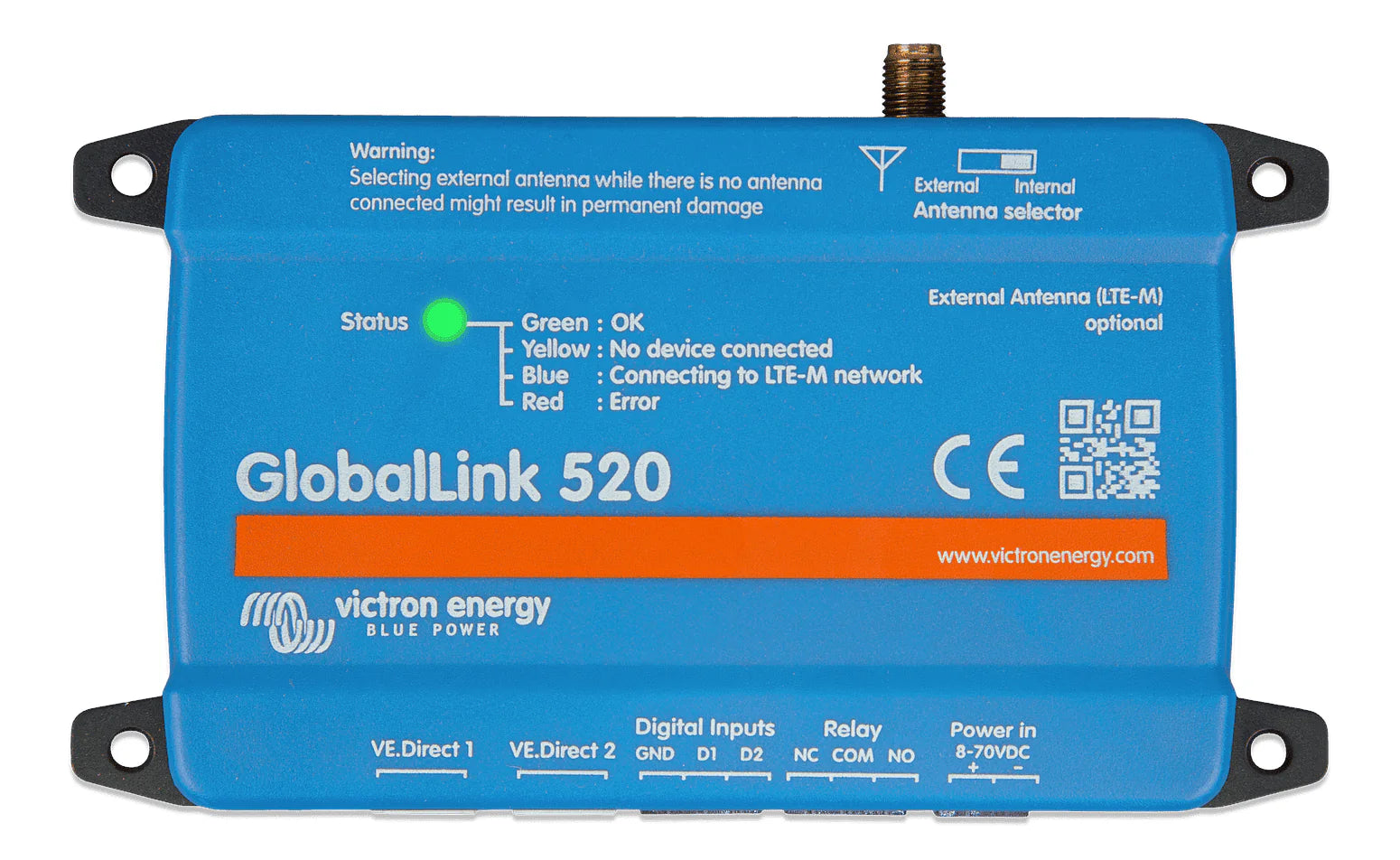

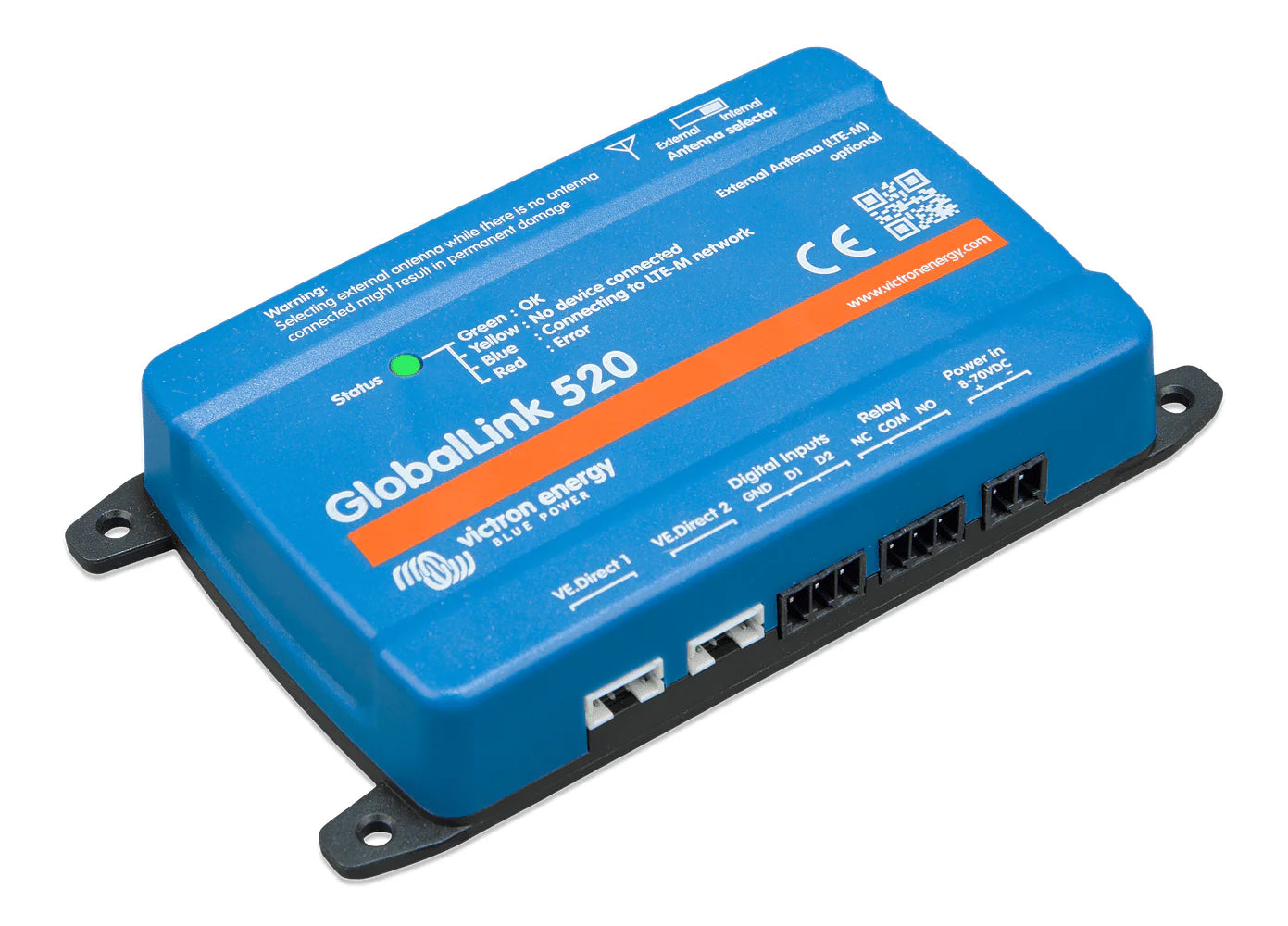

Front view of blue Victron GlobalLink 520 LTE-M cellular monitoring device with status indicator

Victron GlobalLink 520 (New Version)

DESCRIPTION

Complete Off-Grid System Insight with 4G Cellular Monitoring

Maintaining clear visibility over your off-grid energy system is essential for long-term reliability and performance. The Victron GlobalLink 520 bridges the gap between remote installations and real-time data access, bringing 4G LTE-M connectivity to VE.Direct enabled hardware. Designed for off-grid applications where standard Wi-Fi is unavailable, this monitoring device ensures your system remains online without the hassle of monthly subscriptions or complex network setups.

Global Connectivity with 5 Years Pre-Paid Data

At the core of this monitoring system is built-in LTE-M (Long Term Evolution, category M1) technology. This cellular network is specifically engineered for Internet of Things (IoT) applications, offering extended range and deep penetration into remote areas while consuming minimal power. Unlike standard mobile network connections, LTE-M supports seamless roaming and handovers, making it highly effective for both stationary remote sheds and moving vehicles like campervans, RVs, or marine vessels.

A major advantage over generic remote monitoring solutions is the included pre-paid SIM card, which provides five years of cellular connectivity right out of the box. This completely removes the administrative burden of purchasing separate data bundles, managing ongoing monthly fees, or dealing with expired SIM cards at critical moments. For specific local network requirements, the unit also supports the use of custom SIM cards.

Comprehensive Monitoring and Control Capabilities

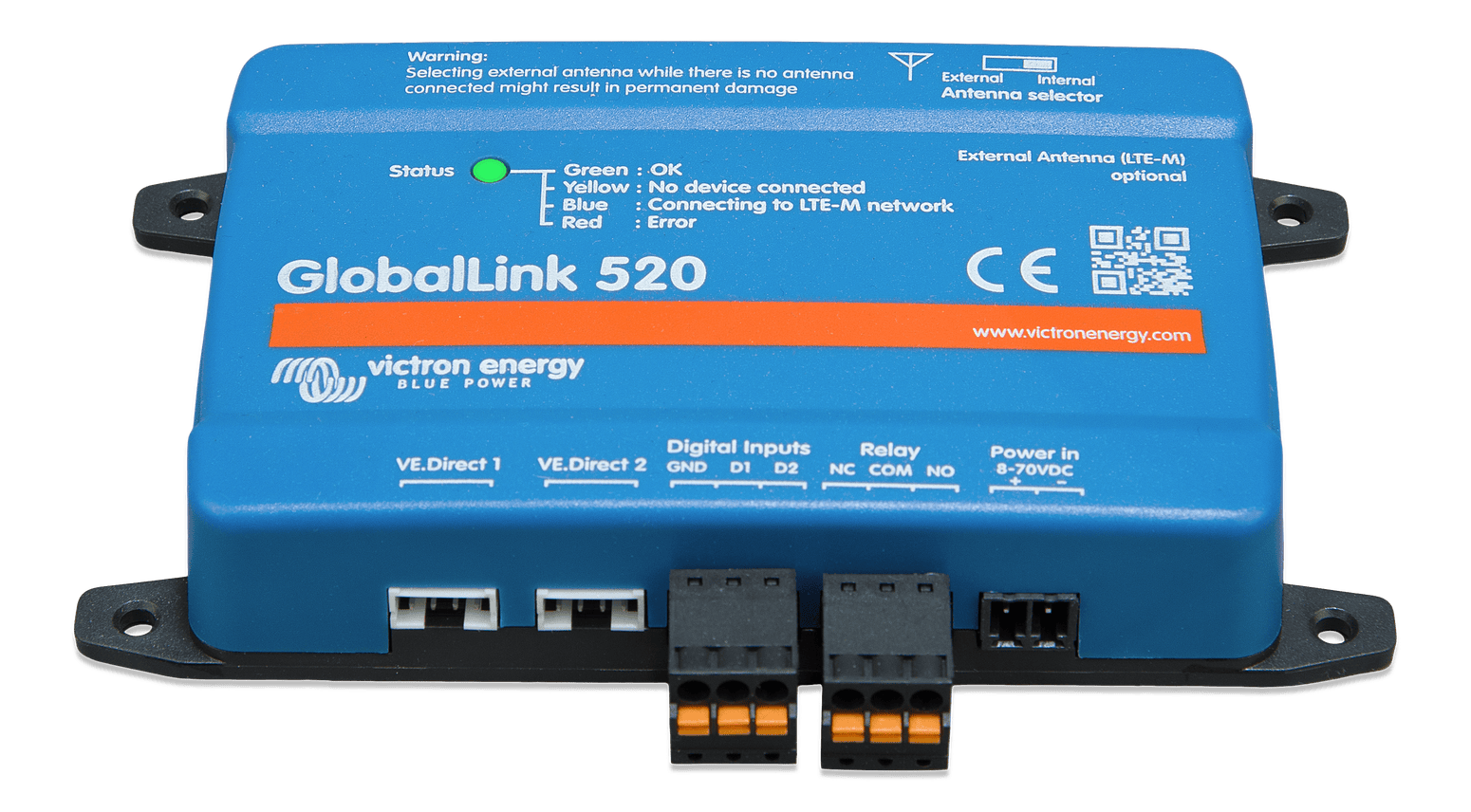

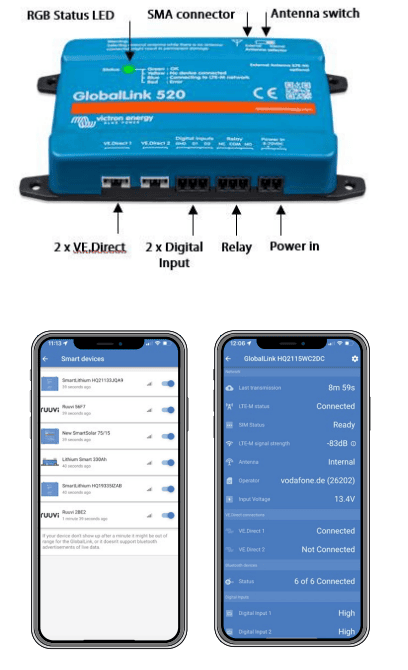

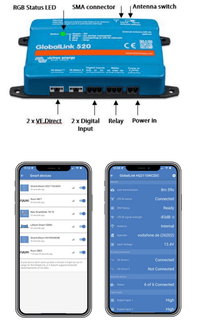

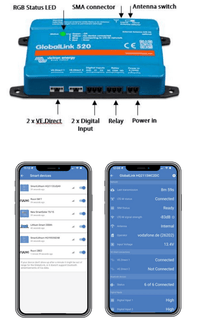

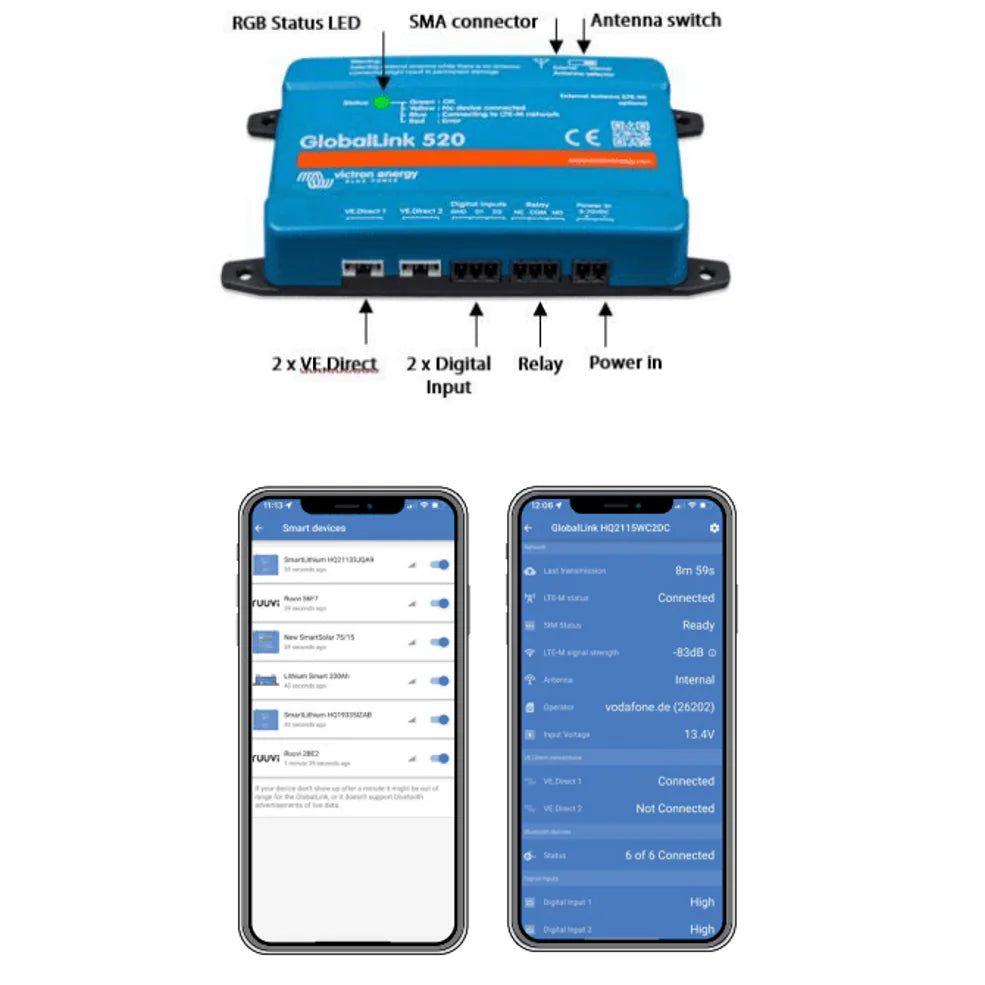

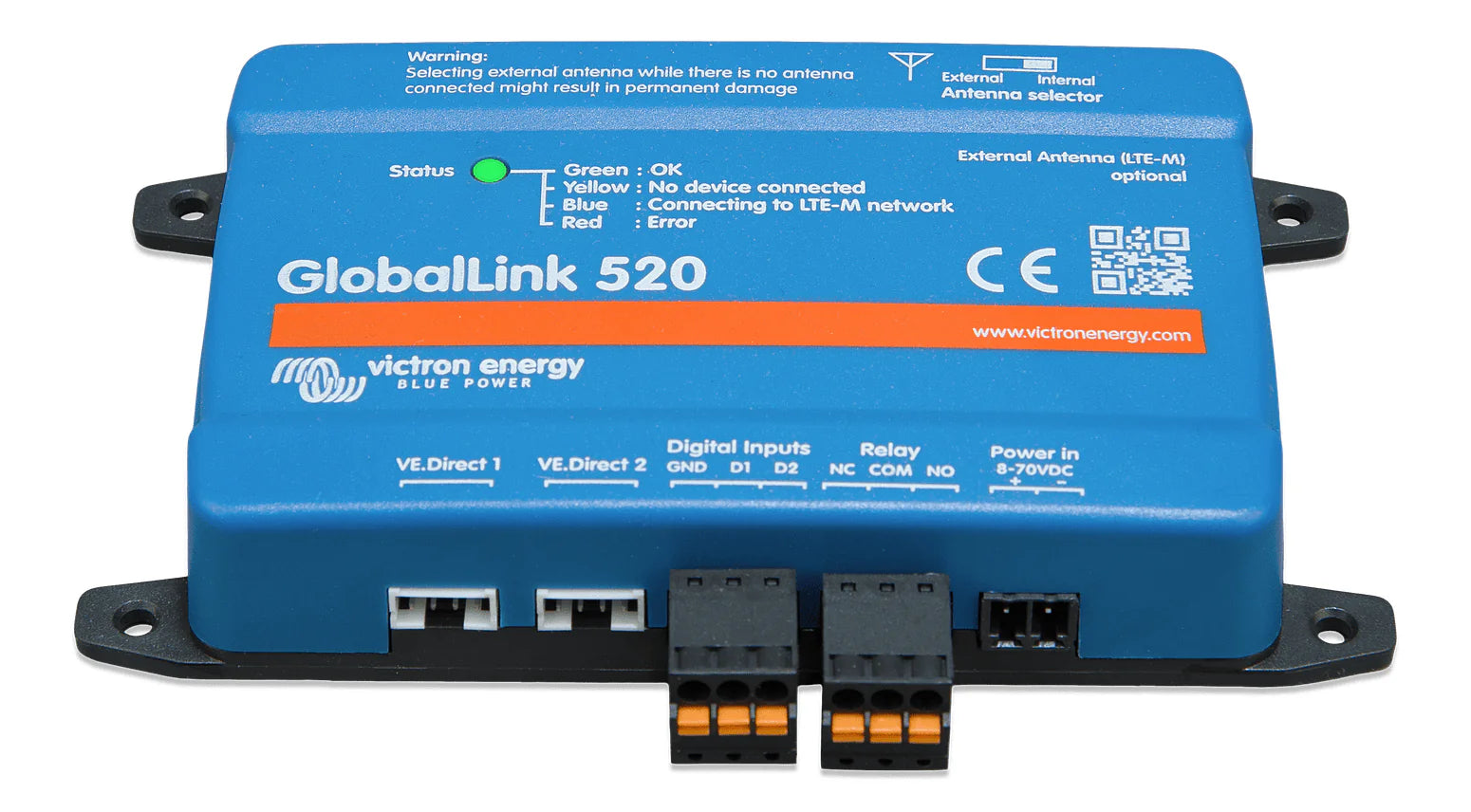

This unit is equipped with dual VE.Direct ports, allowing you to connect up to two hardwired Victron devices, such as an MPPT Solar Charge Controller and a BMV Battery Monitor, directly to the Victron Remote Management (VRM) portal. Beyond hardwired connections, the built-in Bluetooth Low Energy (BLE) receiver supports up to 10 additional Victron Smart devices, providing a complete overview of your entire power ecosystem.

To further expand your remote management capabilities, the hardware features two digital inputs that function as pulse counters, alongside a programmable remote-controllable relay. This allows you to monitor external triggers and remotely switch equipment, providing a proactive approach to system maintenance and security.

Wireless Environmental Tracking with RuuviTag

Understanding environmental conditions is often just as critical as electrical data. This system fully supports RuuviTag battery-powered wireless sensors via Bluetooth. Setup is straightforward through the VictronConnect app, instantly feeding crucial data such as ambient temperature, humidity, and atmospheric pressure straight to your VRM dashboard. This is particularly useful for monitoring battery compartment temperatures or refrigeration units in mobile applications.

Seamless Victron Remote Management (VRM) Integration

All data collected is transmitted to the free-to-use Victron Remote Management (VRM) portal. Through VRM, you can log in from anywhere in the world to evaluate the current status of connected equipment, analyse detailed historical energy graphs, and configure automated alarms. This rapid alert system significantly reduces the risk of critical battery depletion or undetected system faults by notifying you the moment a parameter falls outside your configured limits.

Flexible Installation and Low Power Design

Designed for versatile deployment, the hardware features a built-in antenna capable of global operation. If the unit is installed inside a metal utility cabinet or a heavily insulated van where signal strength is compromised, an external SMA antenna connector allows for an easy range extension. Operating on an exceptionally wide 8 to 70V DC input range, it is natively compatible with 12V, 24V, and 48V battery banks while maintaining an incredibly low power draw to preserve your stored energy during extended periods of low solar yield.

Key Features

  • Includes 5 years of pre-paid 4G LTE-M connectivity with no ongoing monthly subscriptions.
  • Dual VE.Direct ports for direct communication with solar charge controllers and battery monitors.
  • Bluetooth integration supports up to 10 Victron Smart devices and RuuviTag environmental sensors.
  • Programmable remote relay and two digital inputs for advanced equipment control and switching.
  • Wide 8 to 70V DC input range suitable for standard 12V, 24V, and 48V off-grid battery systems.
  • Ultra-low power consumption preserves battery capacity during extended periods without charging.

Take full control of your remote power network. Upgrade your off-grid installation with reliable cellular monitoring today and ensure your energy data is always accessible when you need it.

SPECIFICATIONS

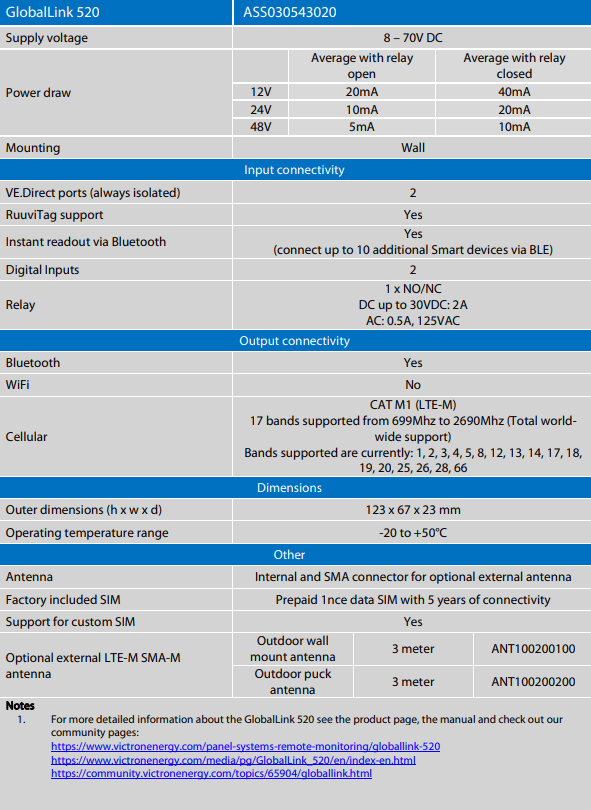

Specifications

GlobaLink 520 ASS030543020
Supply Voltage 8 – 70V DC
Power Draw (Average with relay open)

20mA (12V) 10mA (24V) 5mA (48V)

Mounting Wall
Input Connectivity
VE.Direct ports (always isolated) 2
RuuviTag support Yes
Instant readout via Bluetooth Yes (connect up to 10 additional Smart devices via BLE)
Digital Inputs 2
Relay 1 x NO/NC DC up to 30VDC: 2A AC: 0.5A, 125VAC
Output Connectivity
Bluetooth Yes
WiFi No
Cellular
CAT M1 (LTE-M) 17 bands supported from 699Mhz to 2690Mhz (Total world-wide support)
Bands supported are currently: 1, 2, 3, 4, 5, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 66
Other

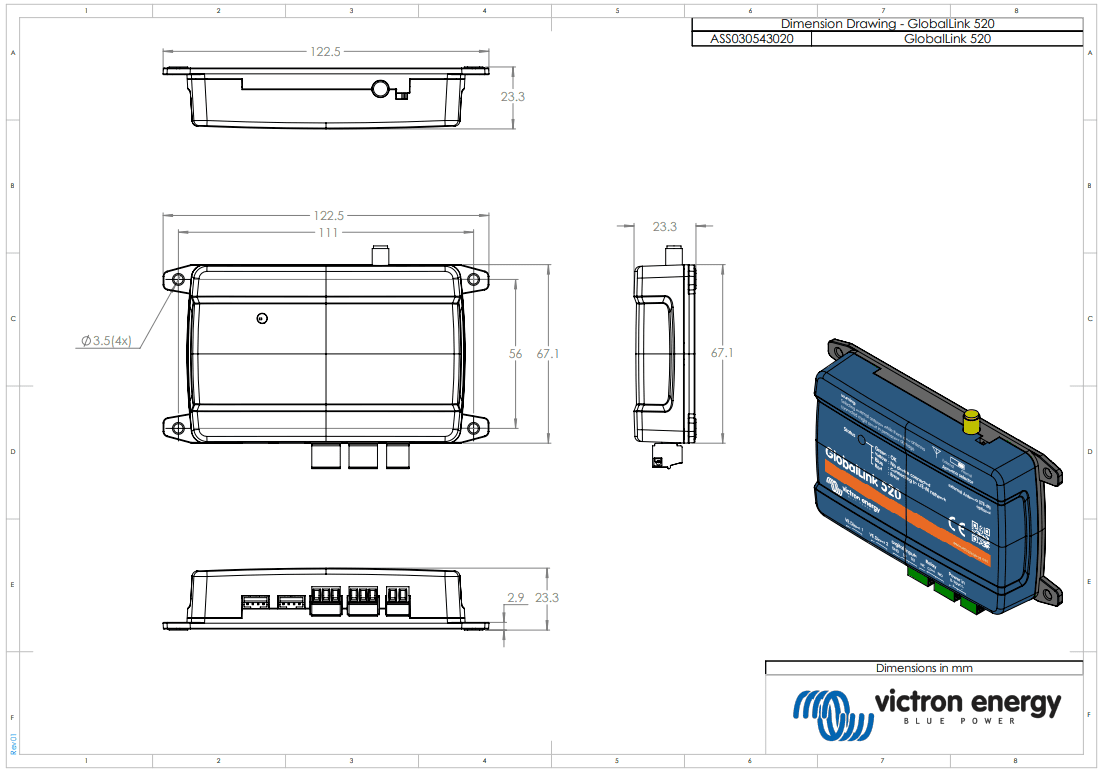

Outer Dimensions 123 x 67 x 23 mm
Operating Temperature Range -20 to +50°C
Antenna Internal and SMA connector for optional external antenna
Factory included SIM Prepaid 1nce data SIM with 5 years of connectivity
Support for custom SIM Yes
Optional External LTE-M SMA-M
Outdoor wall mount antenna 3 meter, ANT100200100
Outdoor puck antenna 3 meter, ANT100200200

SKU: VIC-ASS030543020
Barcode: 8719076053644
Model #: ASS030543020
MPN: ASS030543020

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
