Victron Busbar 250A 2P/Terminals with 6 Screws & Cover
Victron Busbar 250A 2P/Terminals with 6 Screws & Cover
70VDC Max, Tin-Plated Copper Strip & Flame-Retardant ABS Base
Highlights:Terminal Stud (Left): 5/16 inch (8 mm) stainless steel terminal stud for primary cable connections,Terminal Stud (Right): Secondary 8 mm stainless steel terminal stud with hex nut,Connection Screws: Six 10-24 (4.8 mm) screws for smaller circuit wire terminations,Copper Busbar: Tin-plated copper busbar strip (6.35 x 25 mm) for high conductivity,ABS Base: Black flame-retardant ABS base material rated to UL 94 V-0.
Protective black ABS cover for the Victron 250A busbar, designed to ensure safety and prevent electrical shorting in power distribution systems.
Key features: Maximum current rating: 250A, Maximum voltage rating: 70VDC, 8 mm stainless steel terminal studs, Tin-plated copper busbar strip, Flame-retardant ABS base (UL 94 V-0), Dimensions with cover: 65 x 216 x 86 mm.
Guaranteed Safe and Secure Checkout
3
DESCRIPTION
Professional DC Power Distribution for High-Current Systems
When designing a reliable electrical architecture for marine, recreational vehicle (RV), or off-grid solar applications, a robust distribution point is essential. The high-current 250A Victron busbar provides a professional solution to consolidate and manage your heavy-duty DC connections. Rated for up to 70VDC, it is exceptionally well suited for 12V, 24V, and 48V battery banks, offering a central hub that minimises voltage drop and organises complex wiring layouts.
Engineered for Superior Electrical Conductivity
At the core of this distribution block is a 6.35 x 25 mm tin-plated copper busbar strip. Copper is highly regarded for its exceptional electrical conductivity, while the tin plating provides a critical layer of defence against oxidation and corrosion. This is particularly important in harsh coastal or marine environments where bare metals degrade rapidly. The integration of 5/16" (Approx. 8mm) stainless steel terminal studs ensures that heavy-duty battery lugs remain firmly secured under high-torque conditions, eliminating the risk of loose connections that cause resistive heating.
Versatile Connection Options
Organising a battery compartment often involves terminating both large high-current cables and smaller accessory wires. This specific model features a two-stud design alongside six 10-24 (Approx. 4.8mm) terminal screws. This hybrid layout allows system builders to route main power lines (such as those from battery banks or large inverters) to the heavy-duty studs, while simultaneously distributing power to smaller loads like solar charge controllers, DC-DC chargers, or low-current fuse blocks via the six connection screws. By centralising these connections, you significantly reduce wire clutter, making future troubleshooting and system upgrades much more efficient.
Uncompromising Safety and Insulation
Safety is paramount when dealing with high-capacity battery banks capable of delivering immense short-circuit currents. Generic distribution blocks often compromise on insulation quality, increasing the risk of accidental shorts against adjacent metal surfaces. Victron Energy addresses this by utilising a high-grade ABS base material that complies with the strict UL 94 V-0 flame-retardant standard. Furthermore, a removable black ABS cover (UL 94 V-2) is included. This protective shroud shields exposed live terminals from accidental contact with dropped tools or loose conductive materials, reducing the likelihood of catastrophic electrical faults in tight battery enclosures.
Key System Benefits
- Maximum Current Rating: 250A continuous capacity for demanding heavy-duty loads
- Voltage Compatibility: Rated up to 70VDC, making it highly suitable for 12V, 24V, and 48V electrical setups
- Primary Terminals: Two 5/16" (Approx. 8mm) stainless steel studs designed for high-torque connections
- Secondary Terminals: Six 10-24 (Approx. 4.8mm) connection screws for routing smaller circuit wires
- Corrosion Resistance: Tin-plated copper busbar strip ensures long-term performance in marine and off-grid conditions
- Flame-Retardant Insulation: Black ABS base (UL 94 V-0) and matching protective cover included for maximum safety
Upgrade Your Electrical Architecture
Whether you are building a custom canopy power system, upgrading a marine vessel, or expanding a remote off-grid solar array, reliable power distribution is the foundation of a safe system. Ensure your heavy-duty DC connections are secure, protected, and well organised. Add this high-quality 250A distribution block to your electrical toolkit today to streamline your next wiring project and achieve a clean, professional finish.

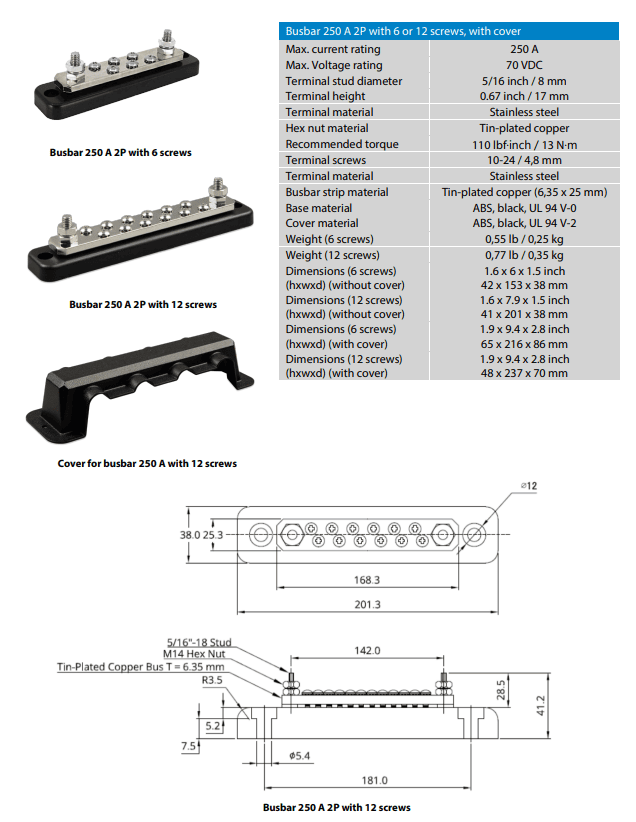

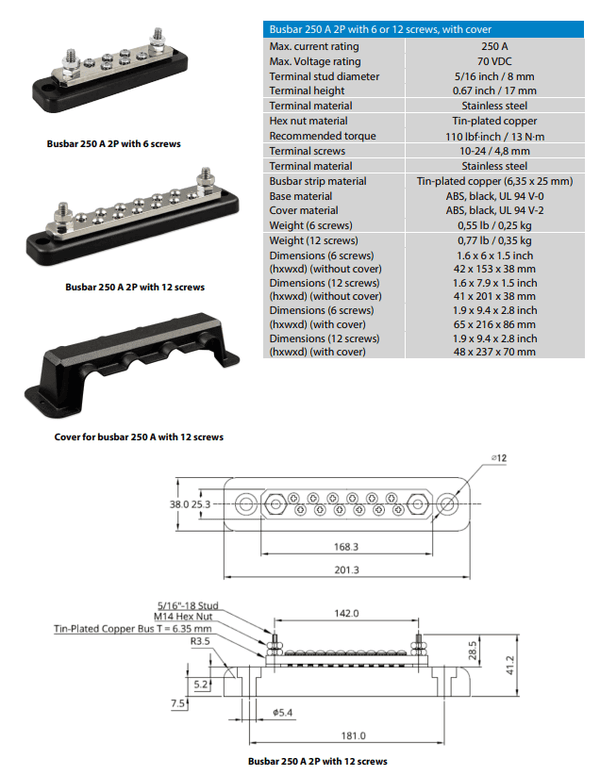

SPECIFICATIONS
Specifications
| Feature | Specification (6 Screws) |
|---|---|
| Max. Current Rating | 250 A |
| Max. Voltage Rating | 70 VDC |
| Terminal Stud Diameter | 5/16 inch / 8 mm |
| Terminal Height | 0.67 inch / 17 mm |
| Terminal Material | Stainless steel |
| Hex Nut Material | Tin-plated copper |
| Recommended Torque | 110 lbf·inch / 13 N·m |
| Terminal Screws | 10-24 / 4.8 mm |
| Busbar Strip Material | Tin-plated copper (6.35 x 25 mm) |
| Base Material | ABS, black, UL 94 V-0 |
| Cover Material | ABS, black, UL 94 V-2 |
| Weight | 0.55 lb / 0.25 kg |
| Dimensions (without cover) | 1.6 x 6 x 1.5 inch / 42 x 153 x 38 mm |
| Dimensions (with cover) | 1.9 x 9.4 x 2.8 inch / 65 x 216 x 86 mm |
| SKU: | VIC-VBB125020620 |
| Barcode: | 8719076056386 |
| Model #: | VBB125020620 |
| MPN: | VBB125020620 |
