Victron Busbar 150A 2P/Terminals with 10 Screws & Cover

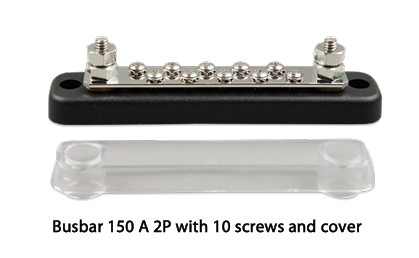

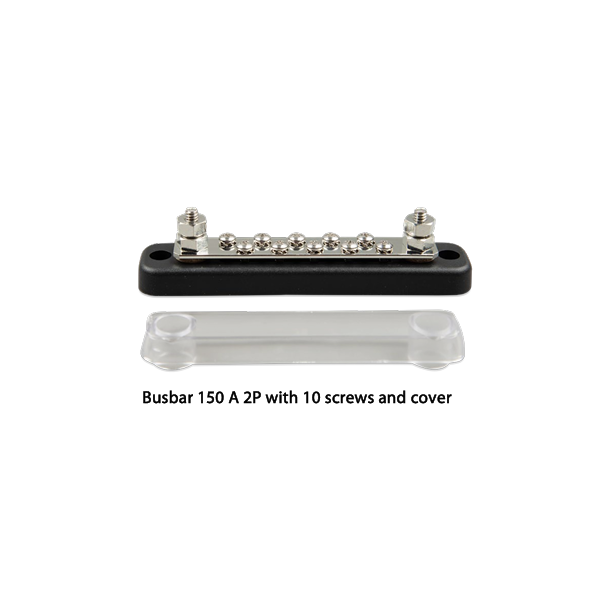

Victron Busbar 150A 2P/Terminals with 10 Screws & Cover
150A Rated, 10 Terminal Screws, Clear Cover, 45x152.4x32mm

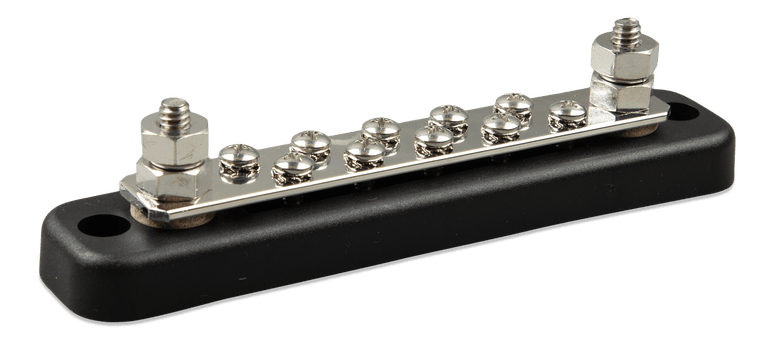

Key features: 150A maximum current rating, Clear polycarbonate protective cover, 10 stainless steel terminal screws, Dual 6.35mm stainless steel studs, Fire-retardant ABS base.
Highlights:Stainless Steel Studs: Dual 1/4 inch main power terminals with tin-plated copper hex nuts,Terminal Screws: 10 stainless steel 8-32 screws for multiple circuit connections,Tin-Plated Copper Busbar: 2.4 x 19 mm strip for high conductivity and corrosion resistance,ABS Base: Fire-retardant black UL 94 V-0 mounting base.

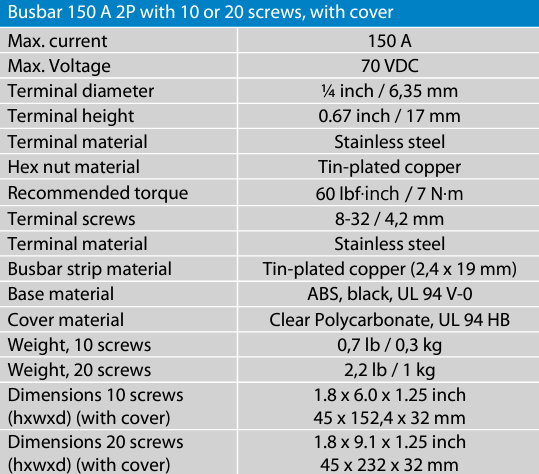

Comprehensive technical specifications for the Victron 150A 2P busbar, detailing its 70VDC maximum voltage, stainless steel terminals, and fire-retardant ABS base material.

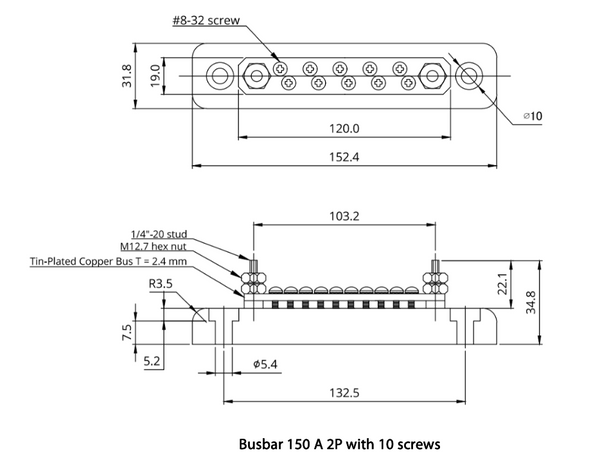

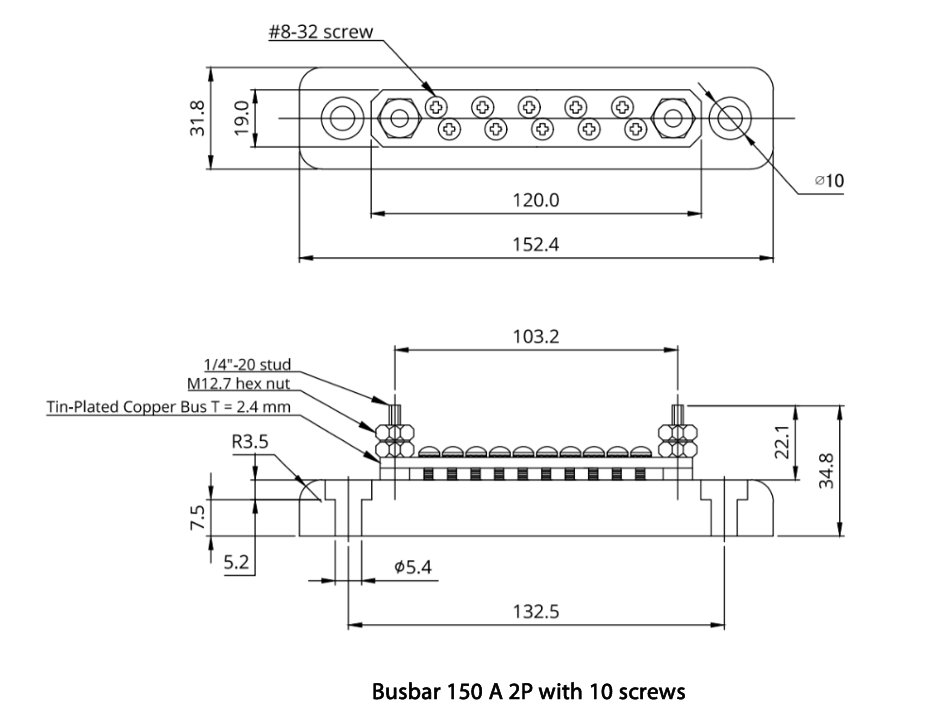

Detailed technical dimensional drawing showing the physical measurements of the 150A busbar, including a 152.4mm total length and specific spacing for terminal screws and studs.
Guaranteed Safe and Secure Checkout
2
DESCRIPTION
Victron 150A 2P Busbar: Centralised High-Current DC Distribution for Marine, RV, and Off-Grid Systems
Efficient Power Management with 10 Connection Points and Protective Cover
The Victron 150A 2P Busbar provides a robust, organised solution for consolidating high-current DC connections in demanding mobile and renewable energy environments. Designed to streamline complex wiring, this busbar reduces clutter and potential failure points by offering a single, centralised node for battery and equipment terminations. With a 150A continuous rating and 10 stainless steel terminal screws, it accommodates multiple circuits while maintaining secure, low-resistance contacts.
Engineered for marine electrical panels, RV power systems, and off-grid solar installations, this busbar simplifies maintenance and enhances safety. The included clear polycarbonate cover prevents accidental shorts, while the fire-retardant ABS base ensures reliable insulation. Whether upgrading a boat’s battery compartment or building a 12V/24V distribution board, the Victron 150A 2P delivers dependable performance.
Key Features
- 150A continuous current rating for high-demand DC circuits
- 10 stainless steel 8-32 (approx. M4) terminal screws for multiple branch connections
- Dual 1/4" (6.35 mm) stainless steel main studs with tin-plated copper hex nuts for primary feeds
- Tin-plated copper busbar strip (2.4 x 19 mm) ensures excellent conductivity and corrosion resistance

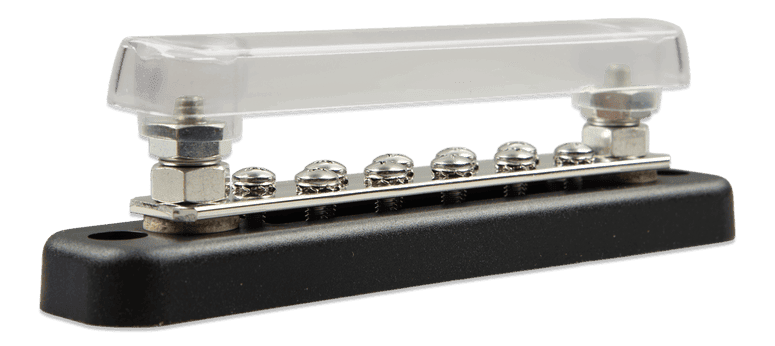

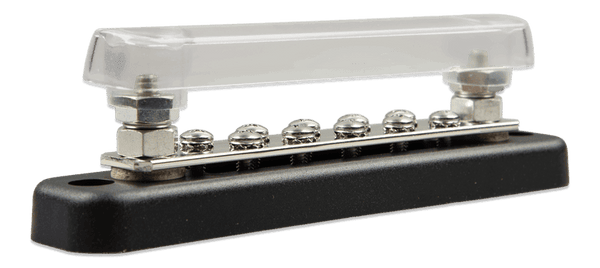

- Clear polycarbonate cover protects against accidental contact and debris
- Fire-retardant ABS base (UL 94 V-0) provides secure mounting and electrical isolation
- Pre-drilled mounting holes for easy installation on panels or bulkheads
Built for Harsh Environments
Victron Energy designs busbars to withstand the rigours of mobile and marine applications. The inserted moulded stainless steel studs eliminate the need for securing nuts beneath the base, allowing higher torque values and superior electrical contact. This construction reduces the risk of loose connections over time, a common issue in vibrating environments. The tin-plated copper strip resists oxidation, maintaining low resistance even in humid or salt-laden air.
The raised bus design provides ample space for routing multiple wires, simplifying installation and future modifications. The protective cover snaps securely in place, shielding terminals from accidental shorts caused by tools or loose objects. With a maximum voltage rating of 70 VDC, this busbar is suitable for 12V, 24V, and 48V nominal systems, offering flexibility across various DC architectures.
Applications
This busbar is ideal for:
- Marine DC distribution: Tidy up battery compartments on yachts, powerboats, and fishing vessels
- RV and caravan power systems: Centralise connections for lights, pumps, inverters, and chargers
- Off-grid solar setups: Combine multiple charge controllers, battery banks, and loads
- Industrial and backup power: Organise DC circuits in remote telemetry, security, and communications equipment
Installation and Safety
Mounting the busbar is straightforward with pre-drilled holes in the ABS base. Use appropriate fasteners to secure it to a flat, non-conductive surface. Connect primary battery or inverter cables to the 1/4" studs using heavy-duty lugs, then attach branch circuits to the 10 terminal screws. Always torque connections to the recommended 7 N·m (60 lbf·inch) for optimal contact. The clear cover allows visual inspection without removal, aiding routine maintenance.
By consolidating connections, this busbar reduces the number of cable runs and potential failure points, improving overall system reliability. It also simplifies troubleshooting, as all terminations are accessible in one location.
Upgrade Your DC Distribution Today
Enhance the safety and efficiency of your electrical system with the Victron 150A 2P Busbar. Whether you're refitting a boat, building a campervan, or expanding an off-grid solar array, this busbar provides the reliable, high-current connectivity you need. Order now to streamline your power management.
SPECIFICATIONS
Specifications
| Model | Busbar 150 A 2P 10 Screws |
| Cover | Included |
| Max. Current | 150 A |
| Max. Voltage | 70 VDC |
| Terminal Diameter | ¼ inch / 6.35 mm |
| Terminal Height | 0.67 inch / 17 mm |
| Terminal Material | Stainless steel |
| Hex Nut Material | Tin-plated copper |
| Recommended Torque | 60 lbf·inch / 7 N·m |
| Terminal Screws | 8-32 / 4.2 mm |
| Busbar Strip Material | Tin-plated copper (2.4 x 19 mm) |
| Base Material | ABS, black, UL 94 V-0 |
| Cover Material | Clear Polycarbonate, UL 94 HB |
| Weight (10 screws) | 0.7 lb / 0.3 kg |
| Dimensions (10 screws) | 1.8 x 6.0 x 1.25 inch / 45 x 152.4 x 32 mm |
| SKU: | VIC-VBB115021020 |
| Barcode: | 8719076056355 |
| Model #: | VBB115021020 |
| MPN: | VBB115021020 |
WARRANTY
Victron Energy Limited Warranty Policy
Direct Customers
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
End-Users
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Warranty
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
- Reversed battery polarity.
- Inadequate connection.
- Mechanical shock or deformation.
- Contact with liquid or oxidation by condensation.
- Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
- Breakage or damage due to lightning.
- Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
- For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
Life Support Policy
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
Warranty on repairs for products outside their warranty period
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
Applicable law
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
Contact details
Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
