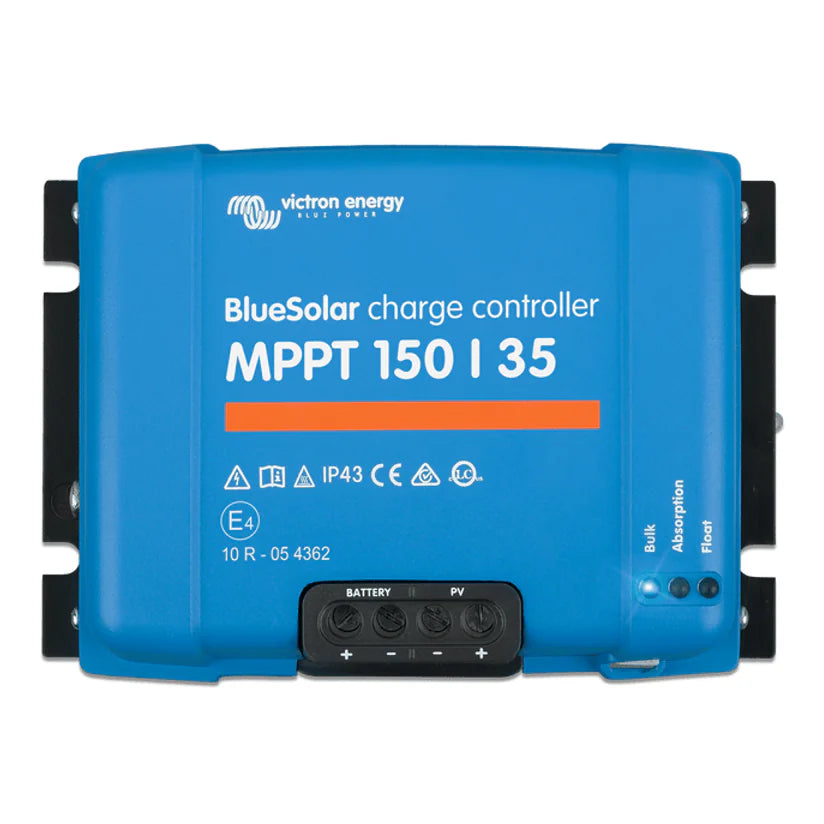

Victron 12/24/48V 35A BlueSolar MPPT 150/35 Non-Bluetooth Solar Charge Controller
Victron 12/24/48V 35A BlueSolar MPPT 150/35 Non-Bluetooth Solar Charge Controller
Marine humidity-proof

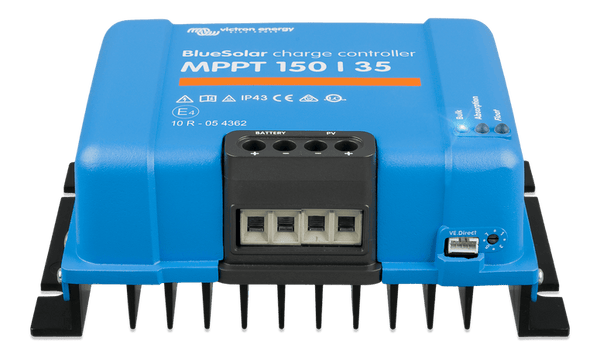

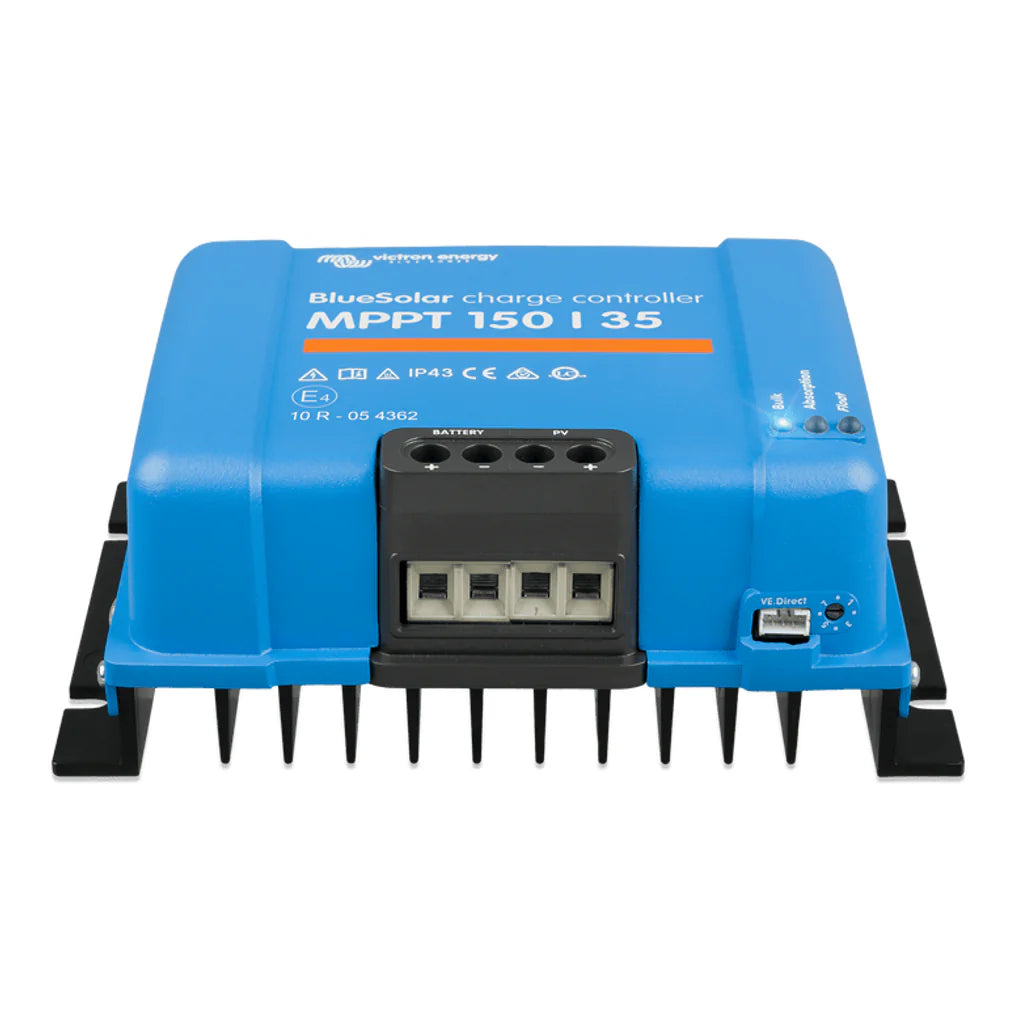

Highlights:Model Identifier: Indicates the 150V maximum PV voltage and 35A maximum charge current,LED Indicators: Visual status for Bulk, Absorption, and Float charging stages,Power Terminals: Screw terminals for secure PV and battery cable connections,Certifications: Compliance markings including IP43 rating and CE certification,Mounting Tabs: Integrated brackets for secure vertical or horizontal wall mounting.
Important clarification that Victron BlueSolar models lack built-in Bluetooth, requiring a VE.Direct dongle for wireless monitoring, unlike the SmartSolar range.

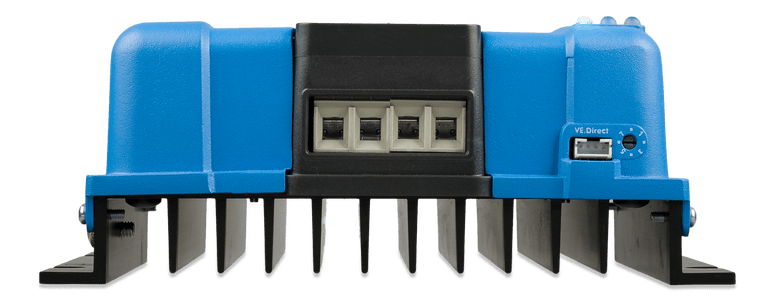

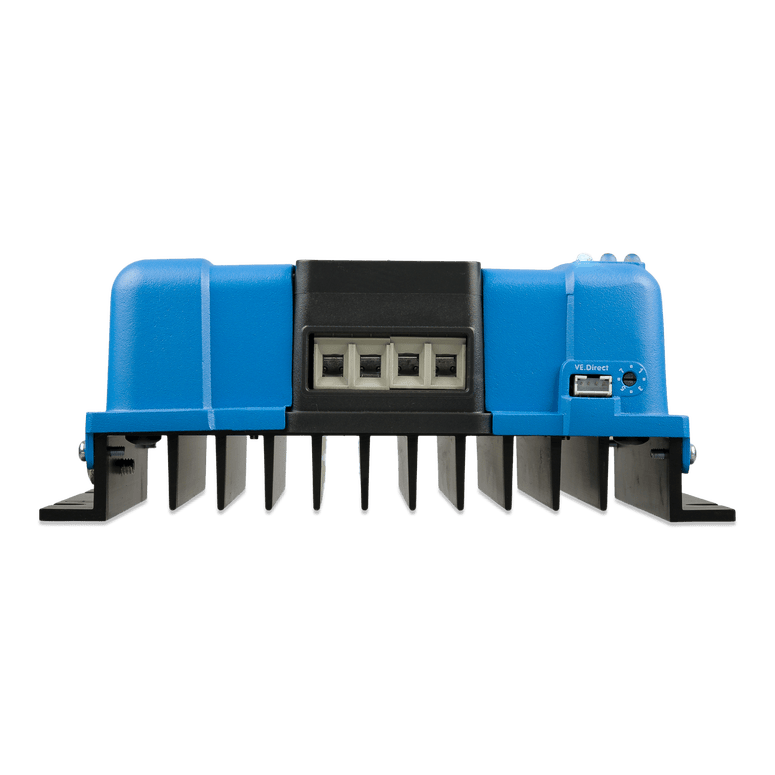

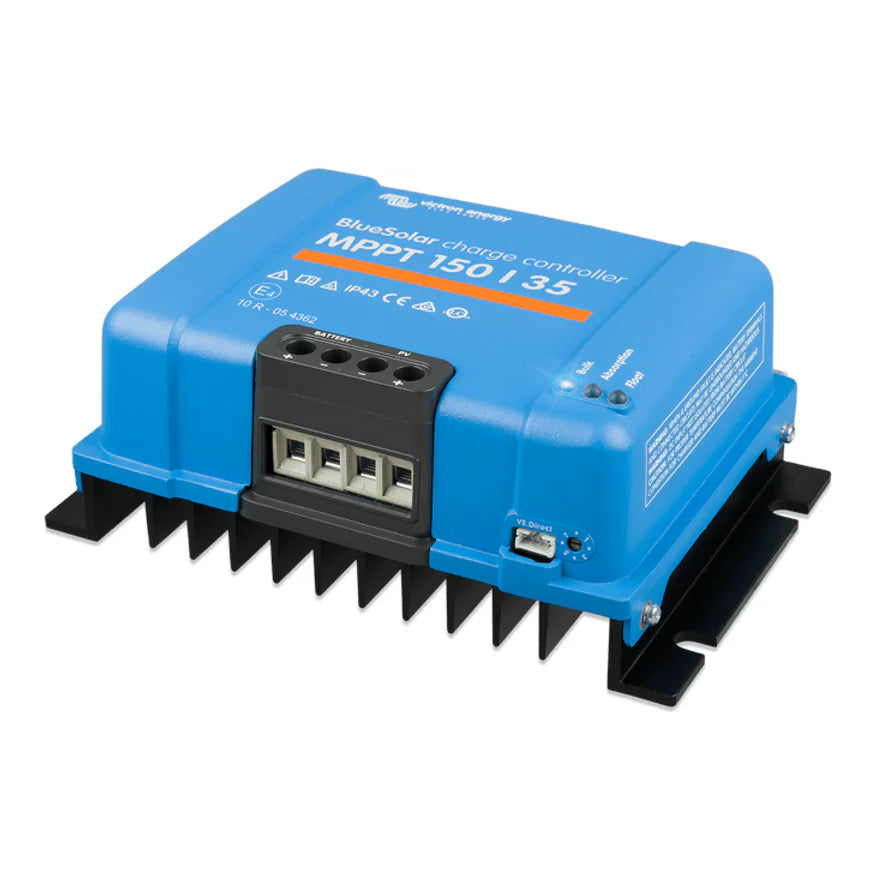

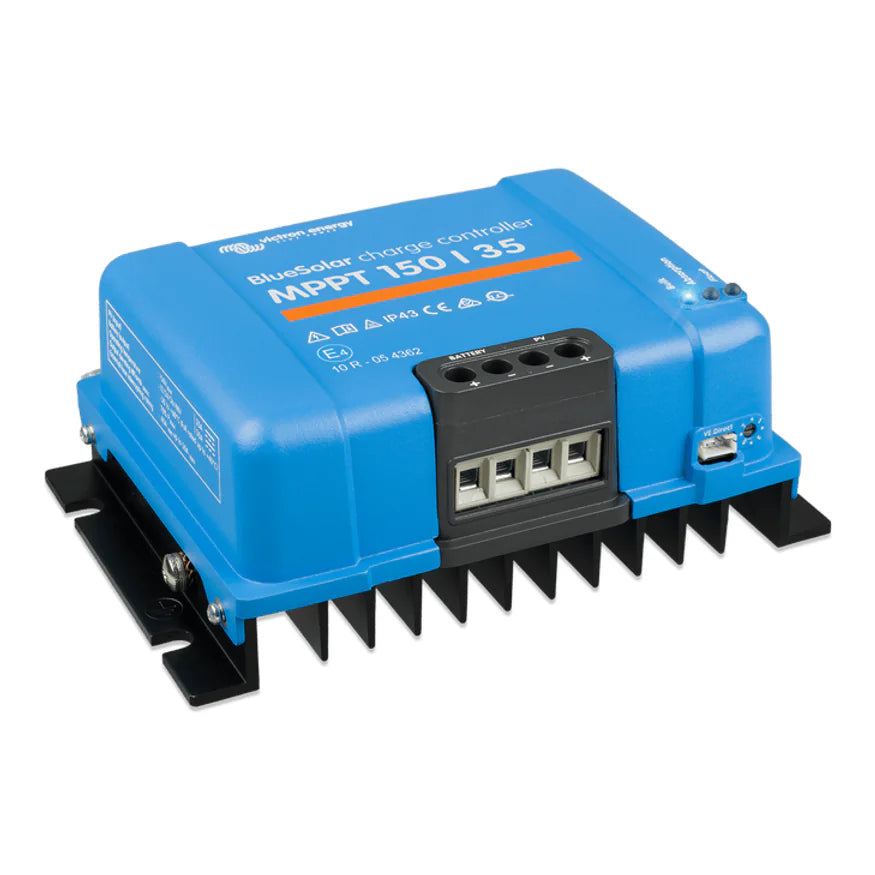

Key features: Oversized aluminium heat sink fins for reliable cooling, IP43 rated electronics protection, VE.Direct data communication port, Robust metal mounting tabs.
Key features: 12V, 24V, and 48V automatic battery voltage selection, 98% peak efficiency rating, 150V absolute maximum PV open circuit voltage, Multi-stage adaptive charge algorithm, Reverse polarity and over-temperature protection.
Technical engineering drawing illustrating the unit dimensions of 130mm x 186mm x 70mm and mounting hole placements for precise installation.
DESCRIPTION
Maximize Solar Performance with Victron BlueSolar 150/35 MPPT Charge Controller
Important Note about BlueSolar (Non-Bluetooth Range)

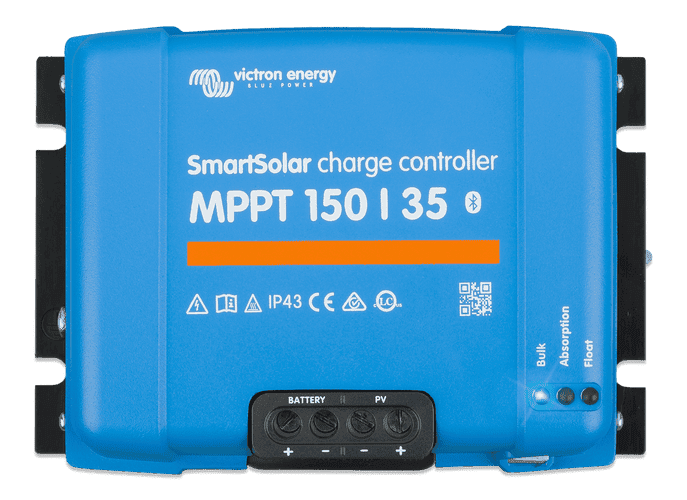

For Bluetooth connectivity, please explore our SmartSolar range which includes built-in Bluetooth support, ideal for wireless monitoring and programming. If Bluetooth is required using the BlueSolar range, a VE.Direct to Bluetooth Dongle is required, purchased separately.
Exceptional Energy Harvest with Advanced MPPT Technology
Unlock superior energy harvesting with the Victron BlueSolar 150/35 MPPT Controller, even under clouded skies. Benefit from up to 30% increased energy compared to PWM controllers and outperform slower MPPT models by up to 10%. This ultra-fast tracking technology ensures that you get the most out of your solar panels at all times.
Optimal Energy with Intelligent Shading Response
Experience the advanced Maximum Power Point Detection of the BlueSolar 150/35, which adeptly handles partial shading. Unlike conventional systems that may settle for less efficient power points, our innovative algorithm seeks out the optimum MPP, ensuring you harness maximum energy and enhance your system's yield.
Peak Conversion Efficiency
Without a Fan Enjoy more than 98% efficiency with the BlueSolar 150/35 — a fanless design that delivers full power output up to 40°C (104°F). With outstanding conversion efficiency, your solar energy system will operate smoothly and reliably.
Customizable Charging for Every Need
Tailor your solar charging with the BlueSolar's flexible charge algorithm. Choose from eight pre-set modes or customize your settings via our software for a perfectly adjusted charge algorithm that fits your specific energy requirements.
Comprehensive Electronic Protection
Your system is safeguarded with extensive electronic protection features, including over-temperature protection, PV short circuit, reverse polarity protection, and more. This ensures long-term reliability and safety for your solar energy setup.
Precision Charging with Temperature Compensation
The built-in temperature sensor in the BlueSolar 150/35 adjusts charging for maximum efficiency, accounting for environmental temperature variations, thus prolonging battery life and performance.
Take the leap towards efficient solar charging today with the Victron BlueSolar MPPT Solar Controller and harness the full potential of the sun's power
SPECIFICATIONS
Specifications
| Model | BlueSolar MPPT 150/35 | BlueSolar MPPT 150/45 |
|---|---|---|
| Battery Voltage | 12 / 24 / 48V Auto Select (software tool needed for 36V) | 12 / 24 / 48V Auto Select (software tool needed for 36V) |
| Rated Charge Current | 35A | 45A |
| Nominal PV Power (1a, b) | 12V: 500W 24V: 1000W 36V: 1500W 48V: 2000W | 12V: 650W 24V: 1300W 36V: 1950W 48V: 2600W |
| Max. PV Short Circuit Current (2) | 40A | 50A |
| Maximum PV Open Circuit Voltage | 150V absolute maximum 145V start-up/operating | 150V absolute maximum 145V start-up/operating |
| Maximum Efficiency | 98% | 98% |
| Self-Consumption | 12V: 20 mA 24V: 15 mA 48V: 10 mA | 12V: 20 mA 24V: 15 mA 48V: 10 mA |
| Charge Voltage 'Absorption' | 14.4 / 28.8 / 43.2 / 57.6V (adjustable) | 14.4 / 28.8 / 43.2 / 57.6V (adjustable) |
| Charge Voltage 'Float' | 13.8 / 27.6 / 41.4 / 55.2V (adjustable) | 13.8 / 27.6 / 41.4 / 55.2V (adjustable) |
| Charge Algorithm | Multi-stage adaptive (8 pre-programmed) | Multi-stage adaptive (8 pre-programmed) |
| Temperature Compensation | -16 mV / °C / -32 mV / °C / -64 mV / °C | -16 mV / °C / -32 mV / °C / -64 mV / °C |
| Protection | PV reverse polarity / output short circuit / over-temperature | PV reverse polarity / output short circuit / over-temperature |
| Operating Temperature | -30 to +60°C (full output up to 40°C) | -30 to +60°C (full output up to 40°C) |
| Humidity | 95%, non-condensing | 95%, non-condensing |
| Data Communication Port | VE.Direct | VE.Direct |
| Enclosure | ||
| Colour | Blue (RAL 5012) | Blue (RAL 5012) |
| Power Terminals | 16 mm² / AWG6 | 16 mm² / AWG6 |
| Protection Category | IP43 (electronics), IP22 (connections) | IP43 (electronics), IP22 (connections) |
| Weight | 1.25 kg | 1.25 kg |
| Dimensions (h x w x d) | 130 x 186 x 70 mm | 130 x 186 x 70 mm |
| Safety Standards | EN/IEC 62109-1, UL 1741, CSA C22.2 | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| SKU: | Vic-SCC020035000 |
| Barcode: | 8719076025559 |
| Model #: | SCC020035000 |
| MPN: | SCC020035000 |
