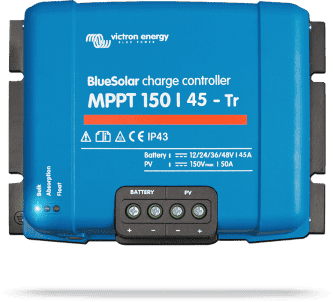

Victron 12/24/48V 45A BlueSolar MPPT 150/45-Tr Non-Bluetooth Solar Charge Controller
Victron 12/24/48V 45A BlueSolar MPPT 150/45-Tr Non-Bluetooth Solar Charge Controller
150V PV input, fanless 98%+ efficiency, VE.Direct monitoring ready
Highlights:Status LEDs: LED indicators for Bulk, Absorption, and Float charging stages,Model Designation: MPPT 150/45 indicating 150V maximum PV voltage and 45A charge current,Terminal Cover: Protective cover for battery and PV screw terminals,System Voltage: Compatible with 12V, 24V, 36V, and 48V battery systems,Mounting Flange: Integrated side flanges for secure wall mounting.
Detailed view showing the four heavy-duty screw terminals for battery and solar input, supported by a large integrated black aluminium heat sink for efficient passive cooling.

DESCRIPTION
High-voltage MPPT charging for demanding off-grid systems
Designed for serious solar installations, this Victron MPPT controller efficiently converts higher PV voltage into usable charging current for your battery bank. The 150V PV input headroom supports longer panel strings, helping reduce cable losses and improve layout flexibility across caravans, cabins, marine builds and remote industrial sites. With 45A charging capacity and a proven Victron control platform, it’s a strong choice when you want stable charging performance across varying weather and load conditions.
Faster tracking for better harvest in changing conditions
Solar conditions rarely stay constant—passing cloud, heat and partial shading can cause rapid changes in panel output. Victron’s ultra-fast MPPT technology continuously tracks the optimum operating point, which can improve energy harvest compared with PWM controllers and slower MPPT designs (performance gains depend on conditions and array design). For installations where panels experience intermittent shading—roof racks, rigging, antennas, trees or nearby structures—the controller’s advanced maximum power point detection is built to avoid getting “stuck” on a sub-optimal point and keep charging more consistently.
High efficiency, passive cooling and real-world reliability
With a peak conversion efficiency above 98%, more of your solar energy is delivered to the battery rather than wasted as heat. The unit is fanless and uses a substantial heat sink for passive cooling, reducing moving parts and simplifying installation in enclosed electrical bays. It’s engineered to deliver strong performance at elevated ambient temperatures, with protective power derating when required to support long-term reliability in Australian conditions.
Flexible charging profiles for different battery chemistries
Charging requirements vary significantly between battery types. This controller offers a fully programmable charge algorithm plus multiple preset profiles selectable via the rotary switch, making it suitable for a wide range of lead-acid and other supported battery setups. An internal temperature sensor helps compensate absorption and float voltages, supporting healthier charging when temperatures swing between hot engine bays, coastal climates and cold inland nights.
Protection features that reduce common installation risks
Off-grid electrical systems need robust protection against wiring errors and harsh operating conditions. The controller includes electronic protections such as over-temperature management, PV short-circuit protection, PV reverse polarity protection and reverse current protection. These features help reduce the chance of damage from common faults and make commissioning and maintenance more straightforward for both DIY users and professional installers.
Monitoring options when you need visibility
For system diagnostics and performance checks, real-time data can be viewed using compatible Victron accessories such as a VE.Direct to Bluetooth Low Energy dongle or a Colour Control panel. This makes it easier to verify charge stages, troubleshoot low harvest days and confirm the controller is operating as expected.
Key features
- Ultra-fast MPPT to respond quickly to changing irradiance and cloud cover
- Advanced tracking under partial shading to help locate the optimum power point
- Fanless, high-efficiency design (maximum efficiency exceeds 98%)
- Programmable charging with presets selectable via rotary switch
- Integrated protections for temperature, polarity and PV fault conditions
- Optional monitoring via VE.Direct accessories (Bluetooth dongle / control panel)
Build a smarter solar charging system
If you’re configuring a 12V, 24V or 48V solar battery system and want the flexibility of a higher-voltage array with Victron-grade MPPT control, this controller is a practical upgrade for mobile and fixed off-grid power. Select it for your next solar install to improve array design flexibility and maintain confident, consistent charging in the field.
SPECIFICATIONS
| SKU: | Vic-SCC115045222 |
| Barcode: | 8719076053033 |
| Model #: | SCC115045222 |
| MPN: | SCC115045222 |
WARRANTY
Victron Energy Limited Warranty Policy
Direct Customers
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
End-Users
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Warranty
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
- Reversed battery polarity.
- Inadequate connection.
- Mechanical shock or deformation.
- Contact with liquid or oxidation by condensation.
- Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
- Breakage or damage due to lightning.
- Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
- For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
Life Support Policy
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
Warranty on repairs for products outside their warranty period
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
Applicable law
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
Contact details
Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
