6000VA Pure Sine Wave Inverter with 450V MPPT Solar Charger

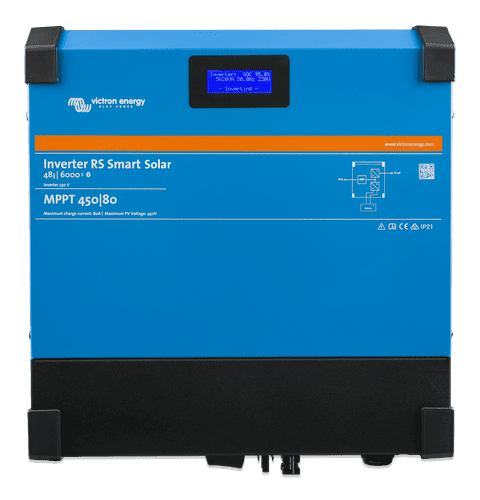

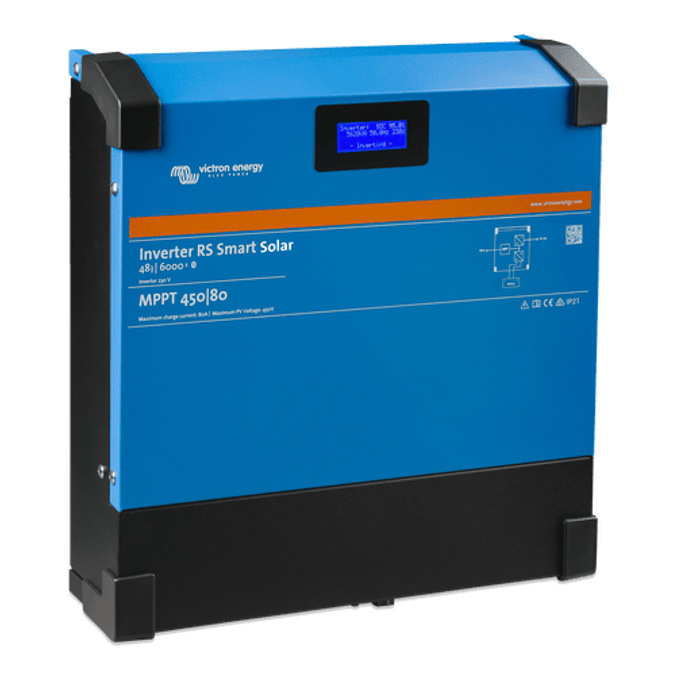

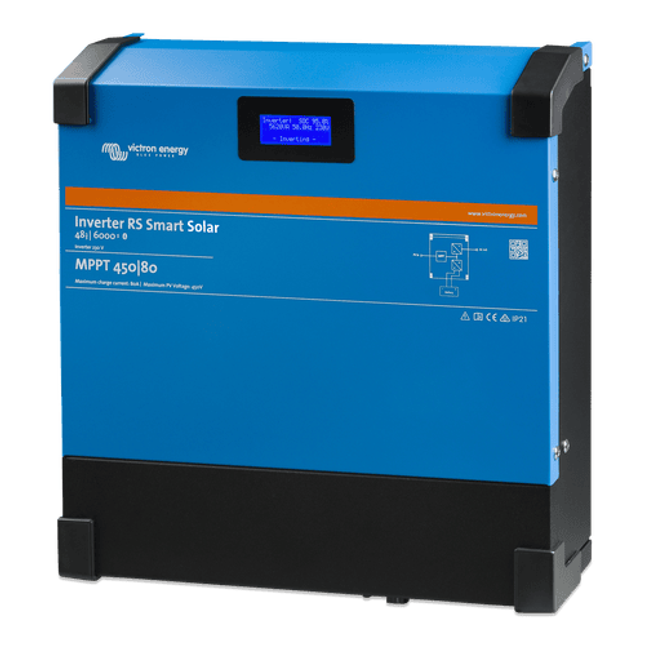

Highlights:LCD Display: Smart display providing real-time data on battery state, solar yield, and AC output,6000VA Inverter: High-efficiency 48V to 230V sine wave inverter with peak power performance,Integrated MPPT: Built-in 450V 80A solar charge controller for high-voltage PV array charging,IP21 Enclosure: Durable steel enclosure with IP21 protection for indoor installation,Connection Area: Removable lower cover for easy access to battery, AC, and solar terminals.

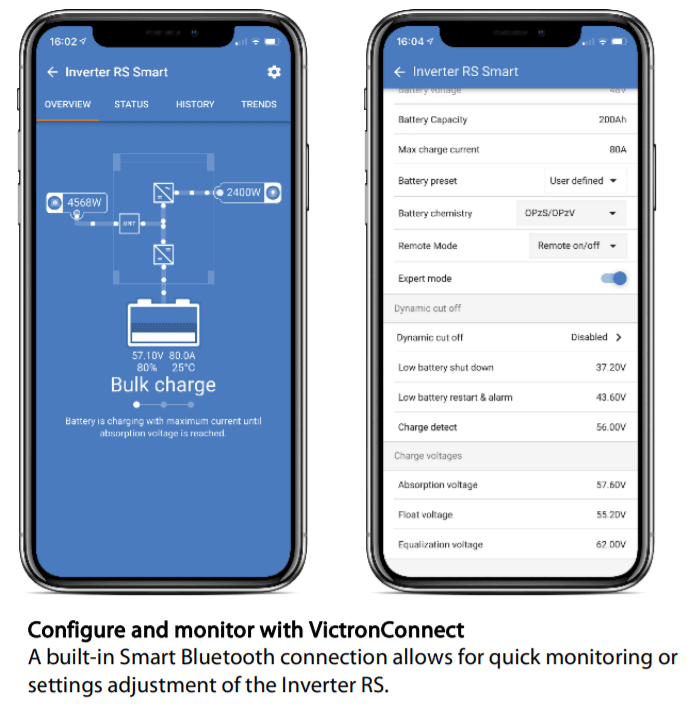

Wireless configuration and monitoring of the Inverter RS via built-in Bluetooth and the VictronConnect app, showing solar yield, battery state of charge, and historical trends.

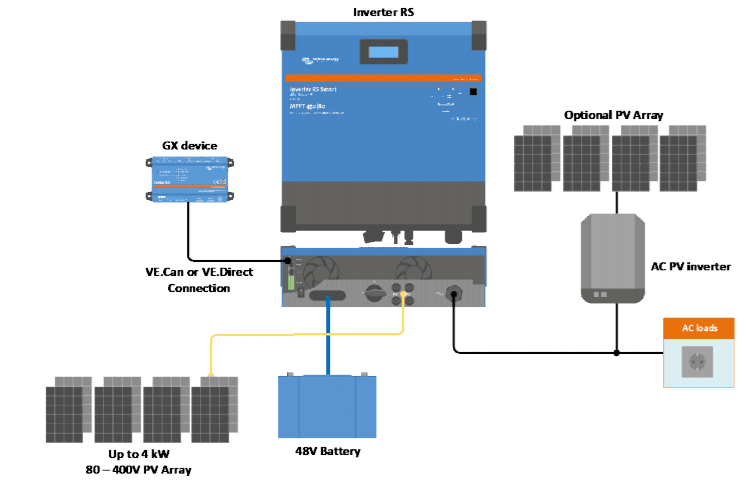

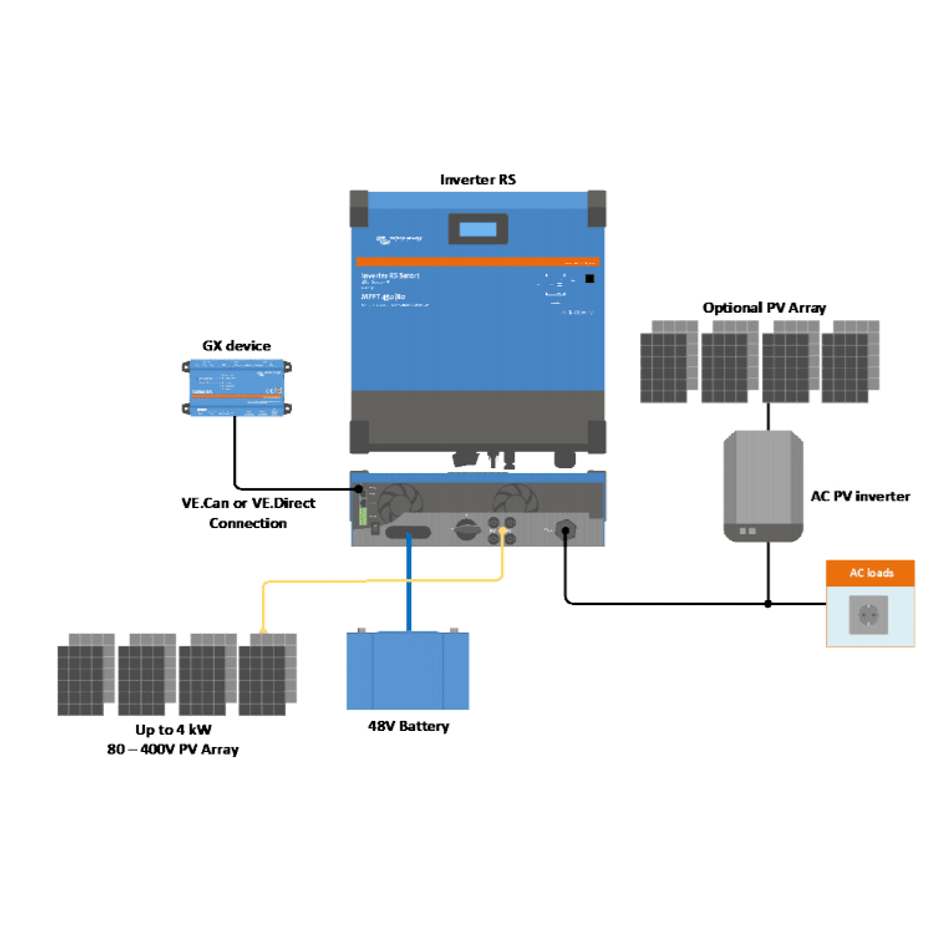

Comprehensive system layout illustrating the connections between the Inverter RS, 48V battery bank, dual high-voltage PV solar arrays, and GX monitoring hardware.

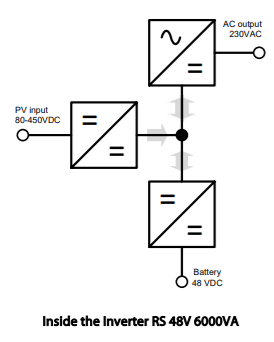

Functional schematic showing the internal power flow between the 450VDC solar input, 48VDC battery connection, and the 230VAC inverter output stage.

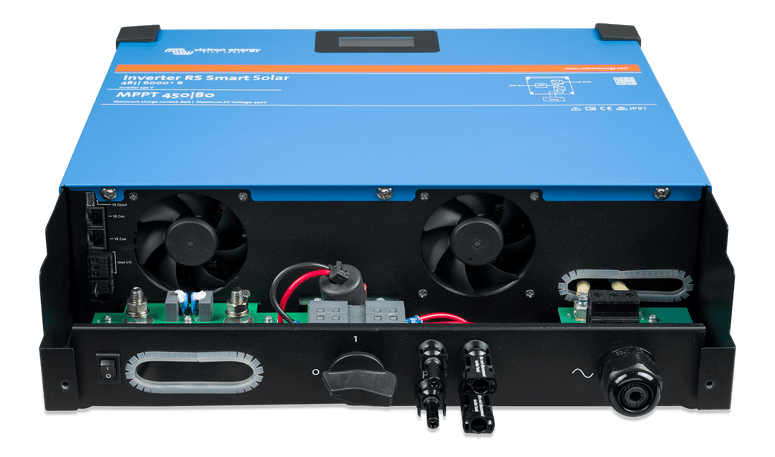

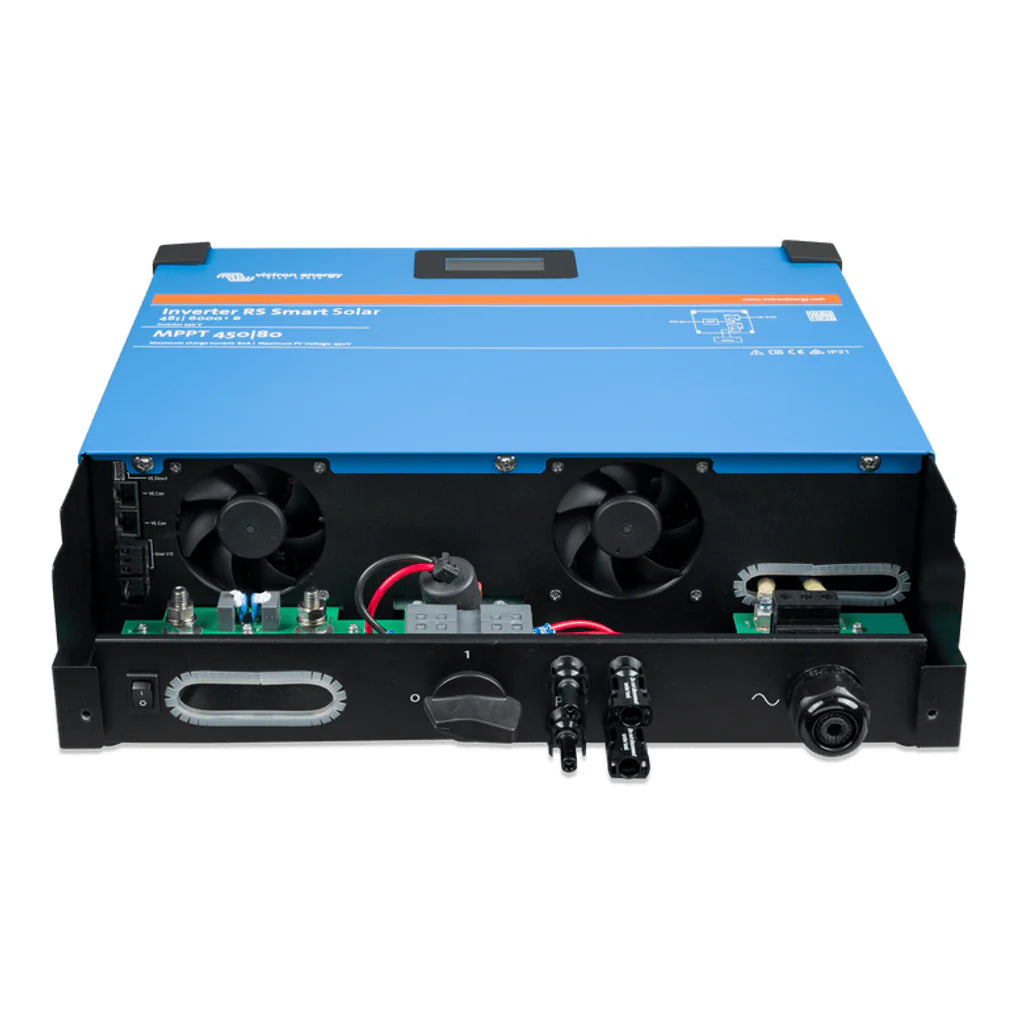

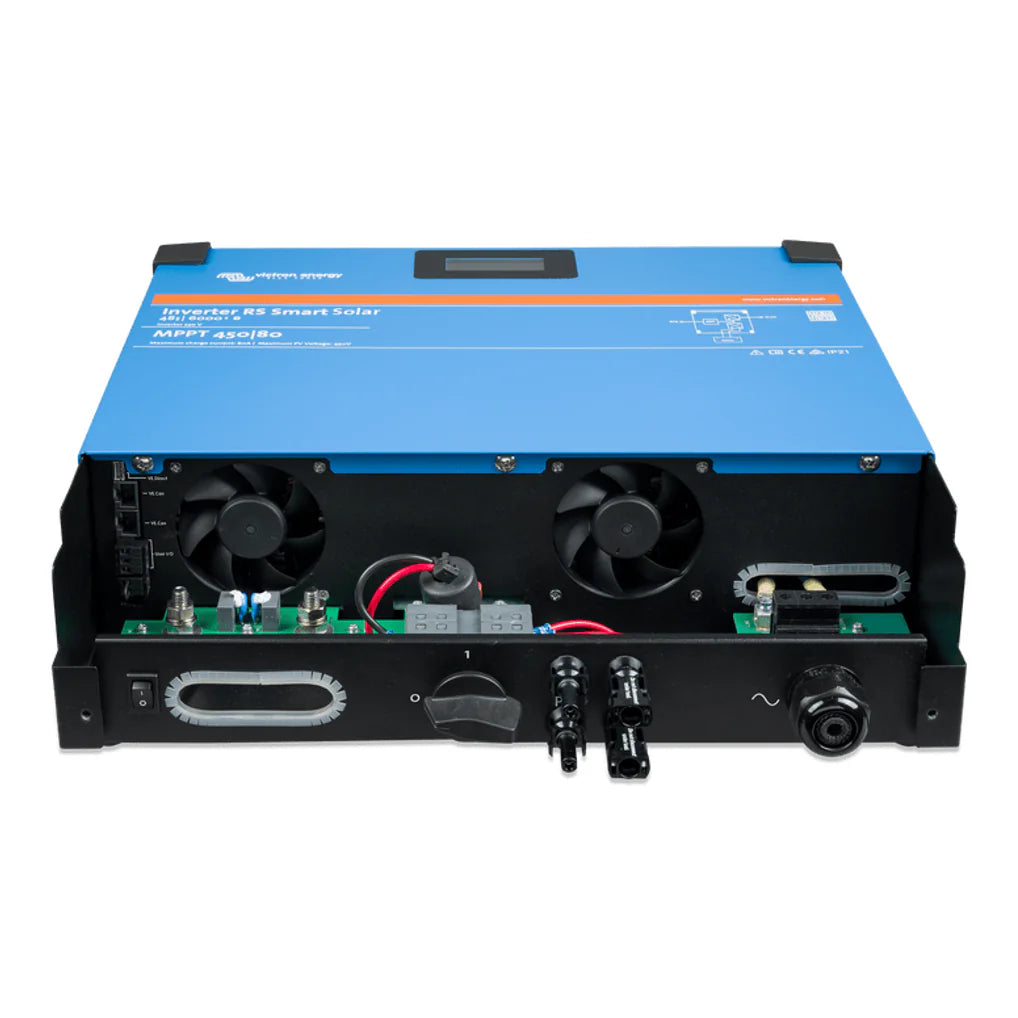

Key features: Dual temperature-controlled high-flow cooling fans, Large M8 battery connection studs for high-current cables, Dedicated solar input and AC output connection points, Multiple VE.Can and VE.Direct communication ports, Robust powder-coated steel enclosure with cable entry guides.

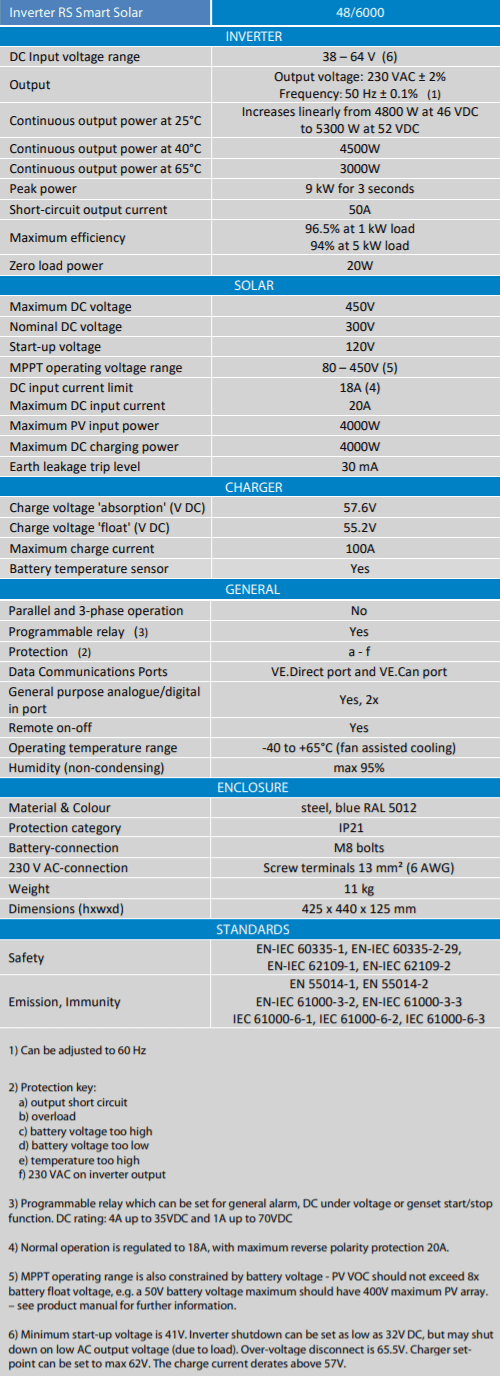

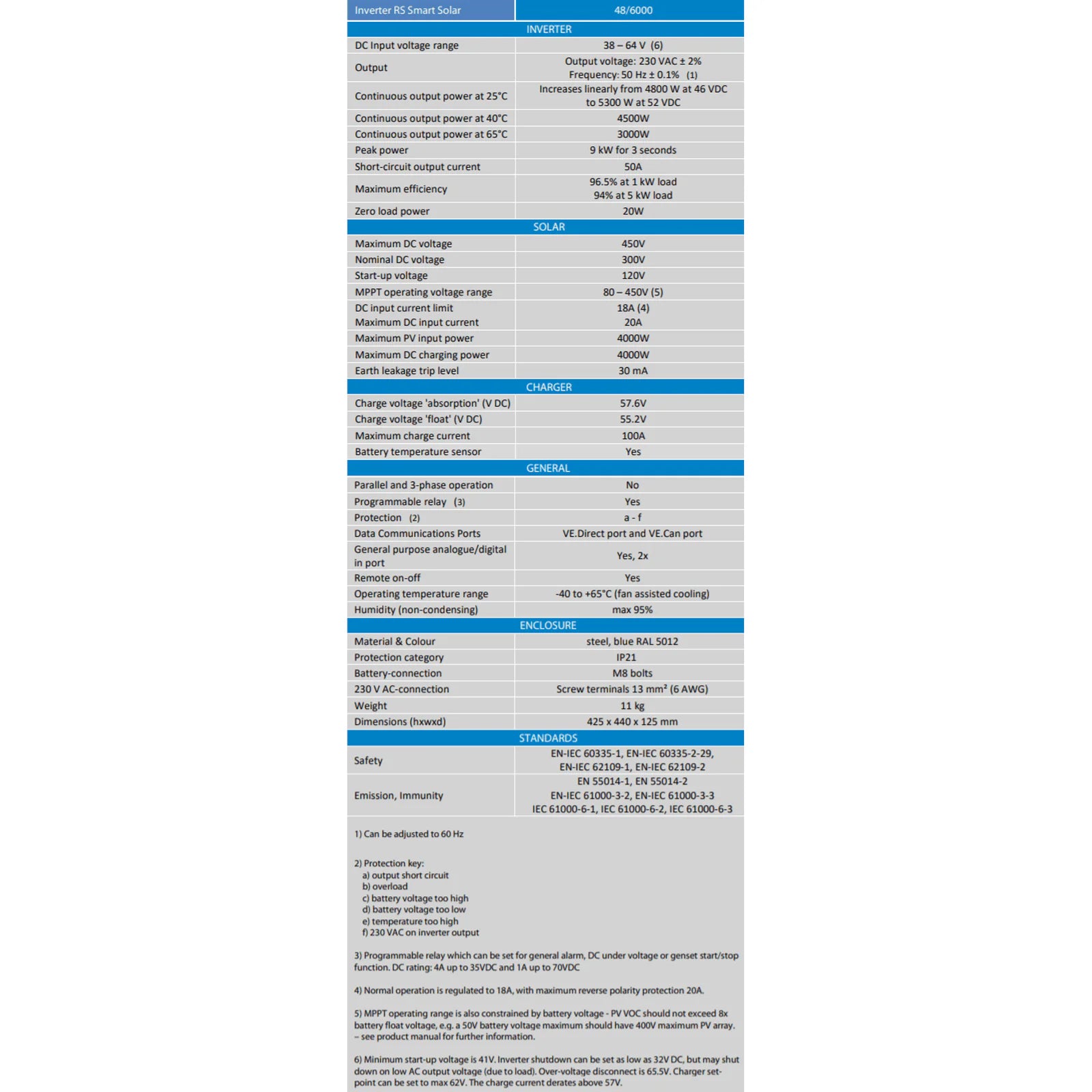

Detailed technical performance data including 6000VA continuous power rating, 450V MPPT operating range, and safety standard compliance certificates.
DESCRIPTION
Victron Inverter RS 48/6000 Smart Solar: Integrated 48V 6000VA Off-Grid Power Solution
High-Performance Sine Wave Inverter with Built-In 450V MPPT Solar Charger
The Victron Inverter RS 48/6000 Smart Solar combines a powerful 6000VA pure sine wave inverter, a bi-directional DC-DC converter, and a high-voltage 450V MPPT solar charge controller in a single, compact unit. Designed for demanding off-grid and backup power systems, it delivers reliable 230V AC output from a 48V battery bank while maximising solar harvest from high-voltage PV arrays.
Weighing only 11 kg, this high-frequency inverter achieves up to 96.5% efficiency, reducing energy losses and operating quietly with temperature-controlled cooling. Its wide MPPT voltage range (65–450 VDC) supports long PV strings, minimising cable losses and simplifying array design for residential, commercial, and remote installations.
Advanced Power Conversion and Solar Integration
At the core of the Inverter RS is a bi-directional DC-DC converter that seamlessly manages power flow between the battery, solar array, and AC loads. When solar production exceeds demand, excess energy charges the battery; when loads increase or solar is insufficient, the converter draws from the battery to maintain uninterrupted AC output. This dynamic energy management optimises self-consumption and reduces reliance on external sources.
The integrated MPPT controller handles up to 4000 W of solar input, with a maximum DC voltage of 450 V and an operational current limit of 18 A. Its 120 V start-up voltage ensures early morning charging, while the broad tracking range captures energy even under partial shading or low-light conditions. Dual MC4 inputs allow parallel PV strings, and a built-in isolator switch provides safe disconnection during maintenance.
Intelligent Monitoring and Control
Built-in Bluetooth enables wireless configuration and real-time monitoring via the VictronConnect app on smartphones or tablets. The front-panel LCD displays key parameters including battery state, solar yield, and AC output. For advanced system integration, VE.Can and VE.Direct ports connect to GX devices (e.g., Cerbo GX) for remote monitoring, data logging, and firmware updates through the Victron Remote Management (VRM) portal.
Programmable I/O connections support a relay, temperature sensor, and voltage sense, enhancing battery management and system safety. The remote input can interface with a Victron smallBMS for lithium battery compatibility, ensuring precise charge control and protection.
Key Features
- 6000VA pure sine wave inverter with 9 kW peak power for demanding loads
- Integrated 450V MPPT solar charger with 4000 W capacity and 65–450 V tracking range
- Bi-directional DC-DC converter for efficient battery charging and discharging
- Lightweight 11 kg design with high-frequency technology and quiet operation
- Built-in Bluetooth and LCD display for local and app-based monitoring
- VE.Can and VE.Direct ports for GX device connectivity and VRM portal access
- Dual MC4 PV inputs with integrated isolator for safe and simple solar wiring
- Programmable relay and sensor inputs for custom system integration
- Parallel and three-phase capable (up to 12 units) for scalable power systems
Reliable Power for Critical Applications
Engineered for Australian conditions, the Inverter RS operates from -40 °C to +65 °C with fan-assisted cooling, ensuring consistent performance in extreme environments. Its IP21 steel enclosure is suitable for indoor installation in protected spaces such as equipment rooms, sheds, or vehicle bays. The unit includes essential safety features like earth leakage detection (30 mA trip level) and isolation monitoring before start-up, reducing installation risks.
With support for parallel operation (up to 12 units) and three-phase configurations (4 units per phase), this inverter scales to meet larger energy demands. Whether powering a remote homestead, a commercial off-grid system, or a backup solution for critical loads, the Victron Inverter RS 48/6000 Smart Solar delivers dependable, efficient, and intelligent energy conversion.
Take Control of Your Off-Grid Energy
Upgrade your power system with the Victron Inverter RS 48/6000 Smart Solar and experience seamless integration of solar charging and AC output in one advanced unit. Configure, monitor, and optimise your energy from anywhere using VictronConnect and VRM. Order today to build a resilient, high-performance off-grid solution.
SPECIFICATIONS
Specifications
| DC Input Voltage Range | 38-62 V |
|---|---|
| Output Voltage | 230 VAC ± 2% |
| Frequency | 50 Hz ± 0.1% |
| Maximum Continuous Inverter Current | 25 A AC |
| Continuous Output Power at 25 °C | Increases linearly from 4800 W at 46 VDC to 5300 W at 52 VDC |
| Continuous Output Power at 40 °C | 4500 W |
| Continuous Output Power at 65 °C | 3000 W |
| Peak Power | 9 kW for 3 seconds; 7 kW for 4 minutes |
| Short-Circuit Output Current | 45 A |
| Max. AC Output Overcurrent Protection | 30 A |
| Maximum Efficiency | 96.5% at 1 kW load; 94% at 5 kW load |
| Zero Load Power | 20 W |
| Low Battery Shutdown | 37.2 V (adjustable) |
| Low Battery Restart | 43.6 V (adjustable) |
| Maximum DC Voltage | 450 V |
| Start-Up Voltage | 120 V |
| MPPT Voltage Range | 65-450 V |
| Maximum Operational PV Input Current Limit | 18 A |
| Max. PV Short Circuit Current | 20 A |
| Maximum DC Solar Charging Power | 4000 W |
| Earth Leakage Trip Level | 30 mA |
| Isolation Fail Level (Detection Before Start-Up) | 100 kΩ |
| Programmable Charger Voltage Range | 36-60 V |
| Charge Voltage 'Absorption' | Default: 57.6 V (adjustable) |
| Charge Voltage 'Float' | Default: 55.2 V (adjustable) |
| Maximum Charge Current From AC | 88 A @ 57.6 V |
| Total Maximum Combined Charger Current (AC + PV) | 100 A |
| Battery Temperature Sensor | Included |
| Battery Voltage Sense | Yes |
| Parallel and 3-Phase Operation | 12 parallel units supported, 3 phase supports 4 units per phase |
| Data Communications | VE.Direct port, VE.Can port & Bluetooth |
| Operating Temperature Range | -40 to +65 °C (fan assisted cooling) |
| Maximum Altitude | 2000 m |
| Humidity (Non-Condensing) | Max 95% |
| Material & Color | Steel, Blue RAL 5012 |
| Protection Category | IP21 |
| Protective Class | I |
| Battery Connection | M8 bolts |
| PV Connection | 2 positive & 2 negative MC4 |
| 230 V AC Connection | Screw terminals 10 mm² (6 AWG) |
| Weight | 11 kg |
| Dimensions (H x W x D) | 425 x 440 x 125 mm |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission, Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Overvoltage Category | Battery: OVC I; PV Port: OVC II; AC In / AC Out: OVC III |
| SKU: | VIC-PIN482601000 |
| Barcode: | 8719076048176 |
| Model #: | PIN482601000 |
| MPN: | PIN482601000 |
