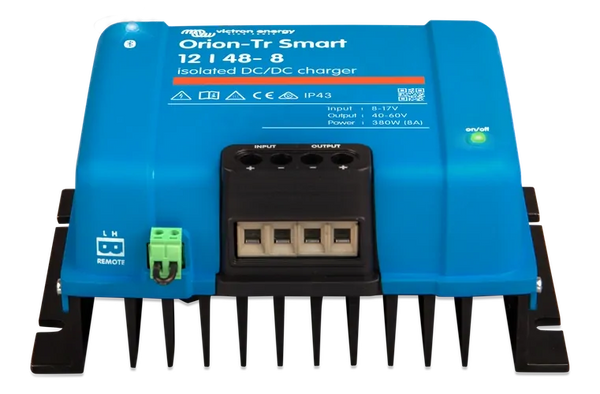

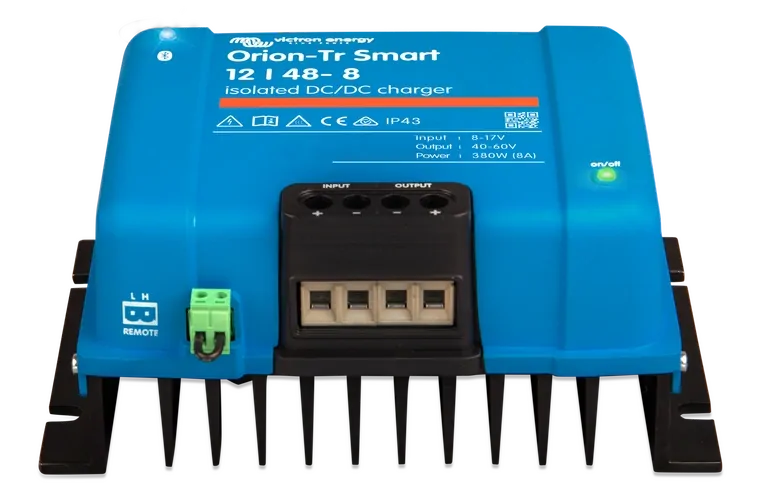

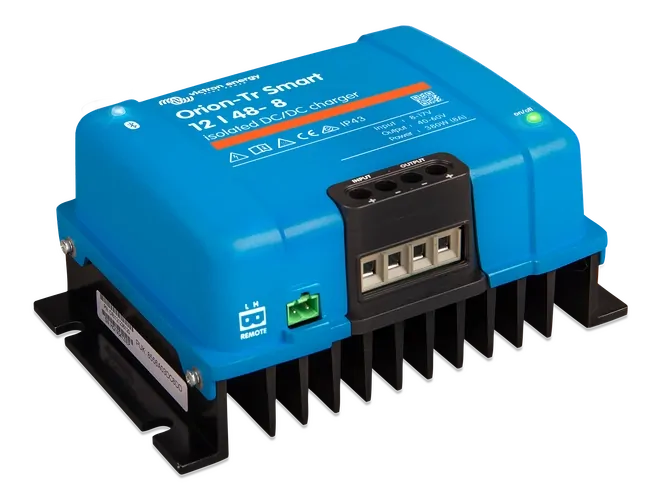

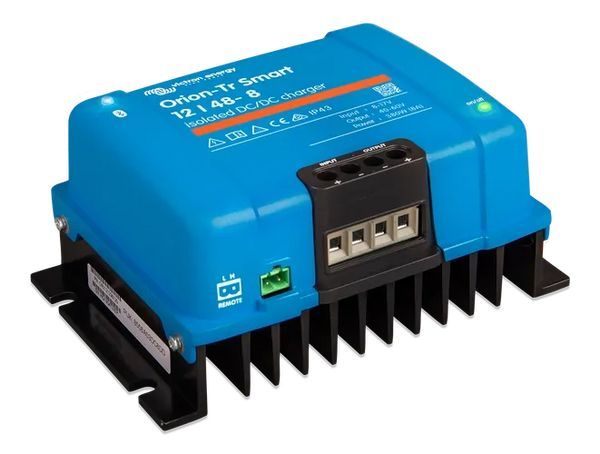

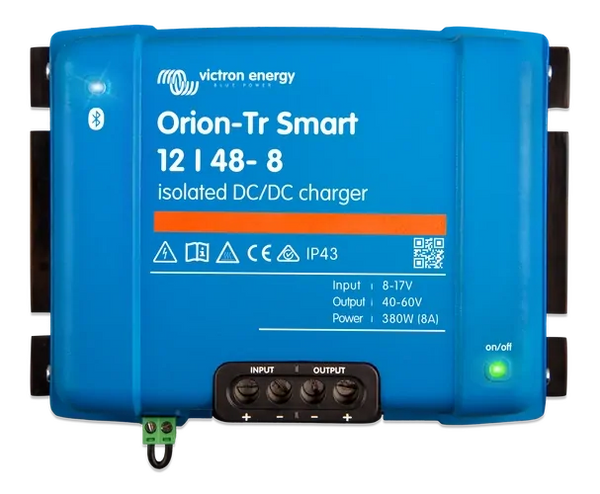

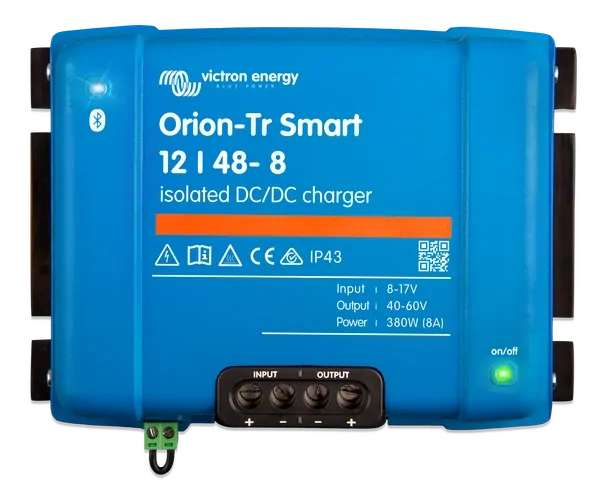

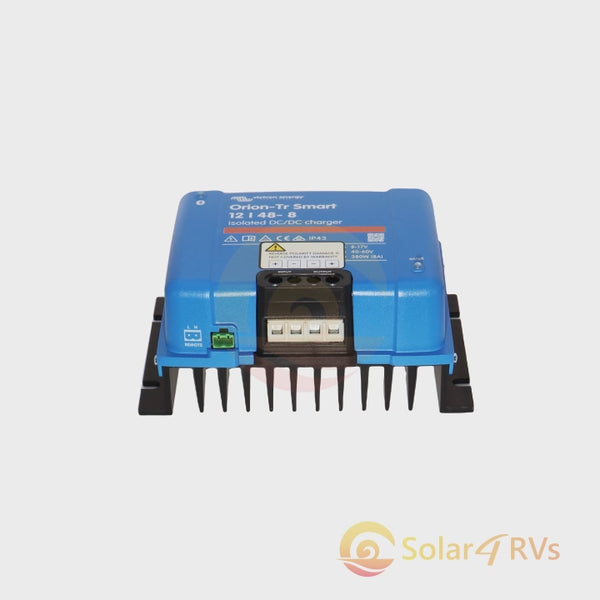

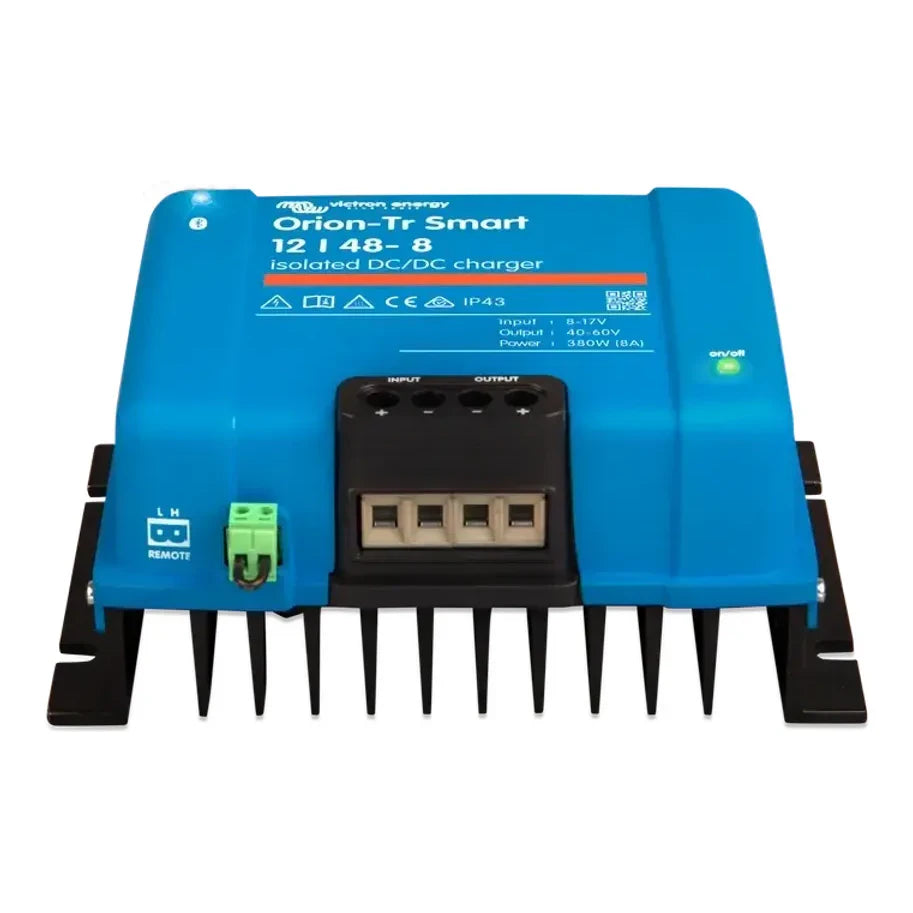

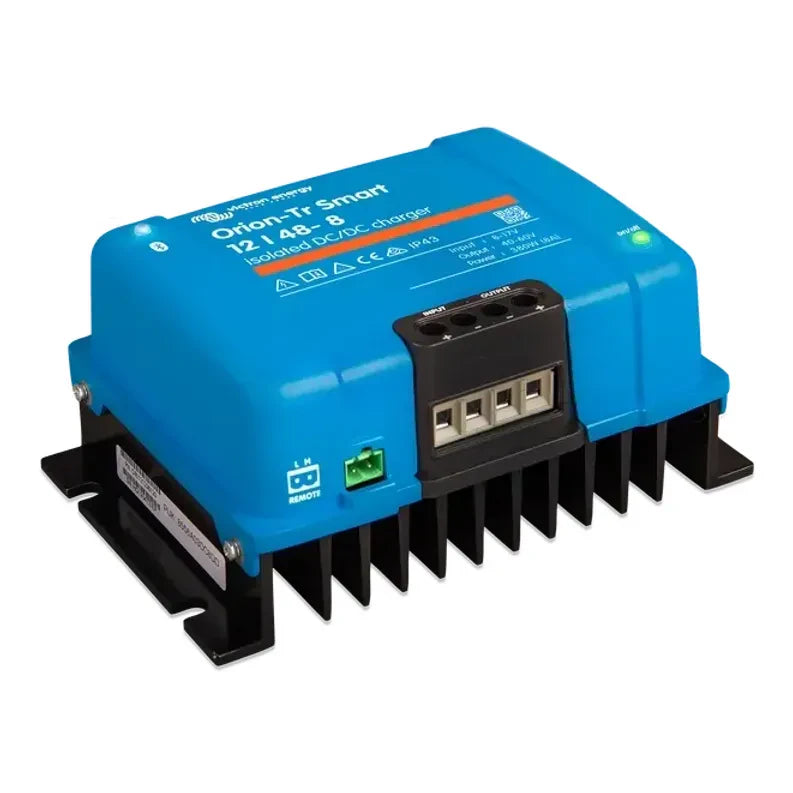

Victron 12V to 48V Orion-Tr 12/48-8A (380W) Isolated DC-DC Charger
Victron 12V to 48V Orion-Tr 12/48-8A (380W) Isolated DC-DC Charger
12V In, 48V Out

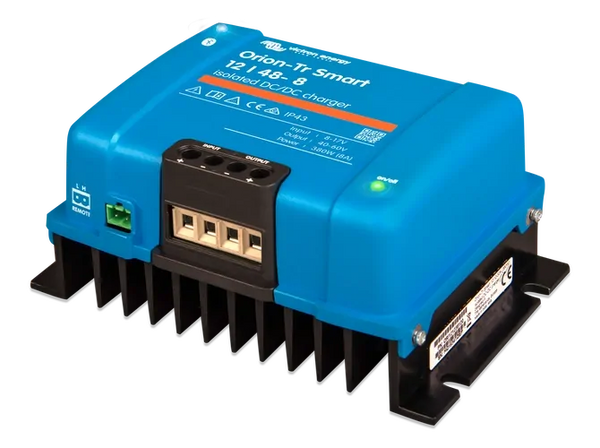

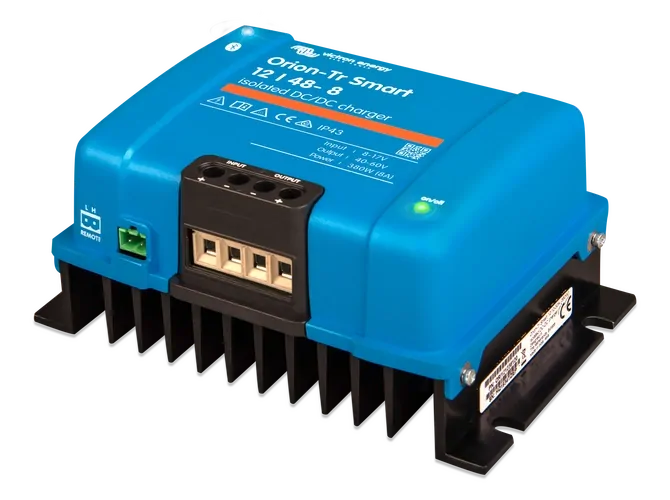

Highlights:Bluetooth Status LED: Indicator light for wireless configuration and monitoring via the VictronConnect app,Isolated Remote On/Off Connector: Green terminal block for connecting a remote switch to control unit operation,Screw Terminals: Heavy-duty terminals for input and output connections supporting up to 16mm2 cabling,Power On/Off LED: Green status indicator for active power output and operation,IP43 Protection Rating: Enclosure rated for protection against solid objects and water spray,Performance Specifications: Quick reference for input/output voltage ranges and power ratings.
Critical safety warning for the Victron 12V to 48V Orion-Tr Smart charger, specifying that the unit is designed strictly for 12V input and 48V output to avoid irreparable damage

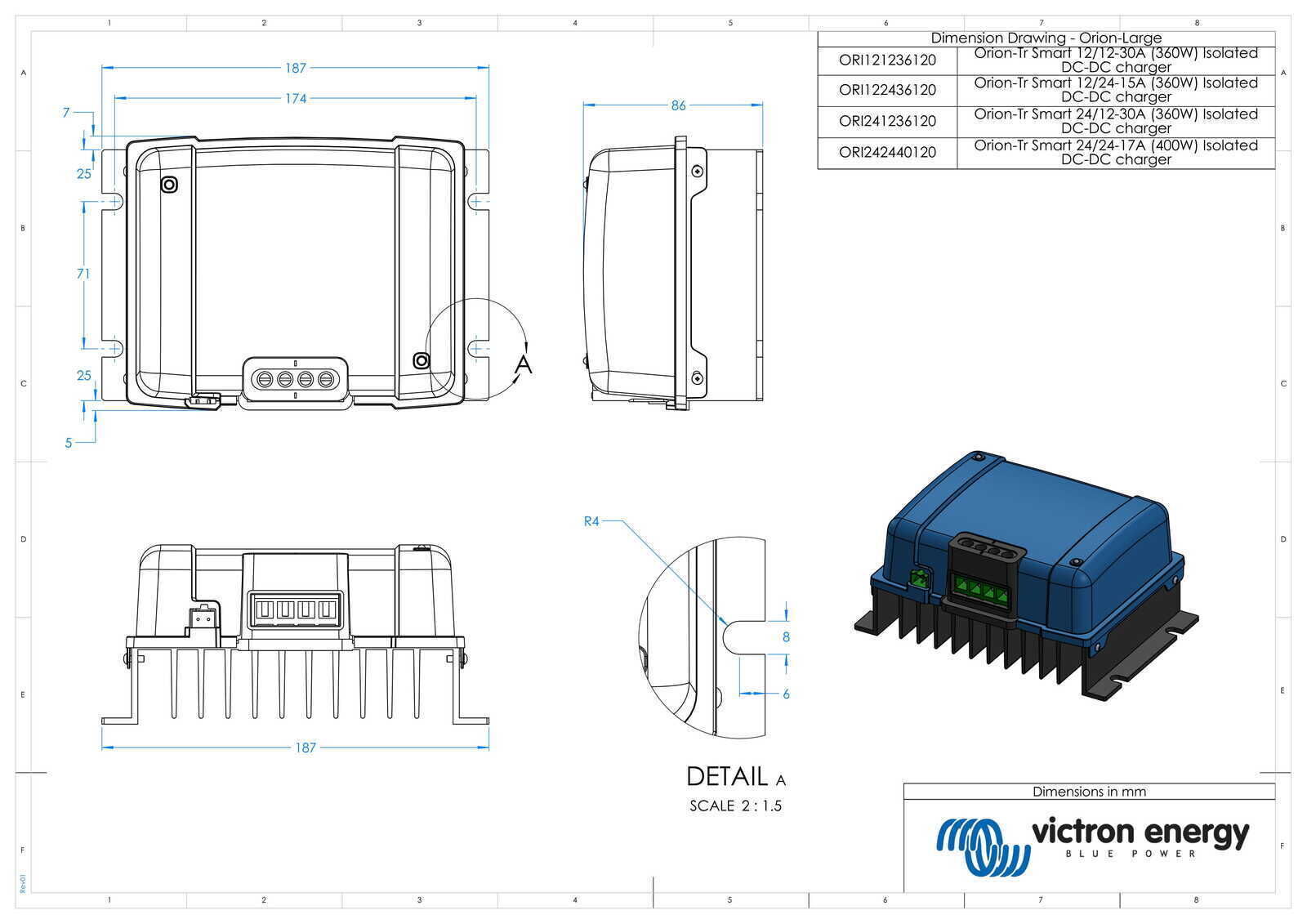

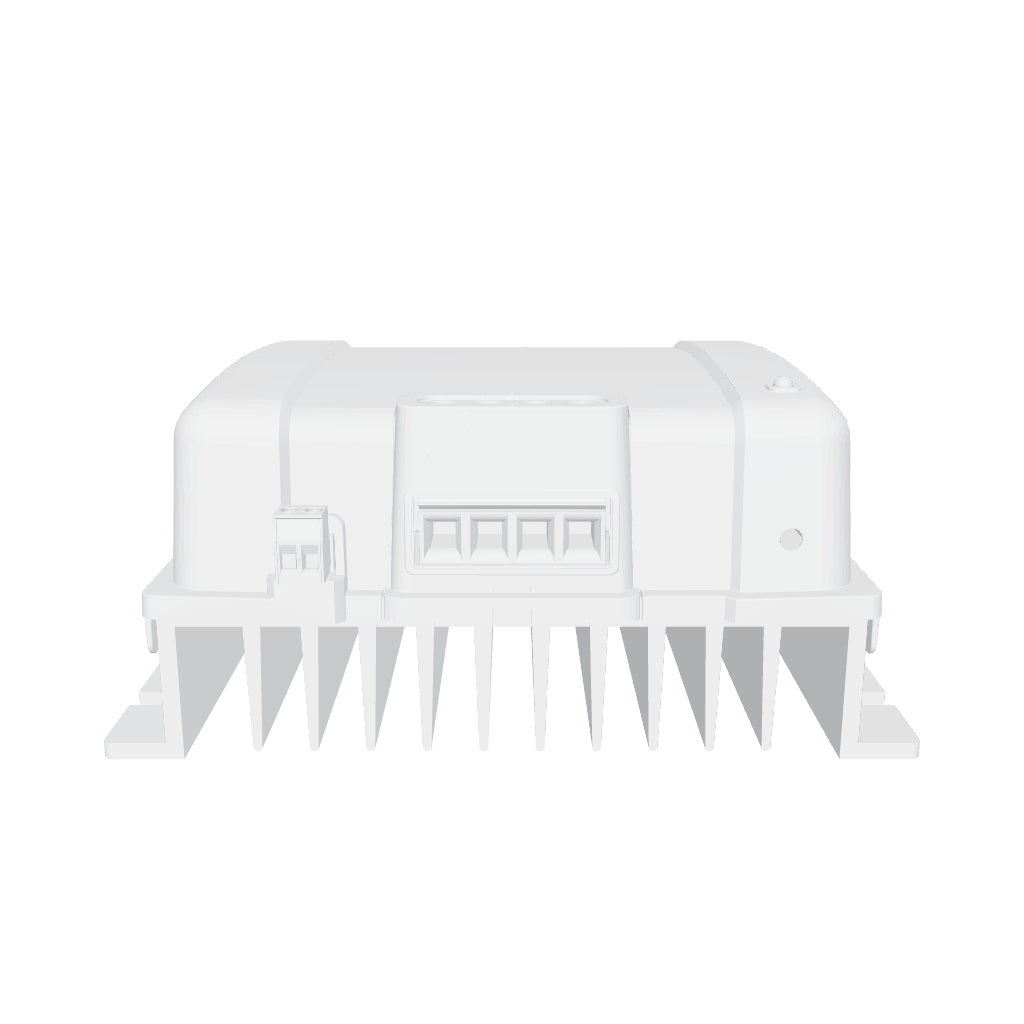

Key features: Overall width of 187mm including mounting flanges, Mounting hole pitch of 174mm for secure installation, Compact depth of 86mm including heat sink, Height of 130mm suitable for wall or panel mounting, Integrated large-area aluminium heat sink for passive cooling.


DESCRIPTION
Smart Power Solution: Orion-Tr 12/48-8A Isolated DC-DC Charger
WARNING: This unit is specifically designed for 12V to 48V charging systems. Using it with other voltage systems may cause irreversible damage.
The Victron Orion-Tr Smart Isolated DC-DC Charger is your go-to for reliable, efficient, and smart charging. It's perfect for keeping your vehicle's battery, RV, marine, or off-grid storage system in peak condition, ensuring you have power when you need it most.
Effortless Connectivity with Bluetooth Smart
Stay in control and customize your charger settings with the convenience of Bluetooth technology. Use any Bluetooth-enabled smartphone or tablet to keep track of your charger's performance and make adjustments on the fly. With the latest software updates at your fingertips, your charger will always be up-to-date.
Customizable Charging for Every Need
- Adaptable charge settings allow you to tailor the charging process to your specific battery type and needs, whether you're looking to optimize battery life or need a quick boost.
- Compatibility with modern smart alternators makes this charger an ideal choice for newer vehicles, ensuring seamless integration and charging.
Intelligent Charging with a 3-Stage Algorithm
- The Orion Smart charger's bulk, absorption, and float stages adapt to your battery's needs, offering a fast charge when empty and preventing overcharging when full.
- The fixed output voltage mode is also available for devices that need a constant power supply.
Remote Control Options
With the ability to connect a remote switch or relay, you have the flexibility to control the charger from afar, making it convenient for hard-to-reach installations or for integrating into complex systems.
Expandable Power for Larger Systems
Need more power? You can safely connect multiple units in parallel for increased current output, making it a scalable solution for larger energy demands.
Protection Against the Elements
With an IP43 protection rating when installed with the screw terminals facing downwards, the charger is protected against ingress of objects and spraying water, ensuring durability in various installation environments.
No-Hassle Installation

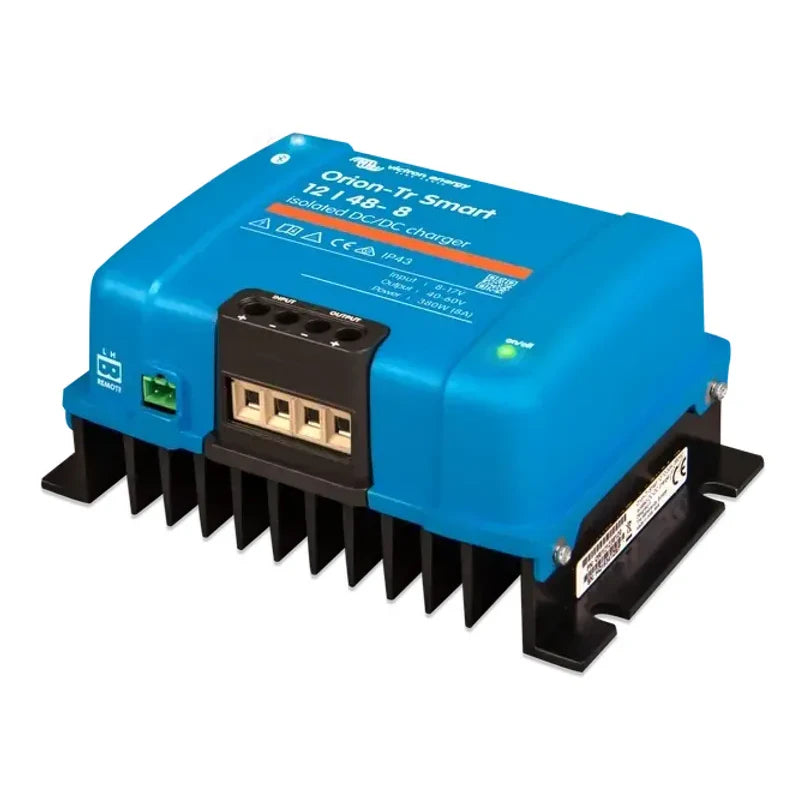

The user-friendly screw terminals mean no special tools are needed, simplifying the installation process. It’s a straightforward setup that’s as easy as it is robust.
Stay Safe with Built-In Features
Integrated safety features, including a non-replaceable input fuse and high-temperature protection, ensure your system is safeguarded against potential electrical issues.
Whether you're powering an off-grid DC installation, hitting the road in your RV, or sailing the seas, the Victron Orion-Tr Smart Charger delivers the power you need with the intelligence and safety you can trust.
SPECIFICATIONS
Specifications
| Model | Orion-Tr 12/48-8 (380 W) |
| Input voltage range (1) | 10-17 V |
| Under voltage shut down | 7 V |
| Under voltage restart | 7.5 V |
| Nominal output voltage | 48.2 V |
| Output voltage adjust range | 40-60 V |
| Output voltage tolerance | +/- 0.2 V |
| Output noise | 2 mV rms |
| Cont. output current at nominal output voltage and 40°C | 8A |
| Maximum output current (10 s) at nominal output voltage minus 20% | 15 A |
| Short circuit output current | 25 A |
| Cont. output power at 25°C | 430 W |
| Cont. output power at 40°C | 380 W |
| Efficiency | 89% |
| No load input current (2) | < 220 mA |
| Current consumption | < 200uA when disabled via its remote port |
| Galvanic isolation | 200 VDC between input, output and case |
| Operating temperature range | -20 to +55 °C (derate 3 % per °C above 40 °C) |
| Humidity | Max. 95 % non-condensing |
| DC connection | Screw terminals |
| Maximum cable cross-section | 16 mm2 AWG6 |
| Weight | 1.8 kg (4 lb) |
| Dimensions hxwxd | 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch) |
| Standards: Safety | EN 60950 |
| Emission | EN 61000-6-3, EN 55014-1 |
| Immunity | EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive Directive | ECE R10-5 |
1) If set to nominal or lower than nominal, the output voltage will remain stable within the specified input voltage range (buck-boost function). If the output voltage is set higher than nominal by a certain percentage, the minimum input voltage at which the output voltage remains stable (does not decrease) increases by the same percentage.
2) Current consumption when the Orion-Tr is generating output voltage but no load is applied.
| SKU: | Vic-ORI124838120 |
| Barcode: | 8719076065654 |
| Model #: | ORI124838120 |
| MPN: | ORI124838120 |
