Victron 12V 180Ah Smart LiFePO4 Lithium Battery

Requires external Victron BMS such as VE.Bus BMS/miniBMS

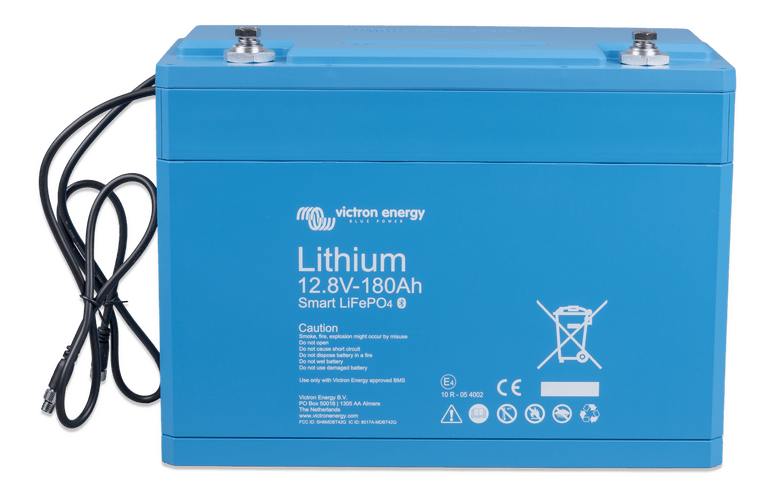

Slight high angle view of blue Victron lithium battery showing top casing and terminalsFront view of Victron 12.8V 180Ah Smart LiFePO4 battery with integrated BMS cablesHighlights:M8 Terminals: M8 threaded insert terminals for secure high-current power connections,BMS Cables: Integrated 50cm cables with M8 circular connectors for BMS communication,Bluetooth Logo: Built-in Bluetooth for wireless monitoring via the VictronConnect app,Battery Rating: Nominal 12.8V and 180Ah capacity rating for energy storage,Safety Compliance: CE, E-mark, and WEEE regulatory compliance markings.Side perspective of 12V 180Ah Victron lithium battery showing BMS cable entry pointsSide view highlighting the compact 152mm depth and the entry point for the dual BMS communication cables used in managed lithium systems.Isometric view of the Victron Smart LiFePO4 battery showing overall form factorMobile interface showing VictronConnect app with real-time battery voltage and cell dataSmartphone interface demonstrating the VictronConnect app providing live cell voltages, temperature data, and overall battery health via integrated Bluetooth.Detailed technical specification table for Victron Smart lithium battery rangeKey features: 12.8V nominal voltage with 180Ah capacity, Up to 5000 cycles at 50% depth of discharge, 360A maximum continuous discharge current, IP22 protection class for indoor installation, Bluetooth connectivity for remote monitoring.Wiring schematic for multiple lithium batteries with VE.Bus BMS and inverter systemComprehensive system diagram illustrating the correct integration of lithium batteries with a VE.Bus BMS, MultiPlus inverter/charger, and battery protection devices.Engineering dimension drawing of Victron 12V 180Ah lithium batteryTechnical dimensional drawing showing the battery height of 237mm, width of 321mm, and depth of 152mm for precise installation mounting.

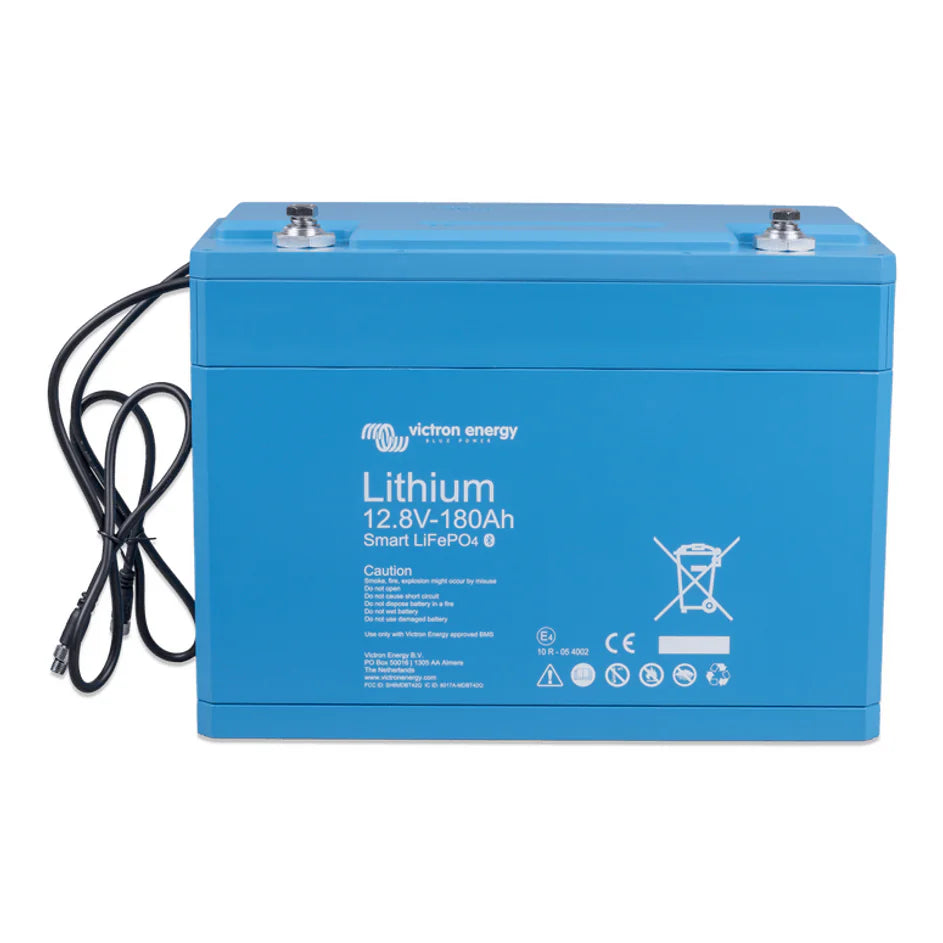

Slight high angle view of blue Victron lithium battery showing top casing and terminals

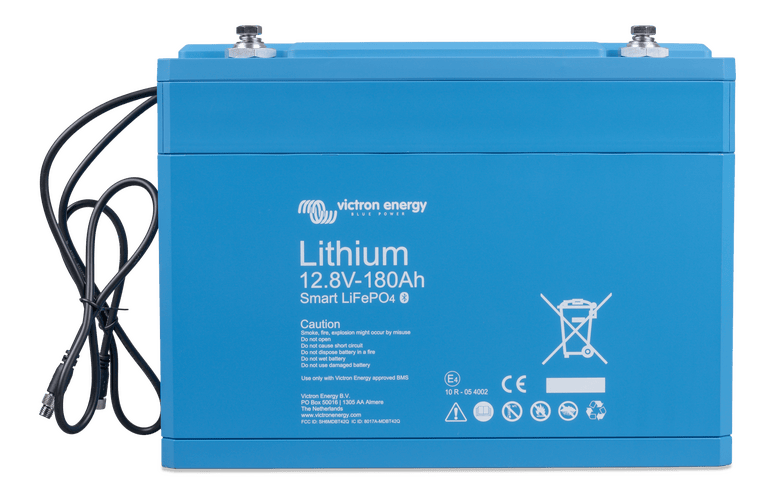

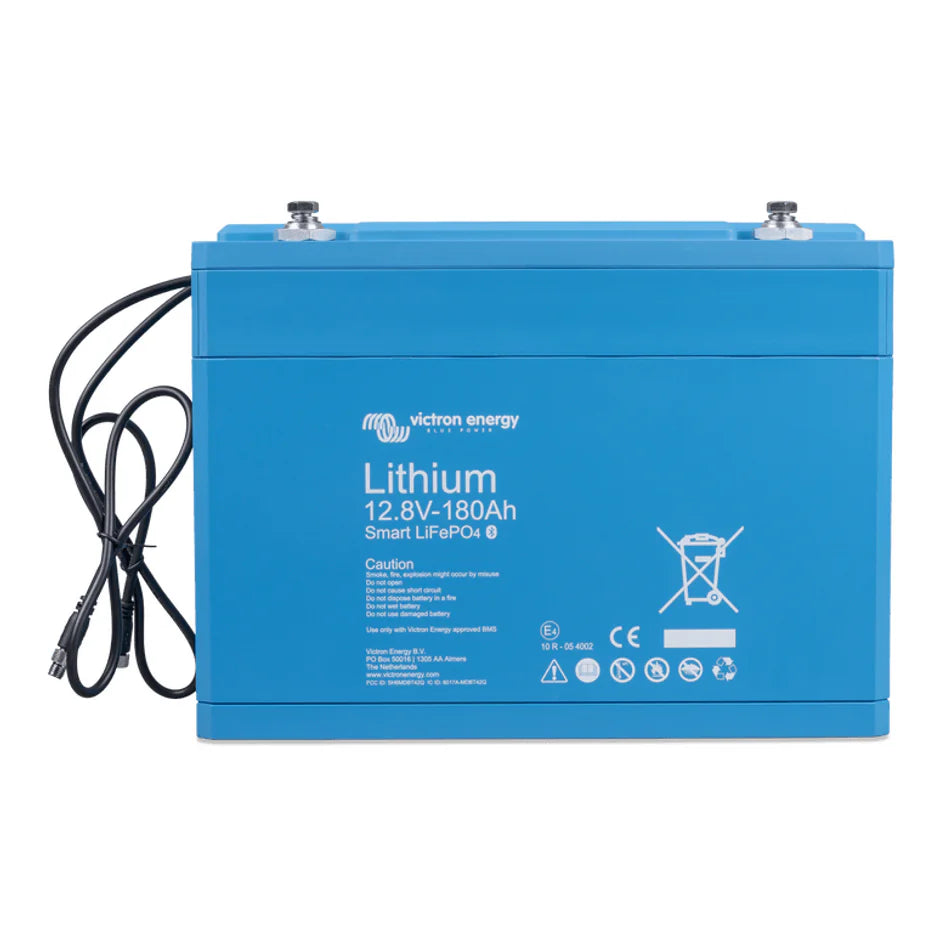

Front view of Victron 12.8V 180Ah Smart LiFePO4 battery with integrated BMS cables

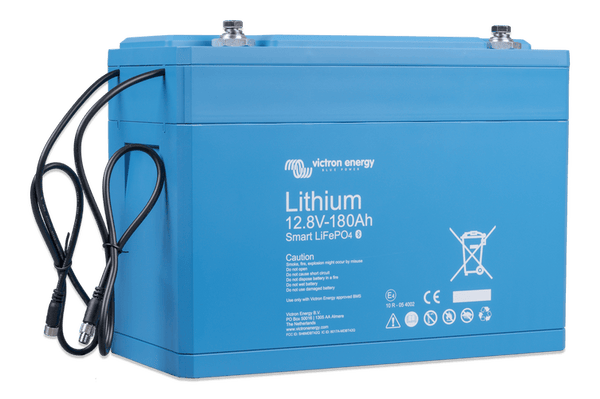

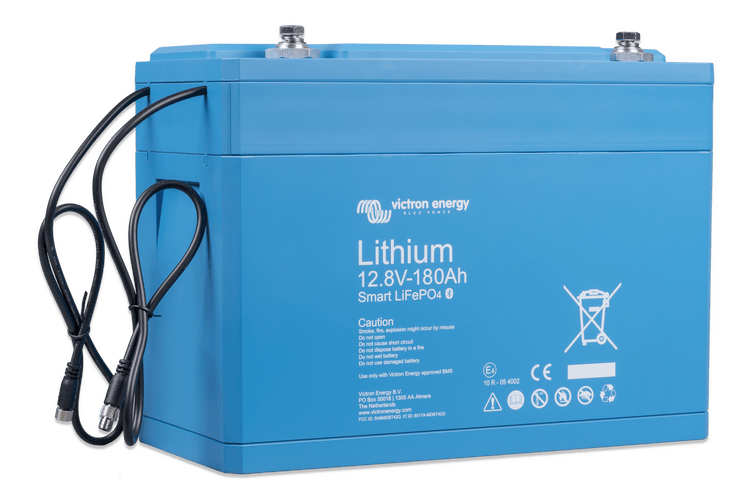

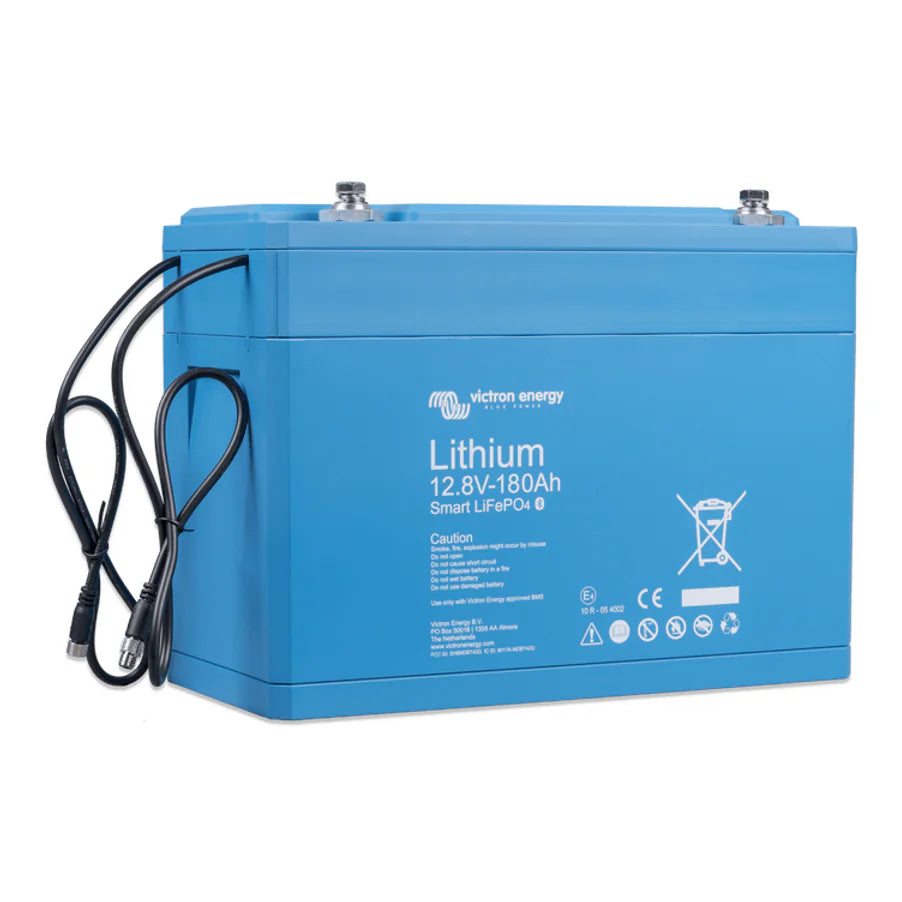

Side perspective of 12V 180Ah Victron lithium battery showing BMS cable entry points

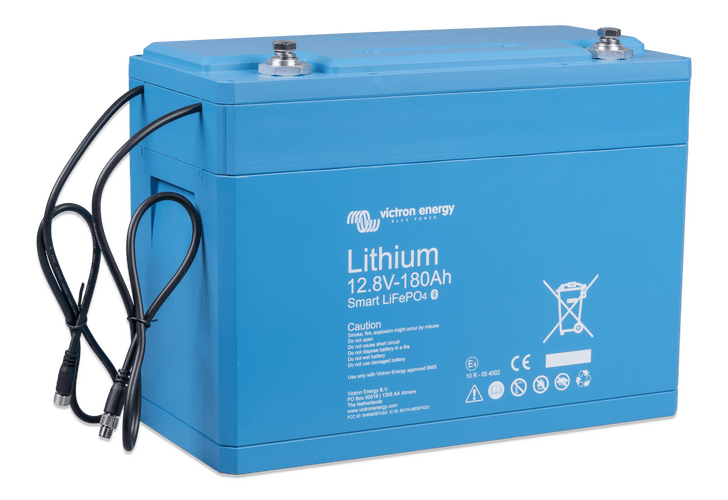

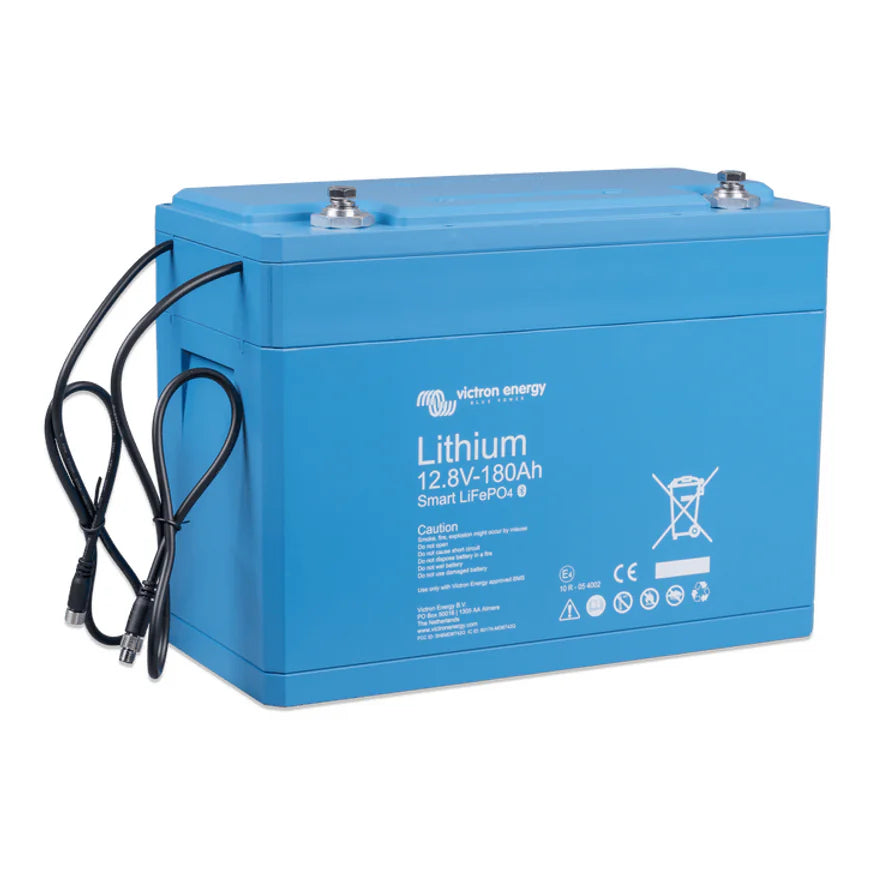

Isometric view of the Victron Smart LiFePO4 battery showing overall form factor

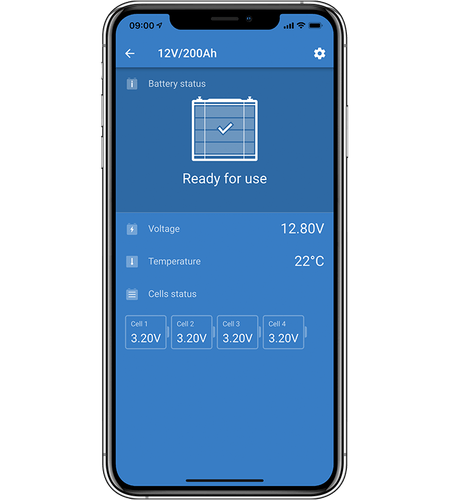

Mobile interface showing VictronConnect app with real-time battery voltage and cell data
Detailed technical specification table for Victron Smart lithium battery range

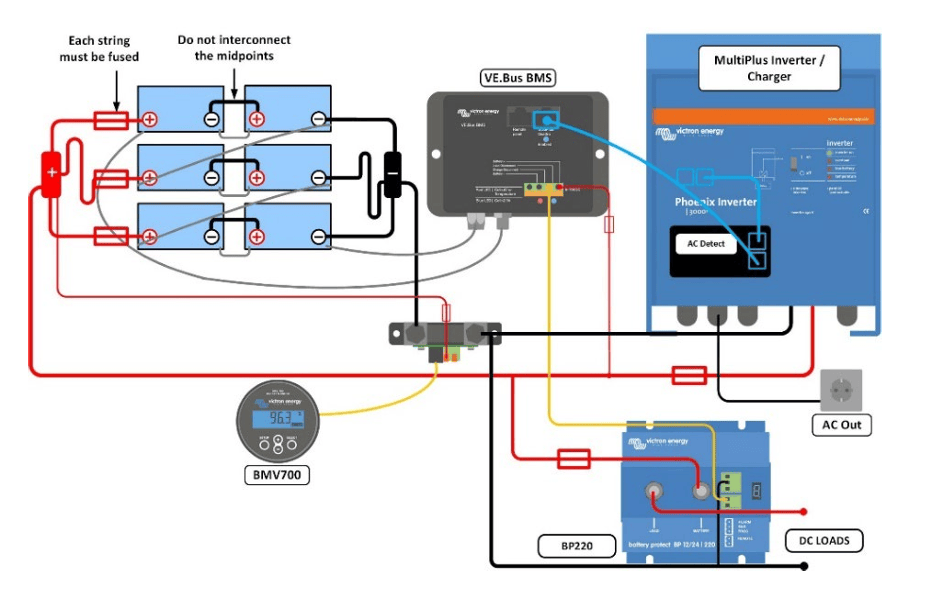

Wiring schematic for multiple lithium batteries with VE.Bus BMS and inverter system
Engineering dimension drawing of Victron 12V 180Ah lithium battery
Regular price $1,722.70
$1,397.00
/
Availability: In Stock at Victron Warehouse Allow up to 5 days before dispatch
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

0
Slight high angle view of blue Victron lithium battery showing top casing and terminals

Victron 12V 180Ah Smart LiFePO4 Lithium Battery

DESCRIPTION

Victron 12V 180Ah Smart LiFePO4 Lithium Battery - High-Efficiency Energy Storage

Important Note - Requires one of these BMS':

  • VE.Bus BMS V2– recommended for systems with our inverter/chargers such as MultiPluses and Quattros.
  • smallBMS – recommended for use in small systems without intending on using a Victron Inverter/charger.
  • Lynx Smart BMS M8 or Lynx Smart BMS M10 – recommended for use in large systems or those wanting the most feature rich and simple solution.

Discover the future of power storage with the Victron 12V 180Ah Smart LiFePO4 Lithium Battery, a leap forward in battery technology for the eco-conscious consumer. Victron Energy, a trusted name in efficient energy solutions, brings you the Lithium Iron Phosphate (LiFePO4) battery range, available in 12.8V and 25.6V across various capacities for diverse applications.

Features:

  • With integrated cell balancing
  • Can be parallel and series connected
  • Bluetooth app available to monitor cell voltage and temperature

Unparalleled Versatility:

  • Expandable Energy Storage: Connect these batteries in series, parallel, or series/parallel configurations to build a robust battery bank tailored to your system's needs, with options for 12V, 24V, or 48V system voltages.
  • Substantial Capacity: Create an extensive energy reserve with up to 20 batteries in one system, achieving a remarkable 84 kWh storage in a 12V setup and up to 102 kWh in 24V and 48V configurations.

Advanced Chemistry for Demanding Environments:

  • Lithium-Iron-Phosphate Excellence: The LFP battery is designed to withstand demanding conditions without the sulfation issues that plague lead-acid batteries, ensuring longevity and consistent performance.
  • Partial Charge Benefits: Unlike lead-acid batteries, the Victron LFP battery's service life improves with partial charges, making it the superior choice for long-term efficiency and reliability.

Cutting-Edge Efficiency:

  • Superior Round-Trip Energy Efficiency: Enjoy a remarkable 92% energy efficiency with a full discharge and recharge cycle, outperforming the average lead-acid battery's 80% efficiency.
  • Space and Weight Savings: Achieve the same power with 70% less space and weight compared to traditional batteries, a critical advantage for mobile and off-grid applications.

Smart Monitoring with Bluetooth:

  • Real-Time Data: With integrated Bluetooth, monitor cell voltages, temperature, and alarm status directly through the VictronConnect App without needing to physically connect to the battery.
  • Troubleshooting Simplified: Quickly identify and address any potential issues with cell imbalances or other concerns, ensuring your system's optimal performance.

Connects to a Victron Robust Battery Management System (BMS):

  • Proactive Protection: The BMS provides pre-alarms for low voltage and shuts down the load to prevent damage, ensuring your battery's health and safety.
  • Optimized Charging: It also regulates the charging process to protect against overvoltage and temperature extremes, detailed in the comprehensive BMS datasheets.

With the Victron 12V 180Ah Smart LiFePO4 Lithium Battery, power your world with confidence, knowing you have the pinnacle of battery innovation designed for peak performance and longevity. Whether for solar, wind, or mobile applications, this battery delivers the efficiency, durability, and smart technology you need to stay powered up in any situation.

SPECIFICATIONS

Specifications

Voltage and Capacity LFP-Smart 12V 180Ah
Nominal voltage 12.8 V
Nominal capacity @ 25°C* 180 Ah
Nominal capacity @ 0°C* 150 Ah
Nominal capacity @ -20°C* 90 Ah
Nominal energy @ 25°C* 2304 Wh
*Discharge current ≤1C
Cycle Life (capacity ≥ 80 % of nominal)
80 % DoD 2500 cycles
70 % DoD 3000 cycles
50 % DoD 5000 cycles
Discharge
Maximum continuous discharge current 360 A
Recommended continuous discharge current ≤180 A
End of discharge voltage 11.2 V
Internal resistance 0.9mΩ
Operating Conditions
Operating temperature Discharge: -20°C to +50°C Charge: +5°C to +50°C
Storage temperature -45°C to +70°C
Humidity (non-condensing) Max. 95 %
Protection class IP 22
Charge
Charge voltage Between 14 V and 14.4 V (14.2 V recommended)
Float voltage 13.5 V
Maximum charge current 360 A
Recommended charge current ≤90 A
Mounting
Can be placed on their sides Yes^{2)}
Other
Max storage time @ 25°C^{1)} 1 year
BMS connection Male + female cable with M8 circular connector, length 50cm
Power connection (threaded inserts) M8
Dimensions (hxwxd) mm 237 x 321 x 152
Weight 18 kg
^{1)} When fully charged ^{2)} The lithium battery can be mounted upright and on its side, but not with the battery terminals facing down ^{3)} The 12,8V/330Ah lithium battery may only be mounted in an upright position

SKU: VIC-BAT512118610
Barcode: 8719076060260
Model #: BAT512118610
MPN: BAT512118610
