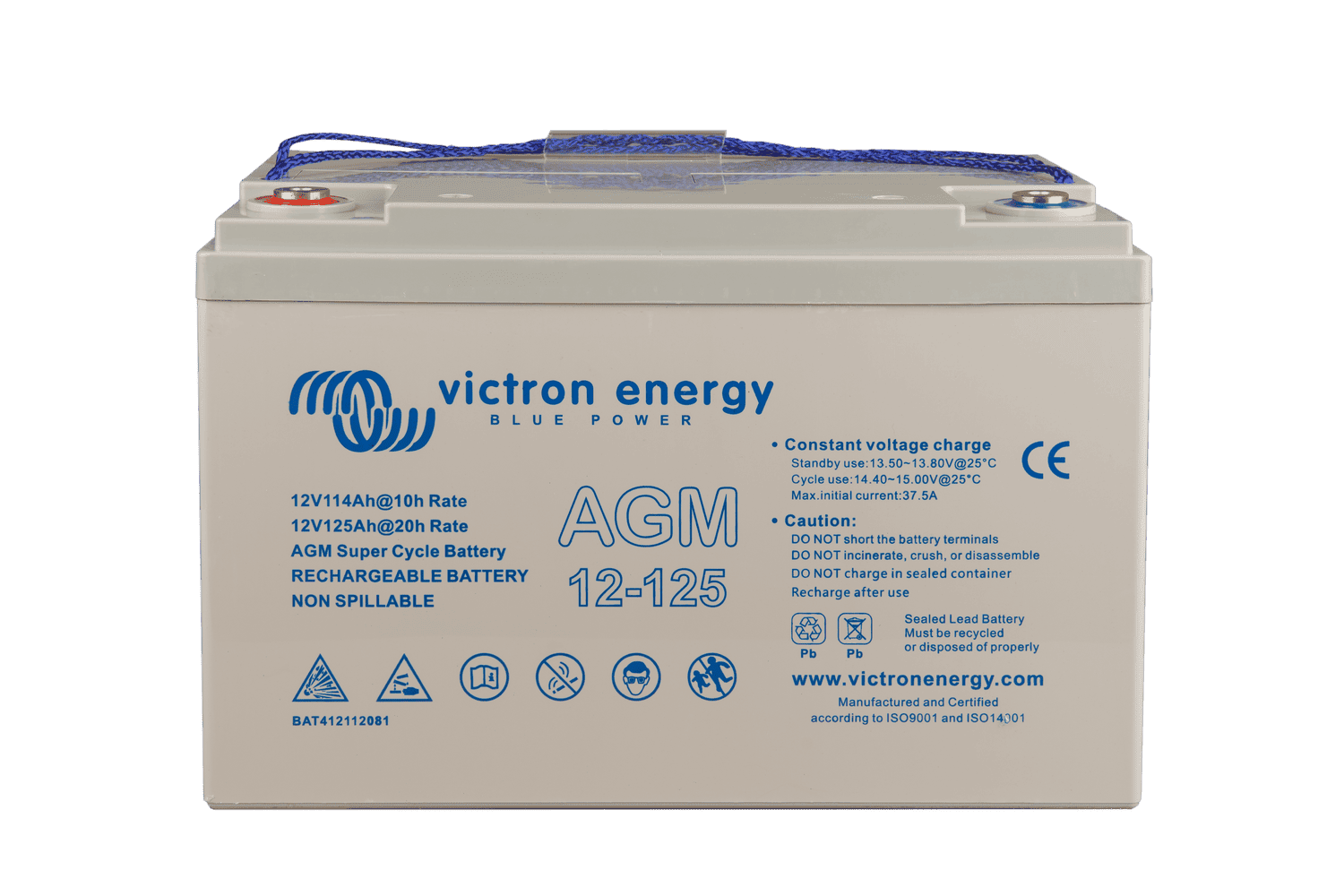

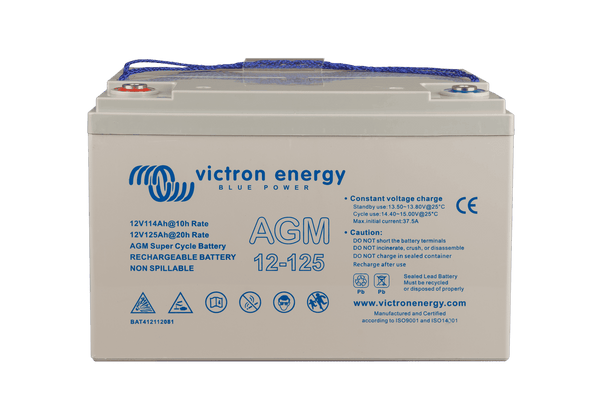

Victron 12V 125Ah AGM Super Cycle Deep Cycle Battery
Victron 12V 125Ah AGM Super Cycle Deep Cycle Battery

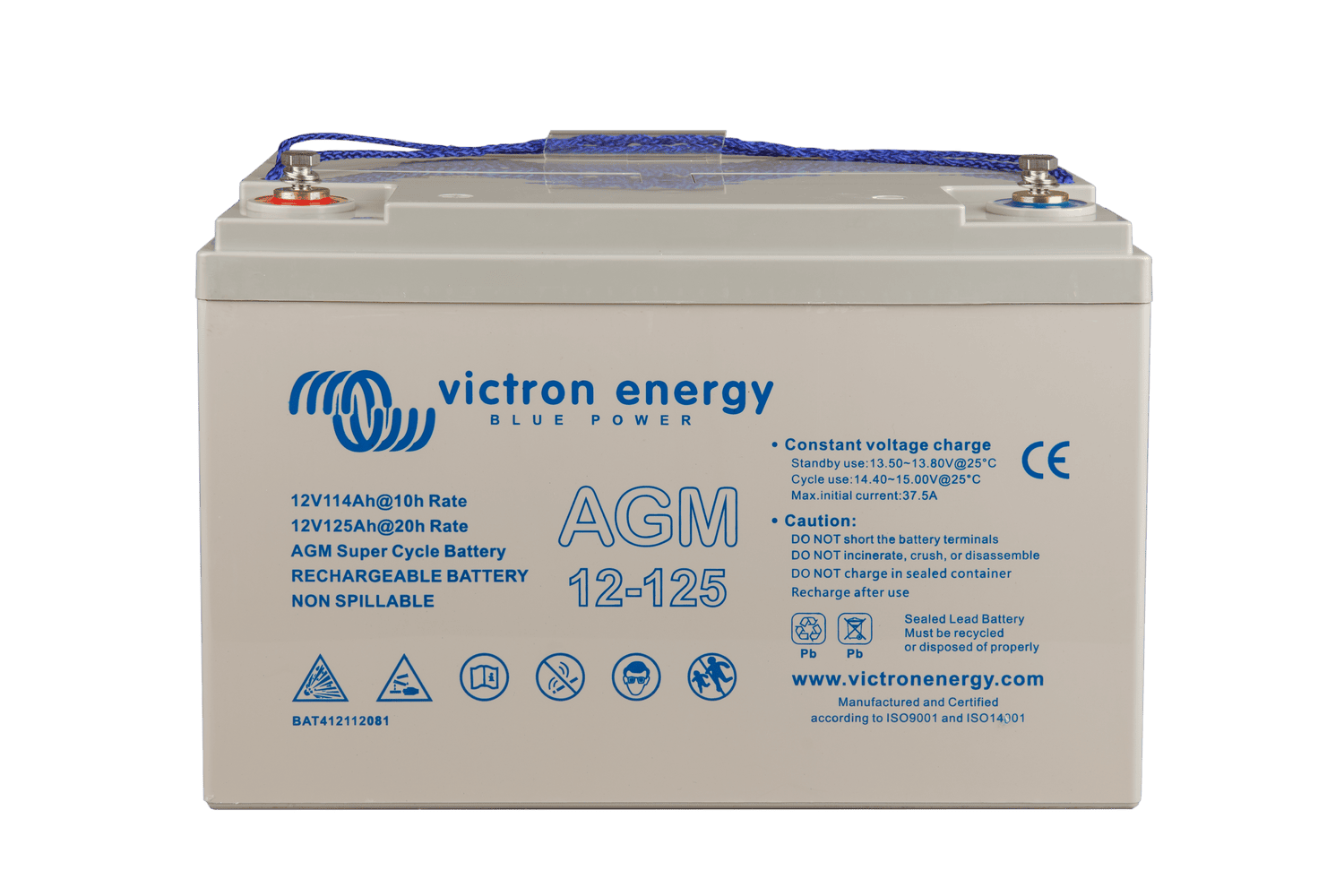

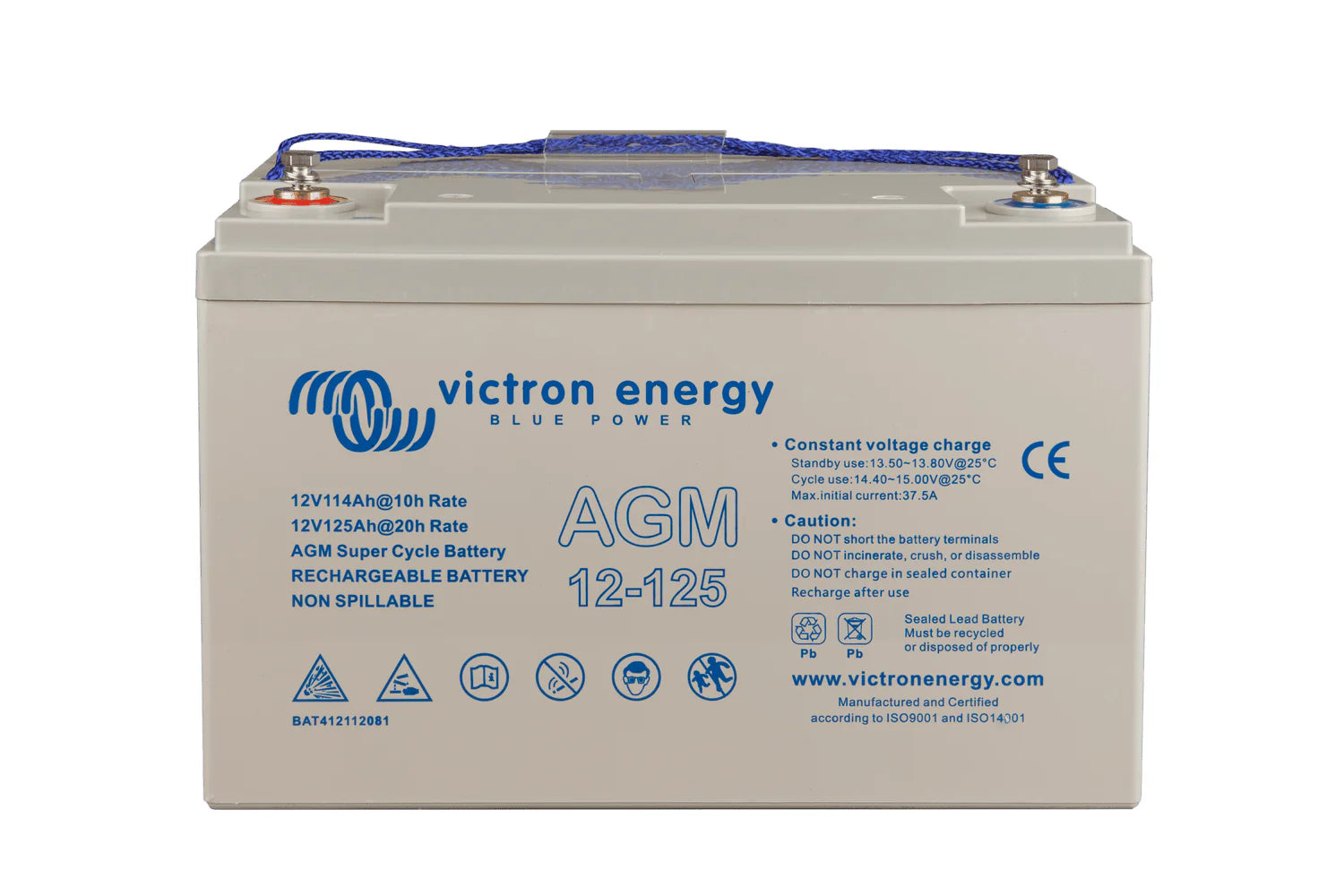

Highlights:Positive Terminal: Red coded M8 insert battery terminal,Negative Terminal: Blue coded M8 insert battery terminal,Carrying Handle: Integrated rope handles for easier lifting,AGM Chemistry: Absorbent Glass Mat technology for high performance,Deep Cycle Rating: 125Ah at 20 hour discharge rate.
Key features: High performance Super Cycle technology for deeper discharge, Low self-discharge rate for long term storage, Sealed non-spillable maintenance-free construction, Excellent recovery after complete discharge.

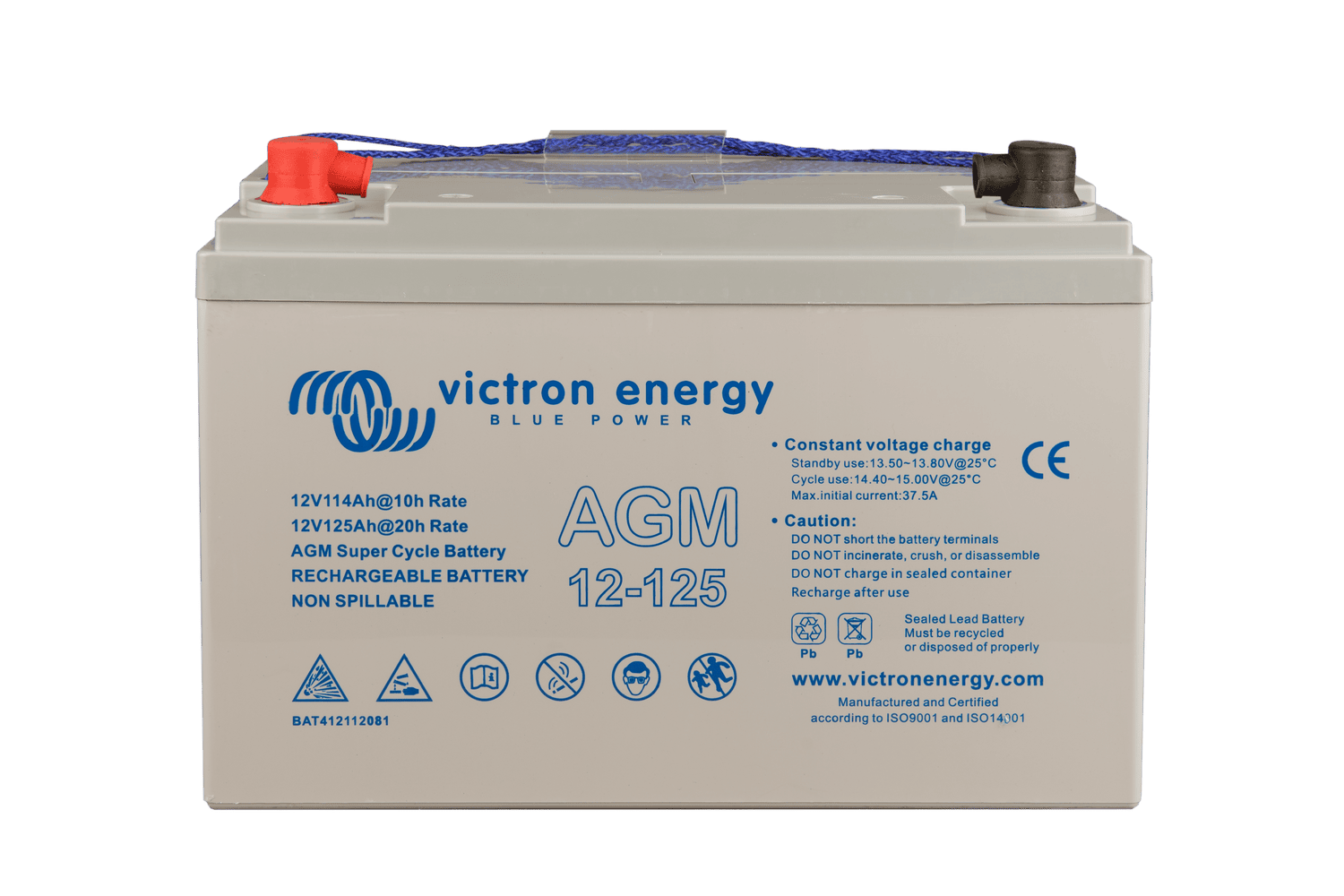

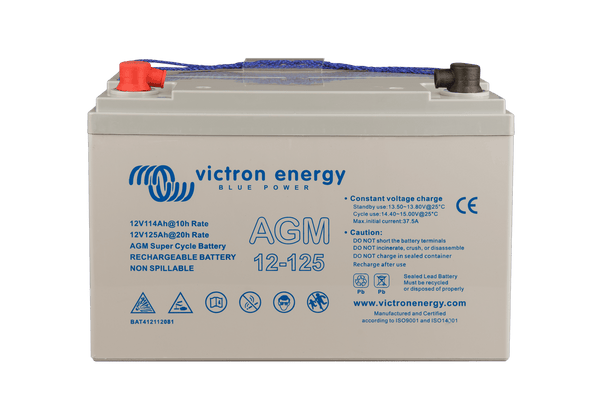

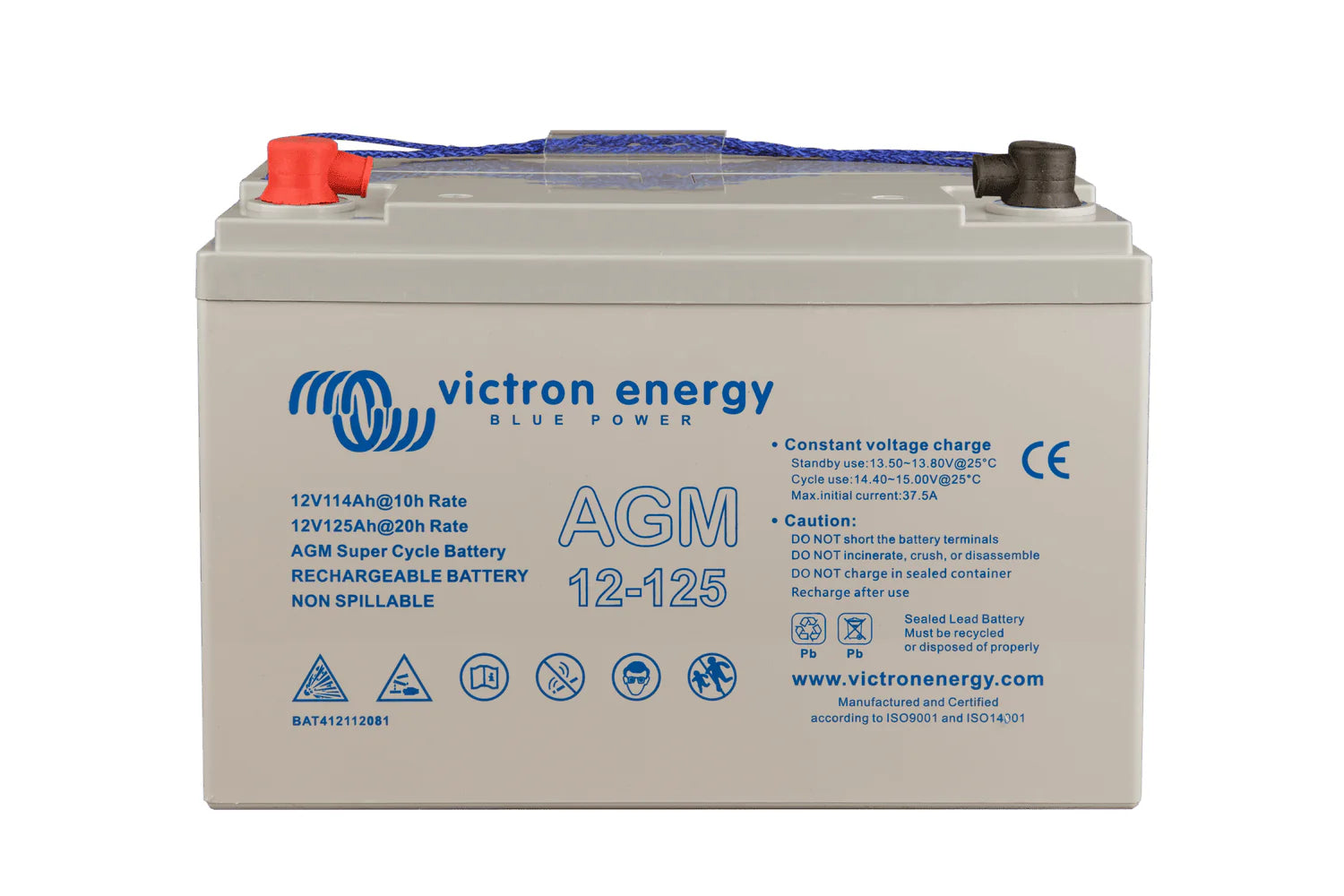

Close-up of the battery top showing the inclusion of red and black protective terminal caps designed to prevent accidental short circuits during installation and transport

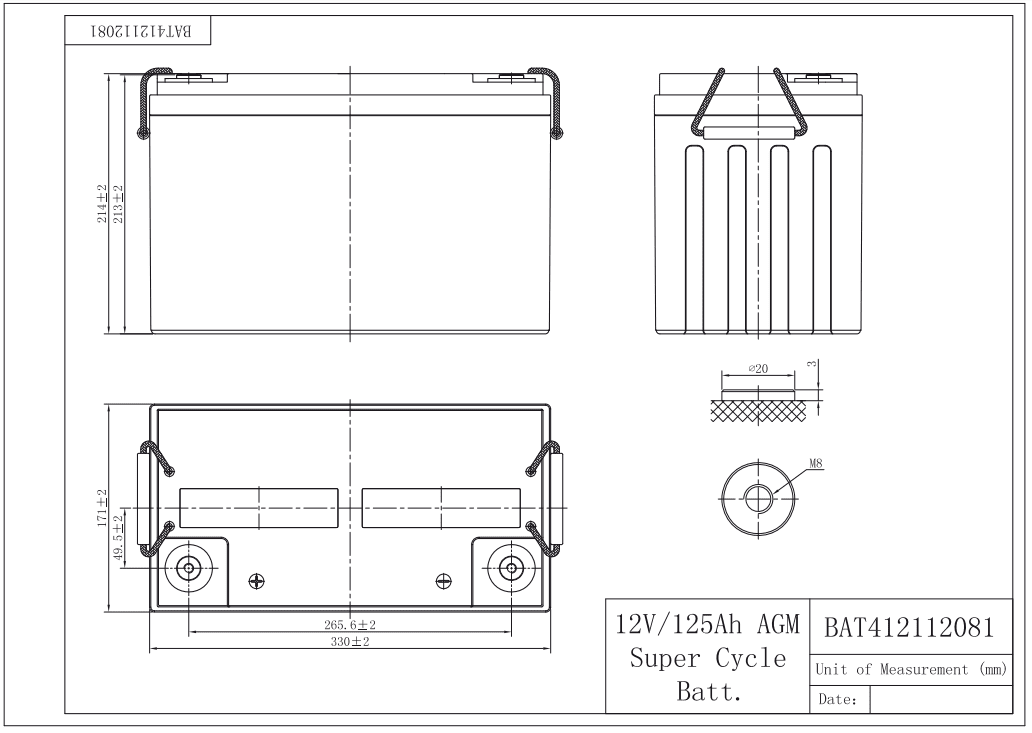

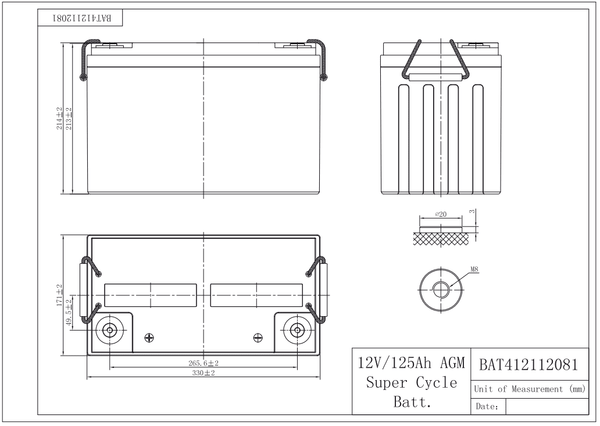

Detailed technical drawing showing dimensions including 330mm length, 171mm width, and 214mm total height with specific M8 terminal location details and measurements in millimetres
DESCRIPTION
Victron 12V 125Ah AGM Super Cycle Deep Cycle Battery
Innovative AGM Battery Chemistry for Superior Deep Cycle Performance
The Victron 12V 125Ah AGM Super Cycle Deep Cycle Battery is built using cutting-edge battery electrochemistry designed to outperform traditional AGM batteries in deep discharge environments. An advanced positive plate paste minimizes softening during extreme cycling, while specially developed electrolyte additives significantly reduce sulfation during deep and repeated discharges.
Exceptional 100% Depth of Discharge Capability
This AGM Super Cycle battery is engineered to handle scenarios where full discharge is unavoidable. Rigorous testing confirms it can withstand at least 300 cycles at a true 100% depth of discharge, even when left resting in a fully discharged state. This level of durability sets it apart from standard deep cycle AGM batteries that typically fail under similar conditions.
Verified Cycle Life Performance
- ≥ 300 cycles at 100% DoD for demanding off-grid and backup power systems
- ≥ 700 cycles at 60% DoD for frequent cycling solar and mobile power setups
- ≥ 1000 cycles at 40% DoD for long-term daily-use energy storage
Compact, Lightweight, and Highly Efficient
Thanks to its next-generation AGM chemistry, the Victron 125Ah Super Cycle battery is slightly smaller and lighter than standard deep cycle AGM batteries. Its low internal resistance improves charge acceptance, reduces energy loss, and ensures stable voltage delivery for sensitive electronics and high-demand loads.
Ideal for Mobile, Off-Grid, and Backup Power Applications
This 12V 125Ah AGM deep cycle battery is recommended for applications with frequent 60 to 80 percent depth of discharge or occasional 100 percent discharge. It is perfectly suited for caravan, RV, marine, off-grid solar systems, industrial backup power, and tiny home energy storage installations where reliability and cycle life are critical.
Dependable Power from a Trusted Brand
If you are looking for a compact yet powerful AGM battery that delivers exceptional deep cycle capability, long service life, and proven Victron reliability, the 12V 125Ah AGM Super Cycle battery is an excellent choice for both mobile and stationary energy systems.
Upgrade Your Power System Today
Upgrade your vehicle or off-grid setup now with the Victron 12V 125Ah AGM Super Cycle Deep Cycle Battery and enjoy reliable, long-lasting power for your caravan, RV, marine, off-grid, industrial, or tiny home application.
SPECIFICATIONS
Specifications
| Article Number | BAT412112081 |
|---|---|
| Voltage | 12 V |
| Ah C5 (10.8 V) | 105 |
| Ah C10 (10.8 V) | 114 |
| Ah C20 (10.8 V) | 125 |
| L x W x H | 330 x 171 x 214 mm |
| Weight | 33 kg |
| CCA @0 °F | 550 |
| RES CAP @80 °F | 220 |
| Terminals | M8 Insert |
| Absorption (Cycle Service, Normal) | 14.2 - 14.6 V |
| Absorption (Cycle Service, Fast Recharge) | 14.6 - 14.9 V |
| Float | 13.5 - 13.8 V |
| Storage | 13.2 - 13.5 V |
| Cycle Life @ 100% DoD | ≥ 300 cycles (discharge to 10.8 V with I = 0.2C20, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0.2C20) |
| Cycle Life @ 60% DoD | ≥ 700 cycles (discharge during three hours with I = 0.2C20, immediately followed by recharge at I = 0.2C20) |
| Cycle Life @ 40% DoD | ≥ 1000 cycles (discharge during two hours with I = 0.2C20, immediately followed by recharge at I = 0.2C20) |
| Recommended Temperature Compensation | -4 mV / Cell (-24 mV / °C for a 12 V battery) |
| Temperature Compensation Centre Point | 25 °C / 70 °F |
| SKU: | VIC-BAT412112081 |
| Barcode: | 8719076041832 |
| Model #: | BAT412112081 |
| MPN: | BAT412112081 |
