Victron 100A:50mA Current Transformer for MultiPlus-II (5m Wire-End)
Victron 100A:50mA Current Transformer for MultiPlus-II (5m Wire-End)
Optimise self-consumption and enable external current sensing for your MultiPlus-II system with this 5-metre wire-end transformer.

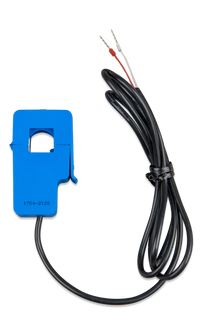

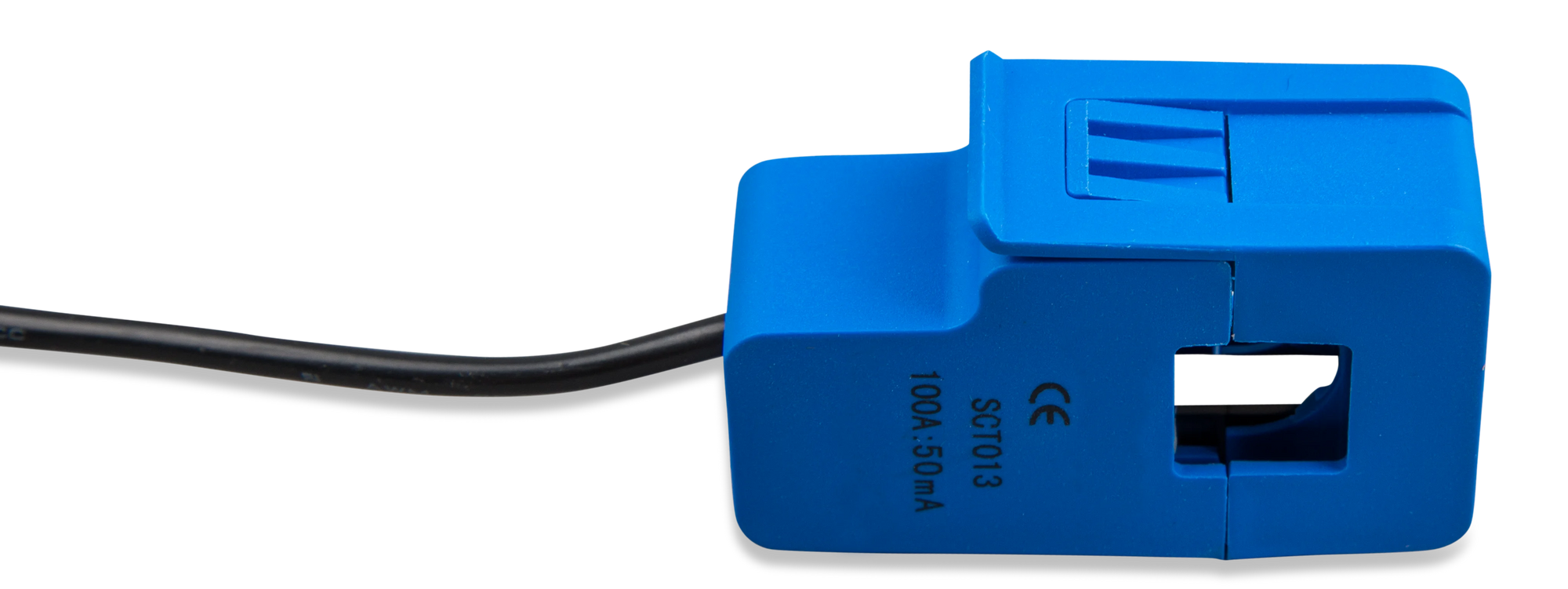

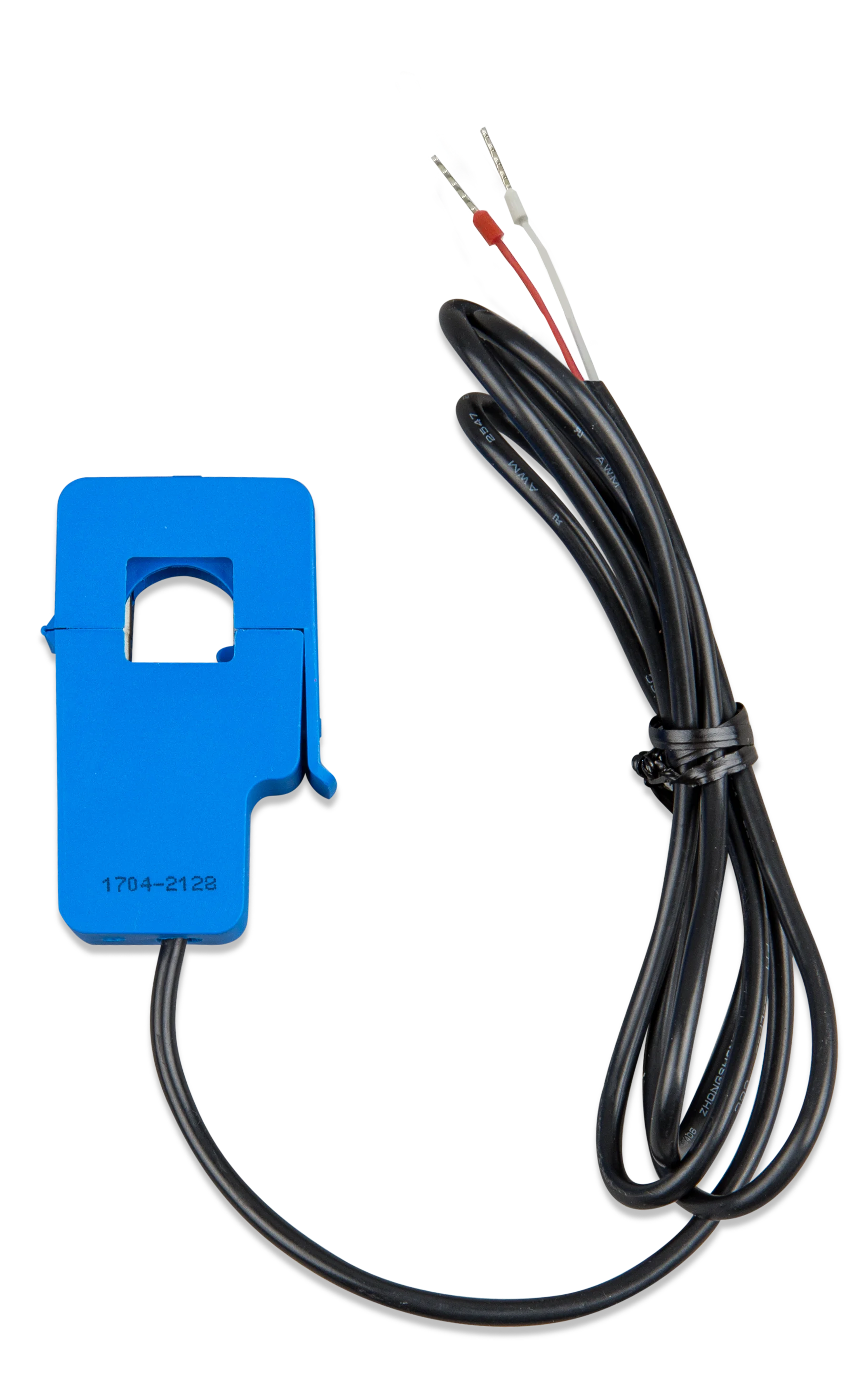

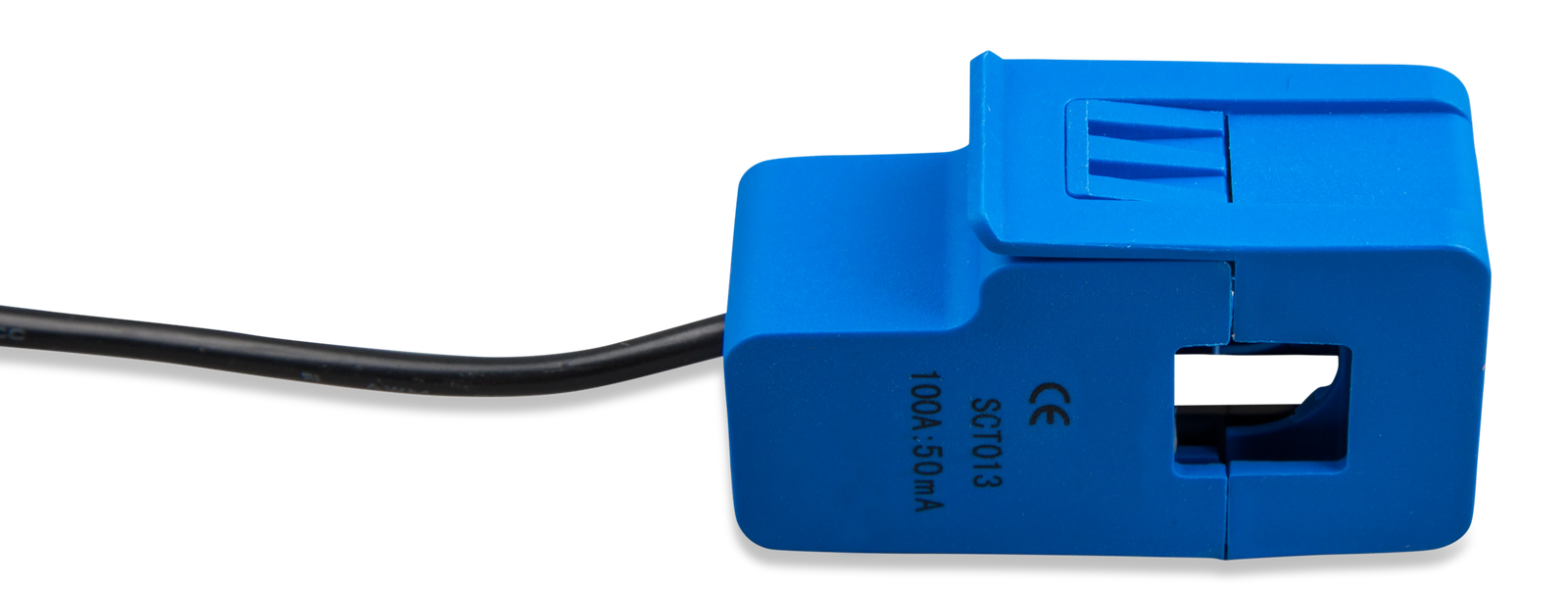

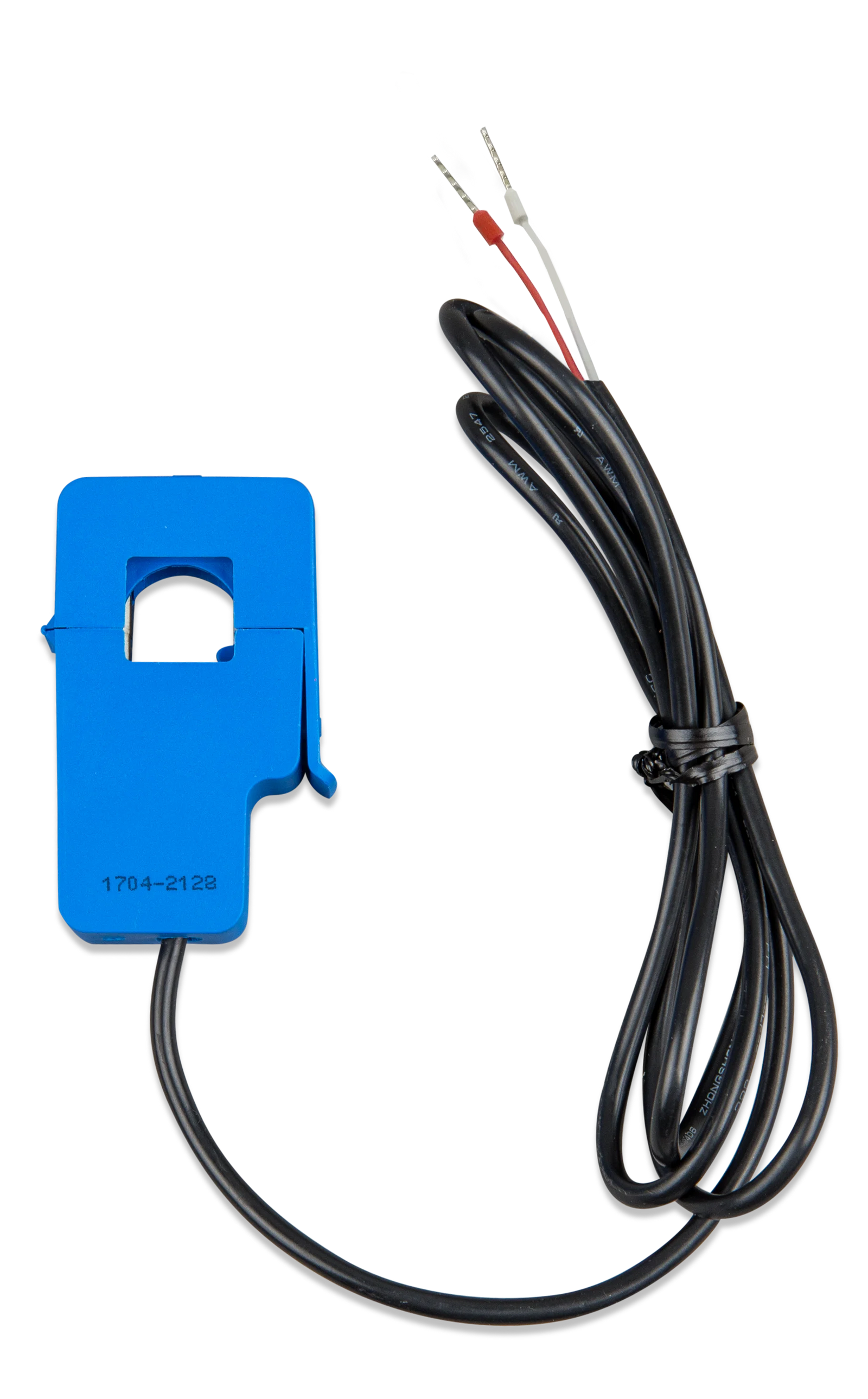

Highlights:Split-core sensor: Snap-on sensor housing for non-invasive current measurement,Secure latch: Mechanical clip ensures the transformer remains firmly closed around the conductor,5m Lead: Generous 5 metre cable length for flexible installation within enclosures,Pre-crimped wire ends: Ready-to-install wire ends with ferrules for secure terminal connection.

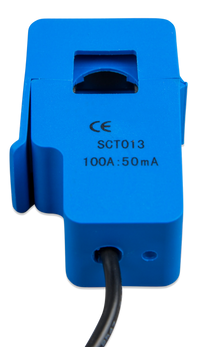

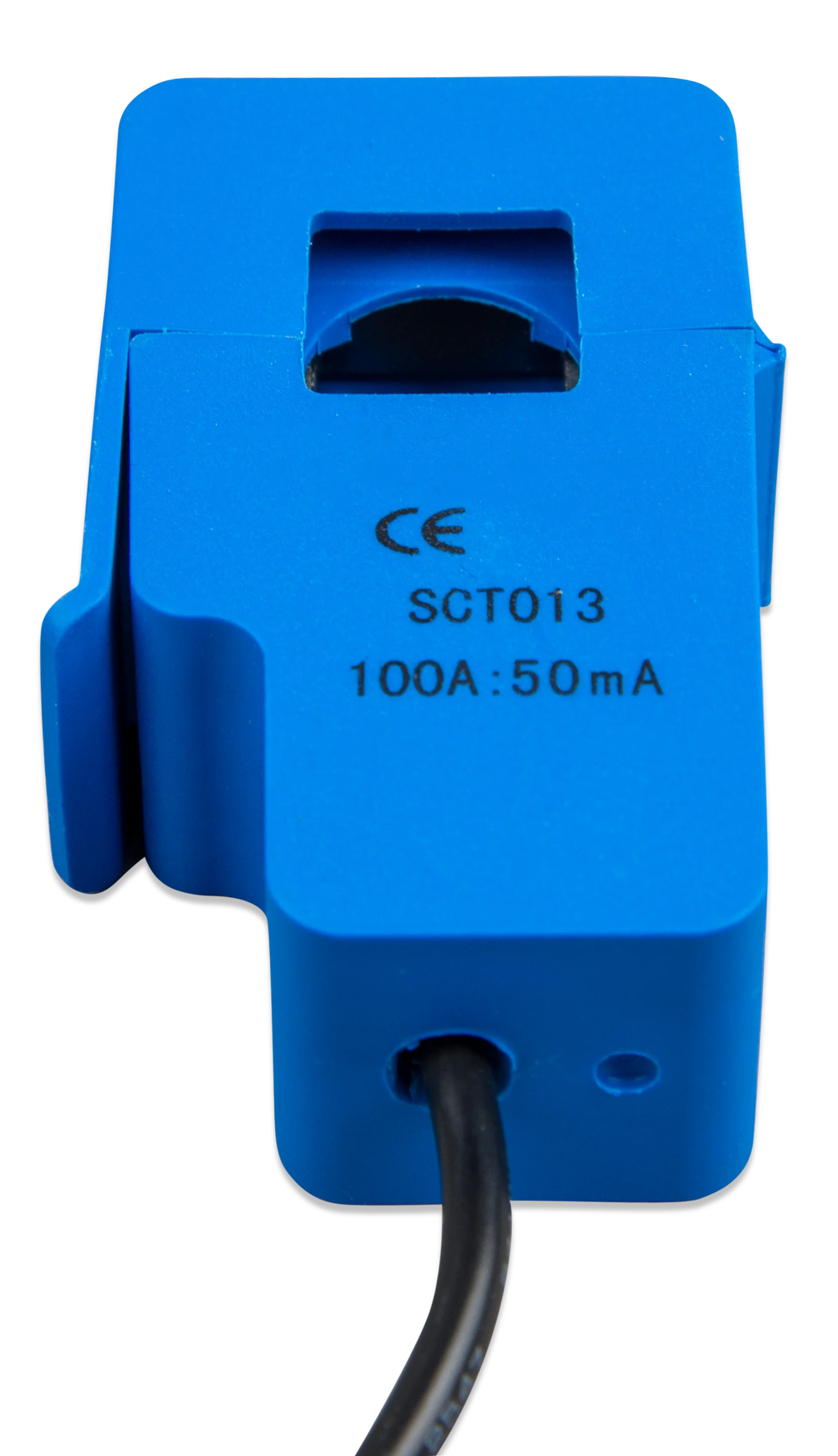

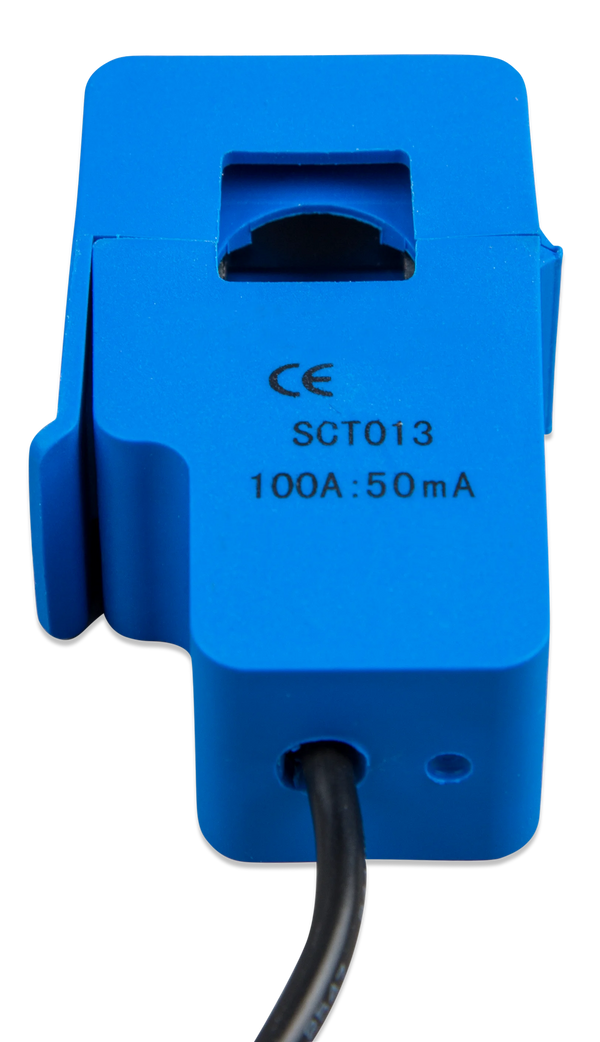

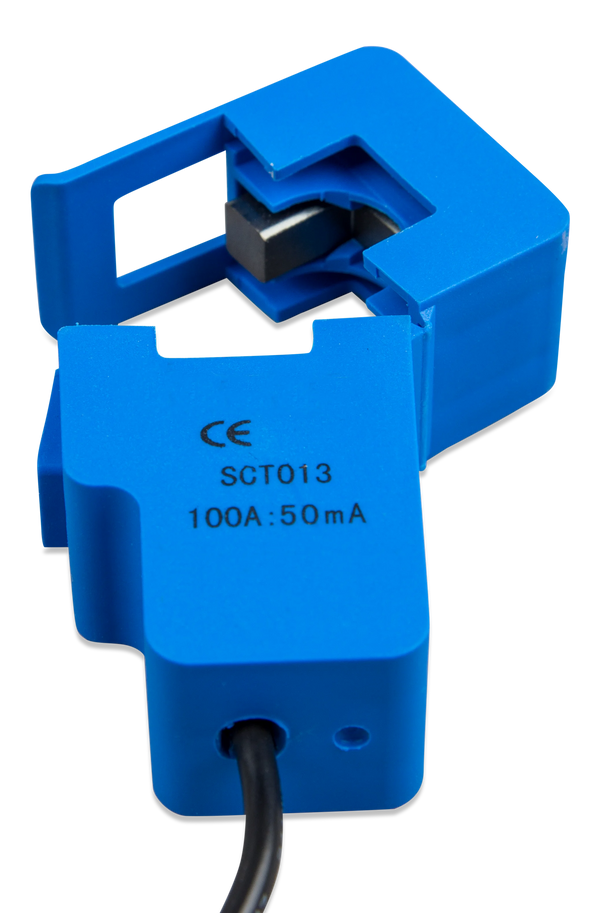

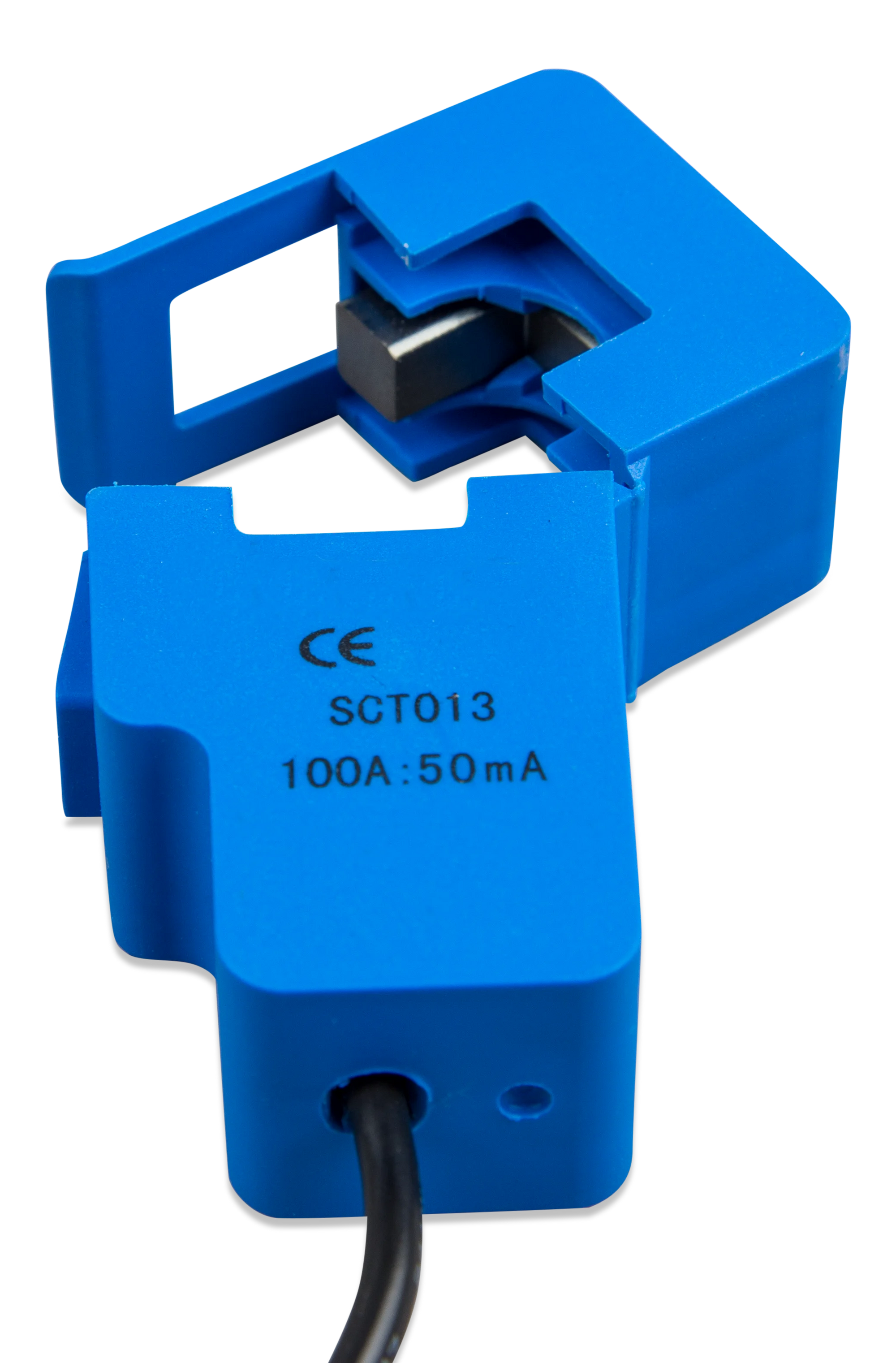

Clear technical markings on the housing confirm the SCT013 model and the 100A:50mA transformation ratio for accurate power monitoring with Victron MultiPlus-II systems.

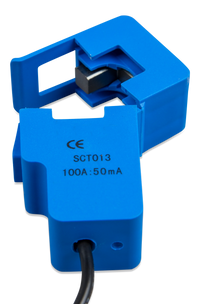

Key features: Split-core design allows installation without disconnecting primary AC cables, High-accuracy internal ferrite core for precise current sensing, Robust hinge and latch for repeated opening and closing, Compact form factor suitable for crowded switchboards.
Regular price
$51.00
Availability:
In Stock at Victron Warehouse
Allow up to 5 days before dispatch
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Victron | Current Transformer 100A:50mA for MultiPlus-II (5m Wire-End)
Designed specifically for Victron MultiPlus-II and MultiGrid-II inverter/chargers, this 100A to 50mA current transformer enables advanced power management features within your energy storage system. By measuring external current, it feeds critical grid or generator draw data back to your inverter, allowing your system to react accurately to changing loads.
Unlock PowerControl and PowerAssist
Integrating this current transformer allows your Victron setup to implement PowerControl and PowerAssist functionalities. These features dynamically monitor the incoming power and can limit the battery charge current or supplement the source with battery power to prevent overloading shore power, grid supplies, or portable generators.
Key Capabilities
- Precision Current Sensing: Provides a 100A to 50mA ratio for accurate load monitoring across your system.
- System Optimisation: Essential for maximising self-consumption in ESS (Energy Storage System) configurations.
- Flexible Placement: Includes a generous 5-metre cable to accommodate various installation distances from the main distribution point.
- Wire-End Connection: Designed specifically for MultiPlus-II models that accept bare-wire termination (CTR12xxxx series).
Installation Suitability
This specific model (CTR120000550) features a wire-end connection. When installing, it is critical to verify your hardware requirements, as Victron also produces a jack-connector version (CTR11xxxx series). The wire-end design provides a secure, hardwired termination well suited for permanent installations in marine, off-grid, and mobile applications.
Enhance your system monitoring and ensure your power management operates reliably with this purpose-built Victron accessory.
SPECIFICATIONS
Specifications
| Brand | Victron Energy |
| Part Number | CTR120000550 |
| Current Ratio | 100A : 50mA |
| Connection Type | Wire-End (Bare Wire) |
| Cable Length | 5m |
| Compatibility | MultiPlus-II / MultiGrid-II (Wire-End terminal models) |
| Weight | 0.095 kg |
| SKU: | VIC-CTR120000550 |
| Barcode: | 8719076059080 |
