Victron 100A:50mA Current Transformer for MultiPlus-II (1m Wire-End)
Victron 100A:50mA Current Transformer for MultiPlus-II (1m Wire-End)
Enable advanced PowerControl, PowerAssist, and self-consumption optimisation for MultiPlus-II systems.

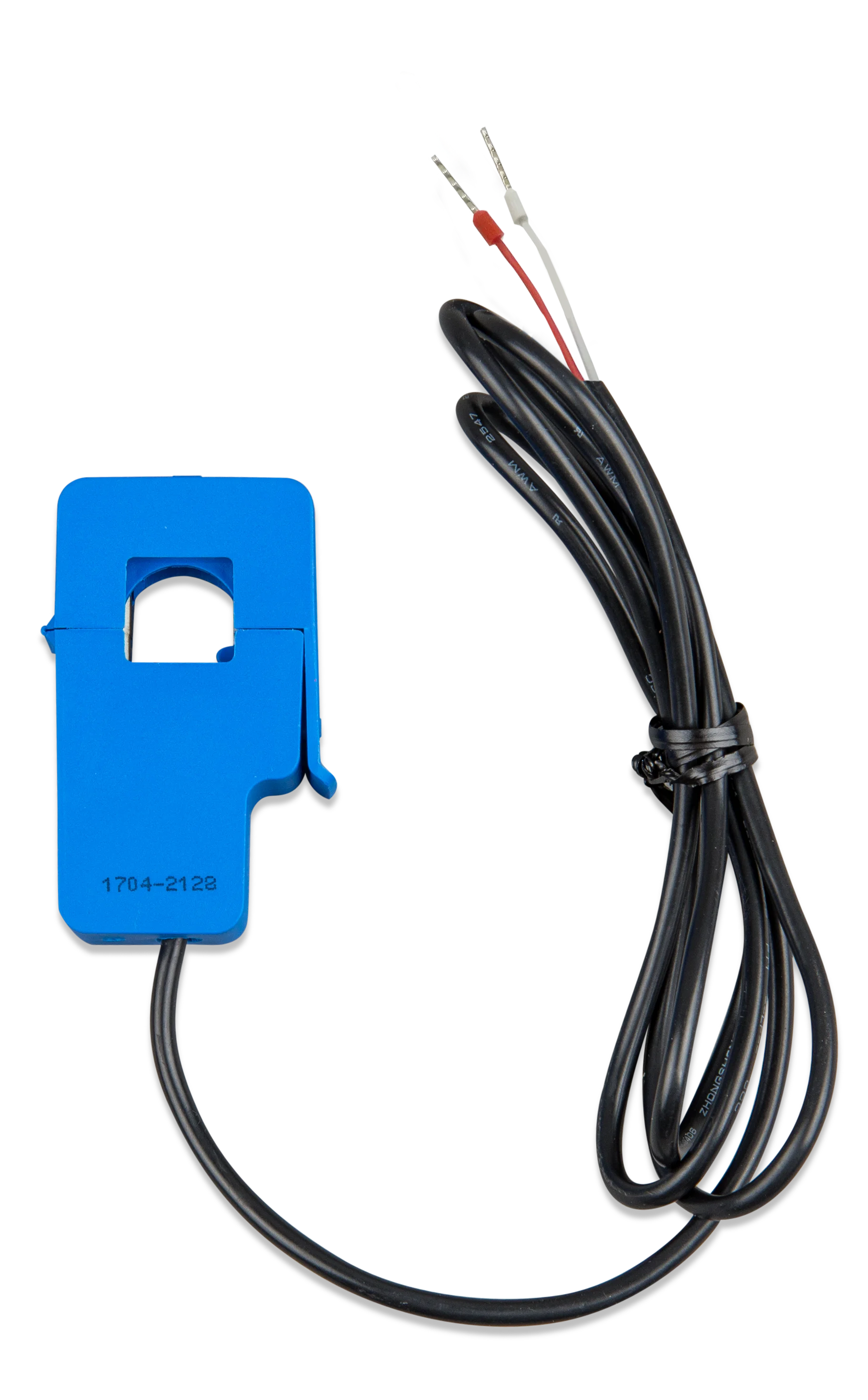

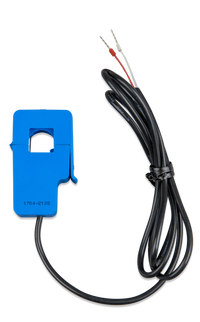

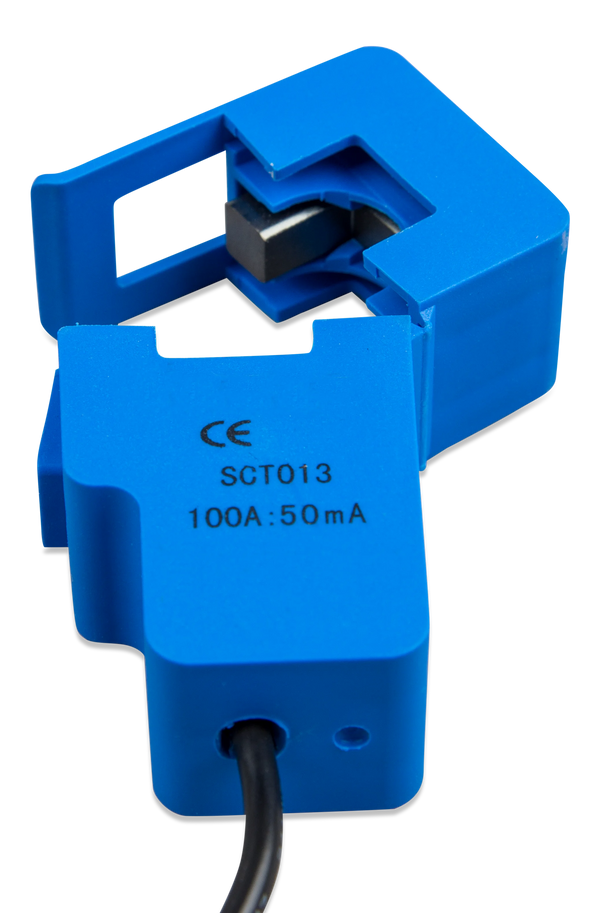

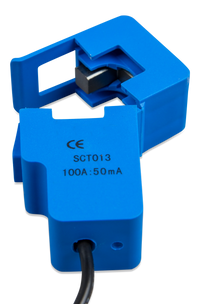

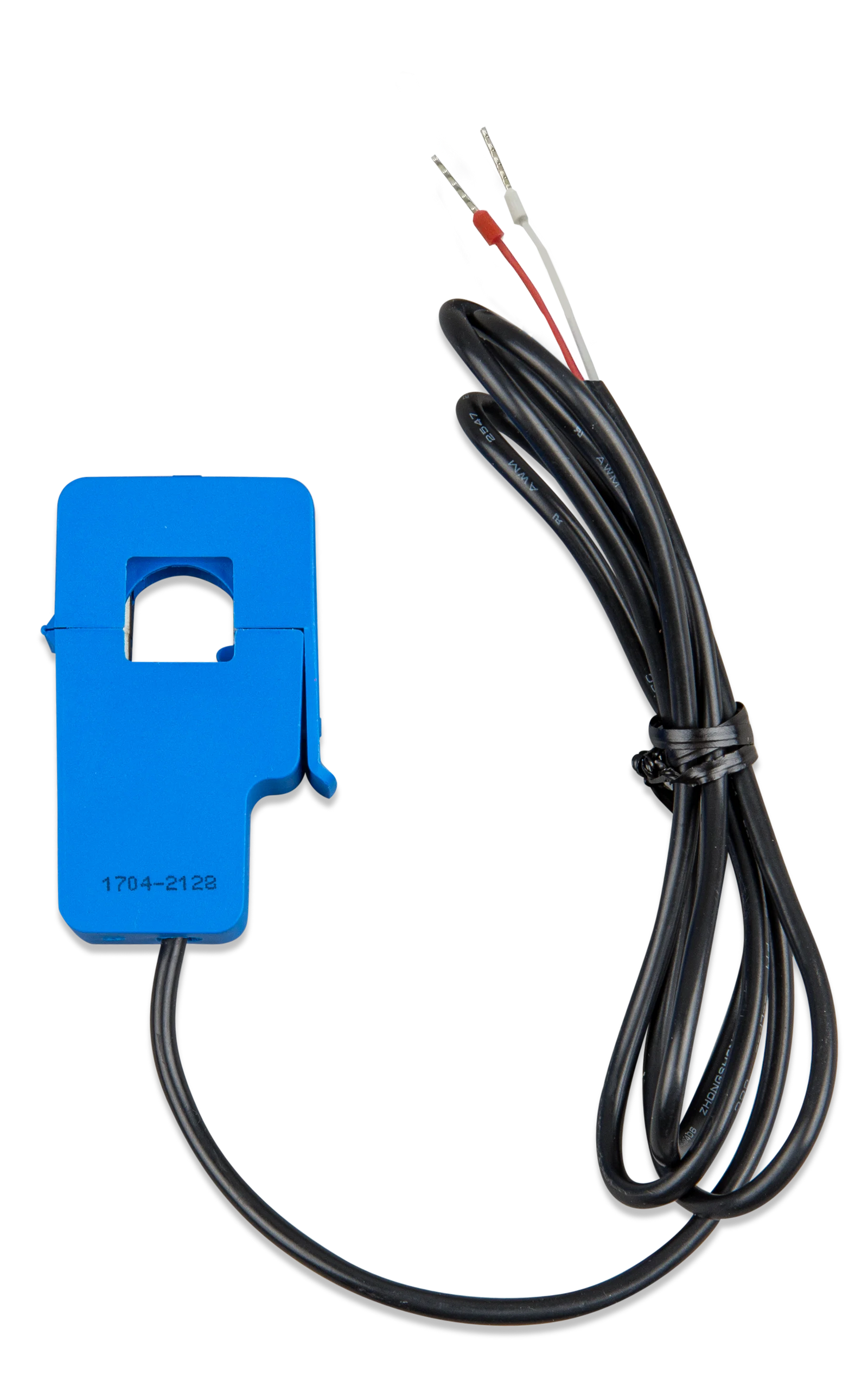

Key features: 100A:50mA transformer ratio, 1 metre cable length for flexible installation, Pre-crimped ferrules on wire ends for secure terminal connection, Split-core design for easy retrofitting without disconnecting main cables.

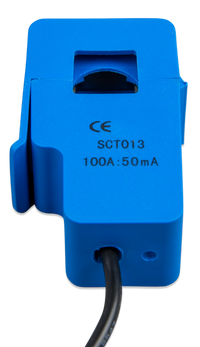

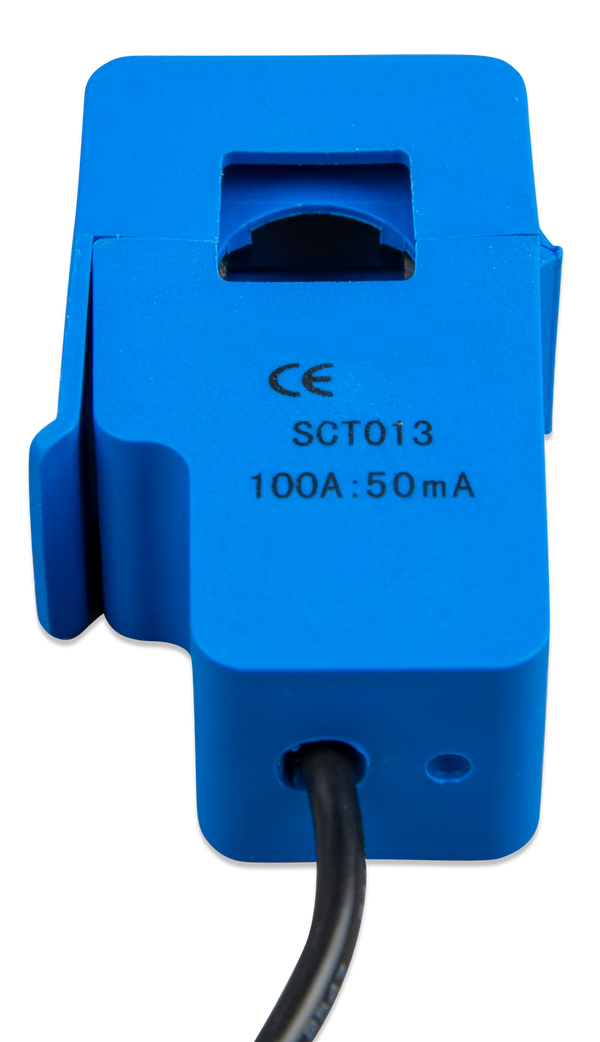

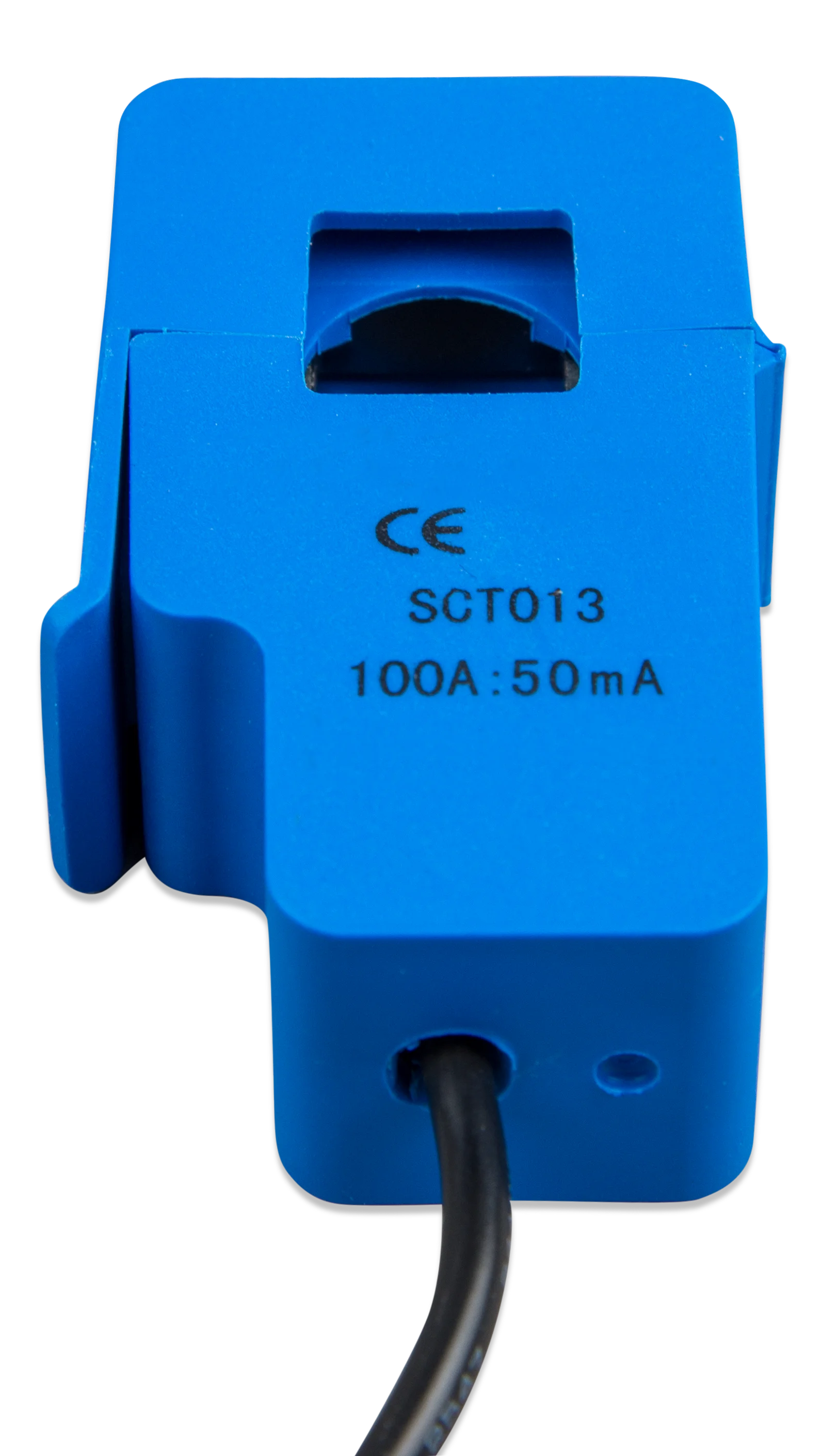

Clear technical markings showing the SCT013 model number and precise 100A:50mA transformation ratio for accurate power monitoring with MultiPlus-II systems

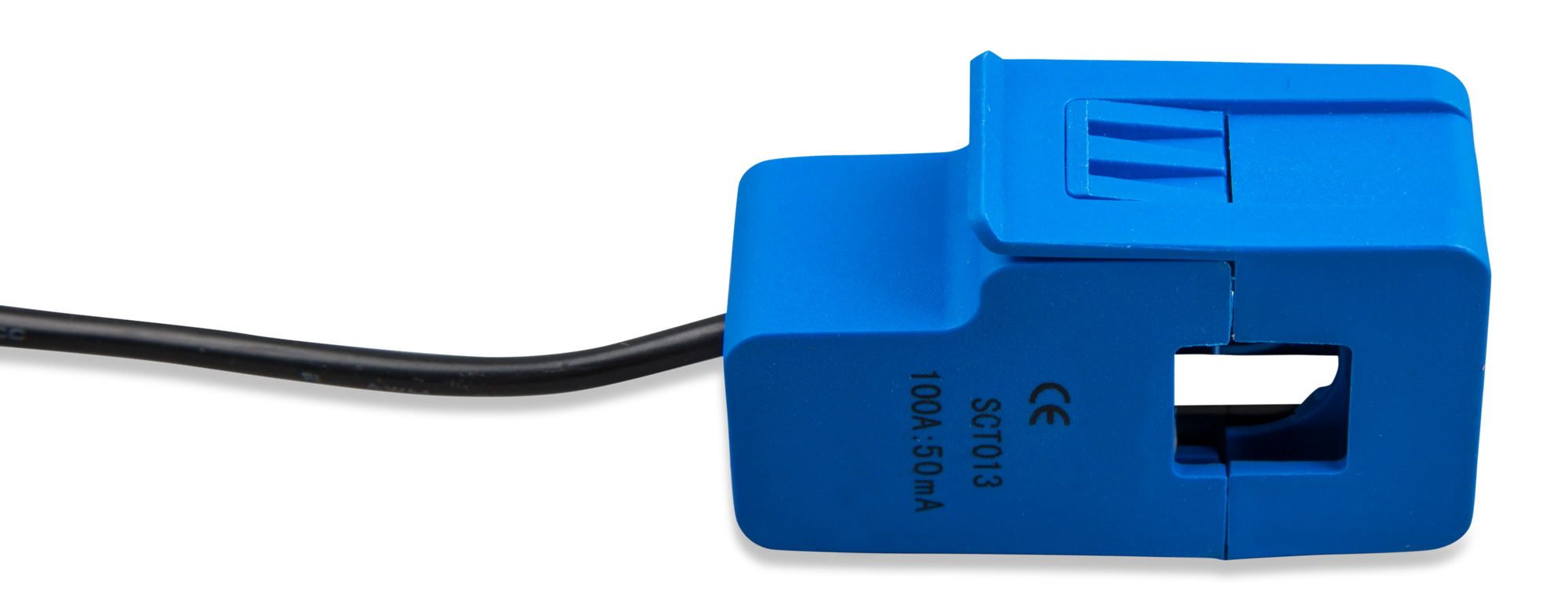

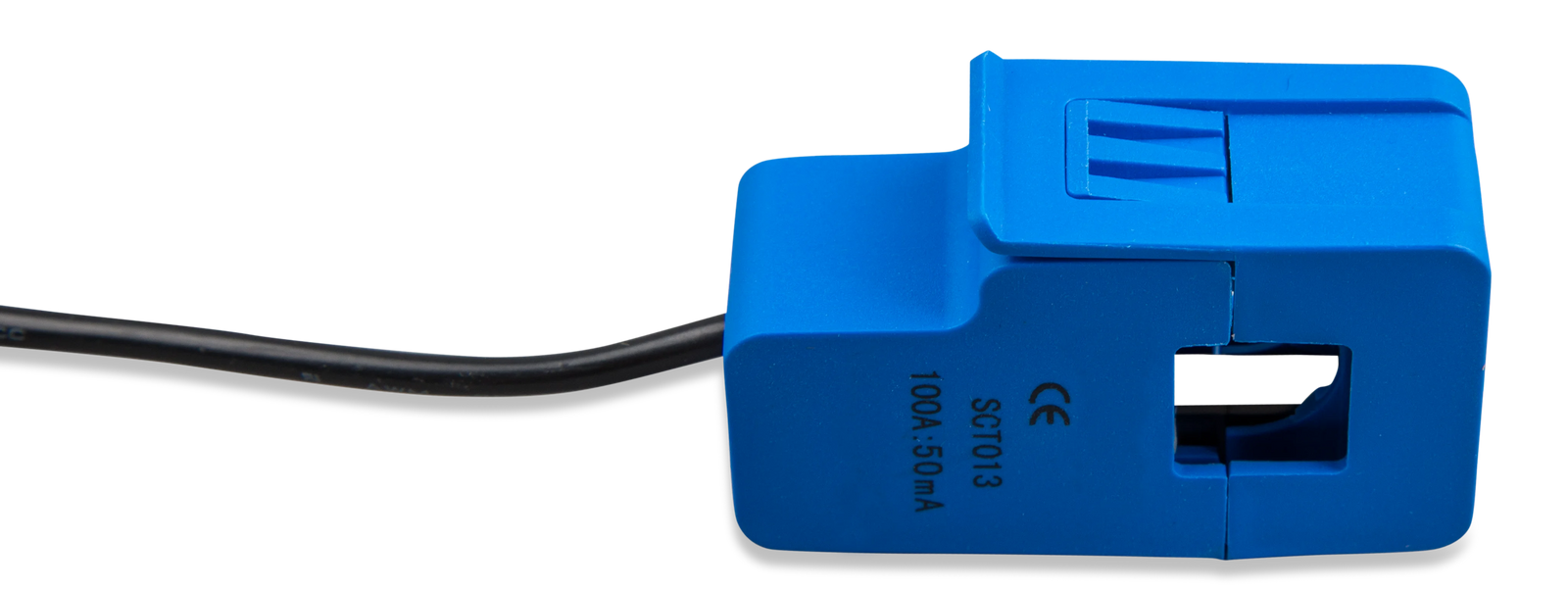

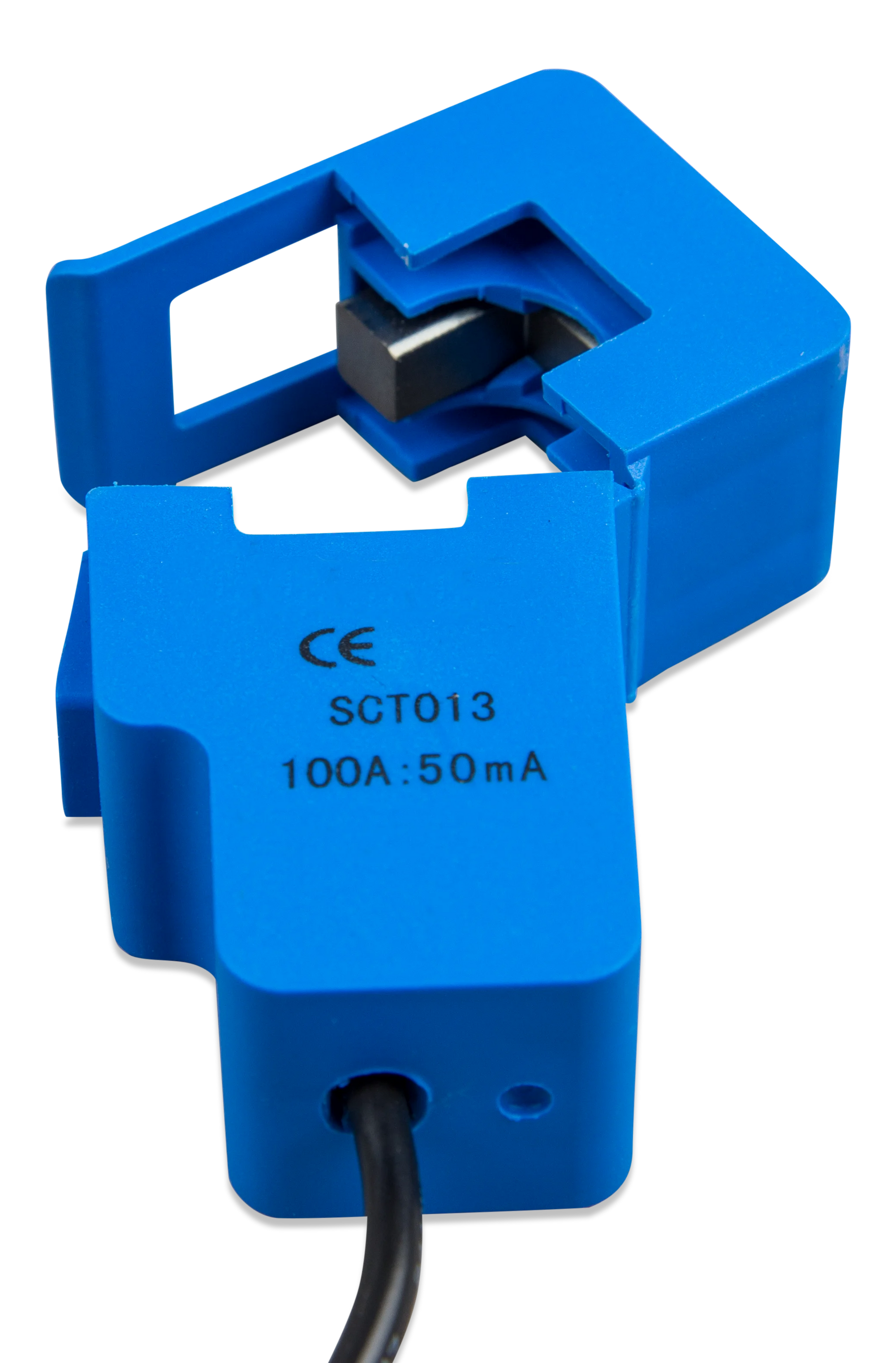

Highlights:Locking Latch: Secure snap-lock mechanism to keep the core closed around the conductor,Magnetic Core: High-quality internal core for accurate current measurement,Cable Exit: Strain-relief entry point for the 1-metre connection cable.
Regular price
$46.00
Availability:
In Stock at Victron Warehouse
Allow up to 5 days before dispatch
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Victron | Current Transformer 100A:50mA for MultiPlus-II (1m Wire-End)
The Victron 100A:50mA Current Transformer is a dedicated external current sensor designed specifically for MultiPlus-II and MultiGrid-II inverter/chargers. Featuring a one-metre cable with wire-end terminations, this sensor provides precise AC current measurement required for advanced system controls.
Optimised System Performance
By implementing external current sensing, this transformer allows your Victron system to accurately monitor grid usage. This data is essential for enabling core features such as PowerControl and PowerAssist, ensuring the system can dynamically adjust its output to prevent grid overload while maximising the use of available inverter power. It is also a critical component for Energy Storage Systems (ESS) intended for optimising solar self-consumption.
Key Advantages
- Precise Measurement: 100A to 50mA current transformation ratio for accurate grid monitoring.
- System Integration: Unlocks PowerControl and PowerAssist capabilities in compatible Victron inverter/chargers.
- ESS Ready: Essential for optimising self-consumption in grid-connected Energy Storage Systems.
- Direct Connection: Features a wire-end termination for secure hardwiring into designated current sense terminals.
Wire-End Installation
This specific model (CTR120000500) features wire-end connections, distinct from the audio-jack connector versions. The wire-end design is intended for secure, direct termination into the designated current sensor block of your MultiPlus-II or MultiGrid-II unit. The one-metre cable provides adequate length for installations where the sensor is mounted in close proximity to the main system wiring.
Provide your Victron energy system with the accurate grid data it needs to operate efficiently.
SPECIFICATIONS
Specifications
| Brand | Victron Energy |
| Model Number | CTR120000500 |
| Transformer Ratio | 100A : 50mA |
| Connection Type | Wire-end (Bare wire) |
| Cable Length | 1 m |
| Compatibility | Victron MultiPlus-II, MultiGrid-II |
| SKU: | VIC-CTR120000500 |
| Barcode: | 8719076059073 |
