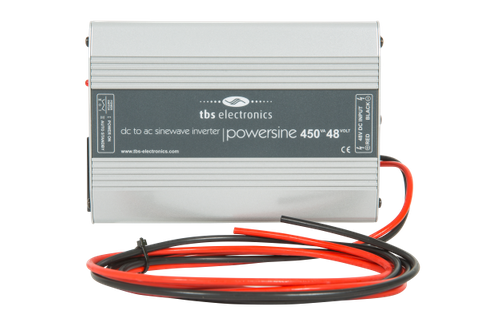

TBS 48V 450W Pure Sine Wave Inverter with GPO

Reliable 230V AC Conversion for Demanding 48V Off-Grid and Industrial Systems

Generating clean, grid-quality 230V AC power from a 48V DC battery bank requires equipment built for electrical stability and physical endurance. The TBS Electronics 48V 450W pure sine wave inverter is engineered to deliver consistent, interference-free power for sensitive electronics, telecommunications hardware, and specialised industrial tools. Equipped with a standard Australian GPO outlet and pre-wired heavy-duty DC input cables, this unit integrates seamlessly into professional off-grid, marine, and mobile installations.

Low-Loss Toroidal Transformer Architecture

Unlike standard high-frequency inverters that often struggle with reactive or inductive loads, this unit is built around a robust, low-loss toroidal transformer. Toroidal architecture provides exceptional efficiency and naturally dampens electrical noise. More importantly, it allows the inverter to handle high surge loads well above its 450W continuous rating for extended periods. While a specific numerical surge rating is not stated by the manufacturer, this transformer-based design significantly reduces the risk of nuisance tripping when starting appliances with high initial current draws, such as small pumps, compressors, or power tool chargers.

Advanced Microprocessor Control and System Protection

At the core of the inverter is an intelligent microprocessor control system running fast software algorithms. This system continuously monitors both the 48V DC input and the 230V AC output to regulate voltage stability and protect connected equipment. By actively managing conversion parameters, the internal software safeguards both the inverter and your broader electrical system against common electrical faults, voltage fluctuations, and overload conditions. Visual LED status indicators on the casing provide immediate, clear feedback for Power On and Auto Standby modes, simplifying system diagnostics and energy management.

Engineered for Harsh, Vibration-Prone Environments

Off-grid and mobile power systems are frequently subjected to movement, ambient temperature shifts, and physical stress. TBS Electronics combines the heavy-duty toroidal transformer with a rugged extruded aluminium enclosure. This silver aluminium housing not only protects the internal electronics from physical impact and vibration in marine or vehicular applications, but also acts as an effective passive heat sink to aid thermal dissipation during continuous operation.

Key Features and Benefits

• True Pure Sine Wave Output: Delivers clean 230V AC power that replicates mains electricity, preventing overheating, humming, or damage in sensitive electronic loads and audio-visual gear.
• Low-Loss Toroidal Transformer: Supports sustained surge loads above the 450W continuous rating, offering superior reliability compared to standard consumer-grade alternatives.
• Microprocessor-Managed Operation: Fast software algorithms provide active system protection and stable power delivery across varying load conditions.
• Extruded Aluminium Enclosure: Durable housing engineered to withstand harsh, vibration-prone environments while optimising heat dissipation.
• Ready for Installation: Features an integrated Australian GPO socket, clear 48V DC identification, and pre-wired heavy-duty red and black DC power cables.
• Auto Standby Functionality: Includes visual LED indicators for operational status and energy-saving standby modes to reduce parasitic draw on your 48V battery bank.

Ideal Applications for 48V Power Conversion

As 48V DC architectures become increasingly standard in modern off-grid solar storage, telecommunications, and commercial marine vessels due to their lower current draw and reduced cabling losses, having a dedicated small-capacity AC inverter is essential. Running a massive multi-kilowatt inverter just to power a few small AC loads results in substantial standby battery drain. This 450W unit solves that efficiency problem by providing a dedicated, right-sized 230V AC source for continuous smaller loads such as:

• Remote telemetry, data logging, and telecommunications base stations
• Off-grid solar sheds, tiny homes, and remote monitoring cabins
• Marine navigation, communication, and onboard diagnostic electronics
• Industrial service vehicles and mobile workstations operating on 48V auxiliary systems

Upgrade Your 48V AC Power Delivery

Ensure your critical AC equipment receives clean, stable power without compromising system reliability. Integrate the TBS Electronics 48V 450W Pure Sine Wave Inverter into your off-grid, industrial, or marine electrical setup today.
