TBS 24V 200W Pure Sine Wave Inverter with IEC

Reliable 24V DC to 230V AC Pure Sine Wave Power Conversion

Engineered for demanding mobile, marine, and industrial environments, the TBS Electronics 24V 200W Pure Sine Wave Inverter delivers clean, stable 230V AC power directly from your 24V DC battery bank. Unlike standard high-frequency alternatives that can struggle under inductive loads or fail prematurely in high-vibration settings, this unit combines a heavy-duty low-loss toroidal transformer with advanced microprocessor control. It is the ideal compact power solution for running sensitive electronics, communication gear, and essential appliances in off-grid, commercial vehicle, and marine applications.

Why Choose a Low-Loss Toroidal Transformer?

At the core of this 24V to 230V inverter is a robust toroidal transformer design. Standard lightweight inverters often lack the thermal mass and magnetic efficiency required to handle sudden power spikes. The toroidal architecture in this TBS Electronics unit provides exceptional surge handling capability, allowing it to absorb initial start-up currents from small motors, pumps, or capacitive power supplies without tripping.

Additionally, the physical construction of the toroidal transformer inherently resists mechanical stress. Combined with a rugged extruded aluminium enclosure that features integrated cooling fins for passive thermal management, this inverter significantly reduces the risk of component fatigue in harsh, vibration-prone environments such as 4WDs, trucks, and boats.

Intelligent Microprocessor-Managed Protection

To safeguard both your 24V battery system and your connected 230V AC devices, an onboard microprocessor continuously monitors operational parameters using fast, efficient software algorithms. This active management ensures a rock-solid pure sine wave output that replicates mains grid power, eliminating harmonic distortion, audio hum, and the risk of overheating in sensitive equipment like medical devices, laptop chargers, and instrumentation.

• Low-Loss Toroidal Transformer: Engineered to withstand sustained surge loads and harsh mechanical vibration.
• True Pure Sine Wave Output: Provides clean 230V AC power suitable for sensitive microprocessors, audio equipment, and variable-speed tools.
• Microprocessor Control: Fast software algorithms actively manage inverter performance and system protection.
• Rugged Aluminium Chassis: Extruded metal enclosure with cooling fins ensures efficient heat dissipation in enclosed spaces.

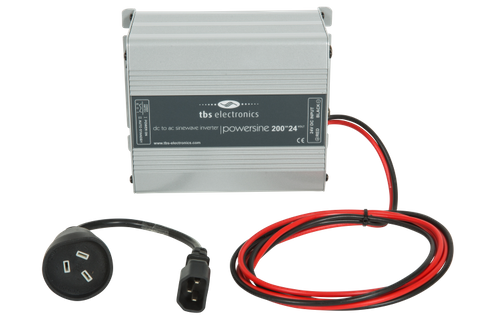

• Installation Ready: Features integrated corner mounting brackets, pre-wired heavy-duty DC input cables, and an IEC AC output configuration (complete with an IEC plug to 3-pin AC socket adapter).

Built for Seamless Integration

Designed to streamline installation in tight enclosures or vehicle canopies, the inverter comes equipped with integrated corner mounting flanges for secure, fixed attachment. The pre-wired red and black DC cables allow for straightforward connection to your 24V DC busbar or battery terminals, while the IEC output socket provides a secure, industry-standard AC connection that resists accidental disconnection during transit.

Upgrade Your 24V Off-Grid Power System

Equip your commercial fleet, marine vessel, or remote telemetry station with dependable AC power. Add the TBS Electronics 24V 200W Pure Sine Wave Inverter to your setup today for uncompromising reliability in challenging conditions.
