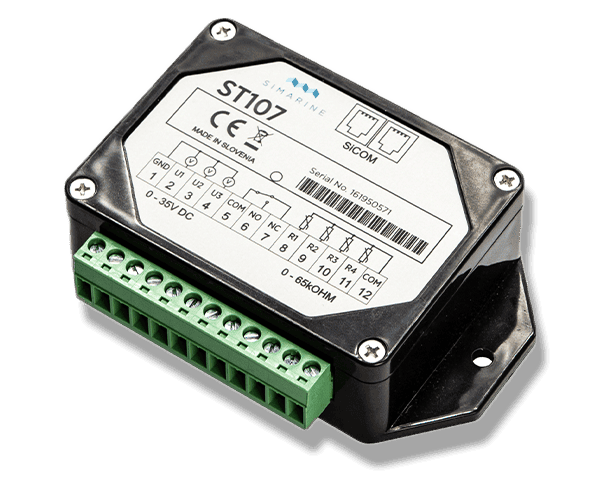

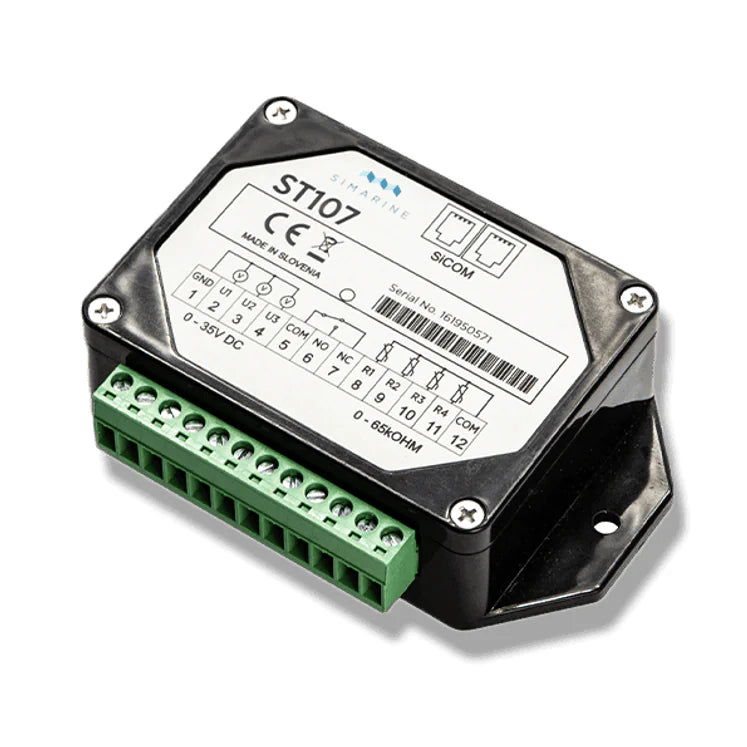

Simarine Tank Module 3x Voltage & 4x Tank Level/Temperature
Simarine Tank Module 3x Voltage & 4x Tank Level/Temperature

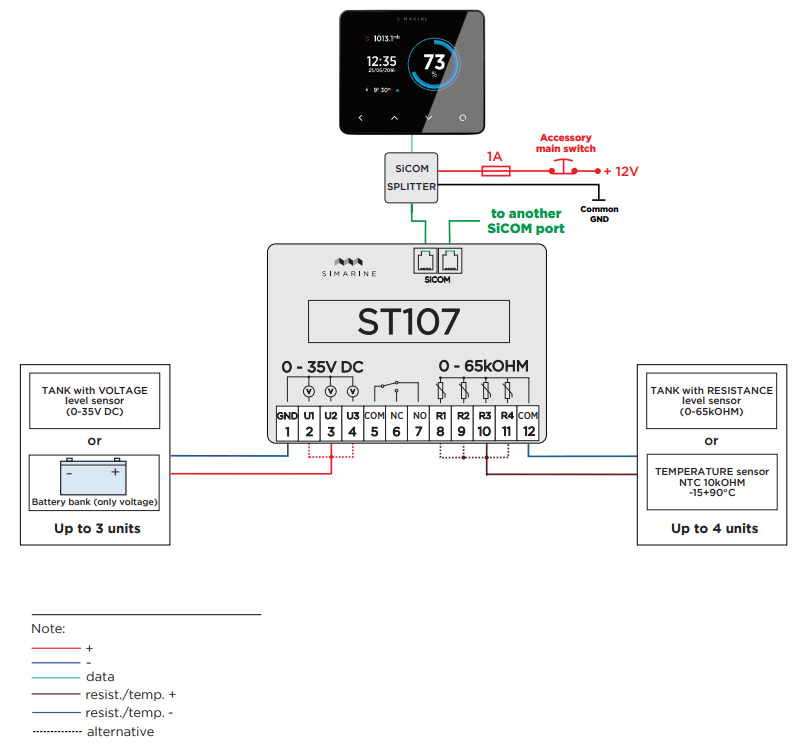

Highlights:Terminal Block: Green screw terminal block for secure sensor and power wiring,SICOM Ports: Dual digital ports for connecting to the Simarine SICOM data bus,Voltage Inputs: Wiring configuration for three voltage level or battery bank inputs,Resistance Inputs: Wiring configuration for four resistance-based tank or temperature sensors,Mounting Flange: External mounting flange for secure surface installation.
Key features: Monitors up to 3 voltage levels between 0-35V DC, Monitors up to 4 resistance-based tank level or temperature sensors, Equipped with integrated relay for NO/NC configurations, Daisy-chain connection via digital SICOM data ports, Compatible with NTC 10kOhm temperature sensors.
Regular price
$233.00
Availability:
Special Order
View all products from Simarine
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Fresh, Gray or Black – keep your waters under control with ST107 module.
ST107 is an the ultimate digital module, that allows wide connection (and monitoring) possibilities. It enables monitoring tank levels (up to 7x), battery voltages (up to 3x), temperatures (up to 4x).
Operating
- Power source voltage range 6 – 35 V
- Temperature range -20 – +70 °C
- Power consumption at 12 V
- Operating 3,5 mA
- Voltage measuring channels 3
- Resistive measuring channels 4
- Relay (monostable)
- Maximum Operating Current 1 A
- Maximum Common Input Voltage 6 – 30V
Voltage inputs
- Range 0 – 75 V
- Resolution 1 mV
- Accuracy ± 0,2 %
- Sampling rate 100 ms
Resistance inputs
- Range 0 Ohm – 65 kOhm
- Accuracy ± 3,0%
Connectivity Up to
- Voltage sensors (voltage drop/tank level) 3
- Resistive inputs (tank level/temperature) 4
- Relay Common Input (COM) 1
- Relay Output Normally Open (NO) 1
- Relay Output Normally Closed (NC) 1
- SiCOM RJ9 Sockets 2
Installation and Dimension
- Dimensions (length x width x depth) 110 x 70 x 30 mm
- Battery Connection M 10 bolts
SPECIFICATIONS
| SKU: | SI-ST107 |
| Barcode: | 3830067940134 |
| Model #: | SI-ST107 |
| MPN: | SI-ST107 |
