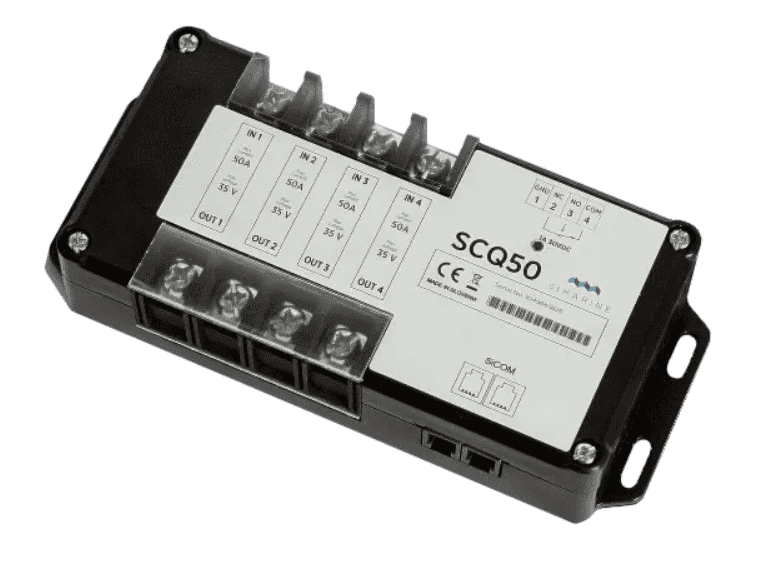

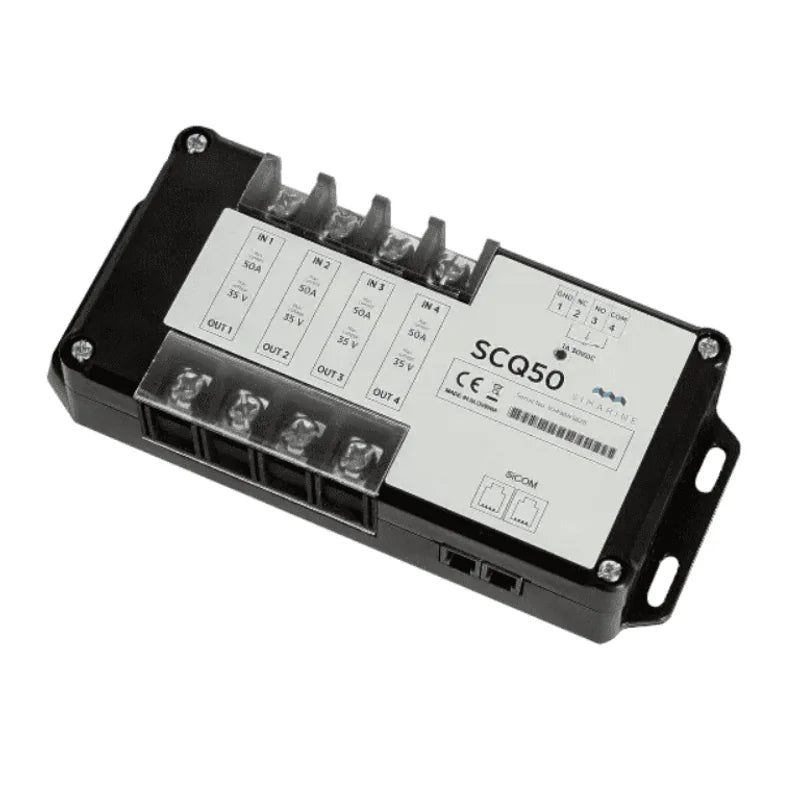

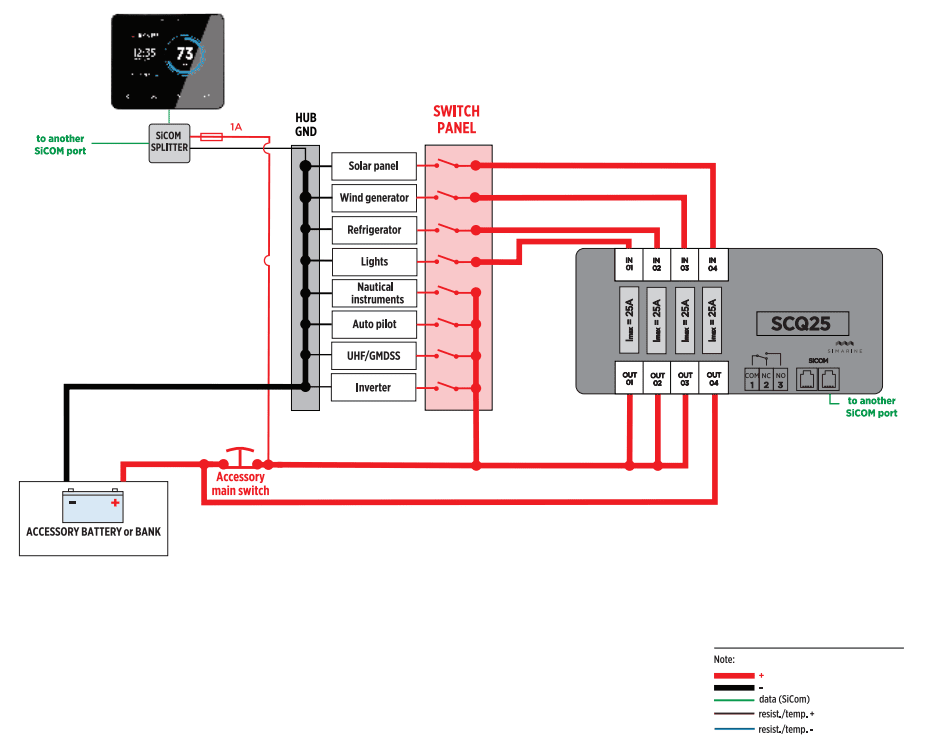

Simarine Quad Shunt Mod 4x 50A Input Current & 1x Relay Output 1A

Description

Active shunt for PICO battery monitor with 4x current sensors up to 50A each. For 12V and 24V systems.

Operating

• Power source voltage range 6 – 35 V
• Temperature range -20 – +70 °C
• Power consumption at 12 V
• Operating 3,5 mA
• Current measuring channels 4
• Relay (monostable)
• Maximum Operating Current 1 A
• Maximum Common Input Voltage 6 – 30V

Voltage inputs

• Per channel 0,01 – 50 A
• Resolution 0,01 A
• Accuracy ± 0,6 %
• Sampling rate 100 ms

Maximal current

• Continuous 50 A
• Peak current (<1 min) 60 A
• Peak current (<5 sec) 60 A
• Voltage drop at 50 A 35 mV
• Maximum voltage on connections 35 V

Connectivity Up to

• Current sensors 4
• Relay Common Input (COM) 1
• Relay Output Normaly Open (NO) 1
• Relay Output Normaly Closed (NC) 1
• SiCOM RJ9 Sockets 2

Installation and Dimension

• Dimensions (length x width x depth) 182 x 80 x 37 mm
• Weight 230 g
