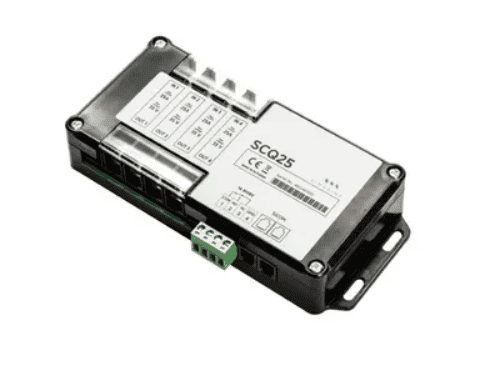

Simarine Quad Shunt 4x 25A Circuits
Simarine Quad Shunt 4x 25A Circuits
Highlights:25A Circuit Inputs: Four independent inputs for monitoring currents up to 25A each,Circuit Outputs: Connection points for the load or generator side of the circuits,Relay Terminals: Three-pin terminal block for COM, NC and NO relay connections,SiCOM Ports: Dual RJ45 ports for connection to the Simarine data bus,Mounting Flange: Integrated mounting tabs for secure installation on flat surfaces.

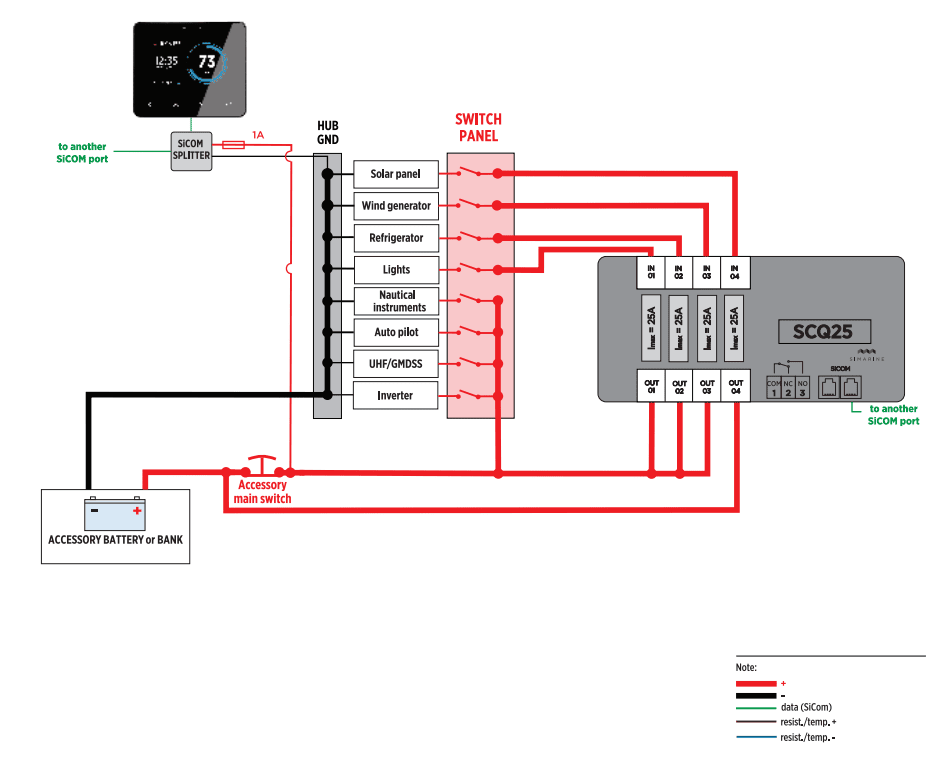

Key features: Continuous current monitoring for 4 individual channels, Seamless integration with the Simarine PICO battery monitor, Clear identification of load types including solar and refrigeration, Support for shared ground configurations via hub busbar.
Regular price
$215.00
Availability:
In Stock
View all products from Simarine
Guaranteed Safe and Secure Checkout
1
DESCRIPTION
SCQ25 is an innovative shunt module for monitoring individual consumers and generator with 4x current sensors up to 25A each. For 12V and 24V systems.
Voltage inputs
- Per channel 0,01 – 25 A
- Resolution 0,01 A
- Accuracy ± 0,6 %
- Sampling rate 100 ms
Maximal current
- Continuous 25 A
- Peak current (<1 min) 35 A
- Peak current (<5 sec) 50 A
- Voltage drop at 25 A 35 mV
- Maximum voltage on connections 35 V
Connectivity Up to
- Current sensors 4
- Relay Common Input (COM) 1
- Relay Output Normaly Open (NO) 1
- Relay Output Normaly Closed (NC) 1
- SiCOM RJ9 Sockets 2
Installation and Dimension
- Dimensions (length x width x depth) 182 x 80 x 32 mm
- Weight 230 g
SPECIFICATIONS
| SKU: | SI-SCQ25 |
| Barcode: | 3830067940110 |
| Model #: | SI-SCQ25 |
| MPN: | SI-SCQ25 |
