Simarine NMEA2000 Gateway
Simarine NMEA2000 Gateway

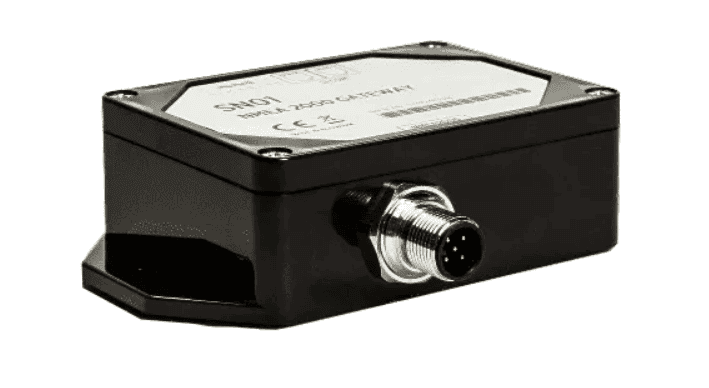

Key features: Durable marine-grade black plastic housing, Integrated threaded NMEA 2000 male connector, Built-in side mounting flanges for secure surface installation, Compatible with Simarine SICOM communication bus.
Highlights:SICOM Ports: Dual connection points for Simarine SICOM communication bus,NMEA 2000 Port: Standard 5-pin NMEA 2000 male connection interface,Mounting Hole: Integrated 5mm mounting hole for chassis attachment,Product ID: SN01 model identification and certification label.
Regular price
$360.00
Availability:
In Stock
View all products from Simarine
Guaranteed Safe and Secure Checkout
1
DESCRIPTION
Simarine SN01 SiCOM NMEA 2000 Gateway module allows your PICO to transmit data of the devices connected to the PICO system. It allows control of switch banks, transmitting battery status, tank levels and some environmental information. Using the gateway, PICO can also display a range of engine and transmission parameters if they are connected to the NMEA network.
| PGN | PGN Name | receiving | transmitting | |
|---|---|---|---|---|
| 59904 | ISO Request | Yes | No | |
| 60928 | ISO Address Claim | Yes | Yes | |
| 126996 | Product Information | No | Yes | |
| 127257 | Attitude | No | Yes | |
| 127502 | Switch Bank Control | No | Yes | |
| 127505 | Fluid Level | No | Yes | |
| 127506 | DC Detailed Status | No | Yes | |
| 127508 | Battery Status | No | Yes | |
| 130310 | Environmental Parameters | No | Yes | |
| 130314 | Actual Pressure | No | Yes |
SPECIFICATIONS
| SKU: | SI-SN01 |
| Barcode: | 3830067940523 |
| Model #: | SI-SN01 |
| MPN: | SI-SN01 |
