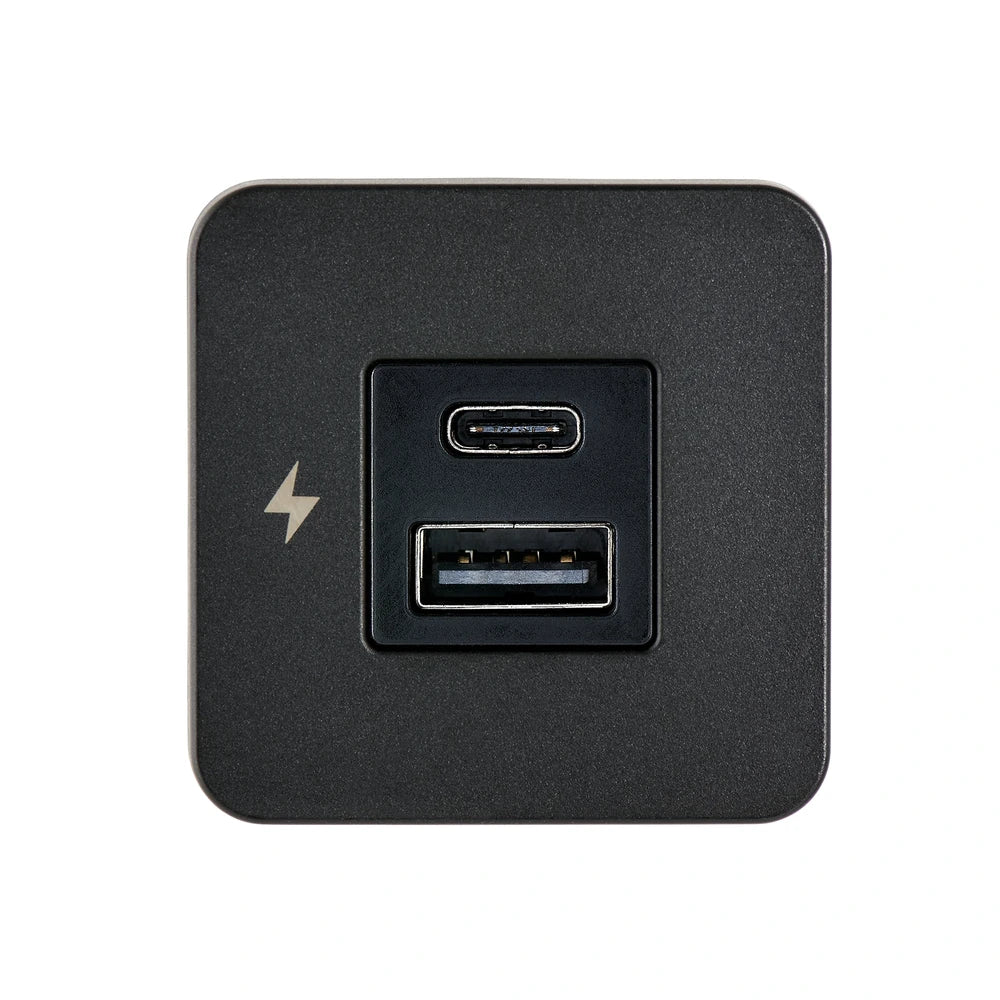

Scanstrut 12/24V TILE Black USB-A & USB-C Socket
Scanstrut 12/24V TILE Black USB-A & USB-C Socket
Deliver up to 60W of fast charging power to your essential devices with an ultra-compact flush-mount socket designed for modern caravan and marine interiors.
Highlights:USB-C Port: High-speed USB-C charging port,USB-A Port: Standard USB-A port for universal device charging,Decorative Bezel: Compact black square bezel for a clean finish,Side Branding: Discreet Scanstrut branding on the side profile.

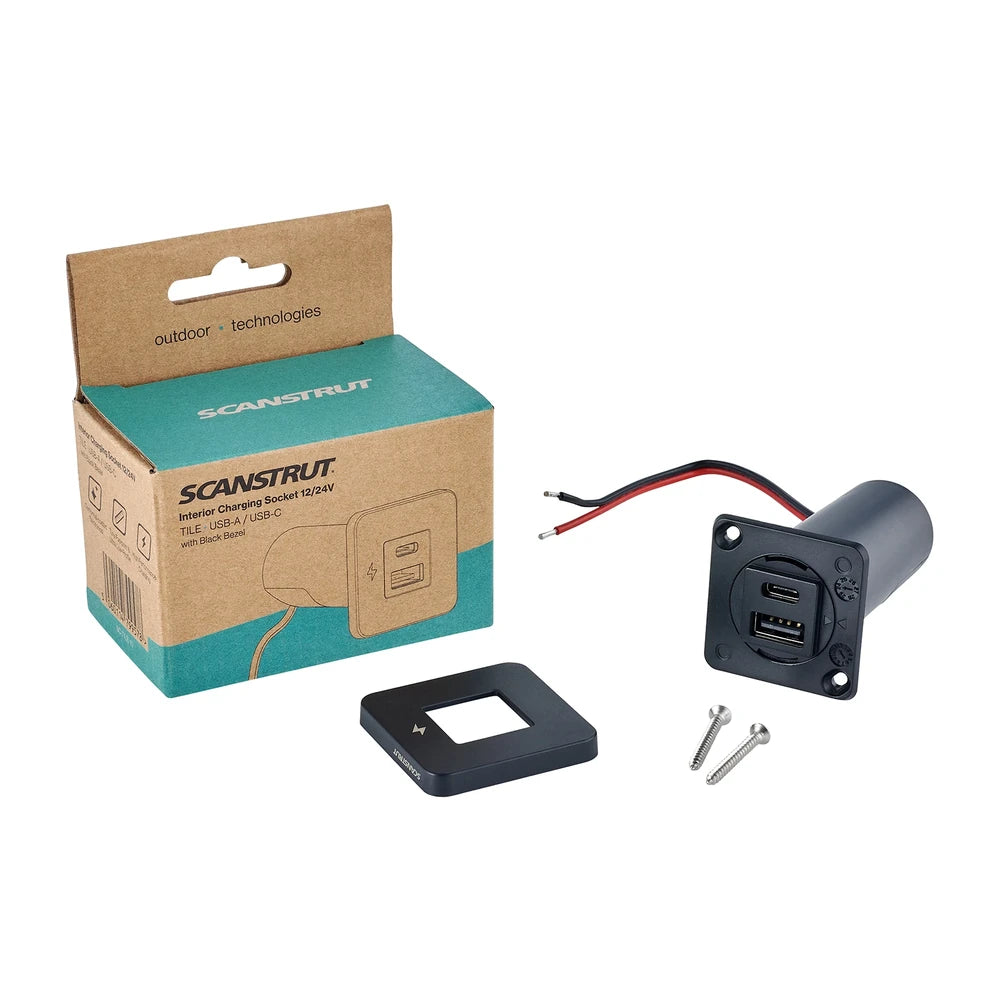

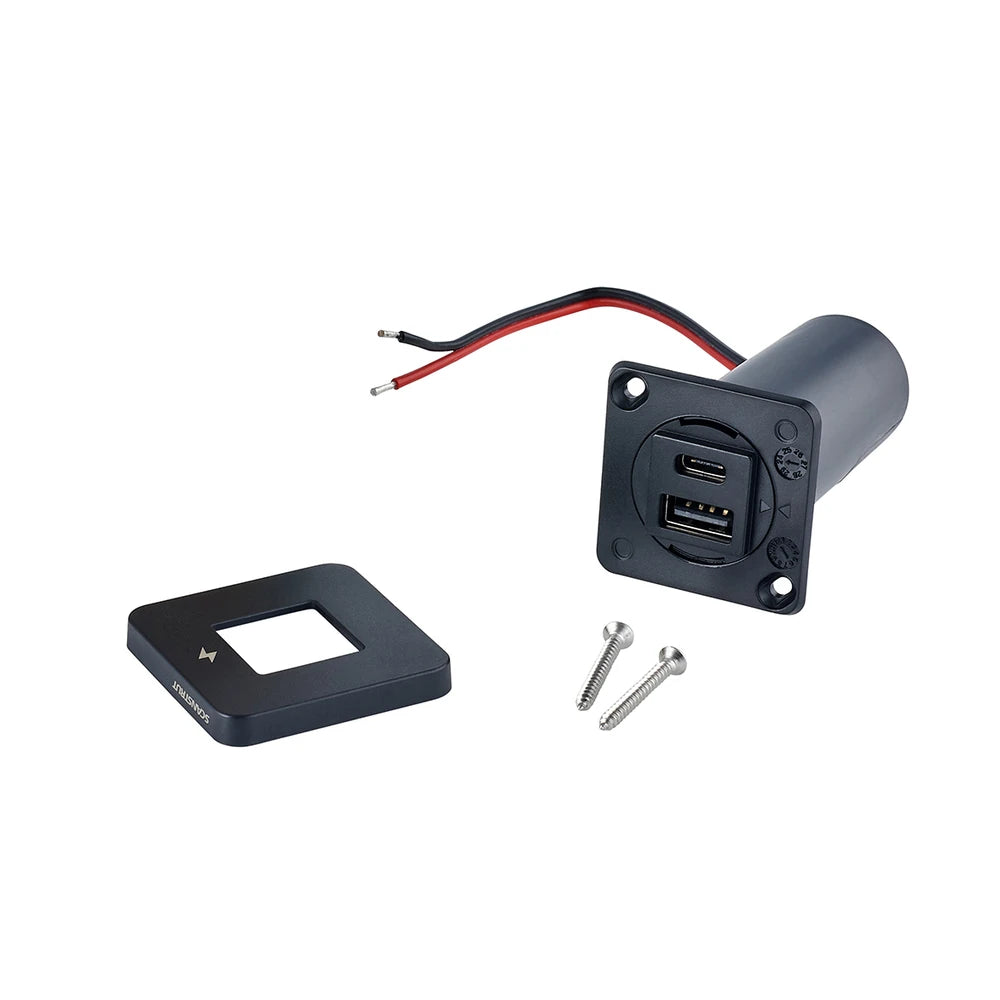

Key features: Removable black bezel for low-profile finish, Integrated 150mm flying leads for 12/24V power, Compact barrel design for easy panel mounting, Includes two stainless steel mounting screws.
The Scanstrut TILE socket provides high-speed charging in a compact form factor, suitable for USB-A and USB-C device cables.




DESCRIPTION

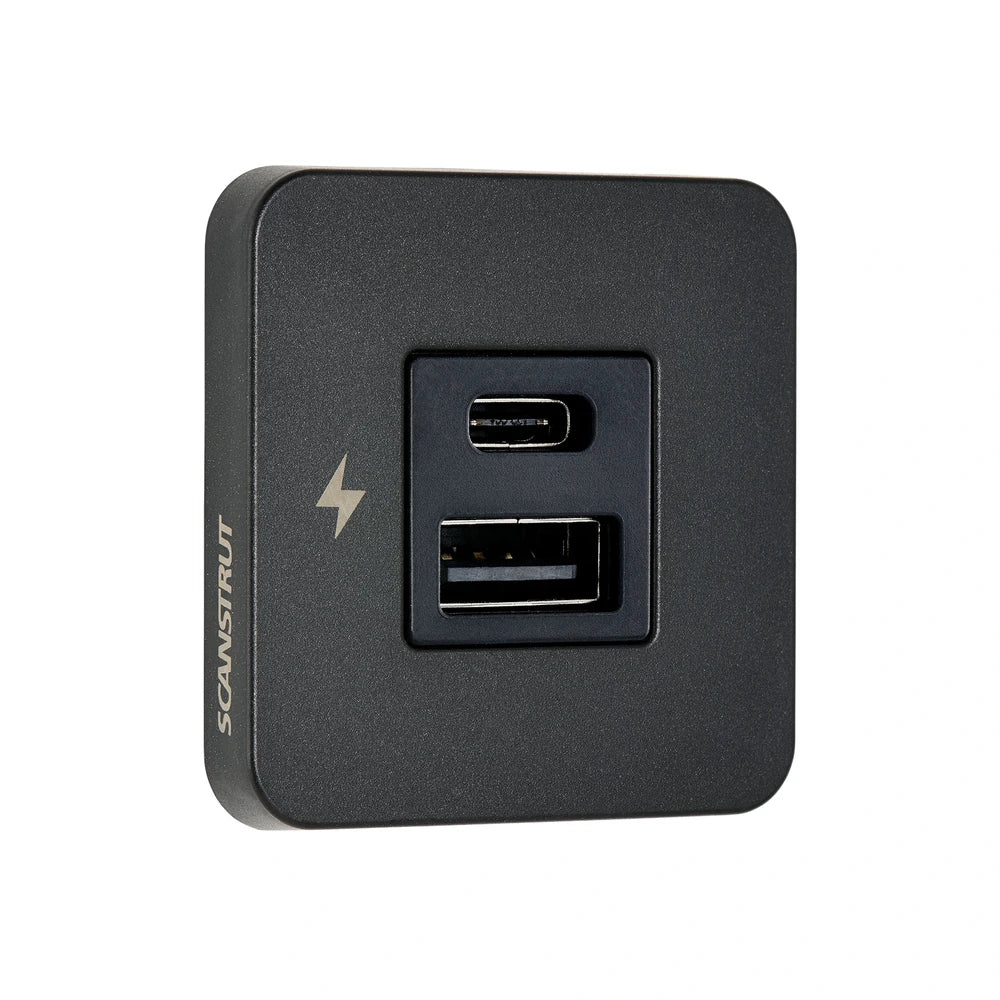

Scanstrut 12/24V TILE Black USB-A & USB-C Socket: Advanced 12/24V Power for Mobile Interiors
Keep your critical devices powered with the Scanstrut 12/24V TILE Black USB-A & USB-C Socket, an ultra-compact and highly efficient charging solution engineered for modern caravans, motorhomes, and marine cabins. Designed to blend seamlessly into luxury interiors, this flush-mount socket delivers rapid charging speeds without compromising on aesthetics or space.
Next-Generation Fast Charging Performance

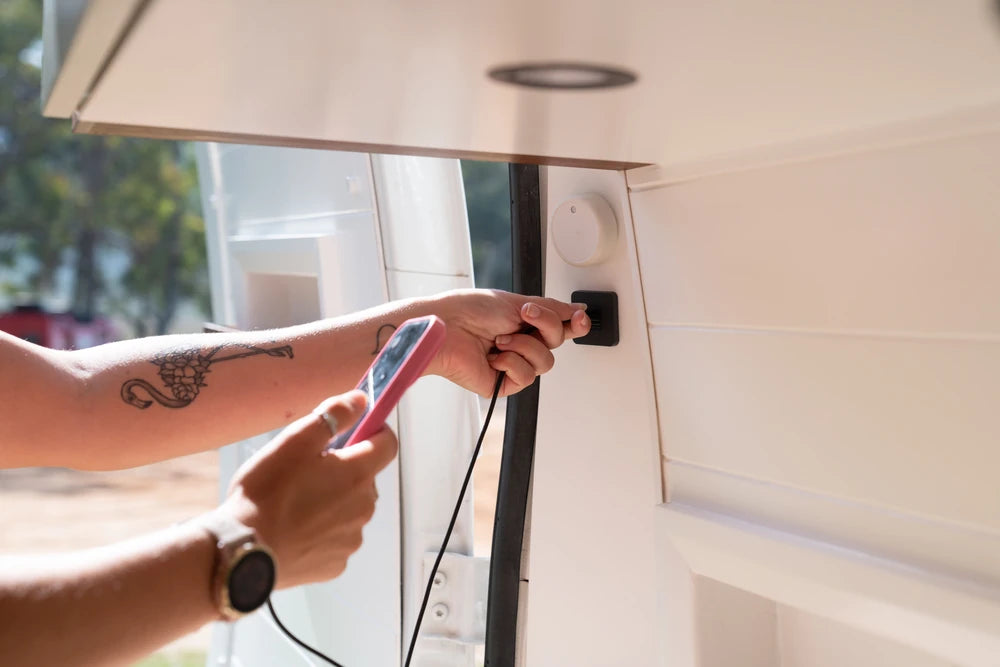

Whether you are working remotely from your campervan or navigating coastal waters, reliable power is essential. This intelligent socket automatically adapts to your system voltage, operating safely between 10V and 32V DC, making it perfectly suited for both 12V and 24V electrical setups. When connected to a 12V system, it delivers up to 36W of fast charging output. On a 24V system, it unlocks a massive 60W maximum output, providing enough power to rapidly charge modern laptops, large tablets, and high-demand smartphones.
Utilising advanced Power Delivery (PD) and Quick Charge (QC) protocols, the internal electronics communicate directly with your connected device to negotiate the optimal charging speed. This intelligent power management reduces heat generation and protects your device batteries during rapid charge cycles.
Equipped with versatile USB-A and USB-C ports, it ensures compatibility with both legacy cables and modern high-speed connections.
Marine-Grade Durability Meets Premium Aesthetics
Standard household electronics are rarely built to survive the continuous vibrations, temperature fluctuations, and high humidity of mobile environments. To combat this, the internal circuit boards are conformal-coated, creating a robust barrier against moisture ingress. This critical manufacturing step ensures long-term reliability in damp marine environments or condensation-prone off-grid campervans.
The exterior is finished with a sleek matte black bezel, offering a highly modern, unobtrusive appearance that perfectly complements dark or contemporary interior panelling.

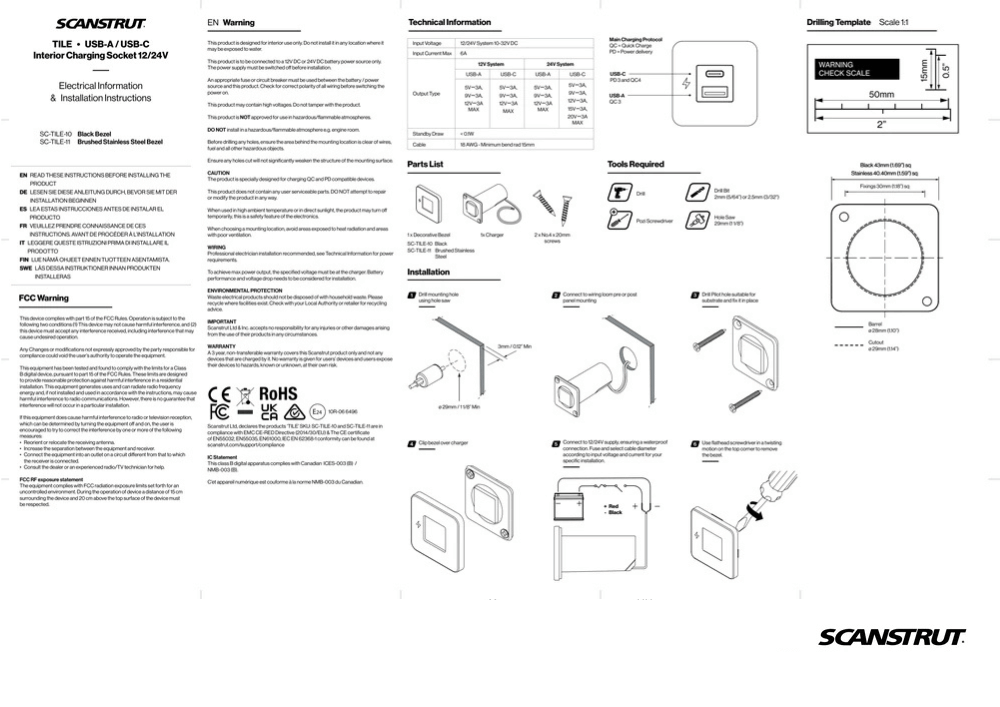

Effortless Flush-Mount Installation
Upgrading your interior power options has never been easier. The compact barrel requires only a standard 29mm hole saw cutout, allowing it to fit into tight bulkheads, dashboard panels, or bedside cabinetry with a minimum panel thickness of 3mm. The included 150mm pre-wired flying leads simplify electrical connections behind the panel, while the exceptionally low standby power draw of less than 0.1W ensures your house battery bank remains protected from unnecessary drain when the charger is not actively in use.
Key Features
- Compatible with 12V and 24V DC electrical systems (10 to 32V DC input range)
- Delivers up to 60W on 24V networks and 36W on 12V networks
- Conformal-coated internal components protect against high humidity and moisture
- Ultra-low standby current draw of less than 0.1W to preserve battery capacity
- Simple installation requiring only a standard 29mm mounting cutout
Power Your Next Adventure

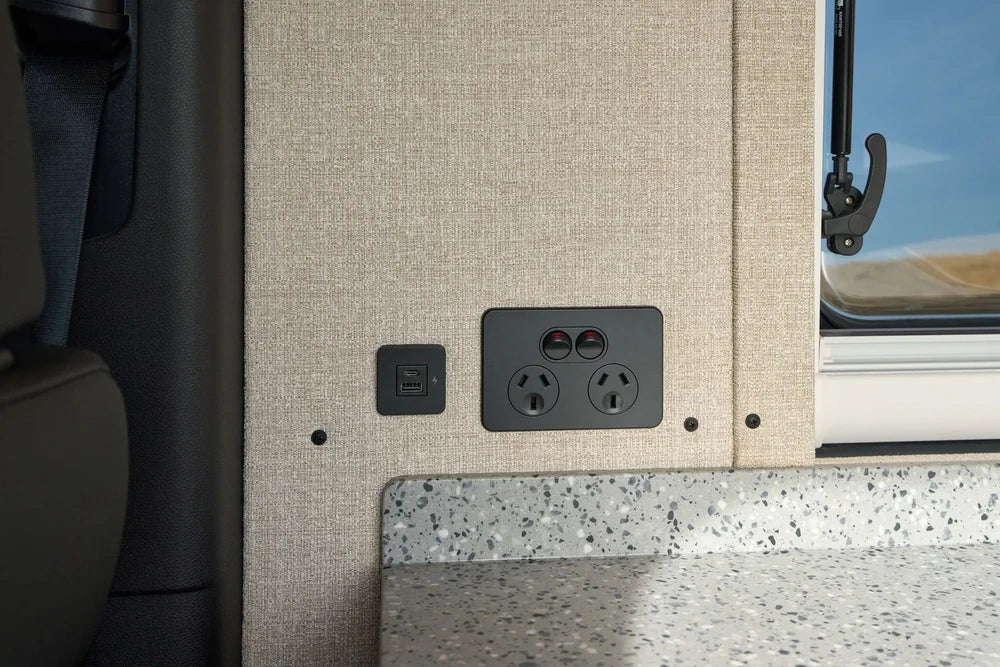

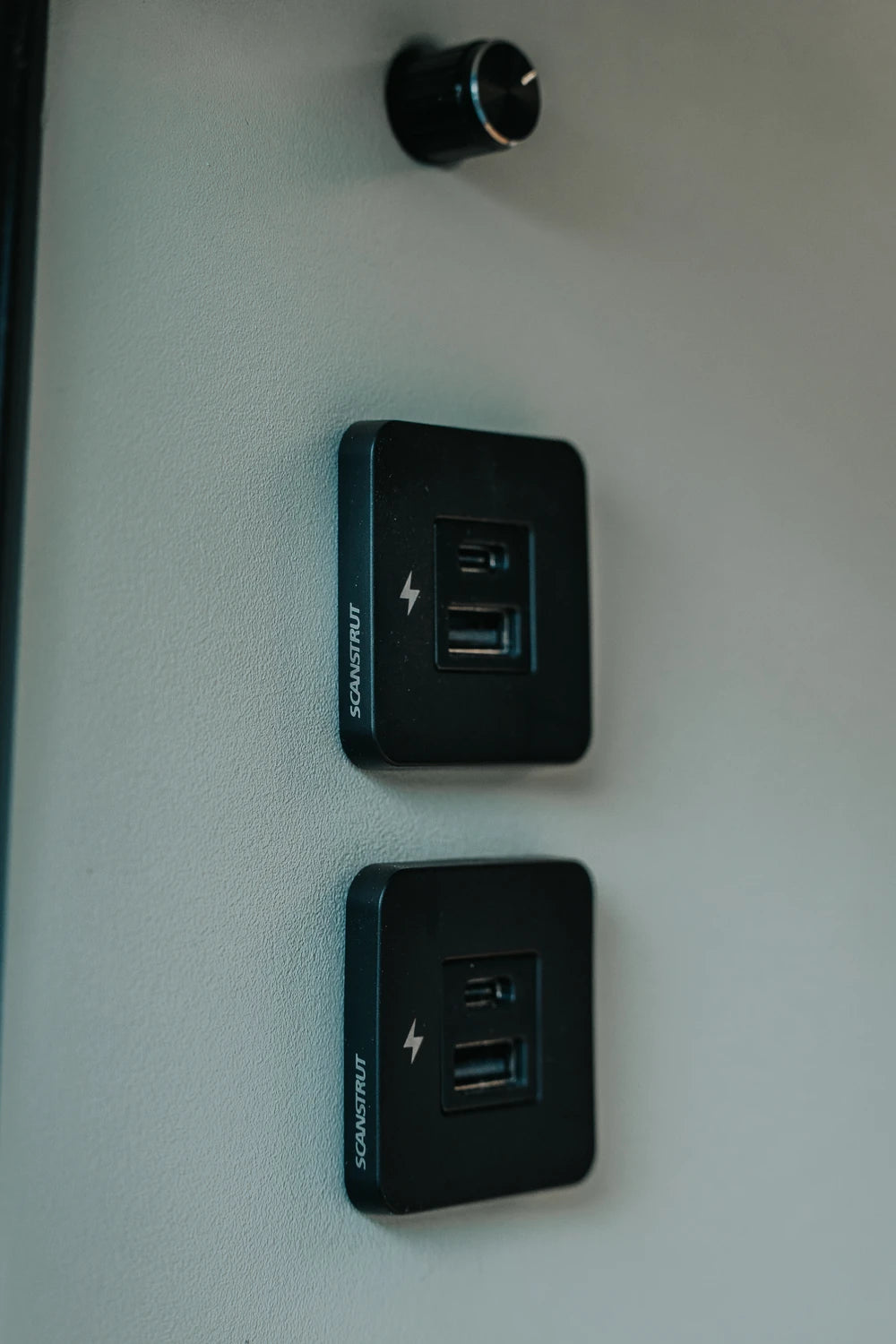

Invest in reliable, high-speed power delivery for your mobile lifestyle. Upgrade your cabin or caravan electrical system with the Scanstrut 12/24V TILE Black USB-A & USB-C Socket today and ensure your essential devices are always charged and ready for use.
SKU: SST-SC-TILE-10
SPECIFICATIONS
Specifications
| Product | TILE USB-A / USB-C Interior Charging Socket 12/24 V |
|---|---|
| SKU | SC-TILE-10 |
| Bezel | Black Bezel |
| Ports | USB-A and USB-C |
| System Voltage | 12 V & 24 V |
| Input Voltage | 10-32 V DC (12/24 V system) |
| Input Current Max | 6 A (10 A fuse recommended) |
| USB-C Output | 60 W max on 24 V system; 36 W max on 12 V system |
| Output (Type C), 12 V System | 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A max |
| Output (Type C), 24 V System | 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A, 15 V⎓3 A, 20 V⎓3 A max |
| Output (Type A), 12 V System | 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A max |
| Output (Type A), 24 V System | 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A max |
| Standby Draw | < 0.1 W |
| Main Charging Protocols | USB-A: QC 3; USB-C: PD 3, QC 4 |

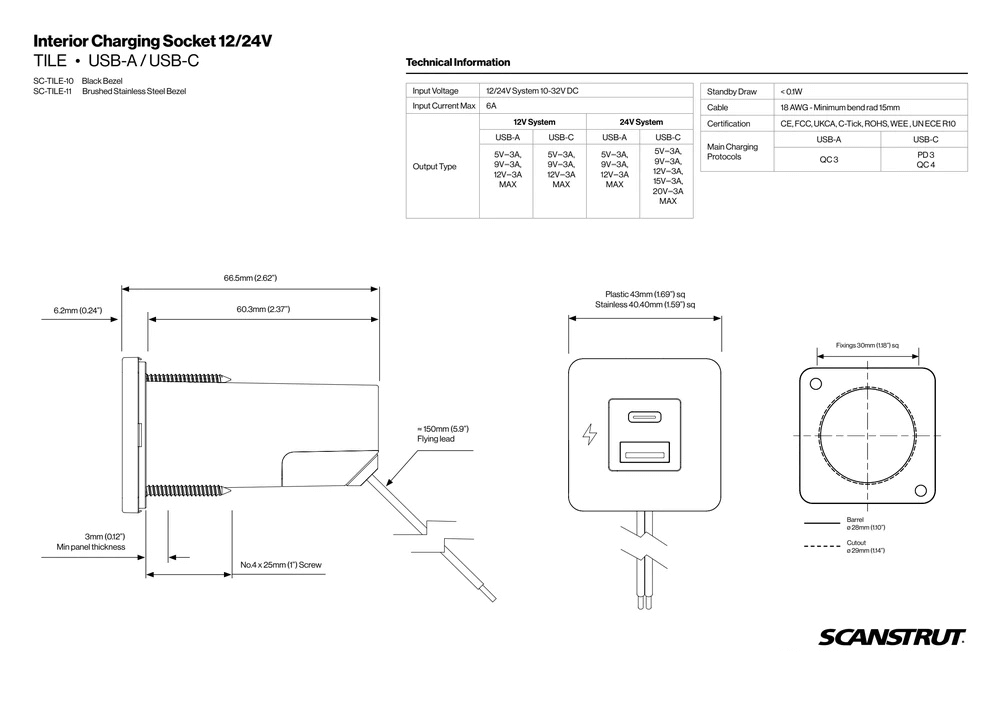

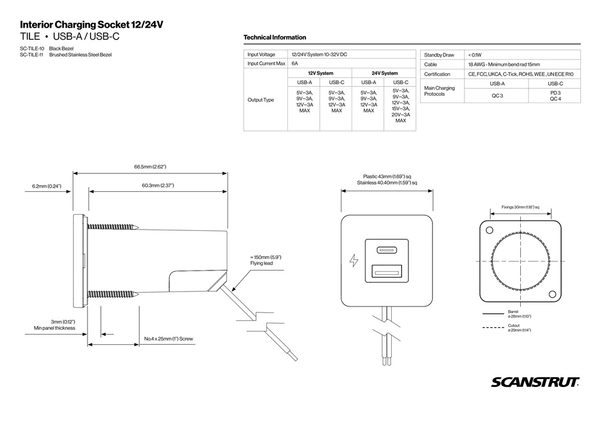

| Bezel Size (Plastic) | 43 mm (1.69") sq |
| Min Panel Thickness | 3 mm (0.12") |
| Flying Lead | ≈ 150 mm (5.9") |
| Barrel | 60.3 mm (2.37") |
| Cutout | ø 29 mm (1.14") |
| Fixings | 30 mm (1.18") sq |
| Cable | 18 AWG, minimum bend rad 15 mm |
| Certification | CE, FCC, UKCA, C-Tick, ROHS, WEE, UN ECE R10 |
| Installation | Interior use only |
| SKU: | SST-SC-TILE-10 |
| Barcode: | 5060114799578 |
| Model #: | SC-TILE-10 |
| MPN: | SC-TILE-10 |
