Victron 48V 20000VA MultiPlus 48/20k/250-100 Inverter/Charger


Regular price $4,084.00
$5,385.60
/
Availability: Special Order
View all products from Victron

We’re here to help you get it right! Give us a quick call to verify your installation and ensure a seamless setup.

Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

0

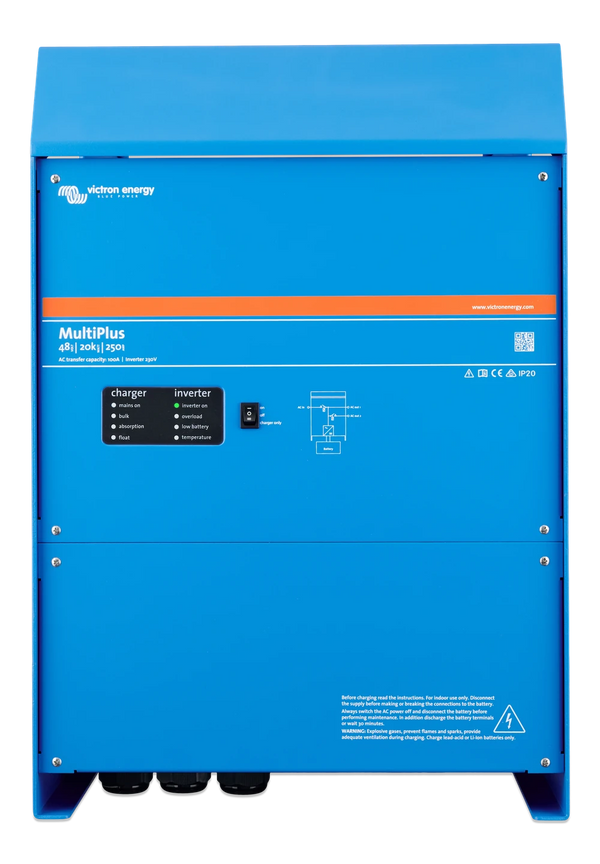

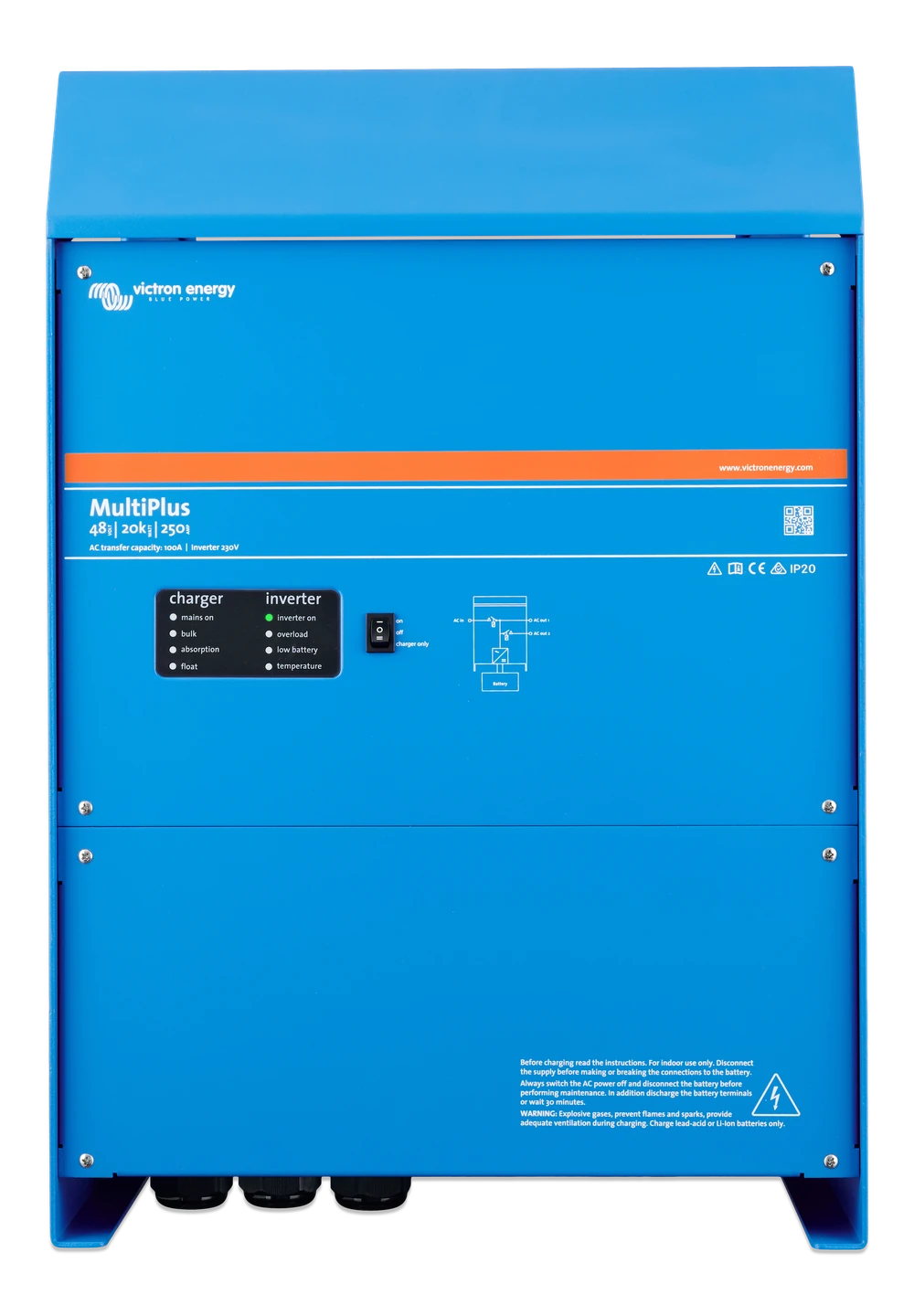

Front view of Victron MultiPlus 48V 20kVA inverter charger in signature blue RAL 5012 casing

Victron 48V 20000VA MultiPlus 48/20k/250-100 Inverter/Charger

DESCRIPTION

Victron MultiPlus 48/20k/250-100 230V - High-Capacity Inverter/Charger

Professional-Grade Inverter/Charger with ESS Functionality

The Victron MultiPlus 48/20k/250-100 230V is a powerful multifunctional inverter/charger designed for demanding off-grid, marine, mobile, and industrial applications. It combines a high-capacity 230V inverter with a robust battery charger and includes Energy Storage System (ESS) functionality for seamless integration with solar, generator, and grid-connected systems. Delivering continuous output of 20 kW at 25°C, peak power of 25 kW for short durations, and time-limited output of 21 kW for 5 hours, it ensures uninterrupted power for critical loads.

PowerControl & PowerAssist – Intelligent Load Management

PowerControl allows precise regulation of AC input current, preventing overloads on generators or the grid. PowerAssist extends this capability by supplementing insufficient grid or generator power with battery energy during peak demand, then recharging the battery when load decreases. This ensures reliable operation of critical systems and maximizes self-consumption of renewable energy.

Seamless AC Supply & Dual Outputs

The main AC output provides instantaneous transfer (<20 milliseconds) during grid or generator outages, keeping sensitive electronics operational. A secondary AC output is live only when input power is present, ideal for non-critical loads such as water heaters. Both outputs integrate with PowerControl and PowerAssist for intelligent load management.

Scalable & Flexible System Design

The MultiPlus supports three-phase operation and parallel configuration for extremely high power requirements. On-site configuration is fast with VEConfigure software, while monitoring and control can be achieved via Cerbo GX, Ekrano GX, Digital Multi Control Panel, VictronConnect app, or VRM Online portal. Remote monitoring allows operational data to be stored, accessed, and adjusted via the internet for full system oversight.

High Efficiency & Robust Build

With a maximum efficiency of 96%, the MultiPlus minimizes energy losses while providing reliable AC power. Its sturdy aluminium IP20 enclosure and fan-assisted cooling allow safe operation in temperatures from -40°C to +65°C. It supports lithium, lead-acid, and zinc-bromine batteries, offering versatile energy storage solutions.

Applications

  • Off-grid homes and commercial installations
  • Marine and yachting systems requiring uninterrupted AC power
  • High-demand mobile and vehicle applications
  • Solar PV integration and energy storage systems
  • Professional backup and critical load support

Upgrade your energy system with the Victron MultiPlus 48/20k/250-100 230V for high-capacity, intelligent energy management and uninterrupted AC power in demanding off-grid and professional installations!


SKU: VIC-PMC483200400

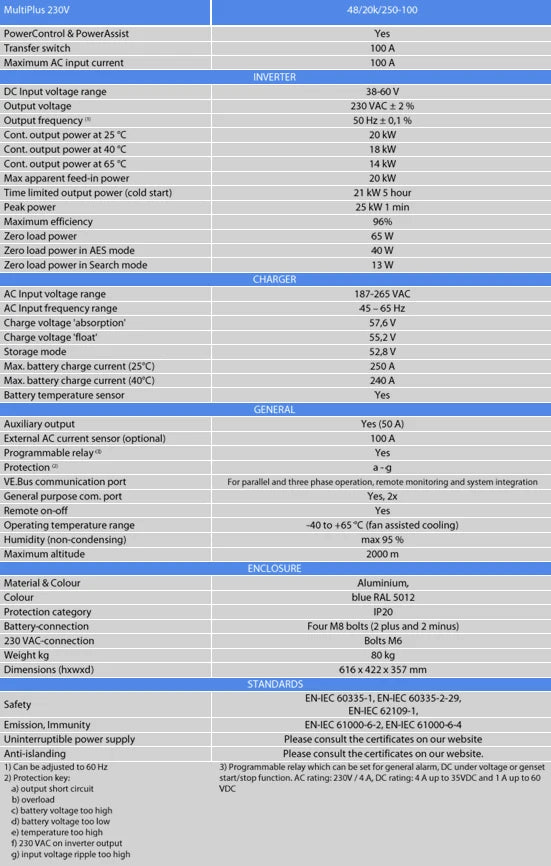

SPECIFICATIONS

Specifications

Model MultiPlus 230V 48/20k/250-100
PowerControl & PowerAssist Yes
Transfer switch 100 A
Maximum AC input current 100 A
INVERTER
DC input voltage range 38 – 60 V
Output voltage 230 VAC ± 2%
Output frequency 50 Hz ± 0.1% (adjustable to 60 Hz)
Continuous output power @ 25°C 20 kW
Continuous output power @ 40°C 18 kW
Continuous output power @ 65°C 14 kW
Max apparent feed-in power 20 kW
Time limited output power (cold start) 21 kW (5 hours)
Peak power 25 kW (1 min)
Maximum efficiency 96%
Zero load power 65 W
Zero load power in AES mode 40 W
Zero load power in Search mode 13 W
CHARGER
AC input voltage range 187 – 265 VAC
AC input frequency range 45 – 65 Hz
Charge voltage (absorption) 57.6 V
Charge voltage (float) 55.2 V
Storage mode 52.8 V
Max battery charge current @ 25°C 250 A
Max battery charge current @ 40°C 240 A
Battery temperature sensor Yes
GENERAL
Auxiliary output Yes (50 A)
External AC current sensor (optional) 100 A
Programmable relay Yes
Protection a - g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port Yes, 2x
Remote on-off Yes
Operating temperature range -40 to +65°C (fan assisted cooling)
Humidity (non-condensing) max 95%
Maximum altitude 2000 m
ENCLOSURE
Material Aluminium
Colour Blue RAL 5012
Protection category IP20
Battery connection Four M8 bolts (2 plus and 2 minus)
230 VAC connection Bolts M6
Weight 80 kg

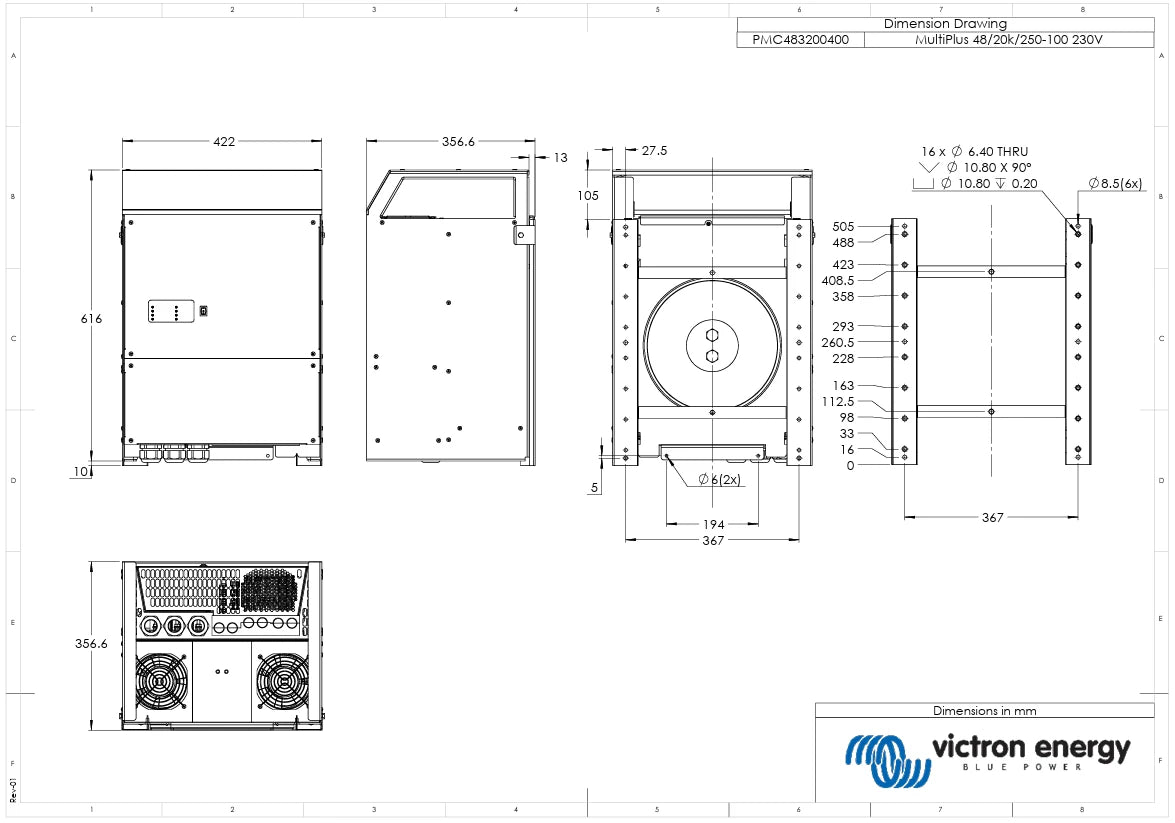

Dimensions (h x w x d) mm 616 x 422 x 357
STANDARDS
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity EN-IEC 61000-6-2, EN-IEC 61000-6-4
Uninterruptible power supply Please consult the certificates on our website
Anti-islanding Please consult the certificates on our website

SKU: VIC-PMC483200400
Barcode: 8719076068358
Model #: PMC483200400
MPN: PMC483200400

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
