Morningstar Tristar Meter Hub

Centralised Communication and Protection for Multi-Device Solar Networks

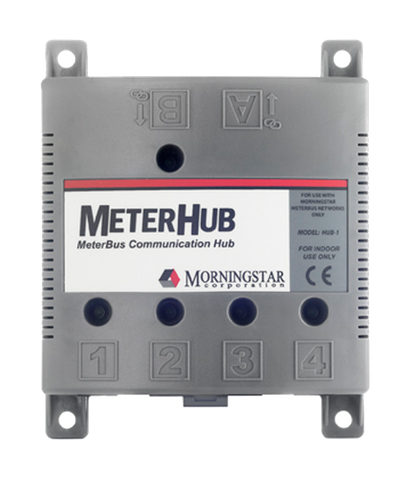

The Morningstar TriStar Meter Hub (also known as the MeterHub) is an essential communication component for expanding and managing complex off-grid, industrial, and commercial solar installations. When deploying multiple solar charge controllers, inverters, or accessories, managing individual displays and data lines quickly becomes inefficient and prone to wiring errors. This communication hub enables up to 15 Morningstar devices to share a single MeterBus network, streamlining data aggregation, system monitoring, and device communication over standard RJ-11 connections.

By consolidating your communication architecture, the Meter Hub allows multiple controllers to share a single TriStar remote meter or a single PC communication adapter (such as an EIA-485/Modbus adapter or Ethernet gateway). This reduces hardware redundancy, simplifies system commissioning, and provides a single point of access for comprehensive solar system diagnostics and data logging.

Electrical Isolation to Prevent Ground Loop Damage

One of the primary risks in multi-controller solar power systems is the potential for ground loops and voltage differentials across interconnected devices. Unlike standard communication splitters that simply bridge connections together, the Morningstar Meter Hub provides critical electrical isolation for devices that supply power to the network. If a grounding fault or voltage spike occurs on one section of the solar array or battery bank, the hub prevents destructive stray currents from travelling through the fragile communication lines and damaging other connected controllers or monitoring hardware.

Key Features and Capabilities

• Multi-Device Scalability: Supports up to 15 individual Morningstar products on a single shared MeterBus network through daisy-chaining or hub expansion.
• Port-Specific Electrical Isolation: Isolates powered network ports to protect expensive charge controllers and accessories from grounding faults and voltage differentials.
• Visual Network Diagnostics: Features five dedicated status LEDs (one central power/network indicator and four individual port indicators) to confirm active connections and power states at a glance.
• Versatile Industrial Mounting: Equipped with integrated mounting holes and hardware compatibility for both flat surface wall mounting and standard 35mm DIN rail enclosures.
• Clearly Labelled Architecture: Includes designated, numbered ports for straightforward wiring, commissioning, and future maintenance.

Engineered for Industrial and Off-Grid Reliability

Troubleshooting communication dropouts in remote off-grid cabins, telecommunications towers, or marine vessels can be time-consuming. The Meter Hub addresses this challenge by incorporating five diagnostic status LEDs directly on the board. A central status indicator monitors primary network communication and power, while four individual port indicators confirm active link status for each connected branch. Installers and maintenance technicians can immediately verify physical layer connectivity without needing specialised testing tools.

Designed to integrate cleanly into professional electrical enclosures and distribution boards, the unit supports both standard surface wall mounting and industrial DIN rail installations. Its compact footprint and clearly labelled terminal ports ensure neat cable management alongside your TriStar MPPT or PWM charge controllers, Relay Drivers, and MeterBus adapters.

Upgrade Your Solar Monitoring Architecture

Streamline your system wiring and safeguard your solar electronics against grounding faults by integrating the Morningstar TriStar Meter Hub into your next multi-controller installation.
