Morningstar EIA485/RS232
Morningstar EIA485/RS232

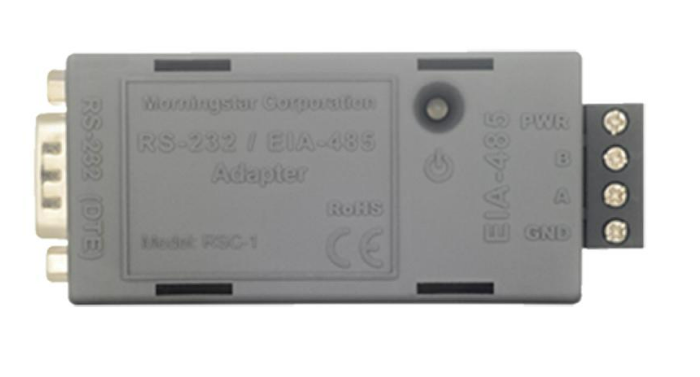

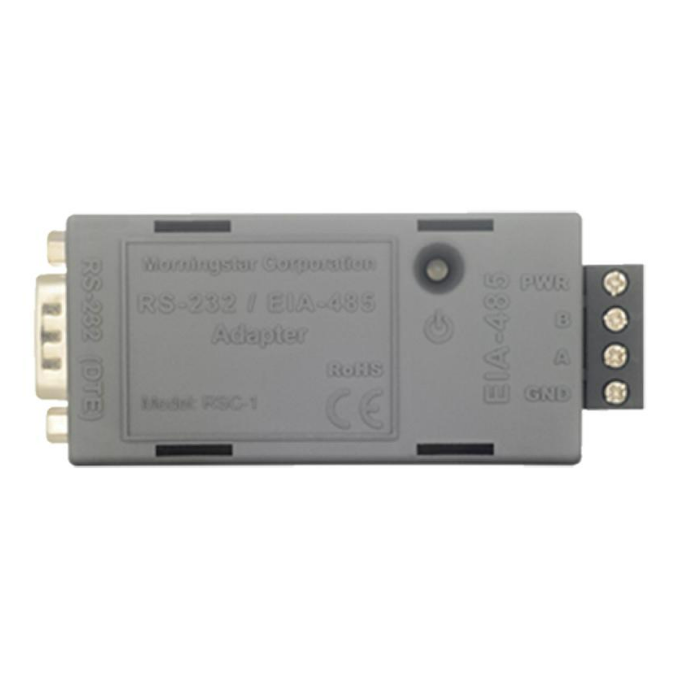

Highlights:RS-232 Connector: DB9 DTE interface for connecting to a PC or other serial devices,Status Indicator: LED light for power and communication status monitoring,EIA-485 Terminal Block: Removable 4-position screw terminal for secure bus wiring,Port Markings: Clear identification for PWR, B, A, and GND connections to simplify installation.
Regular price
$183.70
Availability:
Special Order
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
By converting to EIA-485, the RSC-1 allows up to 128 Morningstar products to communicate on the same communication bus and over much greater distances.
All data is transmitted in the form of MODBUS protocol. This industry standard was chosen for its robust design and high level of compatibility with a variety of equipment. Each Morningstar product has its own MODBUS specification (see our website for full details) that covers the data available from each products specific functions.
Typical configurations include:
- Networking several TriStar and/or TriStar-MPPT controllers
- Adding Morningstar’s PC Meterbus Adapters (MSC) for use with an RJ-11 port in multi-device networks.
- Adding Morningstar’s Relay Driver to a network
- Integrating any compatible Morningstar product into an existing EIA-485 network, such as those used by industrial control or SCADA systems.
Key Features and Benefits:
- Removable four (4) position EIA-485 terminal
- 9-pin RS-232 connector (male)
- Status LED for monitoring and diagnostics
- Molded tabs for attachment to 35mm standard DIN rail
- RS-232 ribbon cable (not shown) with low-profile connectors
SPECIFICATIONS
| SKU: | SR-RSC-1 |
| Model #: | SR-RSC-1 |
| MPN: | SR-RSC-1 |
