Mastervolt NMEA 2000 MasterBus Interface

Seamless Bi-Directional Marine Data Communication

Unified System Monitoring for Advanced Marine and Mobile Power Setups

The Mastervolt NMEA 2000 MasterBus Interface serves as a vital system communication gateway, engineered to bridge the gap between two leading marine and mobile data networks. In modern vessels and advanced off-grid vehicles, electrical power management and navigation electronics often operate on separate protocols. This purpose-built interface allows your proprietary MasterBus network to communicate effortlessly with an industry-standard NMEA 2000 backbone, enabling comprehensive two-way information exchange across your entire onboard system.

By translating data packets in real time, this gateway allows you to view critical Mastervolt power metrics directly on your existing NMEA 2000 compatible Multi-Function Displays (MFDs) or chartplotters. Simultaneously, relevant NMEA 2000 system data is transmitted back to the MasterBus network, allowing Mastervolt displays and control panels to access broader vessel telemetry. This level of integration eliminates the need for duplicate monitoring screens at the helm or control station, conserving valuable dashboard space and simplifying wiring looms.

Hardware Engineered for Reliable Network Integration

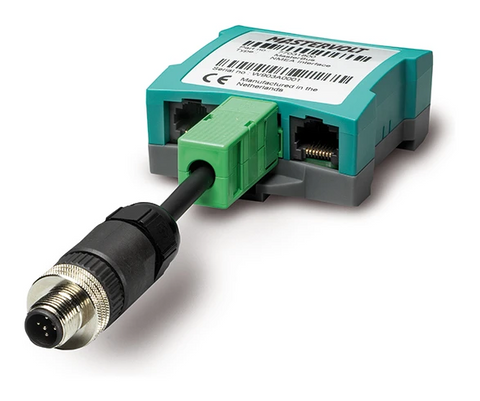

Designed to withstand the rigours of marine and mobile environments, the interface features a durable housing with integrated screw flanges for secure surface mounting in electrical lockers or behind helm stations. It comes equipped with an integrated drop cable terminated with a standard 5-pin male Micro-C connector for direct attachment to an NMEA 2000 T-piece. On the opposite side, dual RJ45 ports allow the unit to be daisy-chained seamlessly into your existing MasterBus communication loop without disrupting network topology.

• Bi-Directional Data Transfer: Translates and passes telemetry simultaneously from MasterBus to NMEA 2000, and from NMEA 2000 back to MasterBus.
• Consolidated Helm Displays: Monitor battery state of charge, inverter status, and charger parameters on third-party NMEA 2000 chartplotters.
• Plug-and-Play Connectivity: Features dual RJ45 MasterBus ports and an integrated cable with a 5-pin male Micro-C NMEA 2000 plug.
• Robust Mounting Design: Built-in mounting flanges ensure the gateway remains securely fastened in high-vibration marine and RV applications.
• High Signal Integrity: Genuine Mastervolt engineering prevents data packet loss and communication dropouts common with uncertified third-party converters.

Reducing Complexity and System Risks

Attempting to link complex CAN-bus networks using unverified adapters can result in data collisions, corrupted telemetry, or network-wide faults. Using a dedicated, factory-engineered Mastervolt gateway reduces the risk of protocol mismatches and electrical interference. It ensures that critical alarms, voltage readings, and system parameters are communicated accurately and reliably, giving skippers and system operators complete confidence in their onboard diagnostics.

Applications

This communication interface is essential for any installation requiring unified data visibility across both network architectures, including:

• Cruising yachts, powerboats, and commercial marine vessels
• Custom RVs, motorhomes, and expedition vehicles utilizing NMEA 2000 digital switching
• Integrated off-grid power systems requiring centralised telemetry

Streamline Your Onboard Diagnostics

Upgrade your vessel or vehicle with unified data visibility and simplified system control. Add the Mastervolt NMEA 2000 MasterBus Interface to your network architecture today for dependable, two-way communication between your power and navigation systems.
