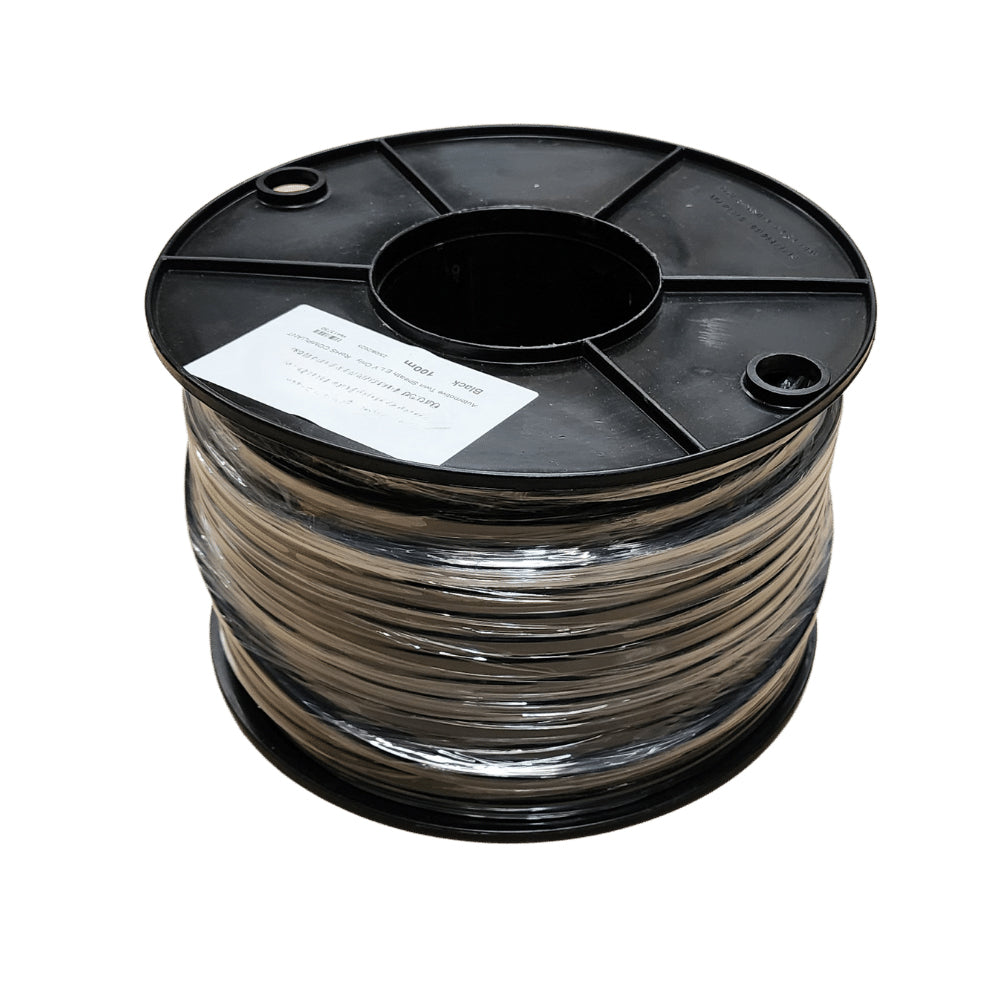

100m Roll of 6mm (4.58mm²) Twin Core Automotive Cable

46A rated (AS/NZS 3008, free air 40°C) 4.58mm² twin core cable with V90HT insulation and plain copper for 12V-48V DC wiring


Regular price $469.00
/
Availability: In Stock
View all products from Key

Shipping Calculated in Cart | Add to cart and enter your postcode to see live shipping options.

Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
1009932
100m Roll of 6mm (4.58mm²) Twin Core Automotive Cable

100m Roll of 6mm (4.58mm²) Twin Core Automotive Cable

DESCRIPTION

KEY 6mm (4.58mm²) Twin Core Automotive Cable: Premium 46A Twin Core Wiring for Demanding DC Applications

The KEY 6mm (4.58mm²) Twin Core Automotive Cable acts as the backbone of reliable low-voltage electrical systems. Engineered with 4.58mm² plain copper conductors, this 100m roll delivers consistent power transmission for automotive, marine, and off-grid setups. Rated 46A to AS/NZS 3008.1.1 (twin-core cable in free air at 40°C ambient), it suits 4WD, caravan and marine accessory wiring. Unlike standard general-purpose wires, its fine stranding stays flexible under vibration, ensuring your electrical accessories operate at peak performance.

About KEY Tubing & Electrical

KEY Tubing & Electrical (KTE) supplies electrical, cable, tubing, and custom-engineered solutions for automotive, electrical, industrial, and resource sector applications. This cable is Australian made by KEY.

Low-Resistance Copper Conductors

At the core of this cable are finely stranded plain copper conductors to AS/NZS 1125. Choosing the right conductor size keeps voltage drop low over long cable runs—critical for maintaining the efficiency of fridges, pumps, and DC-DC chargers—and the fine stranding keeps the cable flexible in high-vibration automotive environments.

Engineered for Heat Resistance

This cable features V90HT (High Temperature) PVC insulation to AS 3808, rated to 90°C, for hot engine bays and enclosed canopies. The black outer sheath keeps the red and black cores together for trailer wiring, solar interconnects, and chassis runs.

Extra-Low-Voltage DC Wiring for 12V, 24V, and 48V Systems

Perfectly suited as 12V automotive cable, it is made for extra-low-voltage DC wiring and is also used for 24V commercial vehicle wiring and 48V lithium battery systems found in modern caravans and off-grid homes.

Streamlined Installation

Professional installers and DIY enthusiasts alike value the black outer sheath and clearly colour-coded red and black cores, which minimise polarity errors and speed up termination. The twin-core construction provides a neat, single-cable run, eliminating the mess of taping separate wires together and offering additional mechanical protection against chafing.

Key Features

  • Plain Copper Conductors: 4.58mm² conductors (57/0.32) with a resistance of 4.5 ohm/km at 20°C.
  • Current Rating: Rated 46A in free air at 40°C (AS/NZS 3008.1.1); derate when bundled or enclosed.
  • V90HT Insulation: Withstands continuous operating temperatures up to 90°C.
  • Twin-Core Sheath: Black sheath over red and black cores, 6.0 x 10.1mm nominal outer size.
  • Extra-Low-Voltage DC: Suitable for 12V, 24V, and 48V DC applications.
  • Compliance: Meets AS/NZS 1125 and AS 3808 standards.

*Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation.

Secure Your Electrical Connections

Don't compromise on your wiring infrastructure. Equip your workshop or project with the KEY 6mm (4.58mm²) Twin Core Automotive Cable for a professional, long-lasting finish. Whether outfitting a 4WD for touring or wiring a marine console, this cable delivers the durability and performance required for critical DC circuits.

SPECIFICATIONS

Specifications

Conductor: plain copper to AS/NZS 1125. Insulation: PVC V90HT to AS 3808.

This listing is the highlighted row. Source: KEY Automotive Cable Spec Sheet F181a-1 (July 2026); AMP ratings per the note below.

Single Core

Part No. Industry Size No. of Cores Conductor No. / Dia. (mm) Nominal Area (mm²) Insulation Thickness (mm) Electrical Resistance at 20°C (ohm/km) Nominal O.D. (mm) **AMP Rating (free air, 40°C)
KA200 2 1 7/0.32 0.56 0.4 32.7 1.8 –
KA300 3 1 14/0.32 1.13 0.4 16.5 2.3 22
KA400 4 1 23/0.32 1.85 0.4 10.1 2.7 29
KA500 5 1 36/0.32 2.90 0.4 6.4 3.05 37
KA600 6 1 57/0.32 4.58 0.6 4.5 4.15 49

Twin Core

Part No. Industry Size No. of Cores Conductor No. / Dia. (mm) Nominal Area (mm²) Insulation Thickness (mm) Electrical Resistance at 20°C (ohm/km) Nominal O.D. (mm) **AMP Rating (free air, 40°C)
KA2TW200 2 2 7/0.32 0.56 0.4 32.7 3.2 x 5.2 –
KA2TW300 3 2 14/0.32 1.13 0.4 16.5 3.8 x 5.9 20
KA2TW400 4 2 23/0.32 1.85 0.4 10.1 4.1 x 6.8 26
KA2TW500 5 2 36/0.32 2.90 0.4 6.4 4.5 x 7.7 34
KA2TW600 6 2 57/0.32 4.58 0.6 4.5 6.0 x 10.1 46

** AMP rating: AS/NZS 3008.1.1 value in free air at 40°C ambient (single core: two cables spaced in free air; twin core: one cable in free air), with the V90HT PVC insulation rated at 90°C, interpolated for each conductor size (– = below the smallest size the standard tabulates). Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation.


SKU: Key-KA2TW600-BK-100
Model #: Key-KA2TW600-BK-100
MPN: Key-KA2TW600-BK-100
HS code: 8544493080
Country of origin: AU
Package weight: 12.56 kg
Package length: 0.05 m
Package width: 0.05 m
Package height: 0.05 m
