Genasun 8A MPPT 36V Voltage Boost (Lead-Acid) - Waterproof Solar Charge Controller

IP68 Waterproof | 99% Peak Efficiency | True MPPT | 36V Lead-Acid


Regular price $265.00
/
Availability: In Stock
View all products from Genasun
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay MastercardPayPalShop Pay Visa

5

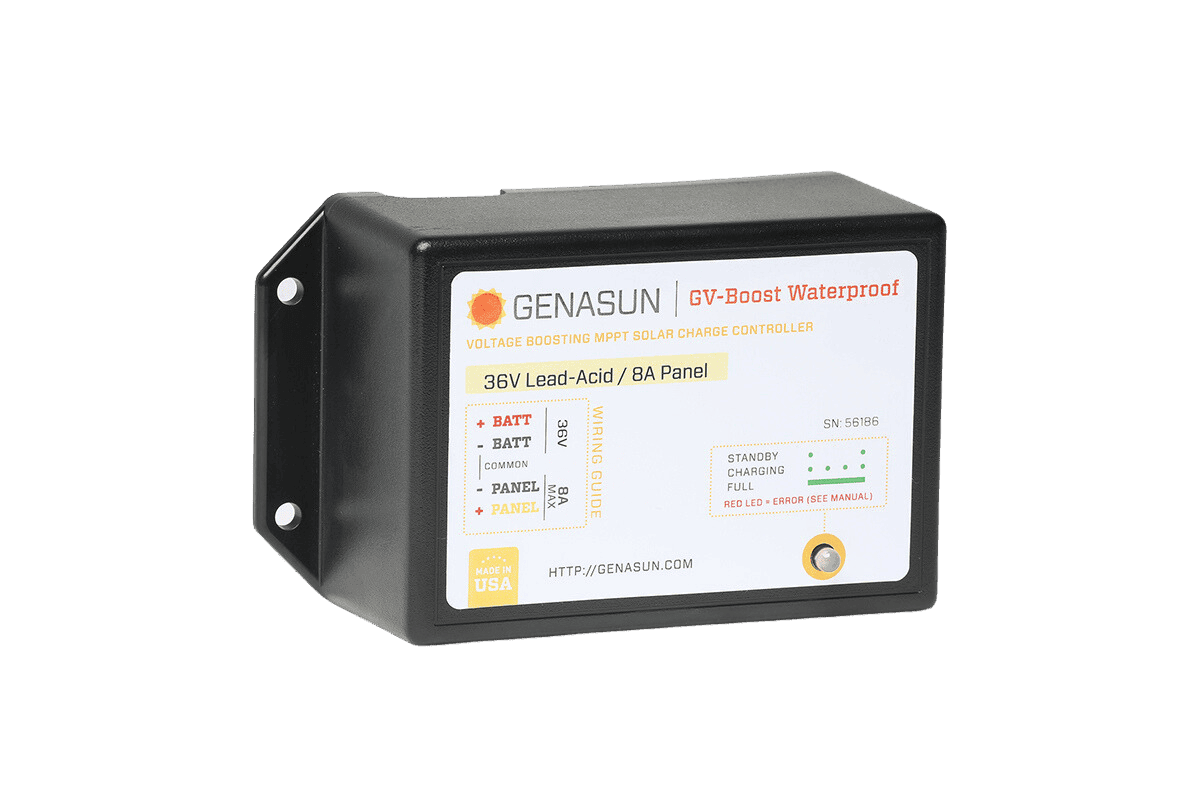

Genasun 36V waterproof MPPT solar charge controller with wiring guide and status LED

Genasun 8A MPPT 36V Voltage Boost (Lead-Acid) - Waterproof Solar Charge Controller

DESCRIPTION

Genasun GVB-8-Pb-36V-WP: 8A MPPT Voltage Boost Solar Charge Controller for 36V Lead-Acid Batteries

Advanced MPPT Technology with Integrated Voltage Boost for Off-Grid, Marine, and Industrial Applications

The Genasun GVB-8-Pb-36V-WP is a specialised MPPT solar charge controller engineered to charge 36V lead-acid battery banks from lower-voltage solar panels. Unlike standard controllers that require panel voltage to exceed battery voltage, this unit’s integrated voltage boost circuitry enables a 12V or 24V nominal solar array to efficiently charge a 36V system. This capability solves a critical challenge in mobile and remote installations where space constraints or existing panel configurations would otherwise prevent effective charging.

Designed and manufactured in the USA, the GVB-8-WP series is trusted in demanding environments including marine, RV, golf cart, street lighting, and industrial off-grid systems. Its fully encapsulated, IP68 waterproof construction protects against moisture, dust, and vibration, ensuring long-term reliability in harsh conditions.

True MPPT Performance with 15 Hz Tracking Speed

At the core of the controller is a true Maximum Power Point Tracking (MPPT) algorithm operating at 15 Hz. This ultra-fast tracking speed allows the controller to continuously adapt to changing light conditions, extracting maximum available power from the solar array. Unlike “nominal MPPT” controllers that approximate the maximum power point, Genasun’s implementation delivers consistent, high-efficiency energy harvest throughout the day. This is particularly beneficial during intermittent cloud cover, dawn, dusk, and shaded conditions where slower controllers often underperform.

With a peak electrical efficiency of 99% and typical operating efficiency between 96% and 98%, the GVB-8-Pb-36V-WP minimises conversion losses, ensuring more of the collected solar energy reaches the battery. This high efficiency reduces heat buildup within the controller, contributing to its wide operating temperature range of -40°C to 85°C.

Engineered for Harsh Environments

The controller’s electronics are encased in a proprietary potting compound, providing complete protection against water ingress, salt spray, and corrosive atmospheres. This IP68-rated waterproof design makes it suitable for marine deck mounting, vehicle underbody installation, and outdoor pole-mounted applications where exposure to the elements is unavoidable. The integrated mounting flanges allow secure attachment to flat surfaces, while the pre-stripped 16 AWG tinned flying leads simplify wiring.

An in-line 10A fuse is included for overcurrent protection, and the multicolour LED status indicator provides at-a-glance feedback on charging state, battery full, and error conditions. The wiring guide printed directly on the housing reduces installation errors and speeds up commissioning.

Optimised Multi-Stage Charging for Lead-Acid Batteries

The GVB-8-Pb-36V-WP employs a multi-stage charging profile with automatic temperature compensation to maximise battery life and performance. The profile includes:

  • Bulk charge at 43.2V for rapid energy recovery
  • Absorption charge at 42.6V for 2 hours to ensure full saturation
  • Float charge at 41.4V to maintain the battery without overcharging
  • Re-bulk at 37.5V to restart the charge cycle when the battery voltage drops

Temperature compensation adjusts the charge voltages at -84 mV/°C (referred to 25°C), preventing overcharge in high temperatures and undercharge in cold conditions. This precise regulation is essential for flooded, AGM, and gel lead-acid batteries commonly used in off-grid and mobile applications.

Key Features

  • Integrated voltage boost allows charging 36V batteries from 12V or 24V solar panels
  • True MPPT with 15 Hz tracking speed for superior low-light and variable condition performance
  • Up to 99% peak electrical efficiency reduces energy loss and heat generation
  • Fully potted IP68 waterproof housing withstands immersion, salt spray, and dust
  • Multi-stage charging with automatic temperature compensation for lead-acid chemistry
  • Wide -40°C to 85°C operating temperature range for extreme environments
  • Pre-wired with tinned 16 AWG flying leads and in-line 10A fuse for straightforward installation
  • LED status indicator and printed wiring guide simplify setup and troubleshooting
  • Compact and lightweight: 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm), 10.3oz (290g)
  • Made in the USA with high-quality components for long service life

Ideal Applications

The GVB-8-Pb-36V-WP is purpose-built for systems where a 36V lead-acid battery bank must be charged from a lower-voltage solar array. Typical use cases include:

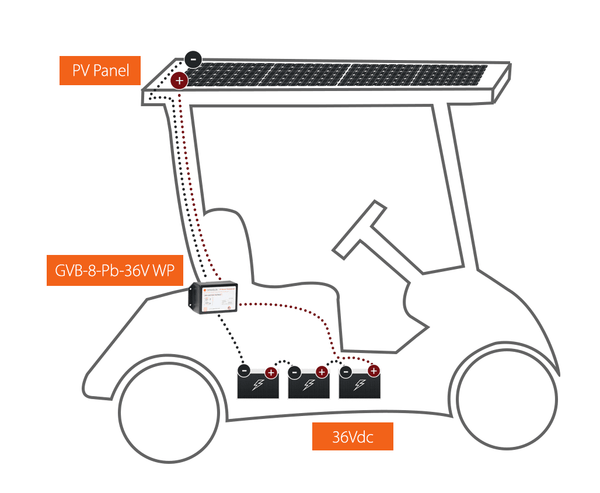

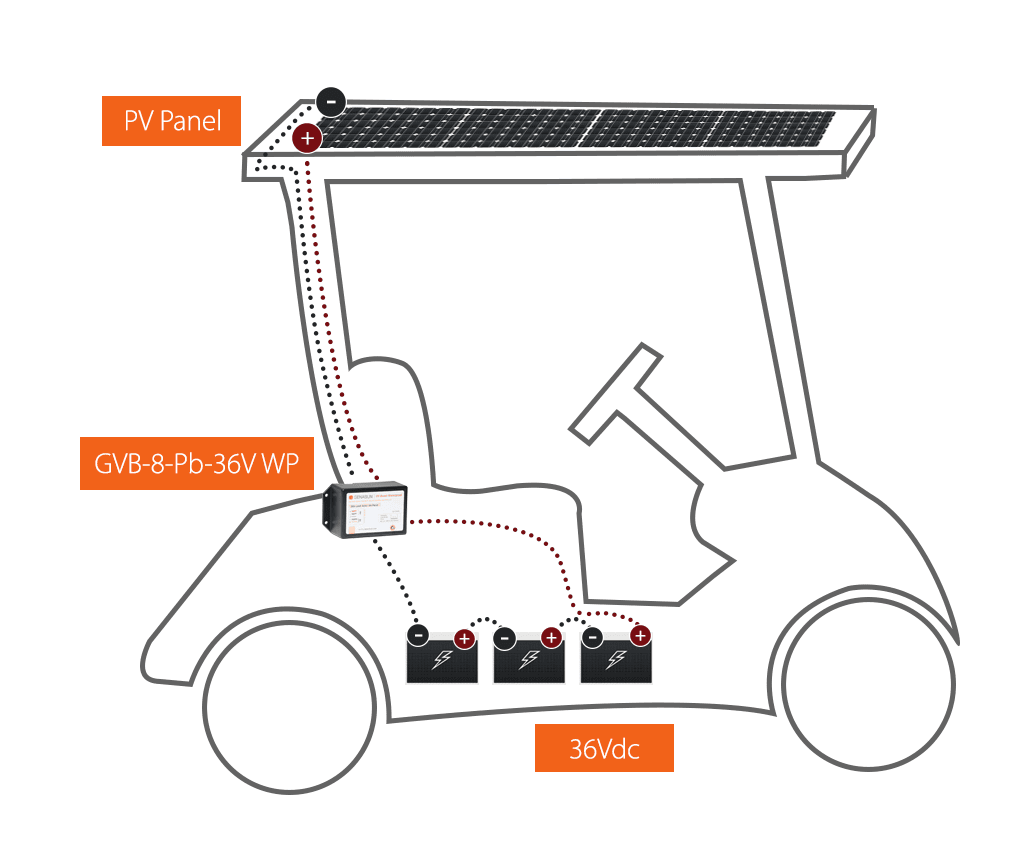

  • Electric golf carts and utility vehicles with 36V battery systems and limited roof space for panels
  • Marine and RV installations where existing 12V or 24V panels need to charge a 36V house or propulsion bank
  • Off-grid industrial equipment such as remote monitoring stations, telemetry systems, and street lighting
  • Military and field-deployable systems requiring rugged, waterproof power electronics

With a maximum recommended panel power of 325W and an input voltage range of 0-60V, the controller can accommodate a wide variety of solar modules. The minimum input voltage for charging is just 5V, enabling energy harvest even in very low-light conditions.

Reliable Power Conversion for Critical Systems

By eliminating the need to match panel voltage to battery voltage, the Genasun GVB-8-Pb-36V-WP reduces system design complexity and expands panel selection options. Its robust construction and advanced MPPT algorithm ensure dependable performance in applications where failure is not an option. Whether you are upgrading a golf cart charging system, building a marine solar array, or deploying remote off-grid equipment, this controller provides the efficiency and durability required for long-term operation.

Equip your 36V lead-acid system with the Genasun GVB-8-Pb-36V-WP today and experience the benefits of true MPPT voltage boost technology in a compact, waterproof package.

SPECIFICATIONS

Product Specifications

Specifications GVB-8-Pb-12V-WP GVB-8-Pb-24V-WP GVB-8-Pb-36V-WP GVB-8-Pb-48V-WP
Battery Type 12V Lead-Acid 24V Lead-Acid 36V Lead-Acid 48V Lead-Acid
Maximum Recommended Panel Power 105W 210W 325W 350W
Rated Panel (Input) Current 8A 8A 8A 8A
Max Recommended Panel Vmp 13V 26V 41V 43V
Max Input (Panel) Voltage 60V 60V 60V 60V
Recommended Max Panel Voc at STC 50V 50V 50V 50V
Input Voltage Range 0-60V 0-60V 0-60V 0-60V
Minimum Input (Panel) Voltage for Charging 5V 5V 5V 5V
Maximum Input Short Circuit Current 8A 8A 8A 8A
Maximum Input Current 15A 15A 15A 15A
Nominal Battery Voltage 12V 24V 36V 48V
Minimum Battery Voltage for Operation 9.5V 9.5V 9.5V 9.5V
Operating Temperature -40°C – 85°C -40°C – 85°C -40°C – 85°C -40°C – 85°C
Max Full Power Operating Ambient 70°C 70°C 70°C 70°C
Charge Profile Multi-Stage with Temperature Compensation Multi-Stage with Temperature Compensation Multi-Stage with Temperature Compensation Multi-Stage with Temperature Compensation
Bulk Voltage 14.4V 28.8V 43.2V 57.6V
Absorption Voltage 14.2V 28.4V 42.6V 56.8V
Absorption Time 2 Hours 2 Hours 2 Hours 2 Hours
Float Voltage 13.8V 27.6V 41.4V 55.2V
Re-Absorb (Re-Bulk) 12.5V 25V 37.5V 50V
Battery Temperature Compensation (referred to 25°C) -28mV/°C -56mV/°C -84mV/°C -112mV/°C
Electrical Efficiency 95%-97% typical 96%-98% typical 96%-98% typical 96%-99% typical
Standby Consumption 7mA 6mA 6mA 5mA
MPPT Tracking Speed 15Hz 15Hz 15Hz 15Hz
Connection Flying Leads, 16 AWG tinned wire, pre-stripped Flying Leads, 16 AWG tinned wire, pre-stripped Flying Leads, 16 AWG tinned wire, pre-stripped Flying Leads, 16 AWG tinned wire, pre-stripped
Weight 10.3oz (290g) 10.3oz (290g) 10.3oz (290g) 10.3oz (290g)
Dimensions 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm) 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm) 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm) 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm)

SKU: GVB-8-Pb-36V-WP
Model #: GVB-8-Pb-36V-WP
MPN: GVB-8-Pb-36V-WP

WARRANTY

Genasun Warranty Policy

This warranty policy applies to Genasun solar charge controllers supplied by us in Australia. As the Australian supplier or importer of these products, we support warranty claims for Genasun products supplied by us in accordance with the applicable manufacturer warranty and Australian Consumer Law.

Genasun solar charge controllers supplied by us are covered against defects in materials and workmanship for the warranty period applicable to the relevant product model range, subject to the product being selected, installed, operated, stored and maintained correctly and in accordance with the manufacturer's instructions.

This warranty applies to the original end-user purchaser of the product, as evidenced by a valid proof of purchase. The benefits given by this warranty are in addition to other rights and remedies available under law.

Warranty Coverage and Periods

This warranty covers Genasun solar charge controllers supplied by us. The warranty periods for each product model range are set out below.

Genasun Product Model Range Warranty Length Application / Notes
Genasun GV-5 Solar Charge Controllers 120 months Applies to all Genasun GV-5 charge controller models, including lead-acid and lithium variants, where installed and operated in accordance with the manufacturer's instructions.
Genasun GV-5-MOD Solar Charge Controller Modules 120 months Applies to all Genasun GV-5-MOD charge controller module models, including lead-acid and lithium variants, where installed and operated in accordance with the manufacturer's instructions.
Genasun GV-4 Solar Charge Controllers 60 months Applies to all Genasun GV-4 charge controller models, including lead-acid and lithium variants, where used within the product's rated specifications.
Genasun GV-10 Solar Charge Controllers 60 months Applies to all Genasun GV-10 charge controller models, including lead-acid and lithium variants, where used within the product's rated specifications.
Genasun GVB-8 Boost Solar Charge Controllers 60 months Applies to all Genasun GVB-8 boost charge controller models, including lead-acid and lithium variants, where correctly selected for the solar panel and battery voltage being used.
Genasun GVB-8-WP Waterproof Boost Solar Charge Controllers 60 months Applies to all Genasun GVB-8-WP waterproof boost charge controller models, including lead-acid and lithium variants, where installed and operated within the product's rated specifications.

The warranty period begins on the date the product is sold to the original consumer purchaser, as shown on the valid proof of purchase. A valid proof of purchase identifying the purchaser and date of purchase is required for all warranty claims.

Installer Responsibilities and System Design

Genasun solar charge controllers are installed into broader solar charging, battery charging, vehicle, marine, RV, off-grid or industrial electrical systems. Once installed, the product forms only one component of a larger system.

We do not provide installation services unless expressly stated in writing, and we do not supervise or control installation practices carried out by dealers, installers, contractors or end-users. The installer, system designer, integrator, dealer or end-user is responsible for ensuring that the product is suitable for the intended application and is installed correctly.

Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, unsuitable environmental conditions or failure to follow the manufacturer's instructions are not product defects and are not covered by this warranty.

Appropriate Installation

All Genasun solar charge controllers must be installed in accordance with the product manual, the manufacturer's installation instructions, applicable Australian Standards, relevant electrical, automotive, marine, solar or industry standards, and recognised industry best practice.

The installer must ensure that the product is used in an appropriate environment and within its specified ratings. Improper, unsafe, unlicensed, sub-standard or non-compliant installation may void or limit warranty coverage.

System Compatibility

The installer or integrator is responsible for selecting and using compatible components. This includes ensuring compatibility with solar panels, batteries, battery chemistry, battery voltage, charge profiles, loads, wiring, fuses, circuit breakers, connectors, mounting hardware and any other connected equipment.

Damage or underperformance caused by incompatible, incorrectly configured, undersized, oversized, unsuitable or improperly installed equipment is not covered by this warranty.

System-Wide Performance

Overall system performance depends on design, installation, configuration, solar panel selection, battery condition, usage, maintenance and environmental factors beyond the Genasun product itself. This warranty covers the quality of the individual Genasun solar charge controller supplied by us only. It does not guarantee the performance of the broader solar or electrical system into which the product is installed or integrated.

Issues such as insufficient charging, poor solar performance, incorrect battery charging, battery damage, voltage drop, nuisance faults, overheating, intermittent operation or operational shortfalls caused by system design, installation, configuration or connected equipment are outside the scope of this warranty.

Installation Location and Environmental Suitability

The installer must ensure that Genasun solar charge controllers are mounted, located, supported, ventilated and protected in a manner suitable for the installation environment.

Where relevant, the installer must allow for heat dissipation, ventilation, moisture exposure, dust, vibration, corrosion risk, electrical clearance, mechanical loading, access for inspection and service, and protection from unsuitable environmental conditions.

Damage caused by unsuitable mounting, inadequate ventilation, moisture, water ingress, dust, corrosion, excessive heat, vibration, insufficient clearance, unsuitable substrate selection or other installation environment issues is not a manufacturing defect and is not covered by this warranty.

System Protection and Fault Isolation

The installer must incorporate suitable protective devices and design measures appropriate to the product and installation type. This may include correctly rated fuses, circuit breakers, isolators, over-current protection, over-voltage protection, reverse-polarity protection, surge protection, correct cable sizing and other protective devices required by standards or best practice.

The installer is responsible for ensuring that a fault or failure in one component does not cause cascading damage to other components. Damage to Genasun products caused by inadequate system protection, poor fault isolation, incorrect protection settings or missing safety devices is not covered by this warranty.

Service Accessibility Requirement

Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives or other costs arising from installation methods that restrict reasonable access to the product.

Installation Documentation

We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, solar panel details, battery details, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings and maintenance records.

Failure to provide reasonable installation evidence may limit our ability to assess the claim.

Independence of Dealers and Installers

Dealers, resellers, installers and contractors act independently and are not agents, employees or representatives of Genasun, Sunforge or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices or system design decisions of independent dealers, resellers, installers, contractors or third parties.

What This Warranty Does Not Cover

This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with the manufacturer's instructions. It does not cover any failure, damage, performance issue, deterioration or loss caused wholly or partly by external factors, misuse, incorrect installation or circumstances outside the manufacturer's control.

  • Incorrect installation, wiring, connection or configuration
  • Incorrect product selection or application
  • Use outside the product's intended purpose
  • Operation outside the product's rated technical specifications
  • Incorrect solar panel voltage, battery voltage, battery chemistry or charge profile
  • Failure to follow the manufacturer's storage, usage, installation, operation or maintenance instructions
  • Alteration, modification, disassembly or tampering
  • Repair or service not carried out by a manufacturer-authorised repair facility
  • Application of foreign substances or contamination
  • Improper operation, misuse, abuse or neglect
  • Physical impact, accidental damage or mechanical damage
  • Corrosion or environmental damage outside the product's rated specifications
  • Lightning, surge damage or other acts of God
  • Use with incompatible, incorrectly rated or improperly configured third-party components
  • Damage caused by inadequate fusing, circuit protection, isolation or system protection
  • Damage caused by moisture, water ingress, dust, corrosion or unsuitable installation environments
  • Damage caused by excessive heat, inadequate ventilation or installation in an unsuitable location
  • Damage caused by vibration, movement, poor mounting or inadequate support
  • Normal wear and tear, cosmetic ageing, cosmetic deterioration or surface marks that do not affect product function
  • Failure to carry out reasonable inspection, cleaning, maintenance or servicing where required
  • Products with removed, altered, damaged or illegible serial numbers, rating labels or identification markings
  • Products purchased second-hand, from unauthorised channels, auction sites, liquidation sales or grey-market sources
  • Labour costs for removal, replacement, reinstallation or diagnosis
  • Freight, travel, call-out costs or access costs unless otherwise required by law
  • Products not returned for assessment when reasonably required
  • Consequential or incidental loss, including damage to other equipment, downtime, loss of use, loss of revenue or economic loss, to the extent permitted by law

Warranty Assessment and Remedy

If a Genasun solar charge controller supplied by us is found to be defective within the applicable warranty period, we will, at our discretion and subject to the requirements of Australian Consumer Law, arrange a repair, replacement, store credit, refund or another appropriate remedy.

Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase, product details, serial number if available, installation information and a clear description of the fault.

If the product is required to be returned to Genasun, Sunforge or another nominated assessment location for inspection or repair, a return authorisation process may be required before the product is sent. Products sent without the required return authorisation or documentation may not be processed.

If a product is assessed and found not to be defective, or the issue is found to be caused by an excluded factor, the claim may be rejected. In that case, assessment fees, freight, insurance and return costs may be payable by the customer to the extent permitted by law.

Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.

Making a Warranty Claim

If you suspect a fault with a Genasun product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised as part of the warranty process. Premature removal may cause further damage or make it difficult to determine the original cause of the issue.

  1. Contact us: Contact us with your dated proof of purchase, product model, serial number if available, and a description of the fault.
  2. Provide product and installation information: We may request installation photos, wiring details, solar panel details, battery details, connected equipment details, operating settings, measurements or service history to assist with assessment.
  3. Assessment and troubleshooting: We may ask for safe checks, photos, voltage readings, current readings, testing information or other details to determine whether the issue appears to be a product fault or is caused by installation, configuration, connected equipment, environment or misuse.
  4. Return for inspection if required: If the fault cannot be confirmed remotely, the product may need to be returned for inspection, testing, repair or replacement assessment. Return instructions will be provided where required.
  5. Outcome: If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy. If the product is found not to be faulty, or the issue is caused by an excluded factor, the claim may be rejected.

Remedies Under Warranty

If a defect covered by this warranty is confirmed, we may provide one or more of the following remedies, subject to the circumstances of the claim and the requirements of Australian Consumer Law:

  • repair of the product;
  • replacement of the product;
  • store credit;
  • refund;
  • supply of replacement parts; or
  • another appropriate remedy required by law.

Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date.

Manufacturer Support

Genasun products may be assessed, repaired or replaced through Sunforge, Genasun or another nominated service process. Where available, we may assist customers in arranging assessment, but any manufacturer service is subject to the manufacturer's own process, requirements and continued availability.

Where a manufacturer return authorisation is required, the product must not be sent until the required authorisation has been issued and the return instructions have been provided.

Australian Consumer Law

This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
