IP68 Waterproof, 96-98% Efficient, True MPPT Boost for 24V Lead-Acid
Highlights:Wiring Connections: Clear wiring guide for battery and panel inputs,Status LED: Multicolor LED indicates standby, charging, or full status,Mounting Flange: Integrated mounting holes for secure installation,Made in USA: US-manufactured quality assurance badge,Model Specifications: 24V Lead-Acid battery and 8A panel rating.

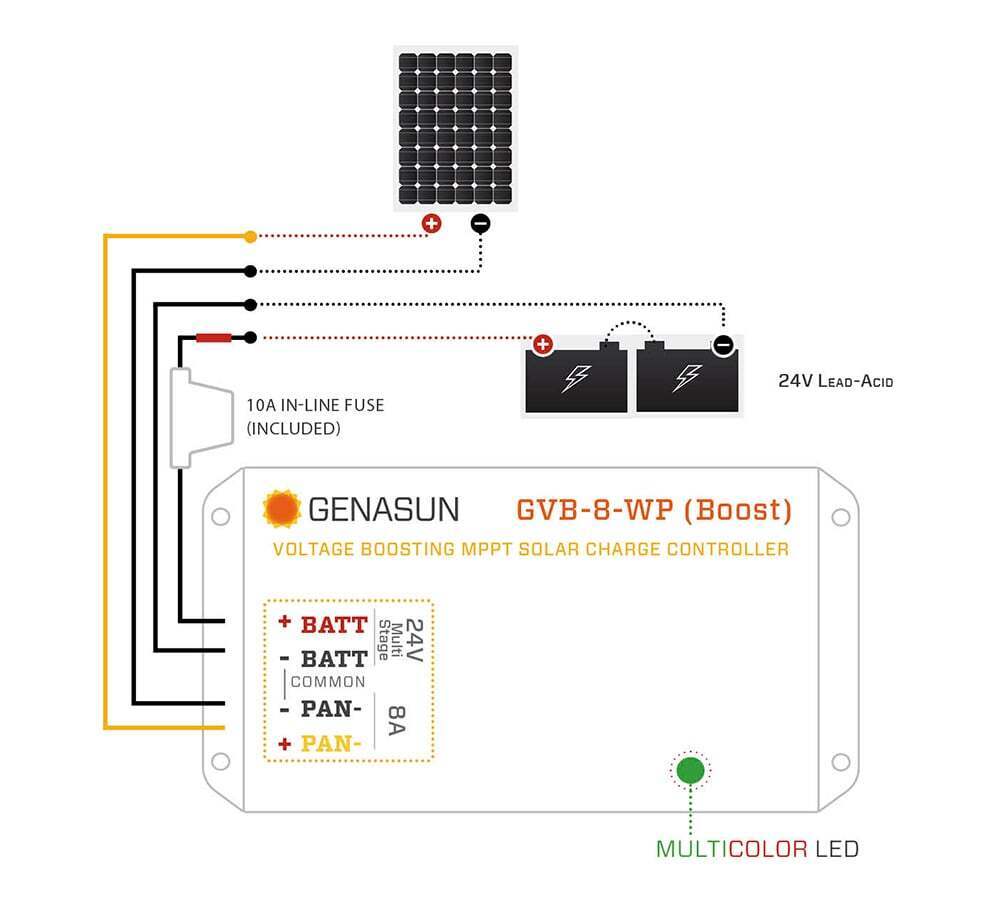

Wiring schematic illustrating the correct connection sequence: Solar Panel to Controller, then Controller to 24V Battery with a 10A in-line fuse.

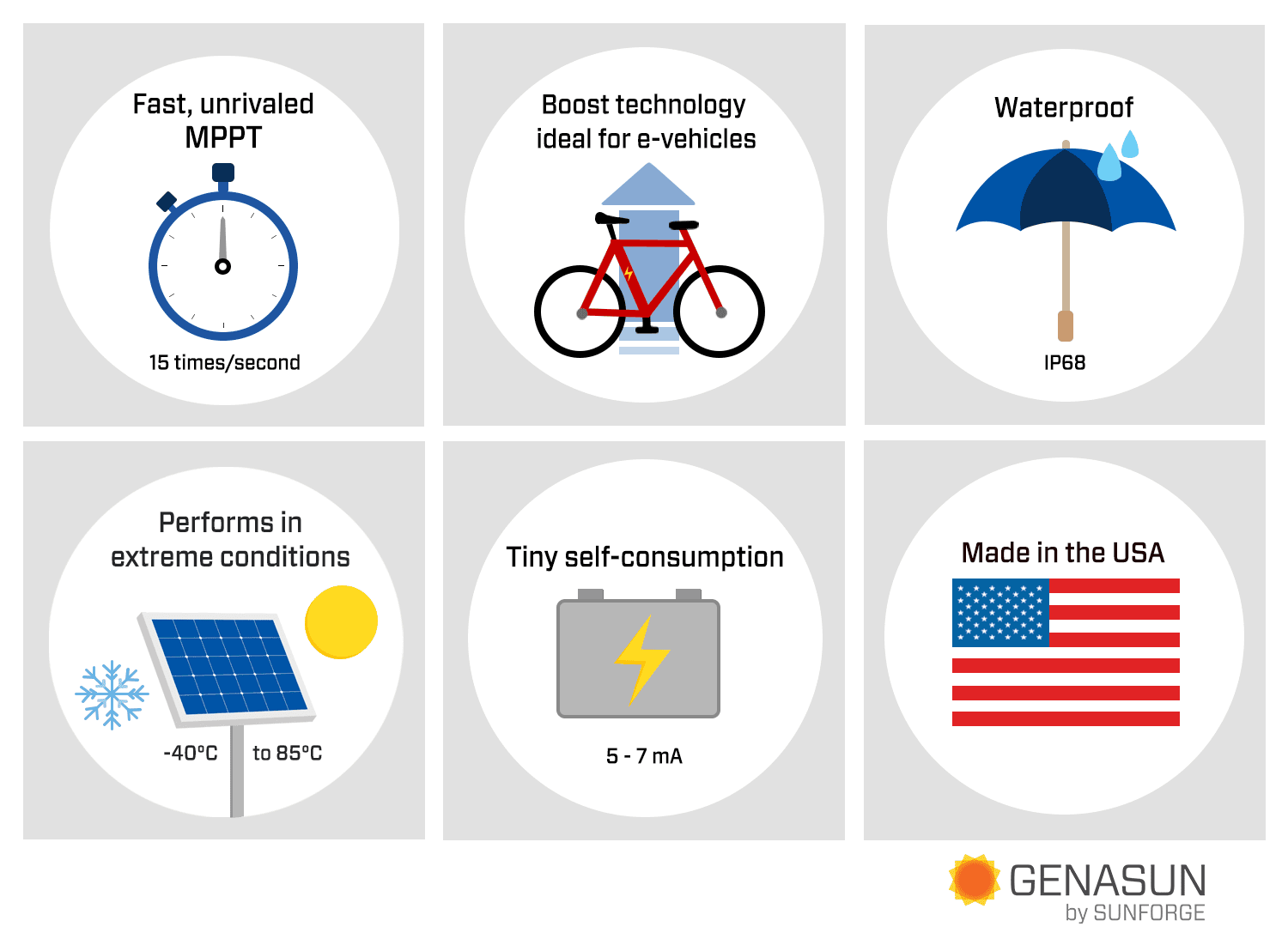

Key features: Fast MPPT tracking (15 times/second), Boost technology ideal for e-vehicles, IP68 Waterproof and weather-resistant, Operating temperature -40°C to 85°C, Ultra-low self-consumption (5-7 mA), Made in the USA.

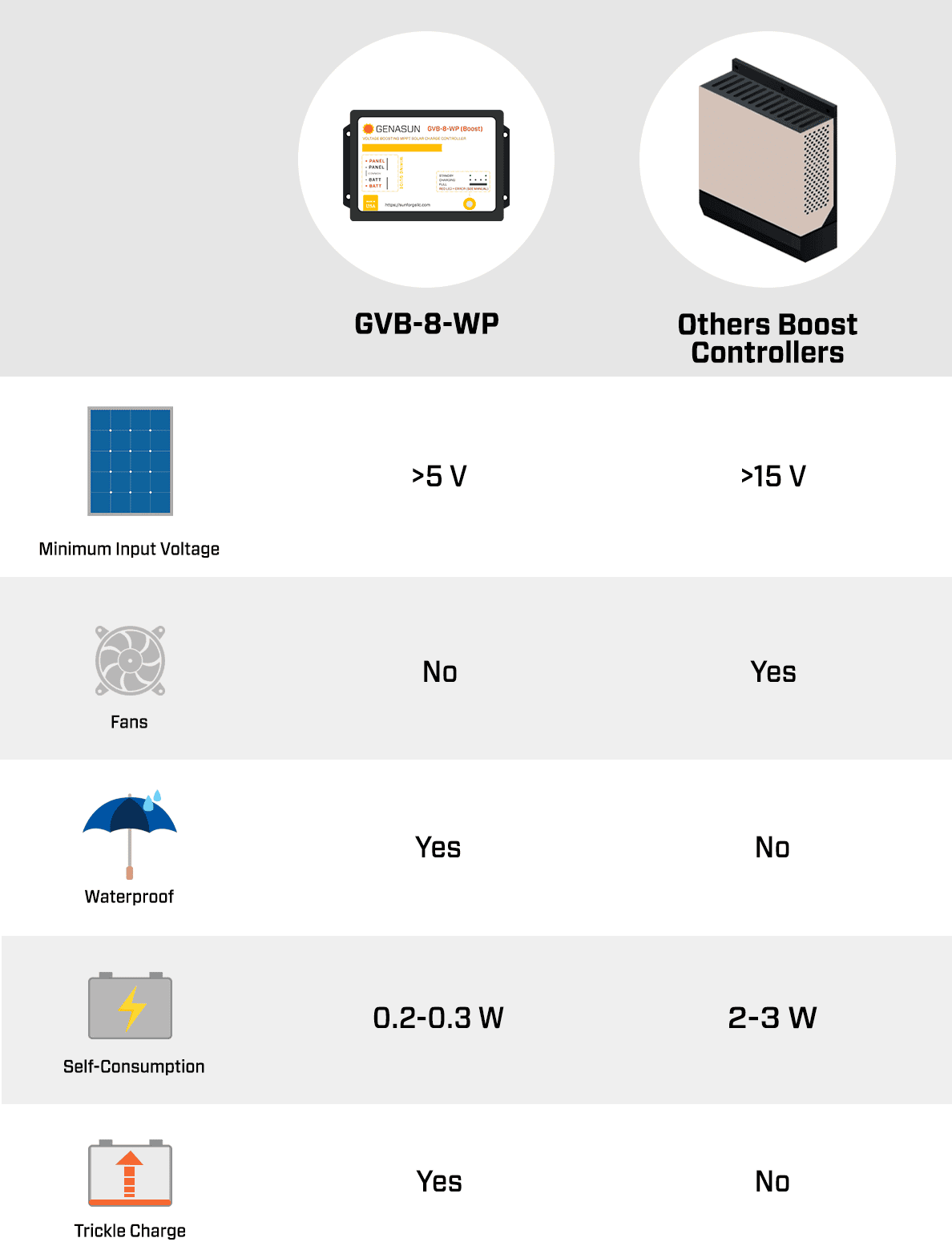

Comparison table highlighting Genasun advantages: lower minimum input voltage (>5V), fanless waterproof design, and significantly lower self-consumption compared to other boost controllers.
DESCRIPTION
Genasun GVB-8-Pb-24V-WP: Advanced MPPT Boost Solar Charge Controller for 24V Lead-Acid Systems
Efficient Voltage Boosting for Off-Grid, Marine, and Industrial Applications
The Genasun GVB-8-Pb-24V-WP is a specialised MPPT boost solar charge controller engineered to charge 24V lead-acid batteries from lower-voltage solar panels. Unlike standard controllers that require panel voltage to exceed battery voltage, this unit’s unique boost topology steps up input voltage, enabling the use of compact, cost-effective solar arrays. With 96-98% typical electrical efficiency and a peak of 99%, it maximises energy harvest in space-constrained installations.
Designed for demanding environments, the controller is fully encapsulated in a proprietary potting compound, achieving an IP68 waterproof rating. This makes it suitable for marine, RV, golf cart, and industrial applications where moisture, vibration, and temperature extremes are common. True Maximum Power Point Tracking (MPPT) at 15 Hz ensures rapid adaptation to changing light conditions, outperforming controllers with slower or nominal MPPT algorithms.
Key Features
- Voltage Boost Technology: Charges 24V batteries from panels with Vmp as low as 5V, ideal for 12V nominal panels or 36-cell modules
- High Efficiency: 96-98% typical conversion efficiency reduces energy loss and heat buildup
- Waterproof Construction: IP68-rated, fully potted electronics withstand submersion and harsh weather
- True MPPT: 15 Hz tracking speed captures maximum power during cloud transients and partial shading
- Low Self-Consumption: Only 6 mA standby draw preserves battery charge during idle periods
- Integrated Safety: In-line fuse protection and multi-stage charging with temperature compensation
- Wide Operating Range: Functions from -40°C to 85°C ambient, suitable for extreme climates
Reliable Charging for Critical Systems
This controller employs a multi-stage charge profile with bulk, absorption, and float stages, plus automatic temperature compensation (-56 mV/°C) to prevent overcharging in hot conditions and undercharging in cold. The ultra-low standby consumption of 6 mA ensures the battery is not drained when solar input is absent, a critical advantage for seasonal or intermittently used equipment.
Installation is straightforward with pre-stripped 16 AWG tinned flying leads and an included 10A in-line fuse. The compact dimensions (14 cm x 8.1 cm x 5.5 cm) and light weight (290 g) allow mounting in tight enclosures or directly on vehicle frames. A multicolor status LED provides at-a-glance indication of charging state.
Applications
- Marine and RV: Maintain 24V house banks from small deck or roof panels
- Golf Carts and EVs: Boost 12V panel output to 24V traction batteries
- Remote Monitoring: Power 24V telemetry systems with a single low-voltage panel
- Street Lighting: Reliable charging in all weather with no fan or vents to clog
- Off-Grid Industrial: Operate 24V equipment from existing 12V solar infrastructure
By decoupling panel voltage from battery voltage, the Genasun GVB-8-Pb-24V-WP solves the common challenge of mismatched solar arrays and battery banks. It reduces the risk of undercharging in low-light conditions and eliminates the need for large, high-voltage panels, saving space and cost. The rugged, waterproof design mitigates failure risks associated with dust, salt spray, and condensation, ensuring long-term reliability in the field.
Upgrade Your Solar Charging System
Equip your 24V lead-acid setup with a controller built for efficiency and endurance. Order the Genasun GVB-8-Pb-24V-WP today and experience consistent, maintenance-free charging from any solar panel configuration.
SPECIFICATIONS
Product Specifications
| Specifications | GVB-8-Pb-12V-WP | GVB-8-Pb-24V-WP | GVB-8-Pb-36V-WP | GVB-8-Pb-48V-WP |
|---|---|---|---|---|
| Battery Type | 12V Lead-Acid | 24V Lead-Acid | 36V Lead-Acid | 48V Lead-Acid |
| Maximum Recommended Panel Power | 105W | 210W | 325W | 350W |
| Rated Panel (Input) Current | 8A | 8A | 8A | 8A |
| Max Recommended Panel Vmp | 13V | 26V | 41V | 43V |
| Max Input (Panel) Voltage | 60V | 60V | 60V | 60V |
| Recommended Max Panel Voc at STC | 50V | 50V | 50V | 50V |
| Input Voltage Range | 0-60V | 0-60V | 0-60V | 0-60V |
| Minimum Input (Panel) Voltage for Charging | 5V | 5V | 5V | 5V |
| Maximum Input Short Circuit Current | 8A | 8A | 8A | 8A |
| Maximum Input Current | 15A | 15A | 15A | 15A |
| Nominal Battery Voltage | 12V | 24V | 36V | 48V |
| Minimum Battery Voltage for Operation | 9.5V | 9.5V | 9.5V | 9.5V |
| Operating Temperature | -40°C – 85°C | -40°C – 85°C | -40°C – 85°C | -40°C – 85°C |
| Max Full Power Operating Ambient | 70°C | 70°C | 70°C | 70°C |
| Charge Profile | Multi-Stage with Temperature Compensation | Multi-Stage with Temperature Compensation | Multi-Stage with Temperature Compensation | Multi-Stage with Temperature Compensation |
| Bulk Voltage | 14.4V | 28.8V | 43.2V | 57.6V |
| Absorption Voltage | 14.2V | 28.4V | 42.6V | 56.8V |
| Absorption Time | 2 Hours | 2 Hours | 2 Hours | 2 Hours |
| Float Voltage | 13.8V | 27.6V | 41.4V | 55.2V |
| Re-Absorb (Re-Bulk) | 12.5V | 25V | 37.5V | 50V |
| Battery Temperature Compensation (referred to 25°C) | -28mV/°C | -56mV/°C | -84mV/°C | -112mV/°C |
| Electrical Efficiency | 95%-97% typical | 96%-98% typical | 96%-98% typical | 96%-99% typical |
| Standby Consumption | 7mA | 6mA | 6mA | 5mA |
| MPPT Tracking Speed | 15Hz | 15Hz | 15Hz | 15Hz |
| Connection | Flying Leads, 16 AWG tinned wire, pre-stripped | Flying Leads, 16 AWG tinned wire, pre-stripped | Flying Leads, 16 AWG tinned wire, pre-stripped | Flying Leads, 16 AWG tinned wire, pre-stripped |
| Weight | 10.3oz (290g) | 10.3oz (290g) | 10.3oz (290g) | 10.3oz (290g) |
| Dimensions | 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm) | 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm) | 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm) | 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm) |
| SKU: | GVB-8-Pb-24V-WP |
| Model #: | GVB-8-Pb-24V-WP |
| MPN: | GVB-8-Pb-24V-WP |
