Genasun 8A MPPT 12V Voltage Boost (Lead-Acid) - Waterproof Solar Charge Controller
Genasun 8A MPPT 12V Voltage Boost (Lead-Acid) - Waterproof Solar Charge Controller
99% Peak Efficiency, IP68 Waterproof, True MPPT Boost for 12V Lead-Acid
Highlights:LED Status Indicator: Multicolor LED indicating charging status and errors,Wiring Guide: Clear terminal labeling for battery and panel connections,Mounting Flange: Integrated mounting holes for secure installation,Made in USA: Manufactured in the USA quality badge.

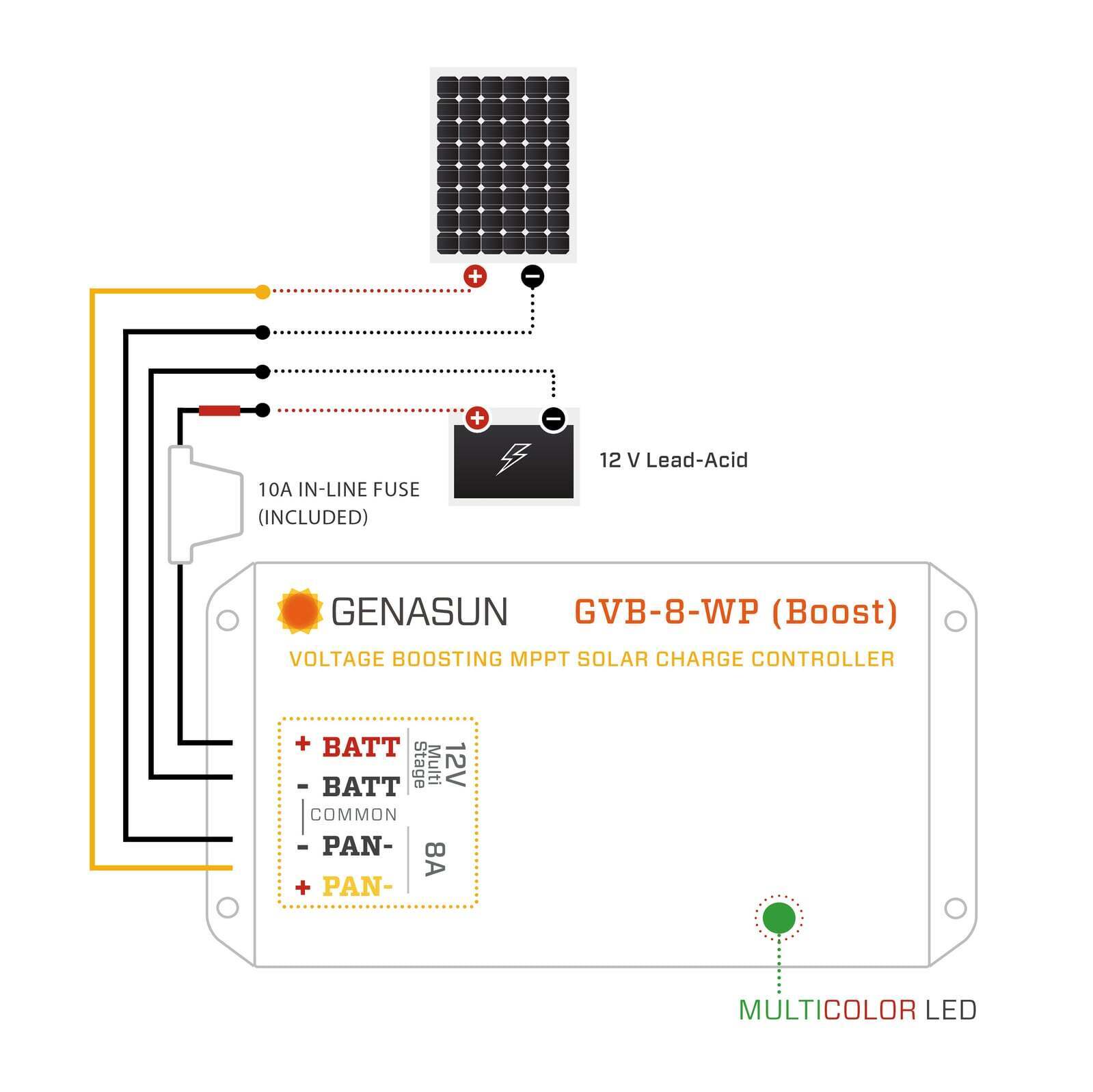

Standard wiring configuration for the Genasun GVB-8-WP, connecting a solar panel and 12V lead-acid battery via a 10A fuse.
Key features: Low minimum input voltage (>5 V), Silent fanless cooling design, Waterproof construction, Ultra-low self-consumption (0.2-0.3 W), Trickle charge capability.

DESCRIPTION
Genasun GVB-8-WP: Advanced MPPT Boost Solar Charge Controller for 12V Lead-Acid Batteries
Engineered for Demanding Off-Grid and Mobile Applications

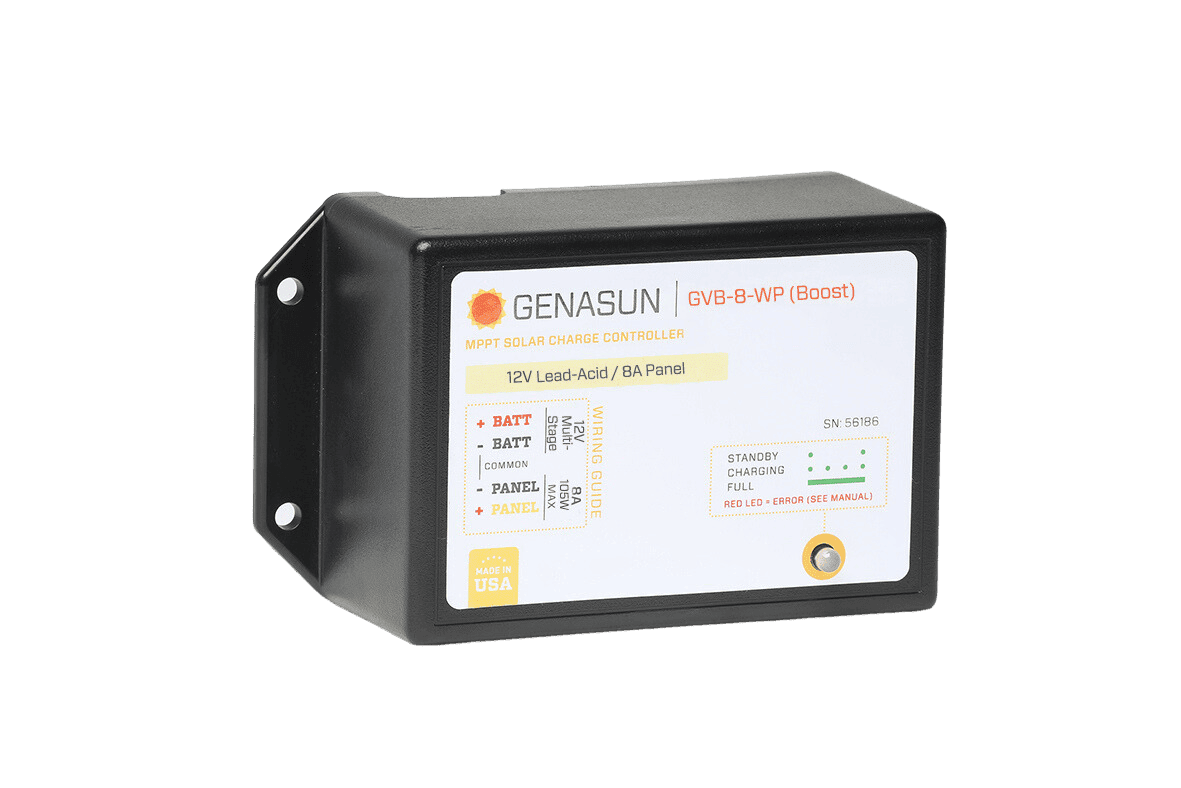

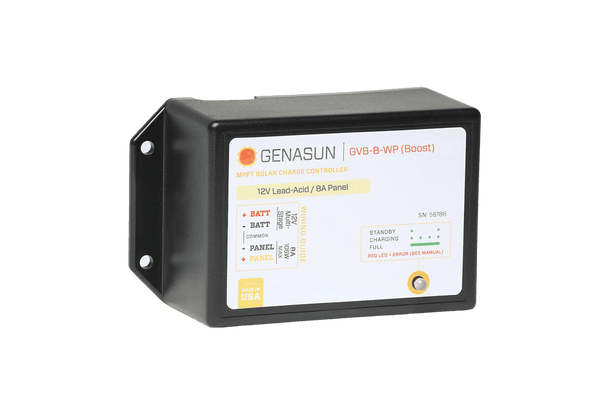

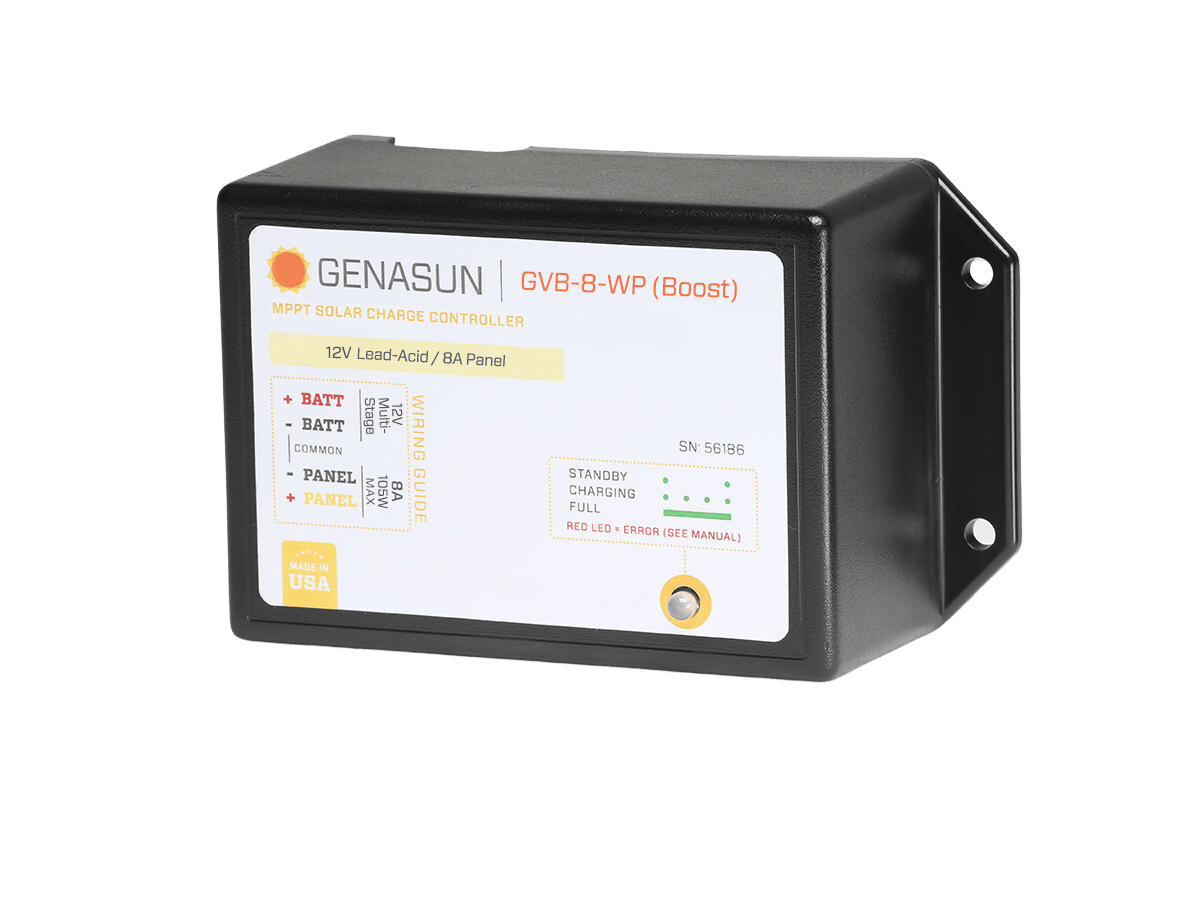

The Genasun GVB-8-WP is a high-performance MPPT boost solar charge controller purpose-built for charging 12V lead-acid batteries from lower-voltage solar panels. Unlike conventional controllers that require panel voltage to exceed battery voltage, the GVB-8-WP’s unique voltage boost technology steps up input from panels as low as 5V, enabling efficient charging even with small or partially shaded arrays. This makes it an ideal solution for marine, RV, industrial, military, street lighting, and off-grid installations where space, weight, or panel configuration constraints exist.
With a peak efficiency of 99% and typical operating efficiency of 95-97%, this controller minimises energy losses and maximises harvest from every watt of installed solar. Its true Maximum Power Point Tracking (MPPT) algorithm operates at 15 Hz, continuously adjusting to changing light conditions to deliver up to 30% more energy than PWM controllers. This is not a “nominal MPPT” approximation; it is genuine, fast-tracking MPPT that ensures your battery receives the full available power even under rapidly shifting cloud cover or partial shading.
Rugged, Waterproof Design for Harsh Environments
Every Genasun GVB-8-WP is fully encapsulated in a proprietary potting compound, achieving an IP68 waterproof rating. This construction protects the advanced electronics from moisture, salt spray, dust, and vibration, making it suitable for marine and coastal environments, vehicle underbody mounting, and exposed outdoor locations. The controller operates silently with no cooling fan, relying on its robust aluminium housing for passive heat dissipation across an ambient temperature range of -40°C to 85°C.
Installation is straightforward with pre-stripped 16 AWG tinned flying leads and an integrated in-line fuse for overcurrent protection. The compact dimensions (140 x 81 x 55 mm) and light weight (290 g) allow flexible placement even in tight compartments. A multicolour LED provides at-a-glance status indication for charging, errors, and battery state.
Key Features
- Voltage Boost MPPT: Charges 12V lead-acid batteries from solar panels with Vmp as low as 5V, enabling use of smaller, lower-cost panels or series-parallel configurations that would otherwise be incompatible.
- 99% Peak Efficiency: Industry-leading conversion efficiency reduces heat buildup and maximises energy delivery to the battery.
- True 15 Hz MPPT Tracking: Rapid response to irradiance changes ensures optimal power point lock under dynamic conditions, outperforming slower or “nominal” MPPT implementations.
- IP68 Waterproof & Potted Electronics: Fully sealed against water and dust ingress; corrosion-resistant for marine, coastal, and high-humidity installations.
- Multi-Stage Charging with Temperature Compensation: Bulk, absorption, and float stages with automatic temperature-adjusted voltage setpoints protect battery health and extend service life.
- Ultra-Low Standby Consumption: Draws only 7 mA when idle, preserving battery charge during periods of darkness.
- Wide Operating Temperature Range: Reliable performance from -40°C to 85°C, with full power output up to 70°C ambient.
- Integrated In-Line Fuse: Simplifies wiring and provides essential overcurrent protection without additional components.
- Made in USA: Manufactured to rigorous quality standards for long-term reliability in critical applications.
Applications and Compatibility
The GVB-8-WP is designed for 12V lead-acid battery systems, including flooded, AGM, and gel types. It is particularly effective in scenarios where the available solar panel voltage is lower than the battery voltage, such as:
- Marine and RV: Maintain house batteries from compact deck-mounted or flexible panels with low Vmp.
- Street and Sign Lighting: Power 12V lighting systems from small solar arrays in remote locations.
- Industrial and Military: Rugged, sealed construction meets demanding environmental and reliability standards.
- Off-Grid Cabins and Sheds: Maximise energy harvest from limited panel space or suboptimal orientations.
- Golf Carts and Electric Vehicles: Trickle charge auxiliary 12V batteries from a dedicated solar panel.
With a maximum recommended panel power of 105 W and an input current limit of 8 A (short-circuit), the controller is optimised for panels with Vmp up to 13 V and Voc up to 50 V. The boost topology allows creative system designs, such as using a single high-current, low-voltage panel instead of multiple panels in series, reducing wiring complexity and shading losses.

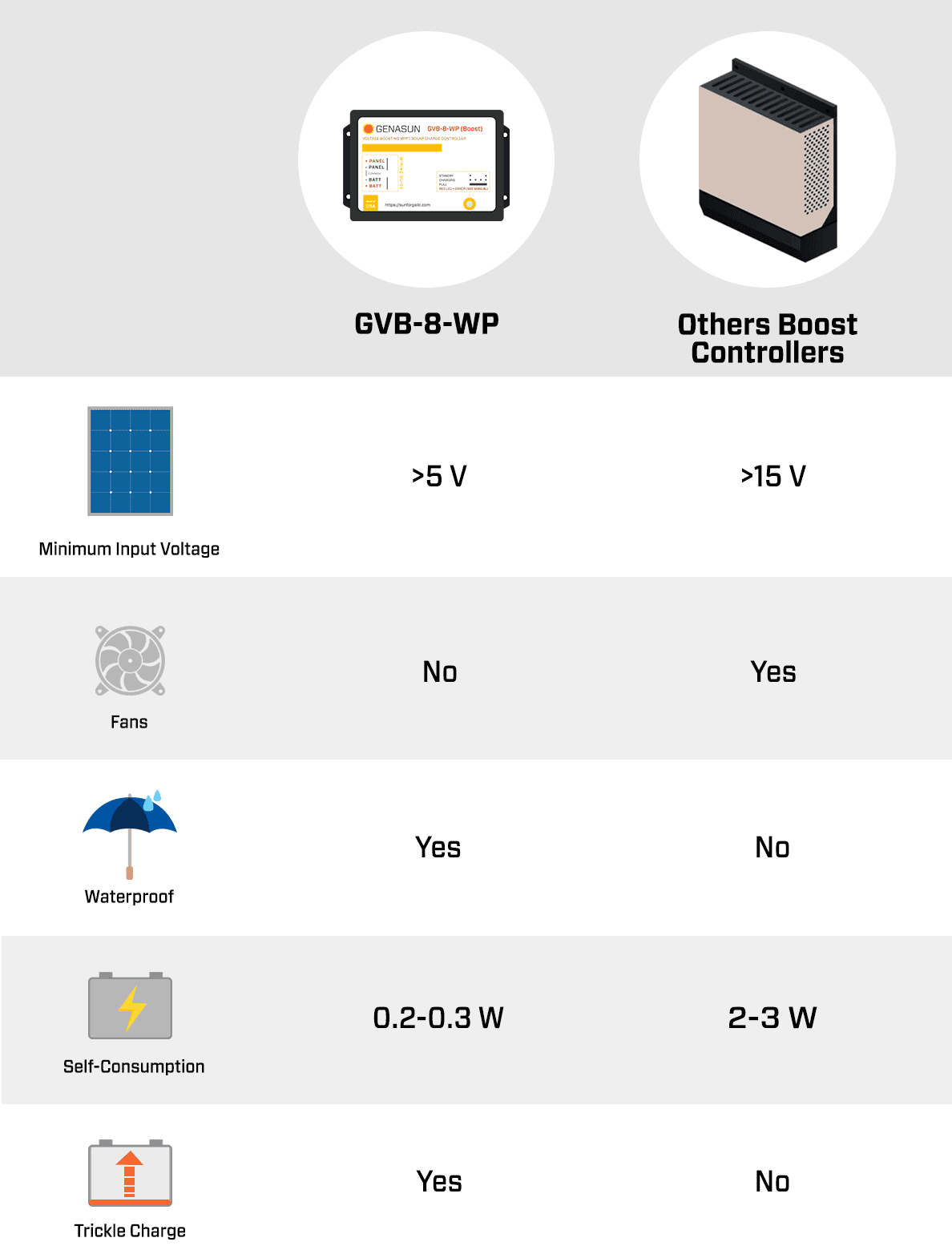

Why Choose Genasun Over Generic Controllers?
Generic boost controllers often suffer from slow tracking speeds, lower efficiency, and limited environmental protection. The GVB-8-WP addresses these shortcomings with its 15 Hz MPPT sweep rate, 99% peak conversion efficiency, and fully potted IP68 enclosure. It eliminates the risk of controller failure due to condensation or splash exposure, a common failure mode in marine and outdoor installations. Additionally, the automatic temperature compensation prevents overcharging in hot climates and undercharging in cold conditions, directly contributing to longer battery life and reduced maintenance.
Installation and Setup
No programming or configuration is required. The controller automatically detects the panel and begins charging when sufficient sunlight is available. The flying lead connections are clearly labelled for battery and solar input, and the included in-line fuse holder accepts standard automotive blade fuses. For detailed wiring diagrams, refer to the product images or the manufacturer’s documentation.
Note: This controller is intended for 12V lead-acid batteries only. For lithium or other battery chemistries, please see the Genasun GVB series lithium models.
Power Your Off-Grid System with Confidence
Equip your installation with the Genasun GVB-8-WP MPPT Boost Solar Charge Controller and experience the difference that precision engineering and robust construction make. Whether you’re maintaining a critical battery bank on a vessel or powering a remote monitoring station, this controller delivers dependable, efficient charging in a compact, waterproof package. Add to your system today and harness every watt from your solar array.
SPECIFICATIONS
Product Specifications
| Specifications | GVB-8-Pb-12V-WP | GVB-8-Pb-24V-WP | GVB-8-Pb-36V-WP | GVB-8-Pb-48V-WP |
|---|---|---|---|---|
| Battery Type | 12V Lead-Acid | 24V Lead-Acid | 36V Lead-Acid | 48V Lead-Acid |
| Maximum Recommended Panel Power | 105W | 210W | 325W | 350W |
| Rated Panel (Input) Current | 8A | 8A | 8A | 8A |
| Max Recommended Panel Vmp | 13V | 26V | 41V | 43V |
| Max Input (Panel) Voltage | 60V | 60V | 60V | 60V |
| Recommended Max Panel Voc at STC | 50V | 50V | 50V | 50V |
| Input Voltage Range | 0-60V | 0-60V | 0-60V | 0-60V |
| Minimum Input (Panel) Voltage for Charging | 5V | 5V | 5V | 5V |
| Maximum Input Short Circuit Current | 8A | 8A | 8A | 8A |
| Maximum Input Current | 15A | 15A | 15A | 15A |
| Nominal Battery Voltage | 12V | 24V | 36V | 48V |
| Minimum Battery Voltage for Operation | 9.5V | 9.5V | 9.5V | 9.5V |
| Operating Temperature | -40°C – 85°C | -40°C – 85°C | -40°C – 85°C | -40°C – 85°C |
| Max Full Power Operating Ambient | 70°C | 70°C | 70°C | 70°C |
| Charge Profile | Multi-Stage with Temperature Compensation | Multi-Stage with Temperature Compensation | Multi-Stage with Temperature Compensation | Multi-Stage with Temperature Compensation |
| Bulk Voltage | 14.4V | 28.8V | 43.2V | 57.6V |
| Absorption Voltage | 14.2V | 28.4V | 42.6V | 56.8V |
| Absorption Time | 2 Hours | 2 Hours | 2 Hours | 2 Hours |
| Float Voltage | 13.8V | 27.6V | 41.4V | 55.2V |
| Re-Absorb (Re-Bulk) | 12.5V | 25V | 37.5V | 50V |
| Battery Temperature Compensation (referred to 25°C) | -28mV/°C | -56mV/°C | -84mV/°C | -112mV/°C |
| Electrical Efficiency | 95%-97% typical | 96%-98% typical | 96%-98% typical | 96%-99% typical |
| Standby Consumption | 7mA | 6mA | 6mA | 5mA |
| MPPT Tracking Speed | 15Hz | 15Hz | 15Hz | 15Hz |
| Connection | Flying Leads, 16 AWG tinned wire, pre-stripped | Flying Leads, 16 AWG tinned wire, pre-stripped | Flying Leads, 16 AWG tinned wire, pre-stripped | Flying Leads, 16 AWG tinned wire, pre-stripped |
| Weight | 10.3oz (290g) | 10.3oz (290g) | 10.3oz (290g) | 10.3oz (290g) |
| Dimensions | 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm) | 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm) | 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm) | 5.5" x 3.2" x 2.2" (14cm x 8.1cm x 5.5cm) |
| SKU: | GVB-8-Pb-12V-WP |
| Model #: | GVB-8-Pb-12V-WP |
| MPN: | GVB-8-Pb-12V-WP |
