Genasun 8A MPPT 12V Voltage Boost (Lead-Acid) Solar Charge Controller
Genasun 8A MPPT 12V Voltage Boost (Lead-Acid) Solar Charge Controller
15 Hz MPPT Boost Controller for 12V Lead-Acid - 185 g, 14x6.5x3.1 cm
Highlights:Battery Terminals: Screw terminals for 12V lead-acid battery connection,Panel Terminals: Screw terminals for solar panel connection up to 8A,Status LEDs: Multi-colour LED display for standby, charging, and full status,Mounting Flange: Integrated mounting holes for secure installation.

Key features: 99% peak MPPT tracking efficiency, IP40 environmental protection rating, Compact 14 x 6.5 x 3.5cm dimensions, 5-year manufacturer warranty, 8A continuous current rating.
DESCRIPTION
Genasun GVB-8: Advanced MPPT Boost Solar Charge Controller for 12V Lead-Acid Systems
High-Efficiency Voltage Boost Technology for Off-Grid and Mobile Applications
The Genasun GVB-8 MPPT boost solar charge controller is engineered for applications where the solar panel voltage is lower than the battery voltage. Unlike conventional controllers that step down voltage, this unit actively boosts input from panels as low as 5V to efficiently charge a 12V lead-acid battery. This capability unlocks significant system design flexibility, allowing the use of a single large, cost-effective panel instead of multiple smaller panels wired in series, reducing overall system cost and complexity.
Designed and manufactured in the USA, the GVB-8 is built for mission-critical reliability in the harshest environments. From remote scientific installations to marine and mobile platforms, its robust construction and advanced MPPT algorithm ensure consistent energy harvest under dynamic conditions.
Ultra-Fast MPPT: 15 Hz Tracking Speed
Standard MPPT controllers often employ a slow "sweep and sleep" method, scanning the panel's power curve every 30 to 60 seconds. This approach is adequate for stationary panels under steady sunlight but falls short in mobile or variable weather scenarios. The Genasun GVB-8 redefines responsiveness with a 15 Hz MPPT tracking speed, adjusting to changing light conditions 15 times per second. This ensures the controller is always locked onto the maximum power point, capturing energy that slower controllers miss during cloud transients or when mounted on moving vehicles such as RVs, boats, and expedition trucks.
Precision 3-Stage Charging with Temperature Compensation
Battery longevity and performance depend heavily on correct charging. The GVB-8 employs a computer-controlled, temperature-compensated 3-stage charging profile tailored for lead-acid chemistry. This precise regulation prevents overcharging, minimises gassing, and maintains optimal battery capacity over hundreds of cycles. The controller also features a trickle charge function to recover deeply discharged batteries from as low as 0V, a critical feature for unattended systems.
Key Features
- Voltage Boost Topology: Charges 12V lead-acid batteries from panels with Voc as low as 5V, enabling use of high-current, low-voltage panels.
- 15 Hz MPPT Tracking: Adapts to shading and cloud movement in real time, maximising yield in dynamic conditions.
- 99%+ Tracking Efficiency: Industry-leading conversion efficiency minimises power loss in the electronics.
- Wide Operating Temperature: Full power output up to 70°C ambient, with an operational range of -40°C to 85°C for extreme environments.
- Compact and Lightweight: Weighing only 185 g and measuring 14 cm x 6.5 cm x 3.1 cm, it integrates easily into space-constrained installations.
- Robust Construction: Nickel-plated brass and stainless steel hardware with IP40 rating for durability in marine and industrial settings.
- Global Certifications: cETLus, CE, FCC, and RoHS compliant for use in professional installations worldwide.
- 5-Year Warranty: Backed by Genasun's commitment to quality and long-term reliability.
Applications: From Remote Monitoring to Mobile Power
The GVB-8's unique boost capability makes it the ideal choice for systems where panel voltage is inherently limited. Typical applications include:
- Marine and RV Solar: Use a single large panel with a lower voltage rating to charge a 12V house battery, simplifying wiring and reducing cost.
- Remote Telemetry and IoT: Power 12V monitoring equipment from small, low-voltage panels in off-grid locations.
- Portable and Expedition Power: Lightweight design and fast MPPT tracking suit backpacking solar kits and vehicle-based expeditions.
- Industrial Off-Grid: Maintain 12V backup batteries for SCADA systems, signage, and security cameras.
Why Choose Genasun?
Genasun controllers are trusted in the most demanding environments on Earth, from Antarctic research stations to high-altitude solar aircraft. Each unit undergoes comprehensive electrical testing before leaving the factory, ensuring performance that matches the datasheet. When uptime is critical and failure is not an option, the GVB-8 delivers the reliability professionals demand.
Power Your System with Confidence
Equip your next project with the Genasun GVB-8 MPPT boost solar charge controller and experience the difference that fast tracking, robust engineering, and precision charging make. Whether you're upgrading a marine electrical system or deploying a remote monitoring station, this controller provides the efficiency and dependability needed for long-term success.
SKU: GVB-8-Pb-12V

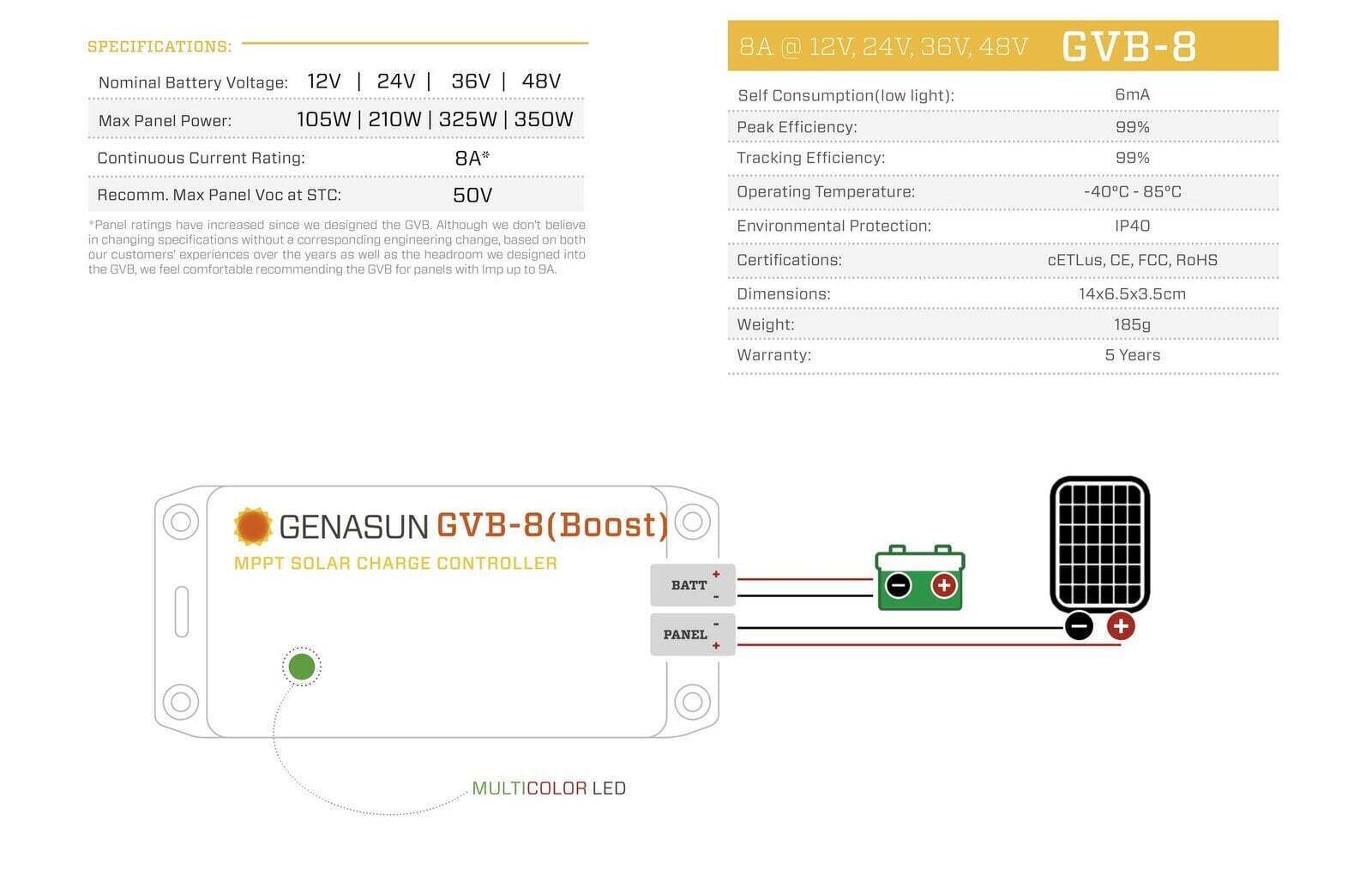

SPECIFICATIONS
Product Specifications
| Specification | GVB-8, All Models |
|---|---|
| Rated Panel (Input) Current | 8 A |
| Minimum Panel Voltage for Charging | 5 V |
| Minimum Battery Voltage for Operation | 9.5 V |
| Trickle Charge to Recover Dead (0V) Battery | Yes |
| Maximum Input Panel | 60 V |
| Recommended Max Panel Voc at STC | 50 V |
| Input Voltage Range | 0-60 V |
| Maximum Input Short Circuit Current | 8 A |
| Maximum Input Current | 15 A |
| Tracking Efficiency | 99+% typical |
| MPPT Tracking Speed | 15 Hz |
| Operating Temperature | -40°C - 85°C |
| Maximum Full Power Ambient | 70°C |
| Environmental Protection | IP40, Nickel-Plated Brass & Stainless Hardware |
| Connection | 4-position terminal block for 10-30 AWG wire |
| Certifications | cETLus, CE, FCC, RoHS |
| Weight | 6.5 oz., 185 g |
| Dimensions | 5.5" x 2.5" x 1.2" (14 cm x 6.5 cm x 3.1 cm) |
| Warranty | 5 years |
| SKU: | GVB-8-Pb-12V |
| Model #: | GVB-8-Pb-12V |
| MPN: | GVB-8-Pb-12V |
WARRANTY
Genasun Warranty Policy
This warranty policy applies to Genasun solar charge controllers supplied by us in Australia. As the Australian supplier or importer of these products, we support warranty claims for Genasun products supplied by us in accordance with the applicable manufacturer warranty and Australian Consumer Law.
Genasun solar charge controllers supplied by us are covered against defects in materials and workmanship for the warranty period applicable to the relevant product model range, subject to the product being selected, installed, operated, stored and maintained correctly and in accordance with the manufacturer's instructions.
This warranty applies to the original end-user purchaser of the product, as evidenced by a valid proof of purchase. The benefits given by this warranty are in addition to other rights and remedies available under law.
Warranty Coverage and Periods
This warranty covers Genasun solar charge controllers supplied by us. The warranty periods for each product model range are set out below.
| Genasun Product Model Range | Warranty Length | Application / Notes |
|---|---|---|
| Genasun GV-5 Solar Charge Controllers | 120 months | Applies to all Genasun GV-5 charge controller models, including lead-acid and lithium variants, where installed and operated in accordance with the manufacturer's instructions. |
| Genasun GV-5-MOD Solar Charge Controller Modules | 120 months | Applies to all Genasun GV-5-MOD charge controller module models, including lead-acid and lithium variants, where installed and operated in accordance with the manufacturer's instructions. |
| Genasun GV-4 Solar Charge Controllers | 60 months | Applies to all Genasun GV-4 charge controller models, including lead-acid and lithium variants, where used within the product's rated specifications. |
| Genasun GV-10 Solar Charge Controllers | 60 months | Applies to all Genasun GV-10 charge controller models, including lead-acid and lithium variants, where used within the product's rated specifications. |
| Genasun GVB-8 Boost Solar Charge Controllers | 60 months | Applies to all Genasun GVB-8 boost charge controller models, including lead-acid and lithium variants, where correctly selected for the solar panel and battery voltage being used. |
| Genasun GVB-8-WP Waterproof Boost Solar Charge Controllers | 60 months | Applies to all Genasun GVB-8-WP waterproof boost charge controller models, including lead-acid and lithium variants, where installed and operated within the product's rated specifications. |
The warranty period begins on the date the product is sold to the original consumer purchaser, as shown on the valid proof of purchase. A valid proof of purchase identifying the purchaser and date of purchase is required for all warranty claims.
Installer Responsibilities and System Design
Genasun solar charge controllers are installed into broader solar charging, battery charging, vehicle, marine, RV, off-grid or industrial electrical systems. Once installed, the product forms only one component of a larger system.
We do not provide installation services unless expressly stated in writing, and we do not supervise or control installation practices carried out by dealers, installers, contractors or end-users. The installer, system designer, integrator, dealer or end-user is responsible for ensuring that the product is suitable for the intended application and is installed correctly.
Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, unsuitable environmental conditions or failure to follow the manufacturer's instructions are not product defects and are not covered by this warranty.
Appropriate Installation
All Genasun solar charge controllers must be installed in accordance with the product manual, the manufacturer's installation instructions, applicable Australian Standards, relevant electrical, automotive, marine, solar or industry standards, and recognised industry best practice.
The installer must ensure that the product is used in an appropriate environment and within its specified ratings. Improper, unsafe, unlicensed, sub-standard or non-compliant installation may void or limit warranty coverage.
System Compatibility
The installer or integrator is responsible for selecting and using compatible components. This includes ensuring compatibility with solar panels, batteries, battery chemistry, battery voltage, charge profiles, loads, wiring, fuses, circuit breakers, connectors, mounting hardware and any other connected equipment.
Damage or underperformance caused by incompatible, incorrectly configured, undersized, oversized, unsuitable or improperly installed equipment is not covered by this warranty.
System-Wide Performance
Overall system performance depends on design, installation, configuration, solar panel selection, battery condition, usage, maintenance and environmental factors beyond the Genasun product itself. This warranty covers the quality of the individual Genasun solar charge controller supplied by us only. It does not guarantee the performance of the broader solar or electrical system into which the product is installed or integrated.
Issues such as insufficient charging, poor solar performance, incorrect battery charging, battery damage, voltage drop, nuisance faults, overheating, intermittent operation or operational shortfalls caused by system design, installation, configuration or connected equipment are outside the scope of this warranty.
Installation Location and Environmental Suitability
The installer must ensure that Genasun solar charge controllers are mounted, located, supported, ventilated and protected in a manner suitable for the installation environment.
Where relevant, the installer must allow for heat dissipation, ventilation, moisture exposure, dust, vibration, corrosion risk, electrical clearance, mechanical loading, access for inspection and service, and protection from unsuitable environmental conditions.
Damage caused by unsuitable mounting, inadequate ventilation, moisture, water ingress, dust, corrosion, excessive heat, vibration, insufficient clearance, unsuitable substrate selection or other installation environment issues is not a manufacturing defect and is not covered by this warranty.
System Protection and Fault Isolation
The installer must incorporate suitable protective devices and design measures appropriate to the product and installation type. This may include correctly rated fuses, circuit breakers, isolators, over-current protection, over-voltage protection, reverse-polarity protection, surge protection, correct cable sizing and other protective devices required by standards or best practice.
The installer is responsible for ensuring that a fault or failure in one component does not cause cascading damage to other components. Damage to Genasun products caused by inadequate system protection, poor fault isolation, incorrect protection settings or missing safety devices is not covered by this warranty.
Service Accessibility Requirement
Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives or other costs arising from installation methods that restrict reasonable access to the product.
Installation Documentation
We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, solar panel details, battery details, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings and maintenance records.
Failure to provide reasonable installation evidence may limit our ability to assess the claim.
Independence of Dealers and Installers
Dealers, resellers, installers and contractors act independently and are not agents, employees or representatives of Genasun, Sunforge or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices or system design decisions of independent dealers, resellers, installers, contractors or third parties.
What This Warranty Does Not Cover
This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with the manufacturer's instructions. It does not cover any failure, damage, performance issue, deterioration or loss caused wholly or partly by external factors, misuse, incorrect installation or circumstances outside the manufacturer's control.
- Incorrect installation, wiring, connection or configuration
- Incorrect product selection or application
- Use outside the product's intended purpose
- Operation outside the product's rated technical specifications
- Incorrect solar panel voltage, battery voltage, battery chemistry or charge profile
- Failure to follow the manufacturer's storage, usage, installation, operation or maintenance instructions
- Alteration, modification, disassembly or tampering
- Repair or service not carried out by a manufacturer-authorised repair facility
- Application of foreign substances or contamination
- Improper operation, misuse, abuse or neglect
- Physical impact, accidental damage or mechanical damage
- Corrosion or environmental damage outside the product's rated specifications
- Lightning, surge damage or other acts of God
- Use with incompatible, incorrectly rated or improperly configured third-party components
- Damage caused by inadequate fusing, circuit protection, isolation or system protection
- Damage caused by moisture, water ingress, dust, corrosion or unsuitable installation environments
- Damage caused by excessive heat, inadequate ventilation or installation in an unsuitable location
- Damage caused by vibration, movement, poor mounting or inadequate support
- Normal wear and tear, cosmetic ageing, cosmetic deterioration or surface marks that do not affect product function
- Failure to carry out reasonable inspection, cleaning, maintenance or servicing where required
- Products with removed, altered, damaged or illegible serial numbers, rating labels or identification markings
- Products purchased second-hand, from unauthorised channels, auction sites, liquidation sales or grey-market sources
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel, call-out costs or access costs unless otherwise required by law
- Products not returned for assessment when reasonably required
- Consequential or incidental loss, including damage to other equipment, downtime, loss of use, loss of revenue or economic loss, to the extent permitted by law
Warranty Assessment and Remedy
If a Genasun solar charge controller supplied by us is found to be defective within the applicable warranty period, we will, at our discretion and subject to the requirements of Australian Consumer Law, arrange a repair, replacement, store credit, refund or another appropriate remedy.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase, product details, serial number if available, installation information and a clear description of the fault.
If the product is required to be returned to Genasun, Sunforge or another nominated assessment location for inspection or repair, a return authorisation process may be required before the product is sent. Products sent without the required return authorisation or documentation may not be processed.
If a product is assessed and found not to be defective, or the issue is found to be caused by an excluded factor, the claim may be rejected. In that case, assessment fees, freight, insurance and return costs may be payable by the customer to the extent permitted by law.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
If you suspect a fault with a Genasun product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised as part of the warranty process. Premature removal may cause further damage or make it difficult to determine the original cause of the issue.
- Contact us: Contact us with your dated proof of purchase, product model, serial number if available, and a description of the fault.
- Provide product and installation information: We may request installation photos, wiring details, solar panel details, battery details, connected equipment details, operating settings, measurements or service history to assist with assessment.
- Assessment and troubleshooting: We may ask for safe checks, photos, voltage readings, current readings, testing information or other details to determine whether the issue appears to be a product fault or is caused by installation, configuration, connected equipment, environment or misuse.
- Return for inspection if required: If the fault cannot be confirmed remotely, the product may need to be returned for inspection, testing, repair or replacement assessment. Return instructions will be provided where required.
- Outcome: If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy. If the product is found not to be faulty, or the issue is caused by an excluded factor, the claim may be rejected.
Remedies Under Warranty
If a defect covered by this warranty is confirmed, we may provide one or more of the following remedies, subject to the circumstances of the claim and the requirements of Australian Consumer Law:
- repair of the product;
- replacement of the product;
- store credit;
- refund;
- supply of replacement parts; or
- another appropriate remedy required by law.
Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date.
Manufacturer Support
Genasun products may be assessed, repaired or replaced through Sunforge, Genasun or another nominated service process. Where available, we may assist customers in arranging assessment, but any manufacturer service is subject to the manufacturer's own process, requirements and continued availability.
Where a manufacturer return authorisation is required, the product must not be sent until the required authorisation has been issued and the return instructions have been provided.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
