Genasun 8A MPPT 12V Voltage Boost (14.2V Lithium) - Waterproof Solar Charge Controller
Genasun 8A MPPT 12V Voltage Boost (14.2V Lithium) - Waterproof Solar Charge Controller
IP68 Waterproof | 99% MPPT Efficiency | Charges 24V/48V from 12V Panels

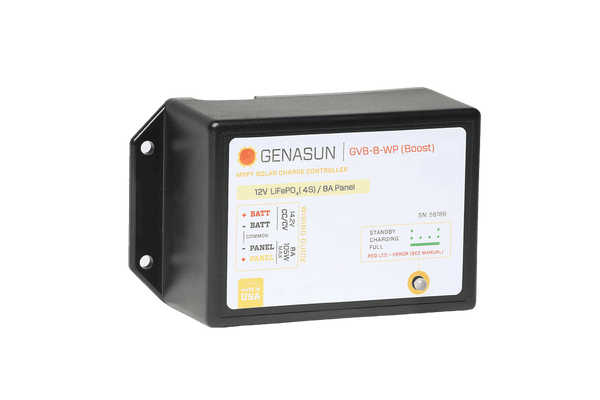

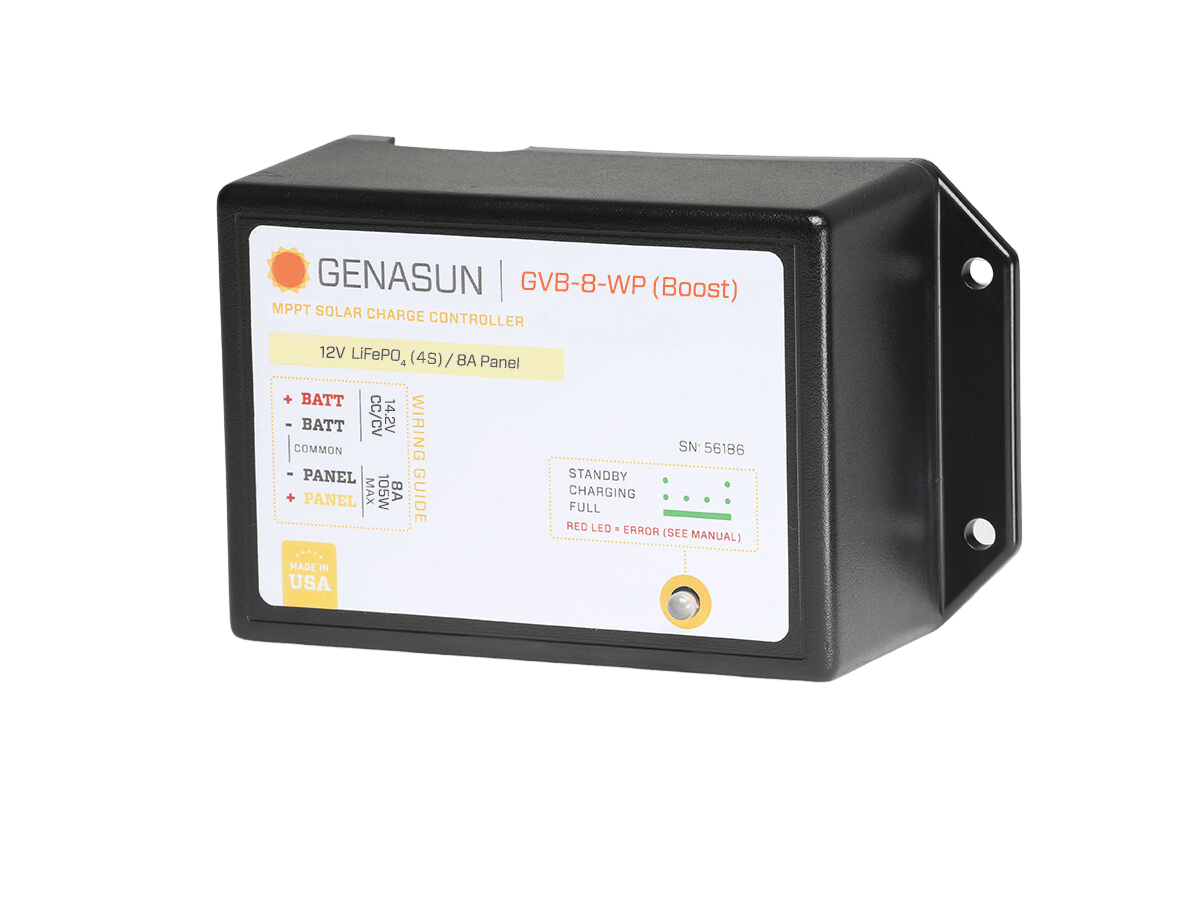

Highlights:Status LED: Multi-color LED indicating charge status and error codes,Wiring Guide: Clear connection guide for Battery and Panel inputs,Mounting Holes: Integrated flange holes for secure mounting.

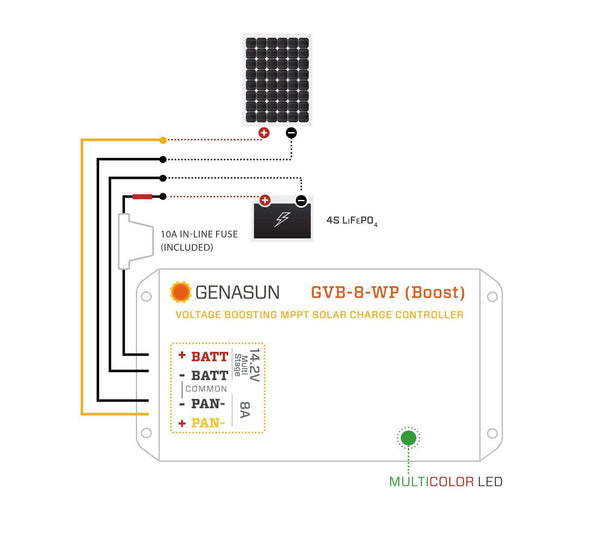

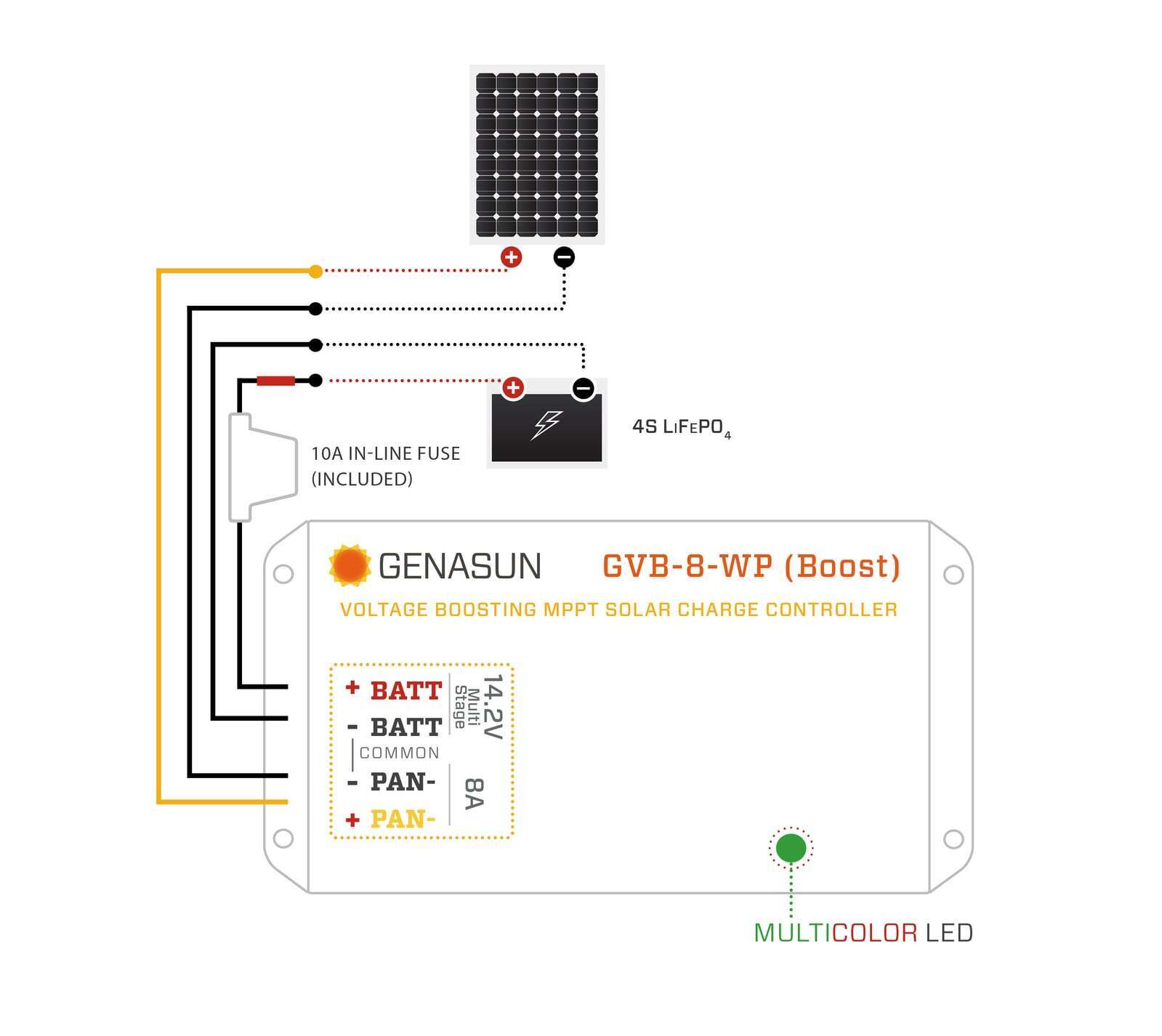

Schematic illustrating the connection sequence: Solar Panel to Controller, and Controller to 4S LiFePO4 Battery with included 10A fuse.
Key features: Fast MPPT tracking (15 times/sec), Boost technology ideal for e-vehicles, IP68 Waterproof rating, Operating range -40°C to 85°C, Made in the USA.

DESCRIPTION
Genasun GVB-8-WP: Advanced MPPT Boost Solar Charge Controller for Lithium Batteries
Engineered for Demanding Environments — Marine, RV, Industrial, and Off-Grid
The Genasun GVB-8-WP (Boost) 8A MPPT is a purpose-built solar charge controller designed to solve a critical challenge: charging higher-voltage batteries from lower-voltage solar panels. Whether you need to charge a 24V battery from a 12V panel or a 48V battery from a 36V panel, this controller’s unique voltage boost technology delivers consistent, efficient power conversion where standard controllers fall short.
Unlike conventional MPPT solar charge controllers that require panel voltage to exceed battery voltage, the GVB-8-WP actively boosts input voltage, enabling flexible system design and maximising energy harvest from non-ideal panel configurations. This makes it an ideal choice for marine solar systems, RV solar setups, golf carts, electric vehicles, and remote off-grid installations where space or shading limits panel size and voltage.
True MPPT with 99% Tracking Efficiency
At the core of the GVB-8-WP is Genasun’s advanced Maximum Power Point Tracking (MPPT) algorithm, operating at an industry-leading 15 Hz tracking speed. This ultra-fast tracking ensures the controller continuously adjusts to changing light conditions, extracting maximum available power from your solar array. With a 99% typical tracking efficiency, it outperforms many competitors that rely on slower or less precise “nominal MPPT” methods, delivering more energy into your battery bank every day.
The controller’s excellent low-light performance is particularly valuable in overcast conditions, early mornings, or shaded installations, where traditional controllers often fail to maintain charging. This capability ensures your batteries receive a charge even when solar irradiance is minimal, reducing reliance on backup power sources.
Built for Harsh Conditions: IP68 Waterproof and Fully Potted
Designed to withstand the toughest environments, the GVB-8-WP features an IP68 waterproof rating, meaning it is fully protected against dust ingress and continuous immersion in water. The advanced electronics are encased in a proprietary potting compound, providing superior resistance to moisture, vibration, and corrosion. This construction makes the controller exceptionally reliable in marine applications, vehicle-mounted systems, and outdoor installations exposed to rain, salt spray, or high humidity.
With an operating temperature range of -40°C to 85°C and full power capability up to 70°C ambient, the GVB-8-WP maintains performance in extreme heat and cold, ensuring year-round reliability in Australian conditions.
Key Features
- Voltage boost technology — charge 12V, 24V, 36V, or 48V batteries from lower-voltage solar panels
- 99% peak MPPT tracking efficiency for maximum energy harvest
- IP68 waterproof and fully potted — ideal for marine, vehicle, and outdoor use
- Ultra-fast 15 Hz MPPT tracking adapts instantly to changing light
- Multi-stage charging with temperature compensation for optimal battery health
- Integrated 10A fuse for overcurrent protection
- Pre-wired flying leads (16 AWG tinned wire) for straightforward installation
- Compact and lightweight — 14 x 8.1 x 5.5 cm, 290 g
- Made in the USA with a 5-year warranty
Optimised for Lithium Batteries
This model is specifically configured for 14.2V lithium (LiFePO4) batteries, with a multi-stage charge profile that includes bulk, absorption, and float stages, plus automatic temperature compensation. The precise voltage regulation ensures your lithium battery is charged safely and efficiently, maximising cycle life and performance. For lead-acid or other battery chemistries, alternative Genasun models are available.
Flexible System Design
The GVB-8-WP accepts a wide input voltage range of 0-60V and can start charging from a panel voltage as low as 5V, making it compatible with a broad range of solar panels. With a maximum recommended panel power of up to 350W (depending on battery voltage), it supports substantial solar arrays while maintaining a compact footprint. The controller’s ability to boost voltage eliminates the need for complex series panel wiring, simplifying installation and reducing system cost.
Applications
- Marine and boating — charge 24V or 48V battery banks from 12V solar panels
- Recreational vehicles (RVs) and caravans — maximise solar harvest with limited roof space
- Golf carts and electric vehicles — efficient charging from low-voltage panels
- Street lighting and remote monitoring — reliable off-grid power in all weather
- Industrial and military — rugged, waterproof design for critical applications
Upgrade Your Solar Charging System Today
Experience the difference that true MPPT boost technology can make in your off-grid power system. Whether you’re outfitting a yacht, upgrading your RV, or building a remote industrial installation, the Genasun GVB-8-WP delivers unmatched efficiency and durability. Order now to ensure your batteries are always charged, no matter the conditions.
SPECIFICATIONS
Product Specifications
| GVB-8-WP, All Models | |
|---|---|
| Rated Panel (Input) Current | 8A |
| Minimum Panel Voltage for Charging | 5V |
| Minimum Battery Voltage for Operation | 9.5V |
| Maximum Input Panel | 60V |
| Recommended Max Panel Voc at STC | 50V |
| Input Voltage Range | 0-60V |
| Maximum Input Short Circuit Current | 8A |
| Maximum Input Current | 15A |
| Tracking Efficiency | 99%+ typical |
| MPPT Tracking Speed | 15Hz |
| Operating Temperature | -40°C to 85°C |
| Maximum Full Power Ambient | 70°C |
| Environmental Protection | IP68, Waterproof |
| Connection | Flying Leads, 16 AWG tinned wire, pre-stripped |
| Weight | 10.3oz (290g) |
| Dimensions | 5.5 x 3.2 x 2.7 in (14 x 8.1 x 5.5 cm) |
| Warranty | 5 years |
| Specification | 12V | 24V | 36V | 48V |
|---|---|---|---|---|
| Charge Profile | Multi-Stage with Temperature Compensation | |||
| Nominal Battery Voltage | 12V | 24V | 36V | 48V |
| Max Recommended Panel Vmp | 13V | 26V | 41V | 43V |
| Max Recommended Panel Power | 105W | 210W | 325W | 350W |
| Bulk Voltage | 14.4V | 28.8V | 43.2V | 57.6V |
| Absorption Voltage | 14.2V | 28.4V | 42.6V | 56.8V |
| Absorption Time | 2 Hours | |||
| Float Voltage | 13.8V | 27.6V | 41.4V | 55.2V |
| Battery Temp Compensation | -28mV/°C | -56mV/°C | -84mV/°C | -112mV/°C |
| Electrical Efficiency | 95-97% | 96-98% | 96-98% | 96-99% |
| Night Consumption | 7mA | 6mA | 6mA | 5mA |
