Genasun 50V 8A GVB-8-WP Lithium MPPT Boost Charge Controller

Waterproof 8A MPPT boost charging for 12S lithium-ion battery systems from lower-voltage solar panels.


Regular price $299.00
/
Availability: In Stock
View all products from Genasun

Free Shipping | This item has a free shipping option Australia-wide.

Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
1
Genasun 50V 8A GVB-8-WP Lithium MPPT Boost Charge Controller

Genasun 50V 8A GVB-8-WP Lithium MPPT Boost Charge Controller

DESCRIPTION

Genasun GVB-8-Li-50.0V-WP Waterproof Lithium MPPT Boost Charge Controller

The Genasun GVB-8-Li-50.0V-WP is a compact waterproof MPPT boost solar charge controller designed for 12S lithium-ion, LiPo, LiCoO₂, lithium manganese or lithium nickel battery systems requiring a 50.0V CC/CV charge profile. Unlike standard solar regulators that step panel voltage down to suit a lower-voltage battery, the GVB-8-WP boost series is designed to step lower solar panel voltage up for higher-voltage battery charging.

This makes it a practical solution for small electric vehicles, golf carts, e-bikes, marine systems, industrial equipment and other compact solar applications where roof or deck space may suit a single lower-voltage solar panel. The controller is rated for 8A panel input current and this 50.0V lithium model supports a maximum recommended panel power of 325W, subject to the panel voltage and current limits in the official specifications.

Designed for Higher-Voltage Lithium Charging

The 50.0V model is listed by Sunforge for 36V nominal, 12S lithium cobalt, manganese or nickel systems and is supplied with a CC/CV lithium charge profile. Battery temperature compensation is disabled for the lithium models, which is appropriate for the specified lithium charging profile. As with any lithium charging equipment, the battery pack specification must match the controller CV voltage before installation.

Genasun’s high-speed MPPT tracking is designed to adapt quickly to changing solar conditions. The official documentation lists a 15Hz MPPT tracking speed, 99+% typical tracking efficiency and strong low-light performance, making the GVB-8-WP well suited to mobile and outdoor systems where shading, movement and panel angle can change throughout the day.

Waterproof, Compact and Built for Mobile Systems

The GVB-8-WP series uses a potted construction and is rated IP68 waterproof. The current version, starting from serial number 188100, uses 12 AWG tinned flying leads that are pre-stripped for installation. The controller also includes an external 10A in-line fuse rated for the maximum battery voltage, with the manual noting that 36V and 48V nominal versions require a fuse with a higher voltage rating than typical 32V automotive fuses.

  • Boost MPPT design: Allows a lower-voltage solar panel to charge a higher-voltage lithium battery system.
  • 50.0V CC/CV output: Intended for 12S lithium-ion, LiPo, LiCoO₂ and related lithium chemistries listed by the manufacturer.
  • 325W recommended panel power: Supports practical solar input sizing for compact EV, marine and mobile charging applications.
  • IP68 waterproof protection: Potted construction is suited to exposed or moisture-prone installations.
  • Fast tracking: 15Hz MPPT tracking helps the controller respond to changing solar conditions.

Installation Notes and Use Cases

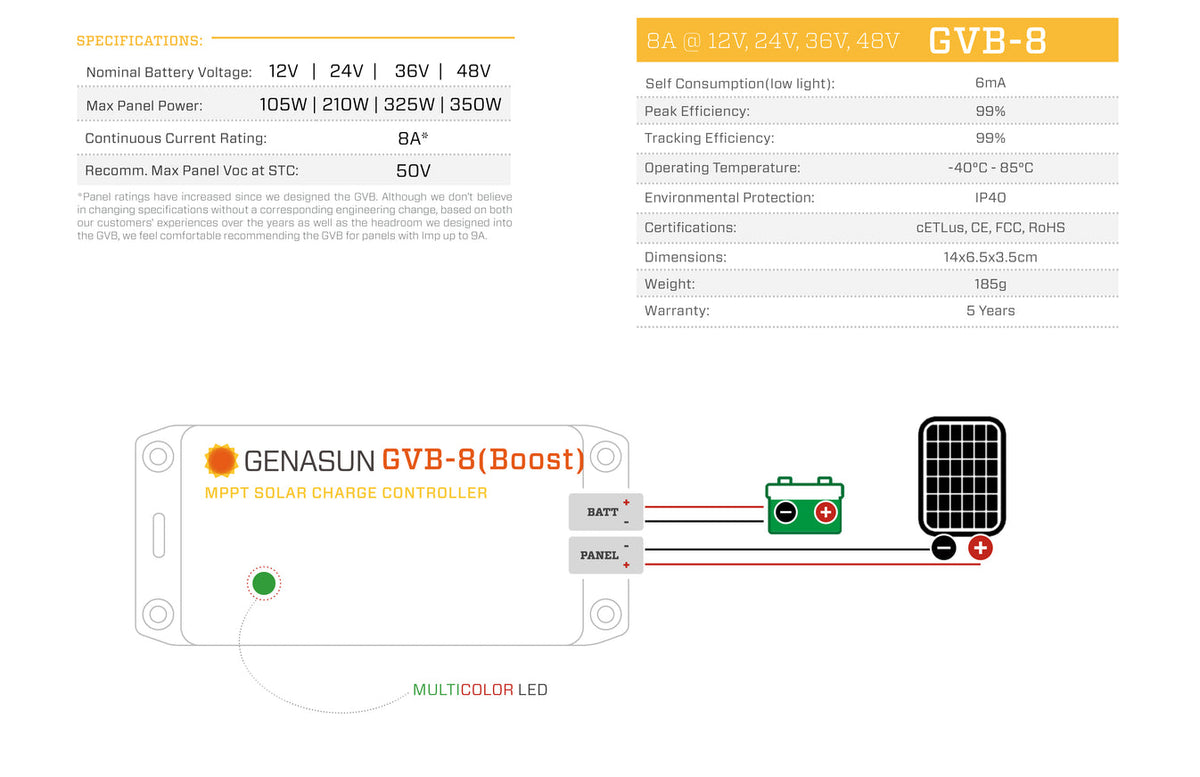

The controller is negative common, with the negative panel and negative battery cables internally connected. Loads should be connected directly to the battery, as the GVB-8-WP does not provide over-discharge protection. The manual also states that the solar panel should generally be connected only to the GVB-8-WP and that the controller will not operate without a battery connected.

With a small enclosure size of 140 x 81 x 55mm and a 290g product weight, the GVB-8-WP suits space-limited builds where a larger solar regulator is difficult to mount. It is a strong match for 12S lithium battery systems on compact vehicles, marine electronics projects and specialised off-grid equipment where boost charging is required rather than conventional buck charging.

Choose the Genasun GVB-8-Li-50.0V-WP where a compact, waterproof 50.0V lithium boost MPPT controller is needed to make better use of available panel space in a higher-voltage solar charging system.

SPECIFICATIONS

Specifications

SpecificationValue
BrandGenasun by Sunforge
ModelGVB-8-Li-50.0V-WP
Product typeWaterproof voltage-boosting MPPT solar charge controller
TechnologyMPPT Boost
Battery type12S lithium-ion, LiPo, LiCoO₂, lithium cobalt, manganese or nickel
Nominal battery voltage36V nominal
Charge profileCC/CV
CV voltage50.0V
Battery temperature compensationDisabled
Maximum recommended panel power325W
Maximum recommended panel Vmp41V
Rated panel input current8A
Minimum panel voltage for charging5V
Minimum battery voltage for operation9.5V
Trickle charge to recover dead 0V batteryYes
Maximum input panel voltage60V
Recommended maximum panel Voc at STC50V
Input voltage range0-60V
Maximum input short circuit current8A
Maximum input current15A
Tracking efficiency99+% typical
MPPT tracking speed15Hz
Electrical efficiency96-98% typical
Night consumption6mA
Operating temperature-40°C to 85°C
Maximum full power ambient temperature50°C
Environmental protectionIP68, waterproof
ConnectionFlying leads, 12 AWG tinned wire, pre-stripped
FuseExternal 10A in-line fuse rated for the maximum battery voltage
Product weight10.3oz, 290g
Product dimensions5.5 x 3.2 x 2.2 inches, 14 x 8.1 x 5.5cm
Warranty5 years
Compliance stated by manufacturerCE, FCC and RoHS compliant

SKU: GVB-8-Li-50.0V-WP
HS code: 8504409580
Country of origin: US
Package length: 0.17 m
Package width: 0.1 m
Package height: 0.07 m

WARRANTY

Genasun Warranty Policy

This warranty policy applies to Genasun solar charge controllers supplied by us in Australia. As the Australian supplier or importer of these products, we support warranty claims for Genasun products supplied by us in accordance with the applicable manufacturer warranty and Australian Consumer Law.

Genasun solar charge controllers supplied by us are covered against defects in materials and workmanship for the warranty period applicable to the relevant product model range, subject to the product being selected, installed, operated, stored and maintained correctly and in accordance with the manufacturer's instructions.

This warranty applies to the original end-user purchaser of the product, as evidenced by a valid proof of purchase. The benefits given by this warranty are in addition to other rights and remedies available under law.

Warranty Coverage and Periods

This warranty covers Genasun solar charge controllers supplied by us. The warranty periods for each product model range are set out below.

Genasun Product Model Range Warranty Length Application / Notes
Genasun GV-5 Solar Charge Controllers 120 months Applies to all Genasun GV-5 charge controller models, including lead-acid and lithium variants, where installed and operated in accordance with the manufacturer's instructions.
Genasun GV-5-MOD Solar Charge Controller Modules 120 months Applies to all Genasun GV-5-MOD charge controller module models, including lead-acid and lithium variants, where installed and operated in accordance with the manufacturer's instructions.
Genasun GV-4 Solar Charge Controllers 60 months Applies to all Genasun GV-4 charge controller models, including lead-acid and lithium variants, where used within the product's rated specifications.
Genasun GV-10 Solar Charge Controllers 60 months Applies to all Genasun GV-10 charge controller models, including lead-acid and lithium variants, where used within the product's rated specifications.
Genasun GVB-8 Boost Solar Charge Controllers 60 months Applies to all Genasun GVB-8 boost charge controller models, including lead-acid and lithium variants, where correctly selected for the solar panel and battery voltage being used.
Genasun GVB-8-WP Waterproof Boost Solar Charge Controllers 60 months Applies to all Genasun GVB-8-WP waterproof boost charge controller models, including lead-acid and lithium variants, where installed and operated within the product's rated specifications.

The warranty period begins on the date the product is sold to the original consumer purchaser, as shown on the valid proof of purchase. A valid proof of purchase identifying the purchaser and date of purchase is required for all warranty claims.

Installer Responsibilities and System Design

Genasun solar charge controllers are installed into broader solar charging, battery charging, vehicle, marine, RV, off-grid or industrial electrical systems. Once installed, the product forms only one component of a larger system.

We do not provide installation services unless expressly stated in writing, and we do not supervise or control installation practices carried out by dealers, installers, contractors or end-users. The installer, system designer, integrator, dealer or end-user is responsible for ensuring that the product is suitable for the intended application and is installed correctly.

Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, unsuitable environmental conditions or failure to follow the manufacturer's instructions are not product defects and are not covered by this warranty.

Appropriate Installation

All Genasun solar charge controllers must be installed in accordance with the product manual, the manufacturer's installation instructions, applicable Australian Standards, relevant electrical, automotive, marine, solar or industry standards, and recognised industry best practice.

The installer must ensure that the product is used in an appropriate environment and within its specified ratings. Improper, unsafe, unlicensed, sub-standard or non-compliant installation may void or limit warranty coverage.

System Compatibility

The installer or integrator is responsible for selecting and using compatible components. This includes ensuring compatibility with solar panels, batteries, battery chemistry, battery voltage, charge profiles, loads, wiring, fuses, circuit breakers, connectors, mounting hardware and any other connected equipment.

Damage or underperformance caused by incompatible, incorrectly configured, undersized, oversized, unsuitable or improperly installed equipment is not covered by this warranty.

System-Wide Performance

Overall system performance depends on design, installation, configuration, solar panel selection, battery condition, usage, maintenance and environmental factors beyond the Genasun product itself. This warranty covers the quality of the individual Genasun solar charge controller supplied by us only. It does not guarantee the performance of the broader solar or electrical system into which the product is installed or integrated.

Issues such as insufficient charging, poor solar performance, incorrect battery charging, battery damage, voltage drop, nuisance faults, overheating, intermittent operation or operational shortfalls caused by system design, installation, configuration or connected equipment are outside the scope of this warranty.

Installation Location and Environmental Suitability

The installer must ensure that Genasun solar charge controllers are mounted, located, supported, ventilated and protected in a manner suitable for the installation environment.

Where relevant, the installer must allow for heat dissipation, ventilation, moisture exposure, dust, vibration, corrosion risk, electrical clearance, mechanical loading, access for inspection and service, and protection from unsuitable environmental conditions.

Damage caused by unsuitable mounting, inadequate ventilation, moisture, water ingress, dust, corrosion, excessive heat, vibration, insufficient clearance, unsuitable substrate selection or other installation environment issues is not a manufacturing defect and is not covered by this warranty.

System Protection and Fault Isolation

The installer must incorporate suitable protective devices and design measures appropriate to the product and installation type. This may include correctly rated fuses, circuit breakers, isolators, over-current protection, over-voltage protection, reverse-polarity protection, surge protection, correct cable sizing and other protective devices required by standards or best practice.

The installer is responsible for ensuring that a fault or failure in one component does not cause cascading damage to other components. Damage to Genasun products caused by inadequate system protection, poor fault isolation, incorrect protection settings or missing safety devices is not covered by this warranty.

Service Accessibility Requirement

Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives or other costs arising from installation methods that restrict reasonable access to the product.

Installation Documentation

We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, solar panel details, battery details, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings and maintenance records.

Failure to provide reasonable installation evidence may limit our ability to assess the claim.

Independence of Dealers and Installers

Dealers, resellers, installers and contractors act independently and are not agents, employees or representatives of Genasun, Sunforge or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices or system design decisions of independent dealers, resellers, installers, contractors or third parties.

What This Warranty Does Not Cover

This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with the manufacturer's instructions. It does not cover any failure, damage, performance issue, deterioration or loss caused wholly or partly by external factors, misuse, incorrect installation or circumstances outside the manufacturer's control.

  • Incorrect installation, wiring, connection or configuration
  • Incorrect product selection or application
  • Use outside the product's intended purpose
  • Operation outside the product's rated technical specifications
  • Incorrect solar panel voltage, battery voltage, battery chemistry or charge profile
  • Failure to follow the manufacturer's storage, usage, installation, operation or maintenance instructions
  • Alteration, modification, disassembly or tampering
  • Repair or service not carried out by a manufacturer-authorised repair facility
  • Application of foreign substances or contamination
  • Improper operation, misuse, abuse or neglect
  • Physical impact, accidental damage or mechanical damage
  • Corrosion or environmental damage outside the product's rated specifications
  • Lightning, surge damage or other acts of God
  • Use with incompatible, incorrectly rated or improperly configured third-party components
  • Damage caused by inadequate fusing, circuit protection, isolation or system protection
  • Damage caused by moisture, water ingress, dust, corrosion or unsuitable installation environments
  • Damage caused by excessive heat, inadequate ventilation or installation in an unsuitable location
  • Damage caused by vibration, movement, poor mounting or inadequate support
  • Normal wear and tear, cosmetic ageing, cosmetic deterioration or surface marks that do not affect product function
  • Failure to carry out reasonable inspection, cleaning, maintenance or servicing where required
  • Products with removed, altered, damaged or illegible serial numbers, rating labels or identification markings
  • Products purchased second-hand, from unauthorised channels, auction sites, liquidation sales or grey-market sources
  • Labour costs for removal, replacement, reinstallation or diagnosis
  • Freight, travel, call-out costs or access costs unless otherwise required by law
  • Products not returned for assessment when reasonably required
  • Consequential or incidental loss, including damage to other equipment, downtime, loss of use, loss of revenue or economic loss, to the extent permitted by law

Warranty Assessment and Remedy

If a Genasun solar charge controller supplied by us is found to be defective within the applicable warranty period, we will, at our discretion and subject to the requirements of Australian Consumer Law, arrange a repair, replacement, store credit, refund or another appropriate remedy.

Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase, product details, serial number if available, installation information and a clear description of the fault.

If the product is required to be returned to Genasun, Sunforge or another nominated assessment location for inspection or repair, a return authorisation process may be required before the product is sent. Products sent without the required return authorisation or documentation may not be processed.

If a product is assessed and found not to be defective, or the issue is found to be caused by an excluded factor, the claim may be rejected. In that case, assessment fees, freight, insurance and return costs may be payable by the customer to the extent permitted by law.

Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.

Making a Warranty Claim

If you suspect a fault with a Genasun product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised as part of the warranty process. Premature removal may cause further damage or make it difficult to determine the original cause of the issue.

  1. Contact us: Contact us with your dated proof of purchase, product model, serial number if available, and a description of the fault.
  2. Provide product and installation information: We may request installation photos, wiring details, solar panel details, battery details, connected equipment details, operating settings, measurements or service history to assist with assessment.
  3. Assessment and troubleshooting: We may ask for safe checks, photos, voltage readings, current readings, testing information or other details to determine whether the issue appears to be a product fault or is caused by installation, configuration, connected equipment, environment or misuse.
  4. Return for inspection if required: If the fault cannot be confirmed remotely, the product may need to be returned for inspection, testing, repair or replacement assessment. Return instructions will be provided where required.
  5. Outcome: If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy. If the product is found not to be faulty, or the issue is caused by an excluded factor, the claim may be rejected.

Remedies Under Warranty

If a defect covered by this warranty is confirmed, we may provide one or more of the following remedies, subject to the circumstances of the claim and the requirements of Australian Consumer Law:

  • repair of the product;
  • replacement of the product;
  • store credit;
  • refund;
  • supply of replacement parts; or
  • another appropriate remedy required by law.

Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date.

Manufacturer Support

Genasun products may be assessed, repaired or replaced through Sunforge, Genasun or another nominated service process. Where available, we may assist customers in arranging assessment, but any manufacturer service is subject to the manufacturer's own process, requirements and continued availability.

Where a manufacturer return authorisation is required, the product must not be sent until the required authorisation has been issued and the return instructions have been provided.

Australian Consumer Law

This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
