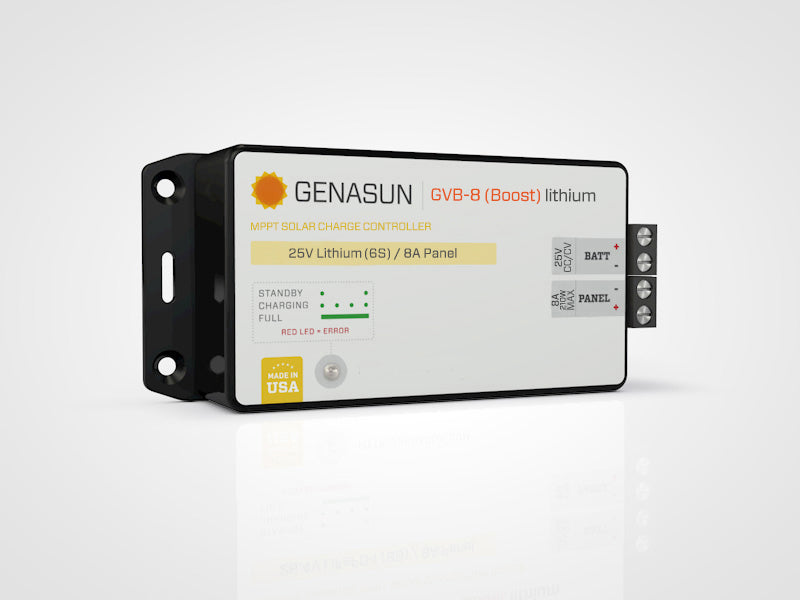

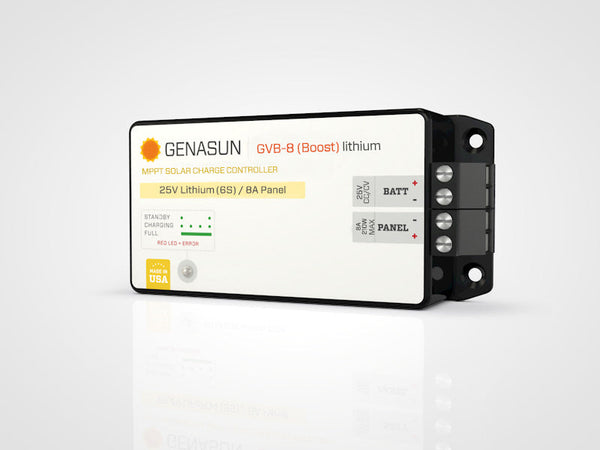

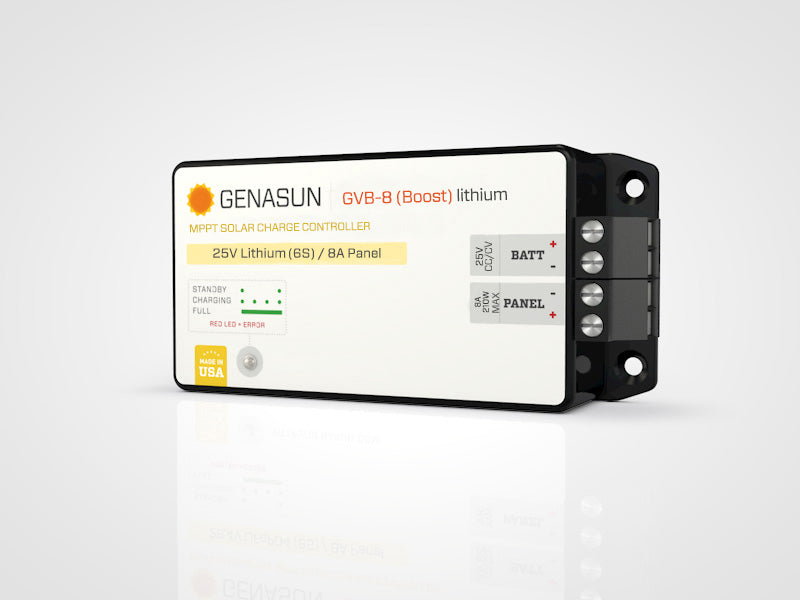

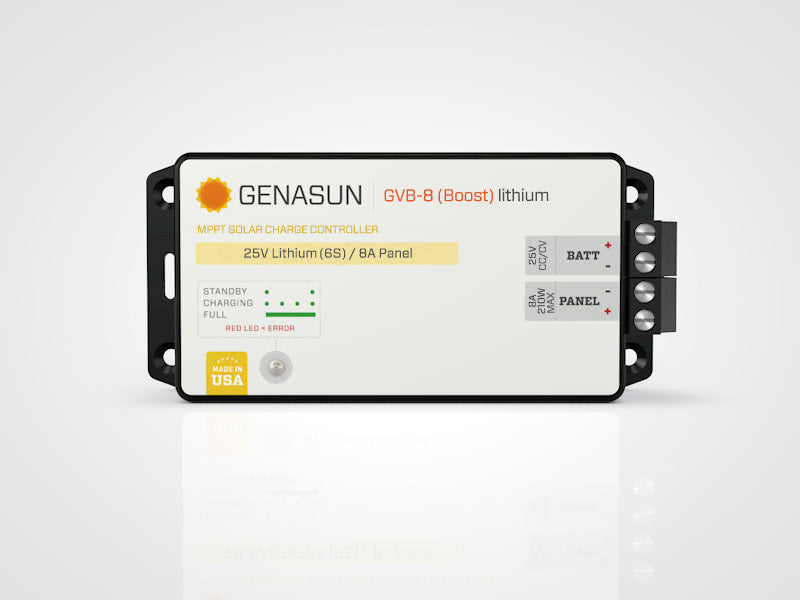

Genasun 25V 8A GVB-8 Li MPPT Boost Solar Charge Controller

A compact voltage-boosting MPPT controller for charging 6S lithium battery systems from lower-voltage solar panels.


Regular price $239.95
/
Availability: In Stock
View all products from Genasun

Free Shipping to Melbourne metro | Add to cart and enter your postcode to see live shipping options.

Eligible Free-shipping Zones

Melbourne metro

Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
1
Genasun 25V 8A GVB-8 Li MPPT Boost Solar Charge Controller

Genasun 25V 8A GVB-8 Li MPPT Boost Solar Charge Controller

DESCRIPTION

Genasun 25V 8A GVB-8 Li MPPT Boost Solar Charge Controller

The Genasun GVB-8 Li 25.0V is a compact MPPT boost solar charge controller designed for systems where the solar panel voltage is lower than the lithium battery voltage. It is well suited to specialised 24V nominal, 6S lithium battery applications using a lower-voltage solar module, helping simplify panel selection without moving to a higher-voltage solar string.

This model is configured for a 25.0V CC/CV lithium charge profile and is identified by Genasun for 24V, 6S Lithium Cobalt/Manganese/Nickel batteries. The official Genasun Europe product listing also identifies the battery type as lithium and the cell configuration as LiCoO₂/LiPo 6S. Battery compatibility should be checked against the battery manufacturer’s charge voltage and charging limits, as Genasun specifies that Li controllers use the CC/CV charging profile indicated on the controller.

At the solar input, the GVB-8-Li-25.0V is rated for 8A panel input and supports a maximum recommended panel power of 210W with a maximum recommended panel Vmp of 20V. That makes it a practical choice for small off-grid, portable, marine, RV, micro-mobility and remote power systems where a standard lower-voltage panel is preferred but the battery requires a higher charging voltage.

  • Voltage-boosting MPPT design: Allows a lower-voltage solar panel to charge a higher-voltage lithium battery system.
  • 25.0V lithium charge profile: Configured for a 6S lithium battery using a CC/CV charge profile.
  • 8A panel input: Supports compact solar arrays with a maximum recommended 210W panel power for this model.
  • Fast MPPT response: Genasun specifies a 15Hz MPPT tracking speed for the GVB-8 range.
  • Compact enclosure: The controller measures 13.7 cm x 6.2 cm x 3.3 cm and weighs 185 g.
  • Built-in status LED: Provides charging, standby, charged and fault indication at the controller.

The GVB-8 range is designed around Genasun’s high-speed MPPT technology. Rather than relying on slow periodic sweeps, the controller tracks the maximum power point continuously enough to respond to changing light, partial shade and vehicle or marine movement. The datasheet specifies 99+% typical tracking efficiency and 15Hz MPPT tracking speed, with typical electrical efficiency for the lithium variants listed by model.

Installation is via a 4-position terminal block accepting 10 to 30 AWG copper conductors. Genasun specifies that loads should connect directly to the battery rather than the GVB-8, as the controller does not provide over-discharge protection. The manual also specifies the use of a fast-acting fuse or circuit breaker of 10A or less close to the battery terminal or power distribution block.

The enclosure is listed as IP40 and the manual states not to expose this standard GVB-8 model to water. For installations where water resistance is required, Genasun directs users to the GVB-8-WP waterproof version. For suitable indoor or protected installations, the Genasun GVB-8-Li-25.0V provides a neat, efficient way to harvest solar from a lower-voltage panel into a 25.0V 6S lithium battery system.

SPECIFICATIONS

Specifications

SpecificationValue
BrandGenasun
ModelGVB-8-Li-25.0V
Product typeVoltage-boosting MPPT solar charge controller
Battery type6S Li-ion, Lithium Cobalt/Manganese/Nickel; Genasun Europe also lists LiCoO₂/LiPo 6S
Nominal battery voltage24 V nominal
Charge profileCC/CV
CV voltage25.0 V
Battery temperature compensationDisabled
Rated panel input current8 A
Maximum recommended panel power210 W
Maximum recommended panel Vmp20 V
Minimum panel voltage for charging5 V
Minimum battery voltage for operation9.5 V
Trickle charge to recover dead 0V batteryYes
Maximum input panel voltage60 V
Recommended maximum panel Voc at STC50 V
Input voltage range0 to 60 V
Maximum input short circuit current8 A
Maximum input current15 A
Tracking efficiency99+% typical
MPPT tracking speed15 Hz
Electrical efficiency95% to 97% typical for GVB-8-Li-25.0V
Night consumption6 mA
Operating temperature-40 °C to 85 °C
Maximum full power ambient70 °C
Environmental protectionIP40
HardwareNickel-plated brass and stainless hardware
Connection4-position terminal block for 10 to 30 AWG wire
Certifications listed by manufacturercETLus, CE, FCC, RoHS
Weight6.5 oz, 185 g
Dimensions5.4 in x 2.4 in x 1.3 in, 13.7 cm x 6.2 cm x 3.3 cm
Warranty5 years, subject to manufacturer warranty conditions

Installation Notes From Manufacturer Manual

ItemManufacturer guidance
MountingMount securely near the battery using the holes provided on the enclosure flanges or a method appropriate to the application.
Water exposureDo not expose to water. Use the GVB-8-WP for applications where water resistance is needed.

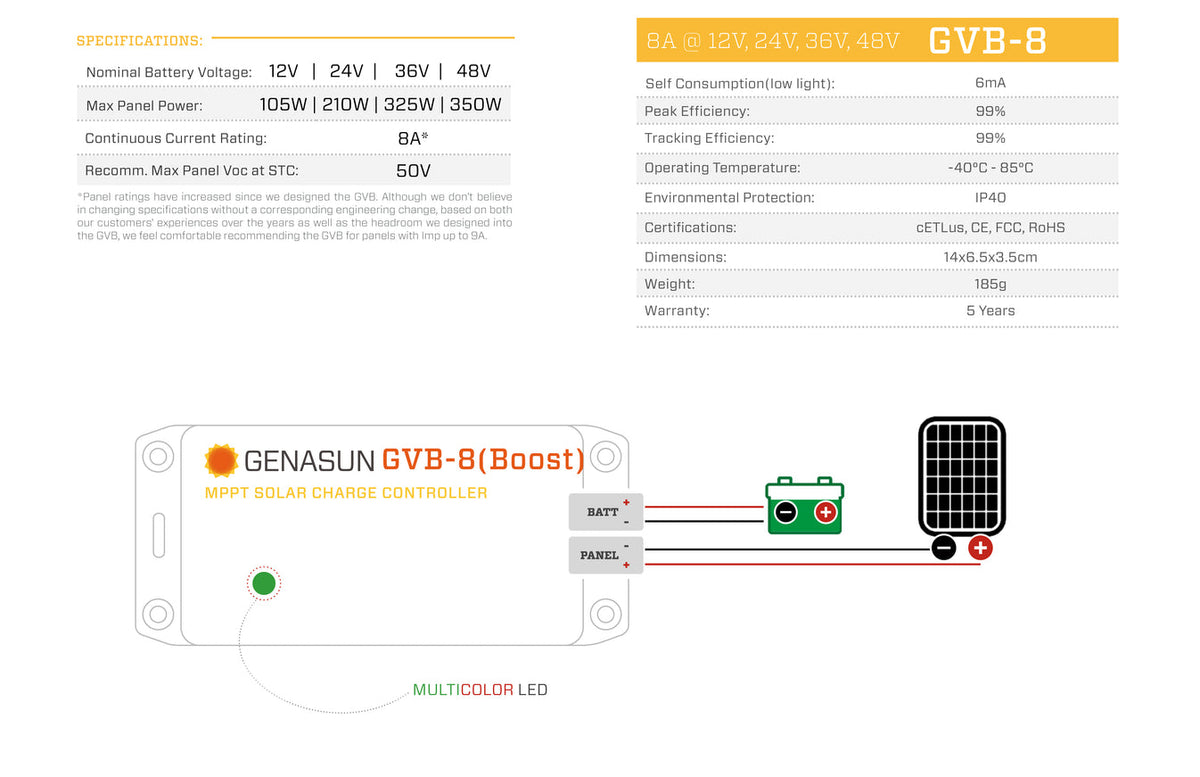

Solar panel connectionIn most applications, the panel should be connected only to the GVB-8.
LoadsLoads should be connected directly to the battery. The GVB-8 does not provide protection against over-discharge.
Battery fuse or breakerThe positive or negative battery cable must be protected by a fast-acting fuse or circuit breaker of 10 A or less, rated for the maximum battery voltage and connected close to the battery terminal or power distribution block.
Lithium battery managementGenasun recommends using a lithium battery with a BMS capable of disconnecting the solar charge controller if any cell is outside its rated temperature, current or voltage range.

SKU: GVB-8-Li-25.0V
HS code: 8504409580
Country of origin: US
Package weight: 0.185 kg
Package length: 0.17 m
Package width: 0.08 m
Package height: 0.04 m

WARRANTY

Genasun Warranty Policy

This warranty policy applies to Genasun solar charge controllers supplied by us in Australia. As the Australian supplier or importer of these products, we support warranty claims for Genasun products supplied by us in accordance with the applicable manufacturer warranty and Australian Consumer Law.

Genasun solar charge controllers supplied by us are covered against defects in materials and workmanship for the warranty period applicable to the relevant product model range, subject to the product being selected, installed, operated, stored and maintained correctly and in accordance with the manufacturer's instructions.

This warranty applies to the original end-user purchaser of the product, as evidenced by a valid proof of purchase. The benefits given by this warranty are in addition to other rights and remedies available under law.

Warranty Coverage and Periods

This warranty covers Genasun solar charge controllers supplied by us. The warranty periods for each product model range are set out below.

Genasun Product Model Range Warranty Length Application / Notes
Genasun GV-5 Solar Charge Controllers 120 months Applies to all Genasun GV-5 charge controller models, including lead-acid and lithium variants, where installed and operated in accordance with the manufacturer's instructions.
Genasun GV-5-MOD Solar Charge Controller Modules 120 months Applies to all Genasun GV-5-MOD charge controller module models, including lead-acid and lithium variants, where installed and operated in accordance with the manufacturer's instructions.
Genasun GV-4 Solar Charge Controllers 60 months Applies to all Genasun GV-4 charge controller models, including lead-acid and lithium variants, where used within the product's rated specifications.
Genasun GV-10 Solar Charge Controllers 60 months Applies to all Genasun GV-10 charge controller models, including lead-acid and lithium variants, where used within the product's rated specifications.
Genasun GVB-8 Boost Solar Charge Controllers 60 months Applies to all Genasun GVB-8 boost charge controller models, including lead-acid and lithium variants, where correctly selected for the solar panel and battery voltage being used.
Genasun GVB-8-WP Waterproof Boost Solar Charge Controllers 60 months Applies to all Genasun GVB-8-WP waterproof boost charge controller models, including lead-acid and lithium variants, where installed and operated within the product's rated specifications.

The warranty period begins on the date the product is sold to the original consumer purchaser, as shown on the valid proof of purchase. A valid proof of purchase identifying the purchaser and date of purchase is required for all warranty claims.

Installer Responsibilities and System Design

Genasun solar charge controllers are installed into broader solar charging, battery charging, vehicle, marine, RV, off-grid or industrial electrical systems. Once installed, the product forms only one component of a larger system.

We do not provide installation services unless expressly stated in writing, and we do not supervise or control installation practices carried out by dealers, installers, contractors or end-users. The installer, system designer, integrator, dealer or end-user is responsible for ensuring that the product is suitable for the intended application and is installed correctly.

Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, unsuitable environmental conditions or failure to follow the manufacturer's instructions are not product defects and are not covered by this warranty.

Appropriate Installation

All Genasun solar charge controllers must be installed in accordance with the product manual, the manufacturer's installation instructions, applicable Australian Standards, relevant electrical, automotive, marine, solar or industry standards, and recognised industry best practice.

The installer must ensure that the product is used in an appropriate environment and within its specified ratings. Improper, unsafe, unlicensed, sub-standard or non-compliant installation may void or limit warranty coverage.

System Compatibility

The installer or integrator is responsible for selecting and using compatible components. This includes ensuring compatibility with solar panels, batteries, battery chemistry, battery voltage, charge profiles, loads, wiring, fuses, circuit breakers, connectors, mounting hardware and any other connected equipment.

Damage or underperformance caused by incompatible, incorrectly configured, undersized, oversized, unsuitable or improperly installed equipment is not covered by this warranty.

System-Wide Performance

Overall system performance depends on design, installation, configuration, solar panel selection, battery condition, usage, maintenance and environmental factors beyond the Genasun product itself. This warranty covers the quality of the individual Genasun solar charge controller supplied by us only. It does not guarantee the performance of the broader solar or electrical system into which the product is installed or integrated.

Issues such as insufficient charging, poor solar performance, incorrect battery charging, battery damage, voltage drop, nuisance faults, overheating, intermittent operation or operational shortfalls caused by system design, installation, configuration or connected equipment are outside the scope of this warranty.

Installation Location and Environmental Suitability

The installer must ensure that Genasun solar charge controllers are mounted, located, supported, ventilated and protected in a manner suitable for the installation environment.

Where relevant, the installer must allow for heat dissipation, ventilation, moisture exposure, dust, vibration, corrosion risk, electrical clearance, mechanical loading, access for inspection and service, and protection from unsuitable environmental conditions.

Damage caused by unsuitable mounting, inadequate ventilation, moisture, water ingress, dust, corrosion, excessive heat, vibration, insufficient clearance, unsuitable substrate selection or other installation environment issues is not a manufacturing defect and is not covered by this warranty.

System Protection and Fault Isolation

The installer must incorporate suitable protective devices and design measures appropriate to the product and installation type. This may include correctly rated fuses, circuit breakers, isolators, over-current protection, over-voltage protection, reverse-polarity protection, surge protection, correct cable sizing and other protective devices required by standards or best practice.

The installer is responsible for ensuring that a fault or failure in one component does not cause cascading damage to other components. Damage to Genasun products caused by inadequate system protection, poor fault isolation, incorrect protection settings or missing safety devices is not covered by this warranty.

Service Accessibility Requirement

Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives or other costs arising from installation methods that restrict reasonable access to the product.

Installation Documentation

We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, solar panel details, battery details, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings and maintenance records.

Failure to provide reasonable installation evidence may limit our ability to assess the claim.

Independence of Dealers and Installers

Dealers, resellers, installers and contractors act independently and are not agents, employees or representatives of Genasun, Sunforge or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices or system design decisions of independent dealers, resellers, installers, contractors or third parties.

What This Warranty Does Not Cover

This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with the manufacturer's instructions. It does not cover any failure, damage, performance issue, deterioration or loss caused wholly or partly by external factors, misuse, incorrect installation or circumstances outside the manufacturer's control.

  • Incorrect installation, wiring, connection or configuration
  • Incorrect product selection or application
  • Use outside the product's intended purpose
  • Operation outside the product's rated technical specifications
  • Incorrect solar panel voltage, battery voltage, battery chemistry or charge profile
  • Failure to follow the manufacturer's storage, usage, installation, operation or maintenance instructions
  • Alteration, modification, disassembly or tampering
  • Repair or service not carried out by a manufacturer-authorised repair facility
  • Application of foreign substances or contamination
  • Improper operation, misuse, abuse or neglect
  • Physical impact, accidental damage or mechanical damage
  • Corrosion or environmental damage outside the product's rated specifications
  • Lightning, surge damage or other acts of God
  • Use with incompatible, incorrectly rated or improperly configured third-party components
  • Damage caused by inadequate fusing, circuit protection, isolation or system protection
  • Damage caused by moisture, water ingress, dust, corrosion or unsuitable installation environments
  • Damage caused by excessive heat, inadequate ventilation or installation in an unsuitable location
  • Damage caused by vibration, movement, poor mounting or inadequate support
  • Normal wear and tear, cosmetic ageing, cosmetic deterioration or surface marks that do not affect product function
  • Failure to carry out reasonable inspection, cleaning, maintenance or servicing where required
  • Products with removed, altered, damaged or illegible serial numbers, rating labels or identification markings
  • Products purchased second-hand, from unauthorised channels, auction sites, liquidation sales or grey-market sources
  • Labour costs for removal, replacement, reinstallation or diagnosis
  • Freight, travel, call-out costs or access costs unless otherwise required by law
  • Products not returned for assessment when reasonably required
  • Consequential or incidental loss, including damage to other equipment, downtime, loss of use, loss of revenue or economic loss, to the extent permitted by law

Warranty Assessment and Remedy

If a Genasun solar charge controller supplied by us is found to be defective within the applicable warranty period, we will, at our discretion and subject to the requirements of Australian Consumer Law, arrange a repair, replacement, store credit, refund or another appropriate remedy.

Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase, product details, serial number if available, installation information and a clear description of the fault.

If the product is required to be returned to Genasun, Sunforge or another nominated assessment location for inspection or repair, a return authorisation process may be required before the product is sent. Products sent without the required return authorisation or documentation may not be processed.

If a product is assessed and found not to be defective, or the issue is found to be caused by an excluded factor, the claim may be rejected. In that case, assessment fees, freight, insurance and return costs may be payable by the customer to the extent permitted by law.

Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.

Making a Warranty Claim

If you suspect a fault with a Genasun product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised as part of the warranty process. Premature removal may cause further damage or make it difficult to determine the original cause of the issue.

  1. Contact us: Contact us with your dated proof of purchase, product model, serial number if available, and a description of the fault.
  2. Provide product and installation information: We may request installation photos, wiring details, solar panel details, battery details, connected equipment details, operating settings, measurements or service history to assist with assessment.
  3. Assessment and troubleshooting: We may ask for safe checks, photos, voltage readings, current readings, testing information or other details to determine whether the issue appears to be a product fault or is caused by installation, configuration, connected equipment, environment or misuse.
  4. Return for inspection if required: If the fault cannot be confirmed remotely, the product may need to be returned for inspection, testing, repair or replacement assessment. Return instructions will be provided where required.
  5. Outcome: If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy. If the product is found not to be faulty, or the issue is caused by an excluded factor, the claim may be rejected.

Remedies Under Warranty

If a defect covered by this warranty is confirmed, we may provide one or more of the following remedies, subject to the circumstances of the claim and the requirements of Australian Consumer Law:

  • repair of the product;
  • replacement of the product;
  • store credit;
  • refund;
  • supply of replacement parts; or
  • another appropriate remedy required by law.

Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date.

Manufacturer Support

Genasun products may be assessed, repaired or replaced through Sunforge, Genasun or another nominated service process. Where available, we may assist customers in arranging assessment, but any manufacturer service is subject to the manufacturer's own process, requirements and continued availability.

Where a manufacturer return authorisation is required, the product must not be sent until the required authorisation has been issued and the return instructions have been provided.

Australian Consumer Law

This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
