Exotronic 750A ANL Fuse Holder with Cover
Exotronic 750A ANL Fuse Holder with Cover

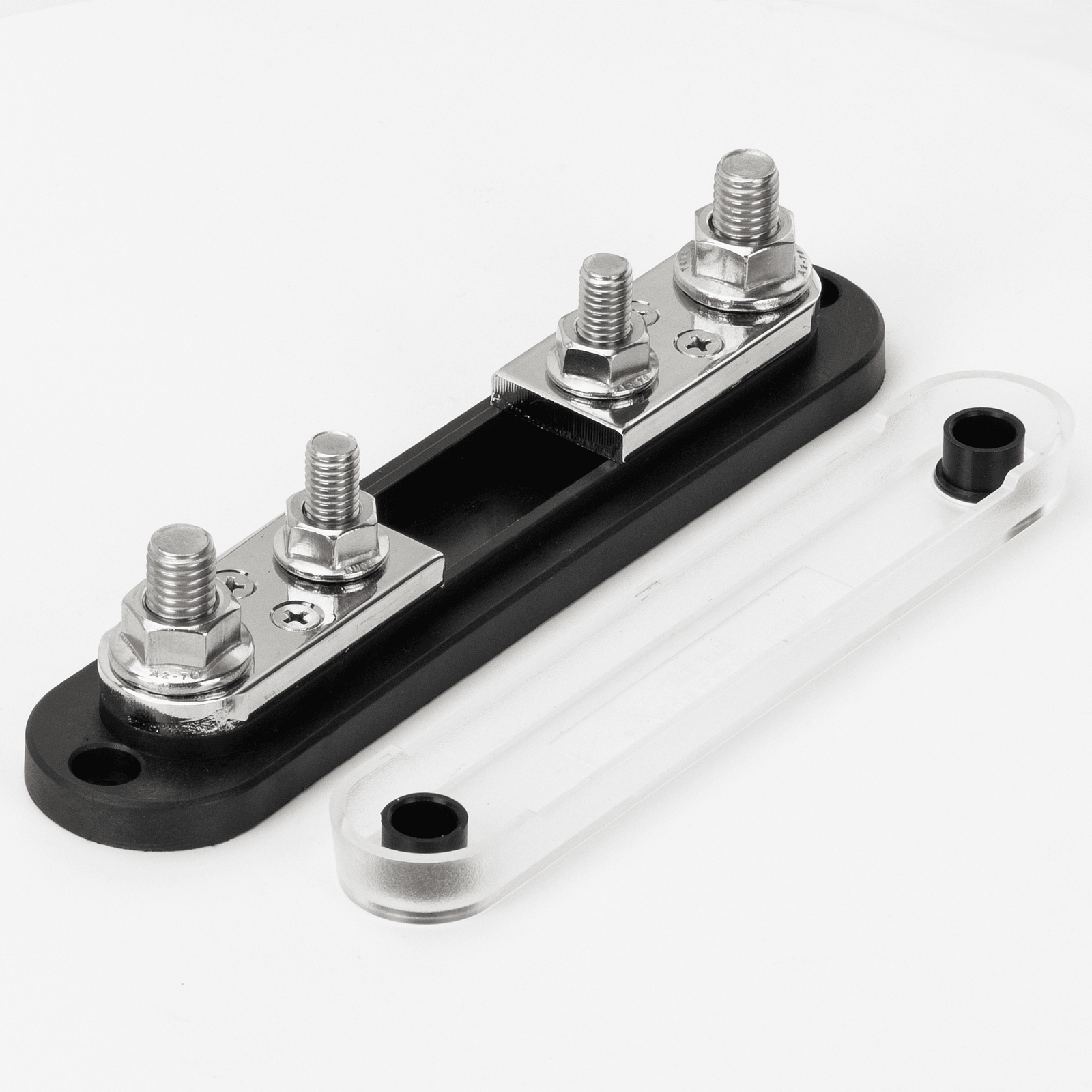

Highlights:Cable Connection Studs: Large outer threaded studs for securing high-current battery cables,Fuse Mounting Studs: Inner studs dedicated to securely holding the ANL fuse,Protective Cover: Clear insulating cover to prevent accidental shorts,High Current: Heavy duty high current thick tinner copper busbar.

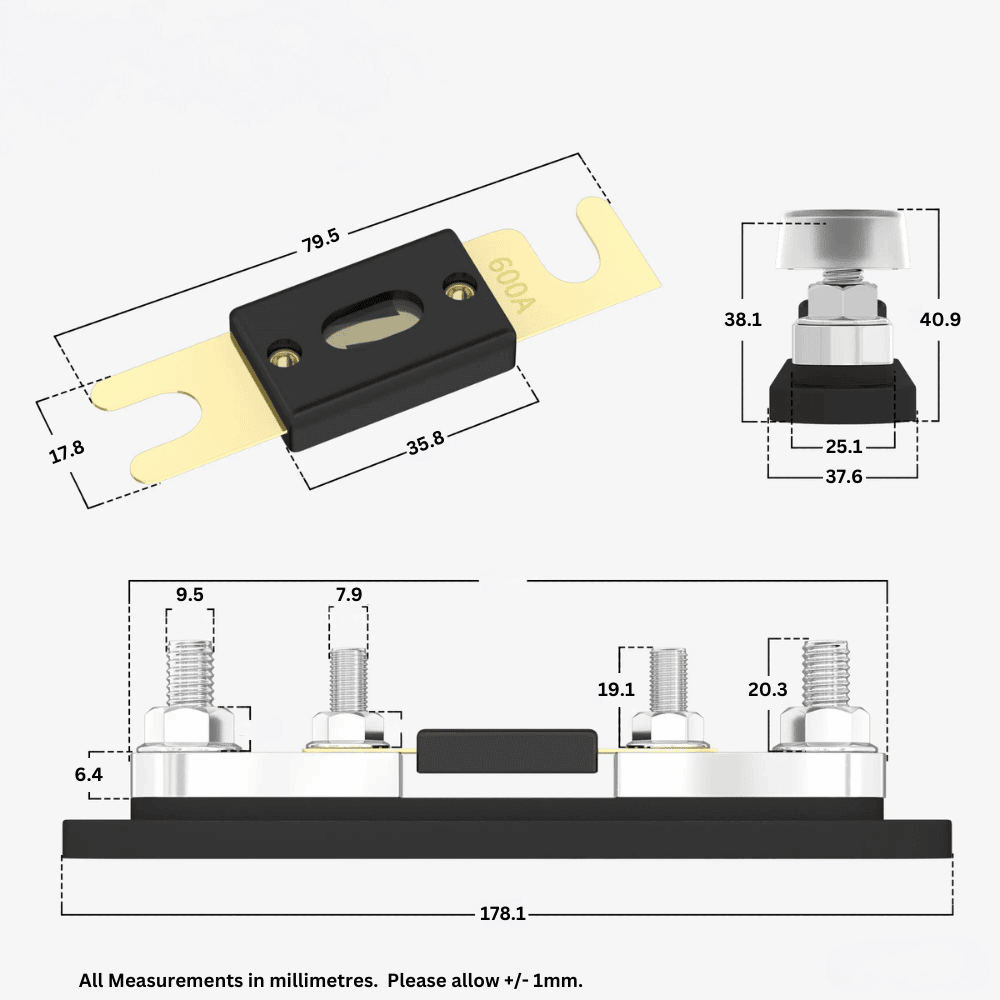

Technical specifications showing a 178.1mm overall length, 40.9mm width, and component heights including stud elevation.
DESCRIPTION
Exotronic 750A ANL Fuse Holder with Cover – Heavy-Duty Power Protection
The Exotronic 750A ANL Fuse Holder with Cover is the ultimate solution for safeguarding your high-performance DC electrical systems. Designed for reliability and ease of use, this fuse holder is perfect for demanding applications, including marine, RV, off-grid solar systems, caravans, and industrial equipment.
Key Features:
- Cover Included: Protects the fuse and ensures safe operation in rugged environments.
- High Compatibility: Accepts standard 5/16″ (M8) ANL fuses for a wide range of protection options.
- M10 Terminals for Main Connections: Provides robust electrical contact for secure and reliable power distribution.
- Voltage Compatibility: Built to handle systems up to 32 Volts DC, ideal for modern electrical configurations.
- Swing-Out Design: Replace fuses effortlessly without removing fasteners, saving time during maintenance.
- Durable Construction: Stainless steel studs resist corrosion and provide a high torque capacity for optimal electrical connections.
- Secure Mounting: Insert-molded studs and a tin-plated copper busbar ensure a stable and efficient current flow.
- Customizable Wire Access: Cover breakouts allow cables to exit in any direction, making installation seamless in tight spaces.
- Fuse Flexibility: Compatible with ANL fuses (sold separately) for tailored protection to match your system's requirements.
Why Choose the Exotronic 750A ANL Fuse Holder?
This fuse holder combines robust materials and smart engineering to provide unmatched safety and convenience. The tin-plated copper busbar delivers excellent conductivity, while the corrosion-resistant stainless steel studs ensure longevity in even the harshest conditions. The included cover keeps everything secure while offering directional wire access, perfect for compact setups.
Applications:
- Marine: Withstand the harsh marine environment with corrosion-resistant features.
- RV & Caravan: Perfect for safeguarding power in recreational and mobile living setups.
- Off-Grid Systems: A reliable choice for solar or battery-powered installations.
- Industrial Equipment: Dependable protection for heavy-duty electrical machinery.
Upgrade your electrical system today with the Exotronic 750A ANL Fuse Holder. Ensure safety, reliability, and efficiency for your high-powered DC systems. Order now and experience unparalleled protection!
SKU: Exo-FH-ANL-750
SPECIFICATIONS
| SKU: | Exo-FH-ANL-750 |
| Barcode: | 9361784001616 |
| Model #: | Exo-FH-ANL-750 |
| MPN: | Exo-FH-ANL-750 |
