Enerdrive Ultimate DIY Kit with DC-DC Battery Charger, AC Battery Charger, 2000W Transfer Inverter and Distribution Board

MPPT alternator/solar charging, 3-bank AC charging, ePRO+ monitor


Regular price $2,875.67
$3,195.19
/
Availability: Special Order
View all products from Enerdrive

Free Shipping | This item has a free shipping option Australia-wide.

Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0

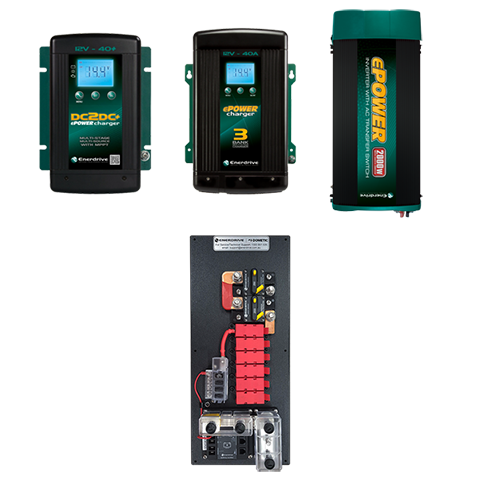

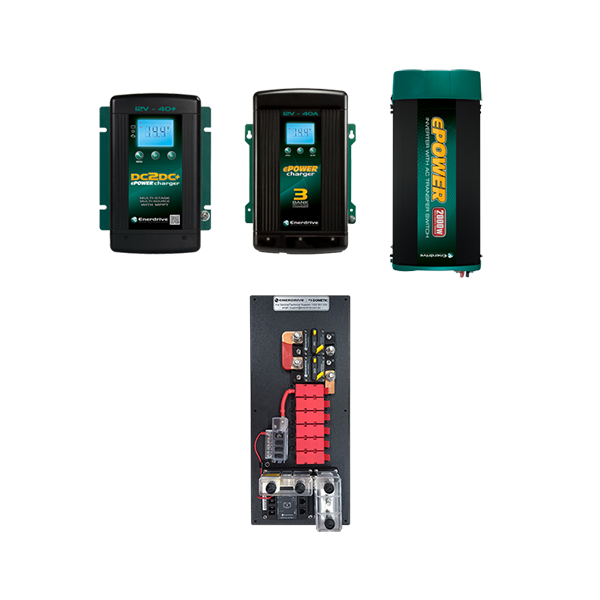

Ultimate DIY Kit, DC2DC 40+, AC40, 2000w Inverter inc FREE EPDM-02 (K-ULT-DIY-01) — image 1

Enerdrive Ultimate DIY Kit with DC-DC Battery Charger, AC Battery Charger, 2000W Transfer Inverter and Distribution Board

DESCRIPTION

Charging, AC power and distribution for 12V systems

The Enerdrive Ultimate DIY Kit brings together charging, inverter and distribution equipment for a 12V battery setup. It supports charging from vehicle and solar inputs, mains-powered battery charging, and conversion of battery power to AC for suitable appliances.

Key features

  • DC-DC charger with integrated MPPT solar regulation and automatic source selection
  • AC battery charger with priority charging for up to three battery banks
  • 2000W pure sine wave inverter with AC transfer switch and RCD safety switch
  • DC distribution board with ePRO+ battery monitor

Charging from vehicle, solar and mains

The 12V DC-DC charger automatically selects between alternator-linked vehicle input and solar input, without requiring external relays. Its integrated MPPT controller manages solar charging, while the vehicle input accepts either a 12V or 24V vehicle system. Selectable battery profiles support Gel, AGM, flooded, lithium or custom settings.

For mains charging, the 40A AC charger can charge three battery banks. It prioritises the main bank, and that bank can use a different charging profile from the other two. The charger also supports selectable battery types and adjustable output current.

AC supply and distribution

The 2000W inverter provides 230V pure sine wave AC output from a 12V DC supply. Its internal transfer switch shifts between mains or generator input and inverter output, while the integrated RCD safety switch disconnects output power within 0.03 seconds when it detects a safety problem.

The distribution board includes an ePRO+ monitor for system monitoring and state-of-charge tracking. A resettable main breaker, inverter breaker, fused load connections and a negative busbar support organised DC distribution.

Each of the four included components carries a five-year warranty.

Explore this kit for a 12V battery setup that needs vehicle or solar charging and managed AC power.


SKU: K-ULT-DIY-01

SPECIFICATIONS

12 V DC-DC battery charger with MPPT solar regulator

Charging inputsAlternator-linked vehicle input and solar input with an integrated MPPT controller
Input configurationTwo independent DC inputs charge one house battery bank output
Source selectionAutomatically selects between engine and solar charging; no external relays are required
Vehicle input system voltageAccepts 12 V or 24 V vehicle systems
Vehicle input voltage range10.5–16 VDC or 21–32 VDC
Vehicle input current limitLimited to 50 A; vehicle input voltage must be higher than output voltage to achieve 50 A
Solar input voltage14.5–45 V open circuit
Solar input power limitAt ≤23 V input: 500 W (600 W allowable); at 37.5–45 V input: 750 W (800 W allowable)
Solar input current limitLimited to 30 A; a higher-voltage solar array can allow output current to exceed the 30 A input limit
Solar input maximum45 V and 800 W maximum
Battery-bank output configurationSingle DC output bank
Output voltage12 V nominal; 8.0 V minimum
Maximum output current40–50 A
Output power775 W
Output current operating condition40 A+ output up to 40+°C, with thermostatically controlled fan cooling
Selectable charging current5/10/15/20/25/30/35/40/45/50 A; default 40 A
Battery typesGel, AGM, flooded, lithium, or programmed custom profile
Charger voltage range13.8–15.5 V
Float voltage range13.0–13.8 V
Flooded-battery equalization voltage15.5 V
Equalization charging current10% of the bulk-current setting
Charging-stage controlSelectable 2-stage or 3-stage control; 3-stage is the default
Bulk or boost stageCharges at the full rated output current until the battery reaches absorption voltage
Absorption stageHolds charging voltage steady while current tapers as the battery approaches full charge
Float stageLowers and holds voltage at a predetermined level to maintain charge and support connected loads
Power-supply operationTransitions to power-supply mode after reaching float, supporting on-board DC loads
Load-based regulationRegulates output in response to loads connected to the battery bank
Load-regulation methodsProvides two methods of load-based regulation
Battery temperature settingLow, normal, or high
Battery temperature sensorIncluded as standard for more accurate battery charging
Inactive output current drawLess than 50 mA from CH1 when not in use
Efficiency95%
Connection terminalsM6 DC screw terminals for battery cable connections
Display and controlsFully programmable LCD displays charging source, charger status, voltage, and amperage
CoolingThermostatically controlled fan
Component dimensions242 × 172 × 74 mm (height × width × depth)
Component weight1.85 kg
Warranty5 years

12 V 40 A AC battery charger

Charging operationFully automatic multistage AC battery charger
Battery banksCharges three separate battery banks
Battery-bank isolationBank 1 is separate from banks 2 and 3; banks 2 and 3 share a common output with diode isolation
Bank 1 charging priorityPrioritizes bank 1, then transitions charging to banks 2 and 3
Bank 1 charge programmingBank 1 can use a different charging algorithm from banks 2 and 3
Battery-bank overrideWhen all three banks need charging, an override helps recover them quickly and evenly before returning to bank 1 priority
Output-current controlUser-adjustable output current
Maximum output current40 A
Battery typesGel, AGM, flooded, lithium, or programmed profile; flooded is the default
Charge voltage range14.2–15.5 V
Float voltage range13.4–13.8 V
Equalization voltage15.5 V
Charging control modesFour-stage control (bulk, absorption, float, maintenance); two-stage control (bulk, absorption); and constant power-supply mode as a program setting
Bulk or boost stageCharges at full rated output current until the battery reaches absorption voltage
Absorption stageHolds charging voltage steady while current drops as the battery approaches full charge
Float stageHolds a lower, predetermined voltage to prevent overcharge while supporting connected loads
Maintenance stageAfter seven days of continuous float, returns to bulk to agitate battery electrolyte
Lithium chargingLithium program delivers full rated output until peak voltage is reached, then switches to power-supply mode
Load-based regulationRegulates output based on loads connected to the battery banks
Standby currentLess than 2 mA
AC input nominal voltages100, 120, 220, 230, or 240 VAC
AC input operating range and maximum current207–265 VAC at up to 3.8 A; 90–125 VAC at up to 7.7 A
AC input frequency47–63 Hz
Power consumption700 W at full load
Power-factor correctionYes
EfficiencyGreater than 82%
Reverse-polarity protectionYes; uses user-replaceable fuse(s)
Overcharge protectionYes; unit shutdown
Overtemperature protectionYes; unit derates and shuts down
Output short-circuit protectionYes; uses user-replaceable fuse(s)
CoolingForced-air ventilation with thermostatically controlled fan
Silent modeDisables the fan for 12 hours and limits charge output to no more than 50%; then returns automatically to normal fan-on, full-output operation
Temperature setting without sensorHot, normal, or cold
Battery temperature sensor connectionRJ12 port
Included battery temperature sensorSupplied with a 7.5 m cable
DisplayBacklit LCD shows charging status, battery voltage, output current, and fault codes; charger settings and silent mode can be controlled from the display
AC input connectionIEC connection with supplied 1.2 m power lead
DC output connectionsHeavy-duty pan-head terminals for three banks, with 6 mm threads
DC output groundSingle heavy-duty common ground stud
Storage temperature−40°C to 70°C
Operating temperature−20°C to 60°C
Humidity5–95% relative humidity, non-condensing
Ingress protectionIP32; basic drip protection in vertical orientation
Component dimensions295 × 206 × 86 mm (length × width × height)
Component weight2.6 kg
Optional accessoryRemote digital display
Regulatory complianceAS/NZS 60335.2.29, including Australian deviations
Warranty5 years

12 V 2000 W pure sine wave inverter with AC transfer switch and RCD

Inverter output power2000 W
AC output current8.7 A
AC output voltage and frequency230 VAC, 50 Hz
AC output waveformSine wave; less than 3% THD
DC input nominal voltage12.5 VDC
DC input operating range10.5–15.5 VDC
No-load battery drawLess than 1.5 A DC
Undervoltage alarm11.0 / 12.1 VDC
Undervoltage alarm recovery11.3 / 12.3 VDC
Undervoltage shutdown10.5 / 11.8 VDC
Undervoltage shutdown recovery12.0 / 12.6 VDC
Overvoltage protectionShutdown at 15.5 VDC
USB output5 V, 2.1 A
AC transfer functionInternal switch transfers AC power between mains or generator input and inverter output
AC transfer timeLess than 30 ms
Transfer relay rating16 A for resistive loads
AC input socketIEC-C20, 16 A maximum
AC output socketIEC-C19, 16 A maximum
Front AC outletGPO, 10 A maximum
RCD safety switchIntegrated RCD with test button; switches off output power within 0.03 seconds when a safety problem is detected
Remote display panelRemovable LED remote control display panel
Operating temperature0°C to 40°C
Storage temperature−20°C to 60°C
Humidity5–90% relative humidity, non-condensing
Operating altitudeUp to 3000 m above sea level
Safety and electrical standardsAustralian standards; CE LVD: EN/IEC 62040-1 and IEC 61558-2-16
EMC standardCE EMC: EN/IEC 62040-2, category C1
Agency markingsRCM and CE
Component dimensions444 × 230 × 115 mm (width × length × height)
Component weight5.9 kg
Warranty5 years

Power distribution module with ePRO+ battery monitor

Main distribution circuit breaker120 A, resettable
Inverter circuit breaker200 A standard; optional 250 A for 2600 W inverters
Load and charger fusesFour MIDI fuses, with the main bus bar connected to the distribution circuit breaker
Main negative busbar500 A
Battery monitorePRO+ monitor for system monitoring and state-of-charge tracking
24-hour load fuse blockFour positions, 100 A
Component dimensions200 × 460 × 78 mm (width × height × depth)
Warranty5 years

SKU: K-ULT-DIY-01
Model #: K-ULT-DIY-01
MPN: K-ULT-DIY-01
Package weight: 16.02 kg
Package length: 0.58 m
Package width: 0.39 m
Package height: 0.36 m
