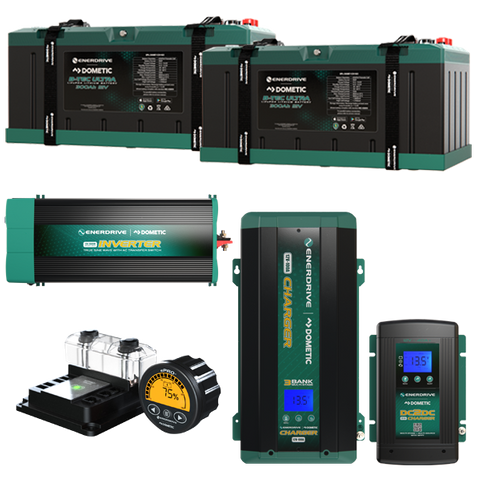

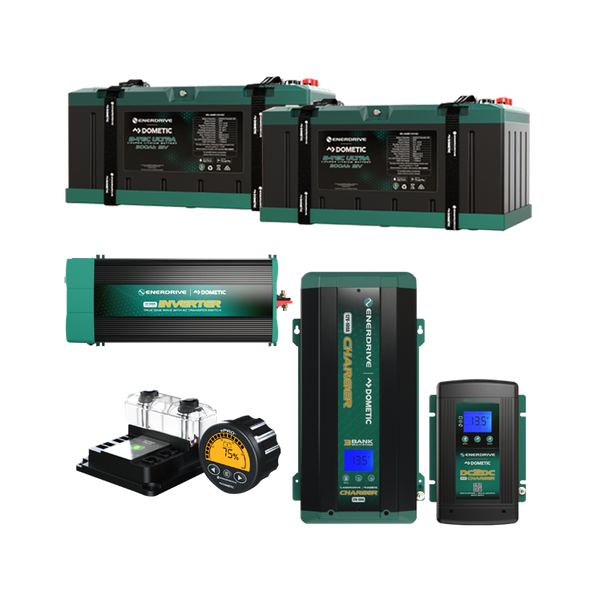

Enerdrive B-TEC Lithium Battery Power System Kit with AC and DC-DC Chargers, Transfer Inverter and Battery Monitor
Enerdrive B-TEC Lithium Battery Power System Kit with AC and DC-DC Chargers, Transfer Inverter and Battery Monitor
2 × 300Ah IP67 LiFePO₄, MPPT Solar, 2,600W Pure Sine Wave

DESCRIPTION
Mobile 12V lithium power with AC and DC-DC charging
Support a mobile or off-grid 12V installation with lithium storage, charging from mains, vehicle or solar, and switched AC power. The bundle includes two 300Ah B-TEC LiFePO₄ batteries. Their IP67-rated construction provides protection against dust and water ingress, while Bluetooth app support lets you check battery information. The batteries have a stated cycle life of 6,000 charge cycles at 80% depth of discharge.
For mains charging, the Enerdrive 12V 100A AC charger uses multistage charging and offers a programmable lithium profile. Its three-bank outputs and Bank 1 charging priority support charging across separate battery banks. The DC-DC charger accepts vehicle and solar inputs, with built-in MPPT solar regulation and automatic selection between the two sources. It also supports 12V and 24V vehicle inputs, making it suitable for different alternator supply voltages.
For AC appliances, the ePOWER inverter supplies 2,600W of pure sine wave power at 230VAC. Its internal transfer switch manages transfer between inverter power and mains or generator input, while the fitted RCD safety switch includes a test button. The ePRO PLUS battery monitor uses an intelligent shunt and remote display to show state of charge and monitor up to three battery banks.
Key features
- Two 300Ah 12V B-TEC LiFePO₄ batteries with IP67 protection and Bluetooth app support
- 12V 100A AC charging with multistage charging and a programmable lithium profile
- Alternator and solar DC-DC charging with integrated MPPT solar regulation
- 2,600W pure sine wave inverter with AC transfer and an RCD safety switch
- ePRO PLUS monitor with intelligent shunt and three-bank monitoring capability
Parallel link cables are not included. The separate supplier-listed cable options are the 70mm² × 200mm positive and negative cable kit for BT200, the 95mm² × 200mm positive and negative cable kit for BT200, and the 95mm² × 300mm positive and negative cable kit for BT150 to BT300.
Explore this bundle for a mobile 12V installation that needs lithium storage, flexible charging and switched AC power.
SKU: K-600-01
SPECIFICATIONS
B-TEC Ultra 12 V 300 Ah LiFePO₄ Battery, IP67
| Nominal voltage | 12 V |
|---|---|
| Capacity | 300 Ah |
| Ingress protection | IP67 |
| Cell-level certification | IEC 62619 |
| Maximum load current | 300 A at 25 °C |
| Peak discharge current | 1,000 A for 5 seconds |
| Maximum charge current | 300 A at 25 °C |
| Nominal charge current | 150 A |
| Charge voltage | 14.2–14.6 V |
| Standby float voltage | 13.5–13.6 V |
| Charge temperature range | −20 °C to 60 °C |
| Discharge temperature range | −20 °C to 60 °C |
| Low-cell-voltage disconnect | At or below 2.80 V per cell |
| High-cell-voltage disconnect | At or above 3.75 V per cell |
| Cycle life | 6,000 charge cycles at 80% depth of discharge |
| Communication protocols | CAN and 485 |
| Communication port | M12-6P |
| Bluetooth app | Yes |
| Pressure relief valve | Fitted |
| Heater | Fitted |
| On/off switch | Fitted |
| State-of-charge indicator | Fitted |
| Battery terminals | Two positive and two negative M8 terminals; tightening torque 8–10 N·m |
| Series and parallel configuration | Up to 4 batteries in series and 4 in parallel |
| Included mounting fittings | Mounting tray and straps |
| Component measurements | 502 × 267 × 235 mm (L × W × H) |
| Component weight | 37.5 kg |
| Warranty | 5 years |
Enerdrive 12 V 100 A AC Battery Charger
| Maximum output current | 100 A |
|---|---|
| Charge voltage range | 14.2–15.5 V |
| Float voltage range | 13.4–13.8 V |
| Equalize voltage | 15.5 V |
| Charging stages | Four-stage Bulk/Absorption/Float/Maintenance; two-stage Bulk/Absorption also selectable |
| Constant power-supply mode | Available as a programmable setting |
| Battery-bank charging priority | Priority charging for Bank 1 |
| DC output banks | Three banks: Bank 1 is fully independent; Banks 2 and 3 are common with diode isolation |
| Selectable battery types | Gel, AGM, flooded, lithium, or programmable; flooded is the default |
| Standby current | Less than 5 mA |
| AC input nominal voltages | 100, 120, 220, 230, or 240 VAC |
| AC input operating range and maximum current | 207–265 VAC at up to 7.6 A, or 90–125 VAC at up to 15.9 A |
| AC input frequency range | 47–63 Hz |
| Power consumption | 1,750 W at full load |
| Power factor correction | Yes |
| Charger efficiency | Greater than 82% |
| Reverse-polarity protection | Yes; user-replaceable fuse or fuses |
| Overcharge protection | Yes; shuts down the unit |
| Overtemperature protection | Yes; derates and shuts down the unit |
| Output short-circuit protection | Protected; charger shuts down |
| Cooling | Forced-air ventilation with thermostatically controlled fan |
| Temperature setting | Hot, Normal, or Cold; no sensor connected |
| Battery temperature sensor port | RJ12; sensor not supplied with this unit |
| Display | Backlit LCD showing charging status, battery voltage, output current, and fault codes |
| Display and control functions | Shows charger amps, battery voltage, and charge state; shows load amps in float or power-supply mode; permits settings programming and silent-mode activation |
| Silent-mode control and operation | Hold the SEL button for 5 seconds; fan is disabled and output is limited to no more than 50% for 12 hours, then normal fan-on, full-output operation resumes |
| Silent-mode effect | Disables the cooling fan and reduces charge output by half for 12 hours |
| Bulk charge stage | Charges at full rated output current until the battery reaches absorption voltage |
| Absorption charge stage | Holds voltage steady while charge current tapers as the battery approaches full charge |
| Float stage | Holds voltage at a lower, predetermined level to avoid overcharging while supporting connected DC loads; can operate as a DC power supply |
| Maintenance stage | After 7 days of continuous float operation, returns to bulk charging |
| Bank 1 programming | Bank 1 can use a different charge algorithm from Banks 2 and 3 |
| Battery-bank priority operation | Prioritizes Bank 1, then transitions charging to Banks 2 and 3; if all three banks need charging, an override helps charge them quickly and evenly before returning to Bank 1 priority |
| Mixed battery chemistries | Priority function allows Bank 1 to use a different battery chemistry from Banks 2 and 3 |
| Lithium charging profile | Programmable for lithium constant-current/constant-voltage charging; switches to power-supply mode once the voltage peak is reached |
| AC input connection | IEC connection with supplied 1.2 m power lead |
| DC output connection | Heavy-duty terminals for three banks, with 8 mm threaded hex nuts |
| DC output ground | Single heavy-duty common ground stud |
| Optional remote display | Remote digital display, Enerdrive part EN3REM |
| Optional temperature sensor | Temperature sensor, Enerdrive part EN3-TEMP |
| Storage temperature range | −40 °C to 70 °C |
| Operating temperature range | −20 °C to 60 °C |
| Operating humidity | 5–95% relative humidity, non-condensing |
| Ingress protection | IP32; basic drip protection in vertical orientation |
| Component weight | 6.4 kg |
| Component measurements | 425 × 236 × 102.7 mm (L × W × H) |
| Regulatory compliance | AS/NZS 60335.2.29, including Australian deviations |
| Warranty | 5 years |
Enerdrive 12 V DC-DC Battery Charger with MPPT Solar Regulator
| Output voltage | 12 V nominal; 8.0 V minimum |
|---|---|
| Maximum output current | 40–50 A |
| Output power | 775 W |
| User-selectable charge current | 5, 10, 15, 20, 25, 30, 35, 40, 45, or 50 A; default 40 A |
| Output-current conditions | Vehicle input is limited to 50 A; achieving 50 A requires vehicle-input voltage higher than output voltage. Solar input is limited to 30 A; a higher-voltage array can provide output current greater than the 30 A solar-input limit. |
| Output rating and cooling | 40 A+ output up to 40+ °C, with thermostatically controlled fan cooling |
| Charging stages | Selectable two-stage or three-stage charging; three-stage is the default |
| Bulk charge stage | Charges at full rated output current until the battery reaches absorption voltage |
| Absorption charge stage | Holds voltage steady while current tapers as the battery approaches full charge |
| Float stage | Maintains a lower, constant voltage while supporting connected DC loads; can operate as a DC power supply |
| Selectable battery types | Gel, AGM, flooded, lithium, or programmable custom profile |
| Charger voltage range | 13.8–15.5 V |
| Float voltage range | 13.0–13.8 V |
| Flooded-battery equalize voltage | 15.5 V |
| Equalize charging current | 10% of the bulk-current setting |
| DC output banks | Single output bank |
| Standby draw from CH1 | Less than 50 mA when not in use |
| Battery temperature setting | Low, Normal, or High |
| Battery temperature sensor | Included as standard |
| Efficiency | 95% |
| Charging inputs | Two independent DC inputs: engine/alternator and solar; charge one house battery bank |
| Input-source selection | Automatically selects engine or solar charging without external relays |
| Solar charging control | Built-in maximum power point tracking (MPPT) solar regulator |
| Solar input voltage | 14.5–45 V open-circuit |
| Solar input power | At input voltage ≤23 V: 500 W, with 600 W allowable. At 37.5–45 V: 750 W, with 800 W allowable. |
| Vehicle/alternator input voltage | 10.5–16 VDC or 21–32 VDC |
| Maximum solar input current | 30 A; a higher-voltage array can allow output current above this input-current limit |
| Vehicle input current limit | 50 A; vehicle-input voltage must exceed output voltage to achieve 50 A |
| Input and output terminals | DC M6 screw terminals |
| Display | Programmable LCD showing charging source, charger status, voltage, and amperage |
| Load-based output regulation | Regulates output in response to loads connected to the battery bank |
| Component measurements | 242 × 172 × 74 mm (H × W × D) |
| Component weight | 1.85 kg |
| Warranty | 5 years |
Enerdrive ePOWER 2,600 W 12 V Pure Sine Wave Inverter with AC Transfer and RCD
| AC output power | 2,600 W |
|---|---|
| AC output current | 11.3 A |
| AC output voltage and frequency | 230 VAC, 50 Hz |
| AC output waveform | Sine wave; less than 3% total harmonic distortion |
| Nominal DC input voltage | 12.5 VDC |
| DC input operating range | 10.5–15.5 VDC |
| No-load battery draw | Less than 1.5 A DC |
| Undervoltage alarm | 11.0 / 12.1 VDC |
| Undervoltage alarm recovery | 11.3 / 12.3 VDC |
| Undervoltage shutdown | 10.5 / 11.8 VDC |
| Undervoltage shutdown recovery | 12.0 / 12.6 VDC |
| Overvoltage shutdown | 15.5 VDC |
| USB output | 5 V, 2.1 A |
| AC transfer switch | Internal 16 A transfer switch for transfer between mains/generator and inverter |
| AC transfer time | Less than 30 ms |
| Transfer relay rating | 16 A for resistive loads |
| AC input socket | IEC-C20, 16 A maximum |
| AC output socket | IEC-C19, 16 A maximum |
| Front AC outlet | GPO, 10 A maximum |
| RCD safety switch | Fitted, with test button; switches output power off within 0.03 seconds when a safety problem is detected |
| Remote display panel | Removable LED remote-control display panel |
| Cooling and operation | Silent operation |
| Operating temperature range | 0 °C to 40 °C |
| Storage temperature range | −20 °C to 60 °C |
| Relative humidity | 5–90%, non-condensing |
| Operating altitude | Up to 3,000 m above sea level |
| Component weight | 7.0 kg |
| Component measurements | 560 × 230 × 115 mm (W × L × H) |
| Standards and conformance | Required Australian Standards; CE LVD: EN/IEC 62040-1 and IEC 61558-2-16 |
| EMI/EMC compliance | CE EMC: EN/IEC 62040-2, category C1 |
| Agency markings | RCM and CE |
| IEC plug inspection | Check IEC plugs are fully inserted after off-road use and periodically every 6 months |
| Warranty | 5 years |
Enerdrive ePRO PLUS Battery Monitor
| Monitor components | Intelligent shunt and remote control display unit |
|---|---|
| Battery compatibility | Lead-based and lithium (LiFePO₄) batteries |
| Battery banks monitored | Up to 3 battery banks |
| Additional input configurations | Bank 2 and 3 inputs can be configured for midpoint voltage measurement, keyswitch input, setup lock, or backlight control |
| Maximum measurable DC current | 600 A; 500 A continuous |
| Maximum measurable voltage | 70 VDC |
| Battery-system voltage range | 12–48 V |
| Monitoring functions | Displays battery-system state of charge and provides battery-system supervision and external-equipment control features |
| Shunt footprint | Grid Optimised footprint for integration with DC Modular products |
| Installation wiring | One supply wire to the shunt base and one QuickLink cable between the shunt base and control/display unit; battery negative cable must be interrupted to insert the shunt into the high-current circuit |
| Included connection accessories | Fused supply wire and QuickLink cable |
| SKU: | K-600-01 |
| Model #: | K-600-01 |
| MPN: | K-600-01 |
| Package weight: | 109.08 kg |
| Package length: | 1.19 m |
| Package width: | 0.33 m |
| Package height: | 0.71 m |
WARRANTY
ENERDRIVE PRODUCT WARRANTY
In the unlikely event that a technical issue arises with an Enerdrive product, customers are encouraged to initially contact the Enerdrive Support Team for immediate and efficient expertise and first class product support.
Important Note: Consumer Protections
If you have purchased your product in Australia, you should be aware that:
This warranty is provided in addition to other rights and remedies held by a consumer at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
If you have purchased your product in New Zealand, you should be aware that:
This warranty is supplemental to any other rights and remedies you have under the Consumer Guarantees Act 1993 NZ, unless your purchase is made for commercial purposes, in which case Enerdrive excludes all consumer guarantees implied in the Consumer Guarantees Act 1993 NZ in respect of your product.
Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions, as described later in this warranty) for up to 5 years from the date of purchase.
Warranty Support Team
As part of the Enerdrive warranty process you may be asked to speak with an Enerdrive Support Team member. This team assists with all technical enquiries & are there to ensure a great result is achieved every time. They will typically discover 1 of 3 possible issues:
- User Error - This is nothing to be ashamed of. Enerdrive appreciate that reading a user manual from start to finish & taking it all in is not an easy task. Enerdrive recommends every customer reads all associated user manuals. If you are still experiencing problems reach out to the Enerdrive Support Team.
- Installation Issues - The Enerdrive Support Team are highly skilled at resolving “Installation” related issues. To assist with your enquiry, you will be asked to share images of the installation and wiring of your system. An installation related issue does not usually lead to a product replacement (unless there are also defects in materials or workmanship of the product). The Enerdrive Support Team are however available to assist by offering support & guidance to both the product owner or a suitably qualified person to achieve an amicable solution.
- Product Failure - If in the unlikely event an Enerdrive product has defects in materials or workmanship (in normal conditions, as described in this warranty) and it meets the conditions as described in this warranty statement Enerdrive will arrange for the product to be repaired or replaced promptly.
Advanced Warranty Replacement Program
For a faster turn-around, and to get you up and running as quickly as possible, Enerdrive offer an “Advanced Warranty Replacement” program. This program is valid for the first 18 months of end user ownership; (i.e. The final user of the Enerdrive system). The program differs slightly depending on whether you have a credit account with Enerdrive or not.
Credit Account Customer
At your request Enerdrive will ship you a replacement product straight away and charge your account for the full cost of this replacement product. The advanced warranty replacement will be sent with a Reply-Paid satchel allowing you (or your customer) to return the faulty product via our free return freight service at your earliest convenience. Once the faulty product is received and Enerdrive has determined that it is covered under Enerdrive’s warranty, Enerdrive will credit back to your account the full cost of the advanced warranty replacement you originally received.
COD Customer / End User
At your request Enerdrive will ship you a replacement product straight away and charge your credit card, (as you are a COD customer), for the full cost of this replacement product. The advanced warranty replacement will be sent with a Reply Paid satchel allowing you to return your faulty product on our free return freight service at your convenience. Once the faulty product is received and Enerdrive has determined that it’s covered under Enerdrive’s warranty, Enerdrive will credit back to your credit card the full cost of the advanced warranty replacement you originally received.
Advanced Warranty Program Conditions for All Customers
By requesting an Advanced Warranty Replacement please be advised that if the product you return is found NOT to be faulty or is NOT covered under Enerdrive’s warranty policy (This document in full), then you will not be entitled to a refund for the cost of the Advanced Warranty Replacement and the product you returned will be shipped back to you at your expense.
Which Products does the warranty apply to?
It applies to all products manufactured or supplied under Enerdrive brands (Products). (Non Enerdrive branded products defined within Appendix)
How long does the warranty apply for?
The warranty applies for the period set out in the ‘Table – products and warranty periods’ set out at the end of this document. (Warranty Period). The periods set out in the ‘Table – products and warranty periods’ begin at the time that the first owner (other than a commercial reseller) first purchases a new Product; if the effect of that is to make your Warranty Period shorter than 5 years, then the shorter period applies. Also, if a previous owner of the Product (other than a commercial reseller) has owned it for a period of time before selling it to you, then it is likely that they will have used up part of the Warranty Period offered by Enerdrive, due to the passage of time. In that case, you will receive the benefit of the remaining balance of the Warranty Period, when you purchase it from them. You must also notify Enerdrive of any warranty claim for a Product within a reasonable period (usually 90 days) after you become aware of a Product which malfunctions. stops operating
Who is the warranty offered to? or
The person who purchases the Product from Enerdrive, or a subsequent owner(s) of the Product who purchases it from another person. (You or you)
What is being warranted?
Enerdrive warrants that covered Products will be free from defects in materials and workmanship (in normal conditions, as described in this warranty). Enerdrive does not promise that Products will always operate without interruptions, nor that Products will always be error-free. Enerdrive Products may not be suitable for medical, mining or other commercial use applications where constant uninterrupted operation may be a requirement (for these applications, the warranty period will be defined at point of sale). Each Enerdrive product is designed to operate in accordance with the specifications and in the conditions set out in any datasheet relating to the particular Product, and limits and constraints which are stated in those specifications and conditions for a Product are not defects in the Product. This is the only voluntary warranty made by Enerdrive for the Products. No person at Enerdrive can offer any different or broader warranty.
Who will determine if a Product is defective?
Enerdrive, who must act honestly and reasonably in making that decision. A court with appropriate jurisdiction may review Enerdrive’s decision.
What will Enerdrive do?
If a Product stops operating or malfunctions during the Warranty Period, due to a defect in materials or workmanship, then Enerdrive must choose between:
- repairing the defective Product, without charge to You;
- replacing the defective Product, without charge to You; or
- providing You with a refund of the purchase price paid for the defective Product.
What costs are covered?
- Reasonable costs of delivery and installation of any repair and / or replaced Products or components of Products.
- Reasonable costs of removal and return of any defective Products; and
- If the Australian Consumer Law (ACL) applies to the relationship between Enerdrive and You, then reasonable consequential expenses related to the defect and these other costs.
You must obtain written authorisation from Enerdrive, whenever possible, before incurring costs such as those mentioned above.
What are the limits on this warranty?
This warranty doesn’t cover any defect or fault to the extent to which it arises due to:
- Improper storage, handling or installation, operation use or maintenance of Products which is careless, inconsistent with instructions provided by Enerdrive, due to failure to follow the procedures and steps set out in any Commission Form, or due to inaccurate completion of the Commission Form;
- physical damage including to a Product’s surface coating or cabinet;
- use of the Product for a purpose or in environmental conditions for which it was not designed or sold, or use outside the specified or normal operating ranges for a Product;
- changes in a Product which occur due to climate or other external influence (for example: foreign material contamination, water entry, exposure to extreme heat or cold or to solvents, lightning, connection with reverse polarity or other inappropriate connection, interference from insects and pests and other issues);
- use of the Product in a more complex system which does not correctly take into account Product design, the impact of other elements of that system, and related impacts;
- normal wear and tear;
- repairs, alterations or modifications to the Product (unless done by Enerdrive);
- the use of any spare parts not manufactured, sold or approved by Enerdrive;
- any other defective or malfunctioning parts in the vehicle or device in which the Product has been installed;
- use of a Product for any unreasonable purpose;
- If any event or circumstance which is beyond the reasonable control of Enerdrive; or
- continued use of a Product after it has stopped operating or has malfunctioned.
Commercial, Medical & Mining applications carry a maximum warranty period of 24 months unless agreed to in writing at time of order / contract. an Enerdrive supplied product stops operating or has malfunctioned, you should stop using the Product immediately and make it available for assessment by the Enerdrive Support Team or warranty agent for inspection.
How can You make a warranty claim?
Contact the Enerdrive Support Team.
You must:
- make any claim in writing via email to support.enerdrive@dometic.com
- include details of the alleged defect or fault and the circumstances surrounding the defect or fault.
- provide relevant evidence of the claim, including photographs of the product installed and associated system wiring.
- provide evidence of the date when You purchased the Product including proof of purchase for the product from Enerdrive or from another person;
- Follow Enerdrive’s reasonable instructions about return of the Product.
Are there other things which may affect the warranty?
Yes. If the Product’s serial number has been altered or removed, or if the case or seal of the Product has been opened or tampered with, then this might adversely affect Your ability to make a warranty claim. Also, if you have not paid for the Product, then this may adversely affect Your ability to make a warranty claim.
How will the warranty process work, practically?
You must follow the reasonable directions and system checks / tests of the Enerdrive Support Team. If the Product is returned to Enerdrive, then upon receipt at Enerdrive, the Product will be assessed for defects, and Your claim will be reviewed. If the warranty claim is valid, then Enerdrive will choose one of the options mentioned above (repair, replacement or refund) and will communicate with You about that, to implement that choice. If the warranty claim is invalid, then Enerdrive will notify You and will provide a reasonable explanation why Enerdrive considers the claim invalid. You must then organise pickup of the Product at Your expense within 30 days. All Products replaced (or components which are replaced), will become the property of Enerdrive. If Enerdrive has ceased manufacturing or supplying a relevant Product or component, then Enerdrive may elect to deliver another type of Product (or component of a Product) which differs in colour, shape, size, weight, brand or other specifications in fulfilling its obligations under this warranty. Also, Enerdrive may always elect to provide a Product which is superior to Your original Product.
What else do You need to know?
Wrong deliveries, incorrect or damaged packing and transit damage claims are not warranty claims. Such cases should be directed to Enerdrive’s customer service 1300 851 535 Enerdrive may be required to seek personal information from you when you seek to make a claim under this warranty. Such personal information may be used by Enerdrive to process warranty claims and carry out repairs. Your information will not be shared with any other parties without your consent.
How does this warranty interact with other promises about the Product?
This warranty is in addition to any other rights and remedies which You are provided with by law. However, any warranties implied by law are limited to the greatest extent that is legally possible.
Enerdrive Five (5) Year Transferrable Product Warranty
Validity Date Enerdrive makes this warranty and associated warranty periods, valid for all products purchased from Enerdrive or its associated dealers / manufacturers from January the 1st, 2020.
Table – Products and Warranty Periods
Enerdrive supports your products “technically” for as long as you own them. Our defined warranty periods are listed below for all products (For purposes of manufacturing defects and faults and as defined in our Enerdrive Warranty Terms and Conditions)
| Product / Brand | Warranty Period | Additional instructions for product |
|---|---|---|
|
Enerdrive Battery Chargers: • ePOWER AC Series • ePOWER Industrial Series • ePOWER DC2DC • ePOWER DC Converters • ePRO AC Series |
5 Years |
• All products must be fitted according to supplied User manual and fitting instructions. • DC2DC Not approved for Under Bonnet applications. • Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years only will apply ** |
|
Enerdrive Power Inverters: • ePOWER True Sine Series • ePOWER AC Transfer Inverters |
5 Years |
• All products must be fitted according to supplied User manual and fitting instructions. • Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years only will apply ** |
|
Inverter / Charger Combi’s: • ePOWER Combi Series • ePRO Combi Series |
5 Years |
• All products must be fitted according to supplied User manual and fitting instructions. • Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years only will apply ** |
|
Battery Monitors: • ePRO+ Series • Simarine (when sold as part of a pre-built power system) |
5 Years |
• All products must be fitted according to supplied User manual and fitting instructions. • Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years only will apply ** |
|
Enerdrive Lithium Batteries • BTEC Lithium Series • BTEC ULTRA Series • Pro Series |
5 Years |
• Battery charger used MUST have and be set to Lithium charge profile set to the correct charge voltages. • No under bonnet applications – All Warranties voided if done so. • The maximum discharge current that can be drawn from ALL batteries in a single installation should not exceed the maximum discharge current of a single batteries BMS current rating. • Paralleled battery systems must be installed according to the Enerdrive ‘How to Parallel Lithium Batteries’ guidelines found HERE • It is reasonable to expect a decrease in useable amp-hour capacity over time with Lithium batteries due to factors such as number of cycles, and discharge rates. • The Lithium Battery warranty will cover all failures (no power delivery), however natural capacity decrease is not supported with the 5-year period. Should a battery deliver less than 70% of its capacity as recorded by 2 full discharge / recharge cycles as measured by an ePRO+ Battery monitor with no signs of excessive use / wear & tear, it will be considered a warrantable claim. • Any Lithium battery mounted externally must be protected from the elements to avoid any possibility of water ingress. |
Table – Products and Warranty Periods
Enerdrive supports your products “technically” for as long as you own them. Our defined warranty periods are listed below for all products (For purposes of manufacturing defects and faults and as defined in our Enerdrive Warranty Terms and Conditions)
|
Enerdrive Solar Panels: • Fixed Frame |
5 Years |
• It is reasonable to expect a decrease in produced watts delivered from solar panels over time. This is not covered under the 5-year period. • However, should a solar panel deliver less than 70% of its capacity as recorded by a short circuit test in full sunlight, with panel angled according to the seasonal time of year it may be considered a warrantable claim. • Any signs of pressure, hail damage or incorrect mounting will however void any claim. • In the event of a claim for Warranty being approved, Enerdrive cannot be held accountable for labour or removal / replacement costs of faulty solar panels. |
|
Solar Controllers: • ePOWER Series • MorningStar Series (see note) |
5 Years |
• All products must be fitted according to supplied User manual and fitting instructions. • Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years will only apply **. |
| Enerdrive Complete System Packages: Fully assembled System Plates, Canopy panels, DIY Install Kits, | 5 Years All Enerdrive components and workmanship included |
• All systems plates must be fitted according to supplied User manual and fitting instructions. • It is recommended that all high current and charge cable connections be checked for tightness on a regular basis. |
| Connection Accessories: BLUE SEA Connection Accessories, Bussmann, Carling & Enerdrive Range | For as Long as the System is Installed up to 5 Years |
• All products must be fitted according to supplied User manual and fitting instructions. • Should any product be installed against Electrical Industry ‘Best Practice’ then a maximum warranty of 2 years will only apply. |
| Simarine (when sold separately) | 3 Years | • As per standard manufacturer warranty periods defined with product |
| For all other brands sold by Enerdrive|Dometic | See notes | • As per standard manufacturer warranty periods defined with product |
** The Term ‘Industry Best Practice’ relates to how a cross section of professionals within the DC / AC related industries would view what is considered Right or Wrong in a wiring system. It is not an attempt by Enerdrive to void any warranty obligations, however considering a large proportion of product issues are related to installation or system-based problems of some nature, it’s ensuring that an Enerdrive product is installed and used correctly as originally intended. All Enerdrive products have an installation manual which shows the requirements for installation, with ‘Industry Best Practice’. Installations shall be compliant to relevant standards including but not limited to AS/NZ 3001 (Electrical Installation Transportable Structures) and AS/NZ 3004 (Electrical Installation Marinas and Boats)
Other Notes:
- While warranty is transferrable to subsequent owners, it is ONLY valid to original installation.
- Commercial, Medical and Mining Application Warranty: Unless agreed otherwise, the standard warranty for all Commercial Vehicle, Medical or Mining applications is 24 Months, unless agreed to in writing at time of order / supply contract. Enerdrive will evaluate the application fairly on all merits of use to determine the best possible warranty period to assist the client.
