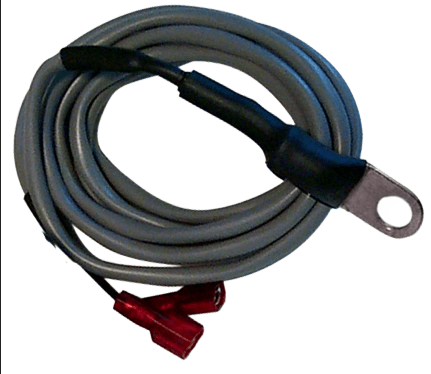

Balmar Alternator Temperature Sensor with 2m Cable

Extended Reach and Thermal Protection for High-Output Charging Systems

High-output marine and off-grid charging systems place immense thermal loads on your alternator, especially when rapidly recharging deep-cycle or lithium house battery banks. The Balmar Alternator Temperature Sensor provides critical thermal feedback to compatible external voltage regulators, allowing the system to dynamically adjust field output before destructive heat levels are reached.

While standard installation kits often include a 54-inch (approx. 1.4m) sensor lead, larger engine bays, dual-engine setups, or remote regulator mounting locations frequently require additional length. This genuine 80-inch (approx. 2.0m) version solves installation routing challenges without the need to cut and splice sensitive data wires.

Key Features and Benefits

• Extended 80-inch (Approx. 2.0m) Lead: Offers vital extra length compared to standard 54-inch (approx. 1.4m) cables, accommodating complex routing around bulkheads and engine room obstacles.
• Continuous Thermal Monitoring: Delivers real-time temperature data from the alternator casing directly to your external voltage regulator.
• Proactive System Protection: Helps prevent stator and rotor burnout by enabling automatic output de-rating when high temperatures are detected.
• Factory-Terminated Integrity: Eliminates the need for DIY wire extensions and splices, which can introduce electrical resistance and distort temperature readings.

Why Avoid DIY Cable Extensions?

When a standard 54-inch (approx. 1.4m) temperature sensor falls short of the voltage regulator, installers may be tempted to splice in additional wire. However, temperature sensors rely on precise resistance and voltage values to communicate accurate thermal data. Introducing butt connectors, solder joints, or uncalibrated wire gauges can alter the circuit's resistance, leading to inaccurate readings at the regulator.

Using a factory-built 80-inch (approx. 2.0m) lead mitigates the risk of signal degradation, moisture ingress at splice points, and premature system failure. This dedicated Balmar component is designed for use with Balmar external regulators, helping safeguard your heavy-duty alternator against thermal overload.

Ideal Applications

This extended-length alternator sensor is suited for 12V, 24V, and 48V charging architectures that utilise external Balmar voltage regulation. It is particularly beneficial for:

• Marine vessels with spacious engine rooms or bulkhead-mounted regulators located outside the immediate engine space
• Twin-engine installations where a secondary alternator requires a longer cable path to a centralised electrical panel
• Off-grid expedition vehicles and commercial trucks with complex chassis wiring harnesses
• Upgrading high-output alternators charging large lithium (LiFePO4) battery banks that demand sustained, heavy current output

Complete Your Alternator Protection Setup

Ensure your charging system operates safely under heavy loads without compromising on wiring integrity. Select the Balmar 80-inch (approx. 2.0m) alternator temperature sensor for a clean, reliable installation across your engine bay.
