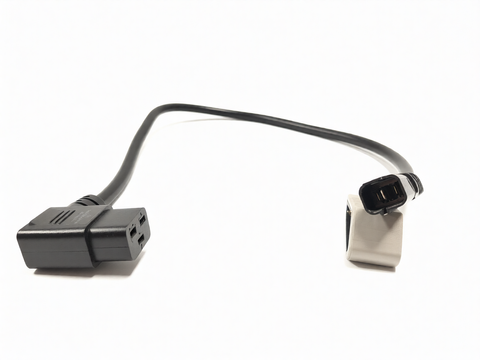

CMS C3.1 to IEC C19 Inverter Input Cable, 600mm, 90°, 2.5mm

Compliant Soft-Wiring Interconnect for Tight Caravan and RV Inverter Enclosures

Designing a compliant 240V AC electrical system in a caravan, motorhome, or off-grid transportable structure requires components that meet strict regulatory standards while fitting into compact utility bays. This specialised 600mm inverter input cable assembly bridges the gap between CMS Electracom C3.1 modular soft-wiring systems and power inverters equipped with an IEC C19 AC input socket.

Engineered specifically to satisfy the stringent requirements of the AS/NZS 3001.2:2022 Electrical Installation Standard, this pre-terminated lead eliminates the compliance risks associated with field-wired connections or sub-standard computer cords. By utilizing a heavy-duty 2.5mm² conductor cross-section, it supports reliable current delivery for high-output inverter-chargers, reducing voltage drop and thermal stress during heavy AC charging or pass-through loads.

Space-Saving 90° Right-Angle Design

Modern power inverters and inverter-chargers are frequently installed in tight under-bed compartments, narrow canopies, or shallow electrical cabinets where clearance around the AC input terminal is severely restricted. Standard straight IEC C19 plugs protrude significantly from the inverter chassis, often forcing installers to bend the cable sharply against cabinet walls. This mechanical strain can fatigue copper conductors, loosen internal terminals, and pull the connector partially out of the socket over corrugated roads.

The integrated 90° right-angle IEC C19 connector solves this spatial challenge by routing the heavy 2.5mm² lead cleanly parallel to the inverter housing. This low-profile orientation reduces the required installation depth, prevents hazardous cable kinking, and minimizes strain on the inverter's internal AC input receptacle.

Key Features and System Benefits

• AS/NZS 3001.2:2022 Compliant: Constructed with 2.5mm² core conductors to meet current Australian and New Zealand regulations for transportable structures and recreational vehicles.
• Space-Optimised 90° IEC C19 Plug: Right-angle configuration reduces clearance requirements behind or beneath the inverter, preventing cable pinch points in compact enclosures.
• Genuine CMS C3.1 Integration: Plugs directly into compatible CMS Electracom C3.1 distribution blocks and inlet leads for a fast, modular plug-and-play 240V AC installation.
• Compact 600mm Length: Ideal for short-run interconnections between adjacent AC distribution hardware and the inverter input, eliminating excess cable clutter in the electrical bay.
• Factory-Moulded Reliability: Pre-terminated, robust connectors provide superior strain relief and vibration resistance compared to standard, lower-grade appliance leads.

Reducing Installation Risk in Mobile Environments

When fitting out a commercial service vehicle, caravan, or off-grid cabin, using standard IT-grade C19 server cords (which frequently use smaller 1.0mm² or 1.5mm² conductors) can result in non-compliant installations and overheating under sustained inverter loads. Upgrading to a purpose-built 2.5mm² CMS Electracom interconnect ensures your 240V AC input path maintains continuous regulatory compliance and mechanical security across rough terrain.

Streamline your next mobile 240V AC fit-out and ensure full compliance with Australian electrical standards by adding this right-angle CMS C3.1 to IEC C19 inverter input lead to your system build today.
