CMS 240V 15A AC Power External Inlet with 16A RCD, IP44, Black

External 240V AC Power Connection for Caravans, Motorhomes, and Off-Grid Setups

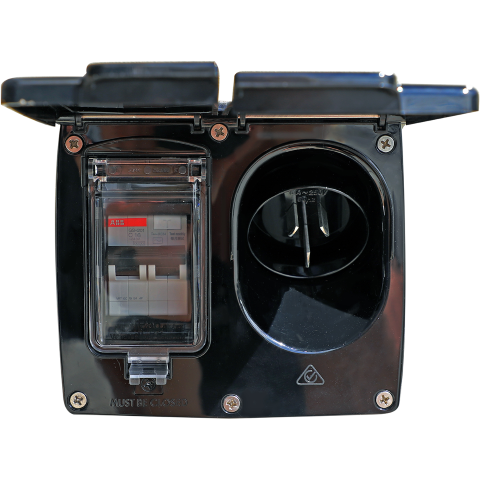

The CMS Electracom 240V 15A AC Power External Inlet provides a secure, weather-resistant interface for connecting shore power or generator supply to your recreational vehicle. Designed specifically for the demands of mobile and off-grid environments, this all-in-one external unit combines a recessed 3-pin male connector with an integrated 16A Residual Current Device (RCD), streamlining your electrical installation and providing critical circuit protection at the point of entry.

Whether you are fitting out a new caravan, upgrading a camper trailer, or building a custom service body, bringing 240V AC mains power into a vehicle requires strict adherence to electrical safety standards. By housing the safety switch directly beside the power inlet, this unit eliminates the need to mount a separate internal RCD enclosure, saving valuable interior cupboard and wall space while simplifying the wiring process for your licensed electrician.

Integrated Circuit Protection and Weatherproof Design

When connecting your RV to caravan park mains or an external inverter generator, protecting both the occupants and the onboard electrical system from earth leakage and overcurrent faults is essential. The built-in 16A RCD acts as the primary safety barrier, immediately isolating the 240V AC supply if a fault is detected. A dedicated transparent, hinged inspection window sits over the RCD, allowing you to visually verify the switch status at a glance and easily reset the breaker without exposing the internal components to the elements.

Constructed for exterior vehicle mounting, the durable black enclosure features dual hinged flip covers that provide an IP44 ingress protection rating when closed. This shields the recessed 15A male pins and the RCD mechanism from splashing water, rain, and road dust during transit or while parked at a campsite. The sleek black finish integrates cleanly with modern dark-themed caravan cladding, aluminium composite panels, and contemporary automotive paintwork.

Key Features and Benefits

• All-in-One Power Entry: Combines a 240V AC 15A male inlet with a 16A RCD in a single exterior housing, reducing internal space requirements.
• Recessed 3-Pin Connector: Safely accepts standard Australian 15A heavy-duty extension leads for reliable shore power or generator hook-ups.
• Clear RCD Inspection Window: Allows effortless visual checks of the safety switch status and easy manual operation when required.
• IP44 Weather Resistance: Dual hinged outer covers protect the electrical terminals from water splashes and solid debris in outdoor conditions.
• Plug-and-Play Compatibility: Engineered to integrate seamlessly with CMS Electracom modular wiring systems, reducing installation complexity compared to standard hardwired alternatives.
• Modern Black Finish: UV-stabilised, dark exterior casing complements modern RV, motorhome, and commercial vehicle aesthetics.

Important Note on Current Supply Configuration

Please note that this product is currently supplied as a J-Series unit complete with a short adapter lead to convert from the J-Series connection to a C-Series cable. This is a temporary supply arrangement implemented by CMS Electracom to maintain stock availability. CMS Electracom confirms that this substitution is entirely internal and does not alter or affect the product's external appearance, mounting dimensions, or electrical operation once fitted to your vehicle.

Reliable Mains Power Integration for Your Build

Equip your caravan, motorhome, or Tiny Home with a professional-grade mains power entry point. Select the CMS Electracom 15A AC Inlet with integrated RCD for a streamlined, compliant, and space-saving 240V electrical installation.
