CMS 10A 30mA “C” Style to 3 PIN Residual Current Device (RCD)

Reliable Soft Wiring Protection and Modular Circuit Safety

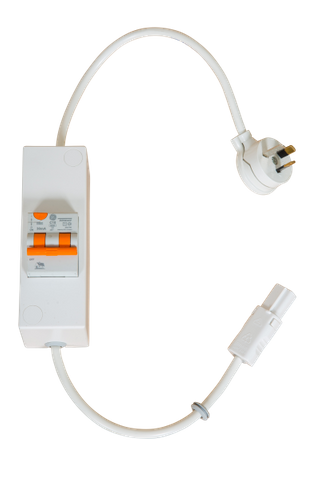

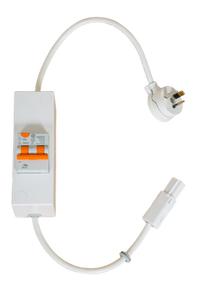

The CMS Electracom 10A "C" Style to 3 PIN Residual Current Device (RCD) provides essential circuit protection for commercial workstations, retail fit-outs, and specialised electrical installations. Engineered to bridge standard Australian 240V AC power outlets with CMS modular soft wiring networks, this inline safety switch ensures personnel and connected equipment remain safeguarded against electrical faults. By integrating a dedicated 30mA residual current trip threshold alongside 10A overload protection, it serves as a vital safety barrier in environments where hardwired distribution board protection may be inaccessible or requires local supplementation.

Seamless Integration with Modular Wiring Systems

Modern office and commercial environments rely heavily on the flexibility of soft wiring to adapt to changing layouts. This unit features a durable Australian 3-pin plug on the input side, allowing immediate connection to standard wall sockets or floor boxes. On the output side, the quick-connect "C" Style connector interfaces directly with CMS Electracom soft wiring components, such as under-desk power rails, workstation starter leads, and daisy-chained power modules. This plug-and-play architecture eliminates the need for complex on-site termination, reducing installation time and minimising the risk of wiring errors.

Key Features and Technical Advantages

• Dual-Function Protection: Combines a 30mA residual current trip threshold for earth leakage protection with a 10A rated current limit to prevent circuit overloads.
• Standard AU 3-Pin Input: Connects directly into conventional Australian power outlets, making it ideal for retrofits, temporary setups, and leased commercial spaces.
• Proprietary "C" Style Output: Designed specifically for secure, polarised connection with compatible CMS Electracom modular wiring looms and power distribution units.
• Compact, Low-Profile Enclosure: The slender white housing is engineered for space-saving installations, fitting neatly into cable management trays, modesty panels, or under-desk mounting brackets.
• Accessible Reset Switch: Features a clearly visible integrated safety switch, allowing facility managers and users to easily test and reset the unit locally without accessing the main switchboard.

Reducing Risk in Commercial and Mobile Applications

Compared to basic power leads and standard distribution boards, an inline RCD significantly reduces the risk of electric shock and electrical fires caused by damaged cables or faulty appliances. In high-density workstation environments, cables are frequently subjected to wear, pinching, and accidental disconnection. If an earth leakage fault occurs, this device rapidly disconnects the power supply within milliseconds. Furthermore, the keyed "C" Style interface prevents accidental cross-connection with incompatible voltage systems, maintaining strict compliance with Australian workplace electrical safety standards.

Ideal Applications

• Commercial office workstations, sit-stand desks, and boardroom tables
• Educational facilities, laboratories, and training rooms
• Retail point-of-sale counters and temporary exhibition displays
• Mobile醫療 or technical carts requiring local earth leakage protection
• Retrofitting older buildings where existing wall outlets lack dedicated RCD coverage

Upgrade Your Modular Power Safety

Ensure your commercial fit-out or modular workstation setup meets rigorous safety standards with genuine CMS Electracom protection components. Integrate this 10A "C" Style to 3-pin RCD into your soft wiring network today for dependable, compliant circuit protection.
