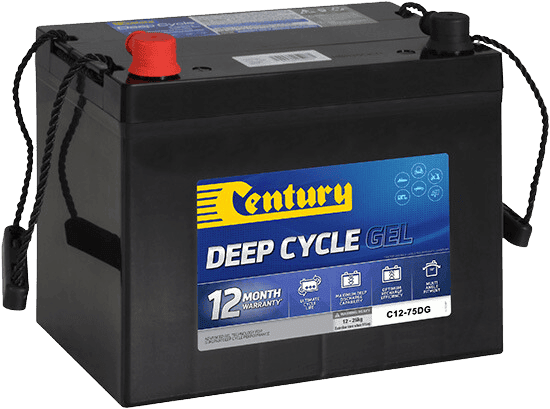

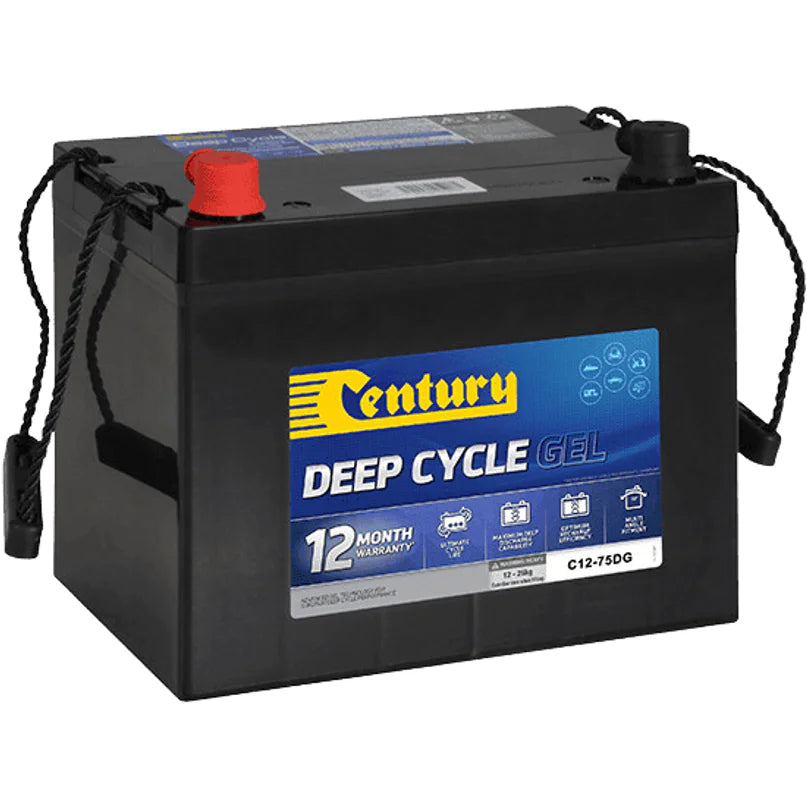

Century 12V 70Ah Gel Deep Cycle Battery
Century 12V 70Ah Gel Deep Cycle Battery
Deep cycle power under extreme operating conditions
Highlights:Positive Terminal: Red protective cap covering the M6 insert terminal,Negative Terminal: Black protective cap covering the negative connection,Rope Handles: Durable rope carrying handles for easy lifting,Warranty: 12-month manufacturer warranty,Gel Technology: Maintenance-free deep cycle gel technology.
Regular price
$479.00
Availability:
In Stock at Century Warehouse
Allow up to 3 days before dispatch
View all products from Century
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Century Deep Cycle Gel Batteries are specially designed to provide long lasting, dependable deep cycle power under extreme operating conditions.
The Century Gel Deep Cycle Range incorporates advanced Gel electrolyte technology which holds the battery plates in an immobilized gel. Specialist hard wearing internal components and strong grid designs combine to provide excellent vibration resistance, superior deep cycle performance and repeated deep discharge and recharge capabilities. They are ideal for use in recreational vehicles and accessories, electric powered vehicles, mobility scooters, wheel chairs and marine applications.
The range is completely maintenance free, requiring no topping-up of liquid electrolyte, whilst the valve-regulated sealed design enables installation in hard to reach locations.
Under Bonnet Fitment Advice: Fuel, oil and other engine lubricants may cause damage to battery casing materials. It is strongly recommended that you avoid fitting Deep Cycle AGM batteries under the bonnet of your vehicle as this will void the warranty.
Special Features: Carry Handles, Central Venting, Flame Arrestor, Gel Electrolyte Technology, Maintenance Free, Vibration Resistant.
SKU: C12-75DG
SPECIFICATIONS
Specifications
| Cells | 6 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight (min / max) | Approx. 23.5–23.5 kg | |||||||||||||||
| Voltage | 12V | |||||||||||||||
| Max. Discharge Current | 750A (5 sec) | |||||||||||||||
| Capacity | 70Ah@20hr-rate to 1.75V per cell @ 25°C | |||||||||||||||
| Internal Resistance | Approx. 7.0mΩ | |||||||||||||||
| Operating Temperature Range |
Discharge: -40°C~60°C Charge: -20°C~50°C Storage: -40°C~60°C |
|||||||||||||||
| Terminal | M6 Insert | |||||||||||||||
| Container Material | A.B.S. (UL94-HB) | |||||||||||||||
| Normal Operating Temperature Range | 25°C ± 5°C | |||||||||||||||
| Recommended Max. Charging Current Limit | 15A | |||||||||||||||
| Float Charging Voltage | 13.6 to 13.8 VDC/unit (Average at 25°C) | |||||||||||||||
| Equalisation & Cycle Service | 14.2 to 14.4 VDC/unit (Average at 25°C) | |||||||||||||||
| Self Discharge |
Century GEL batteries can be stored for more than 6 months at 25°C. Self-discharge rate less than 3% per month at 25°C. Please charge batteries before using. |
|||||||||||||||
| Note | Warranty void if mounted under bonnet. | |||||||||||||||
| Charging Procedures (12V series) |
|
|||||||||||||||
| Discharge Current VS Discharge Voltage |
|
|||||||||||||||
| Charging Method | Constant Voltage -0.2Cx2h+2.4~2.45V/Cellx24h, Max.Current 0.3CA | |||||||||||||||
| Storage Charging Recommendation | Charge the batteries at least once a month every six months, if they are stored at 25°C | |||||||||||||||
| Notes | ALL MENTIONED VALUES ARE AVERAGE VALUES. |
| SKU: | C12-75DG |
| Barcode: | 9313857316622 |
| Model #: | C12-75DG |
| MPN: | C12-75DG |
WARRANTY
12 months warranty - Conditions apply. Refer to individual warranty statements affixed to each product.
