Blue Sea 500A HD-Series Heavy Duty 4 Position (OFF/1/2/1+2) Battery Selector Switch w/ AFD
Blue Sea 500A HD-Series Heavy Duty 4 Position (OFF/1/2/1+2) Battery Selector Switch w/ AFD
Make-before-break changeover, ignition protected, AFD support

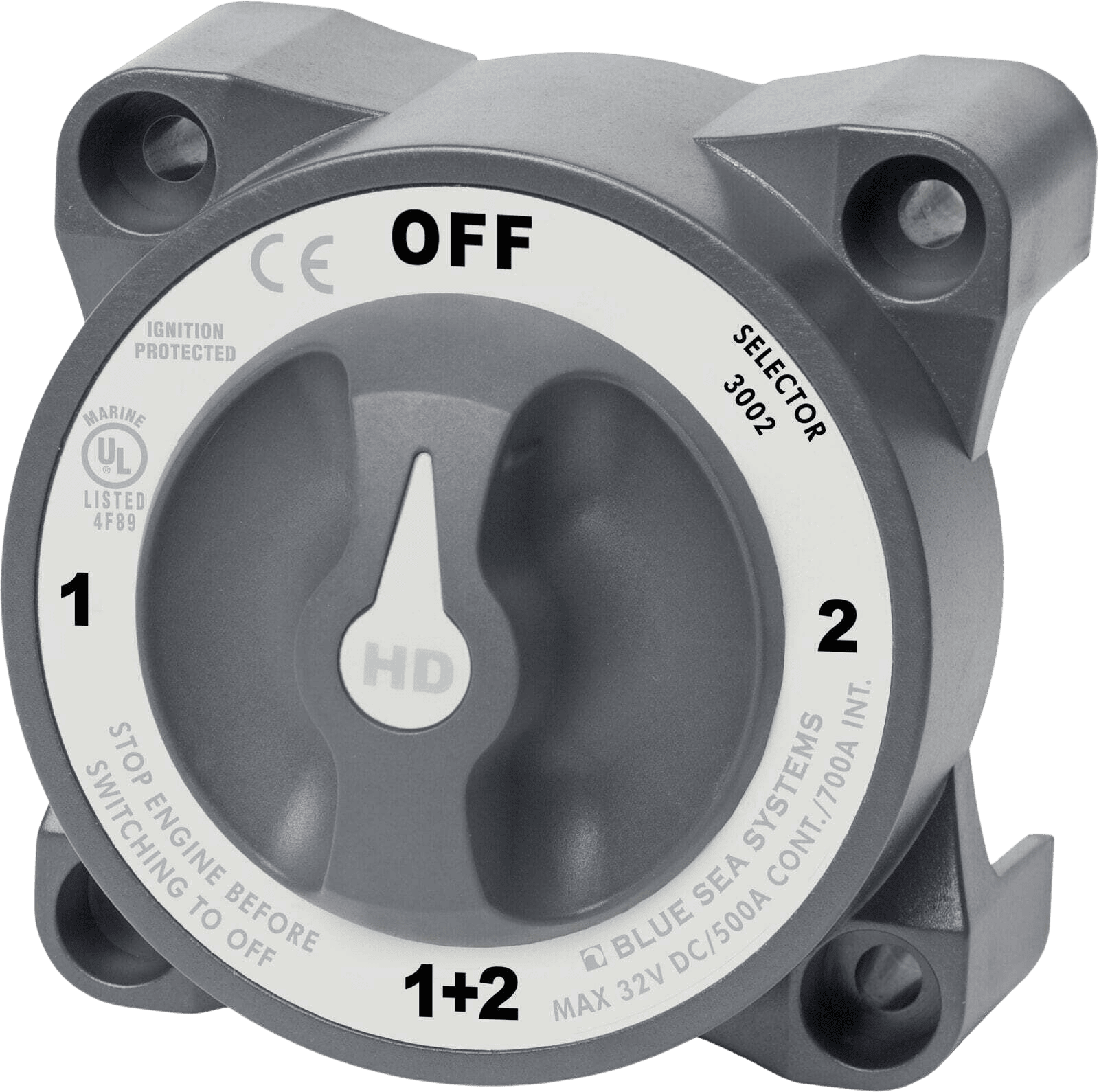

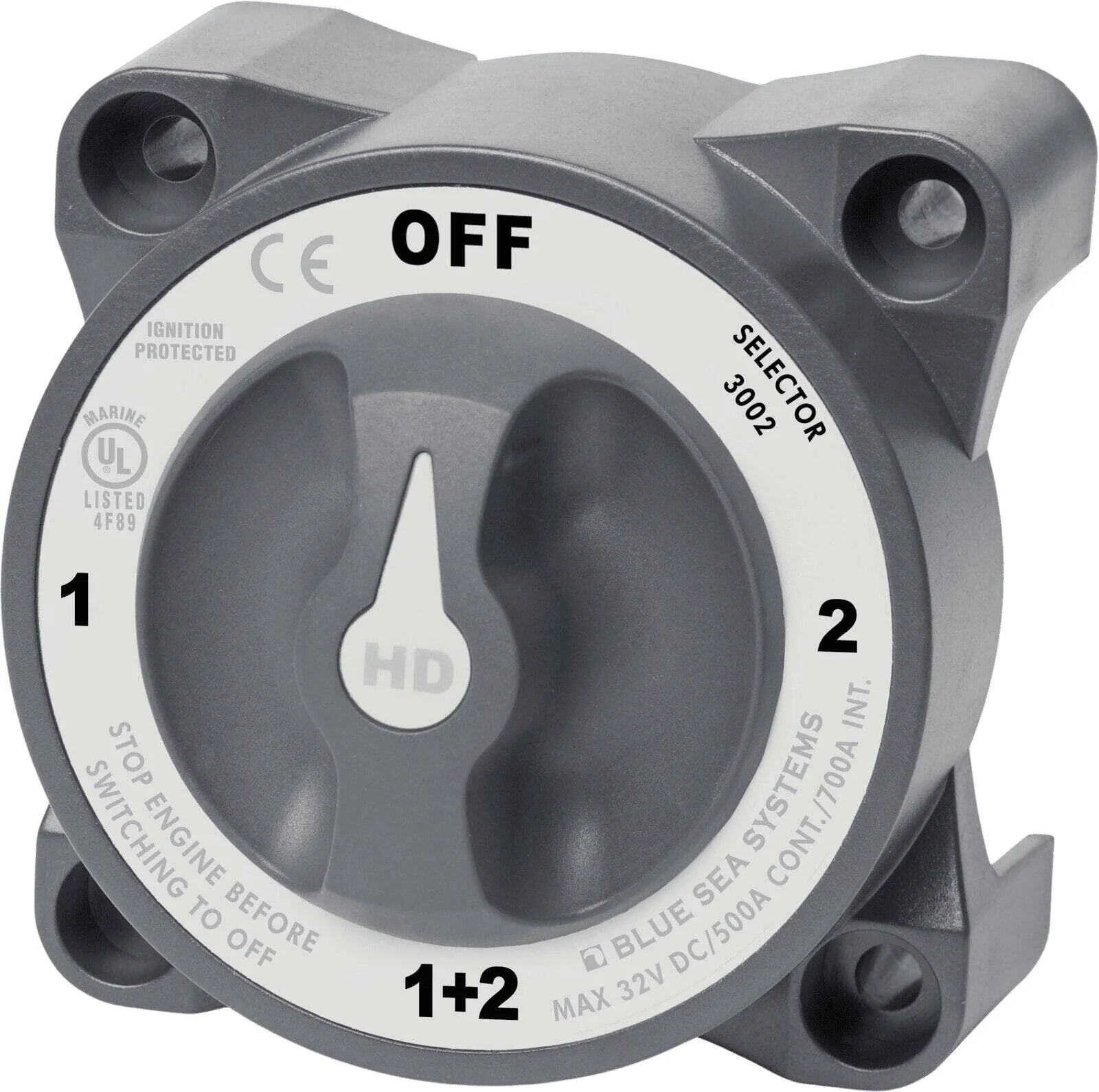

Key features: 4-position rotary dial (OFF, 1, 2, 1+2), Ignition protected marine design, Heavy-duty construction for high amperage.

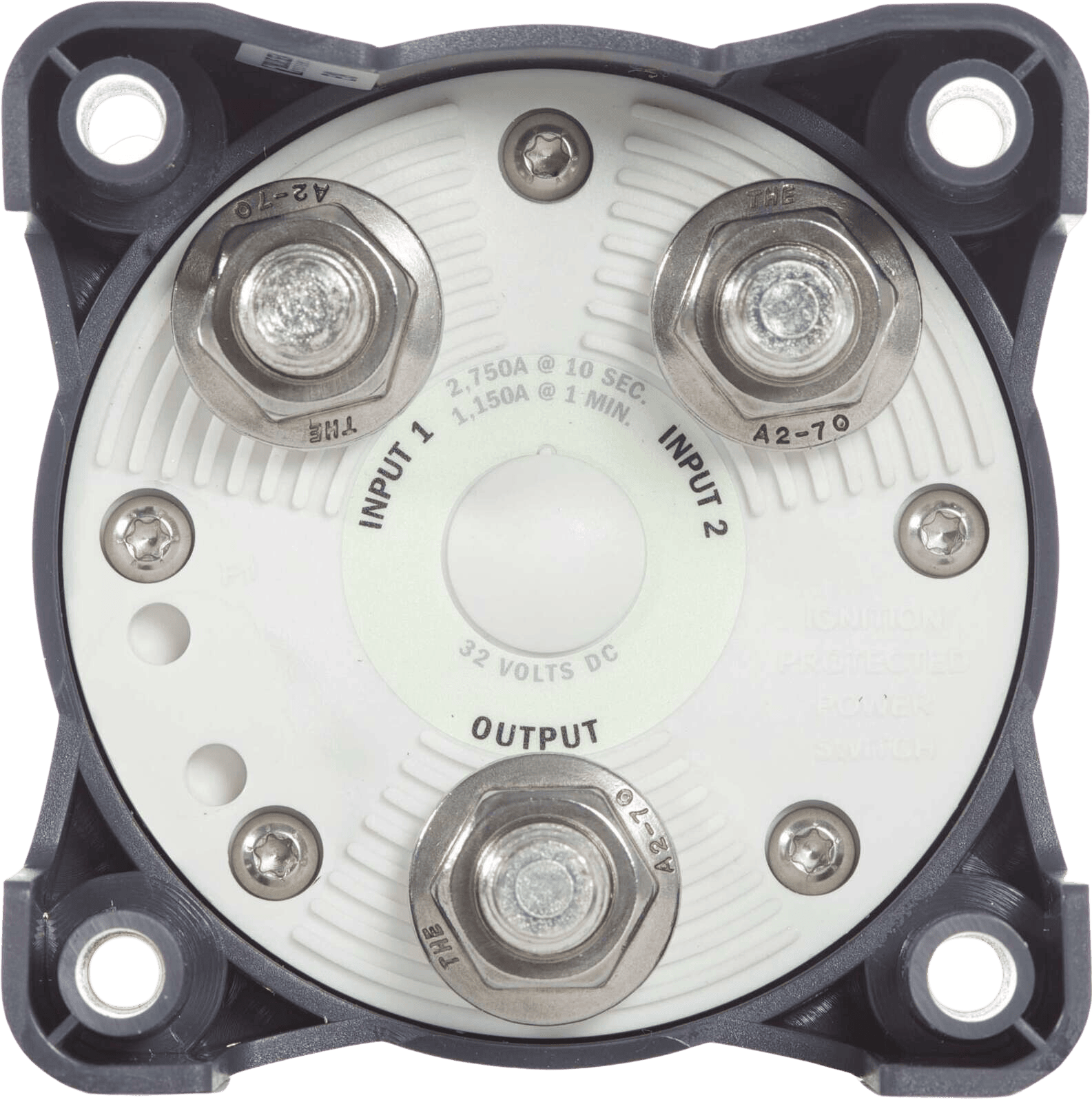

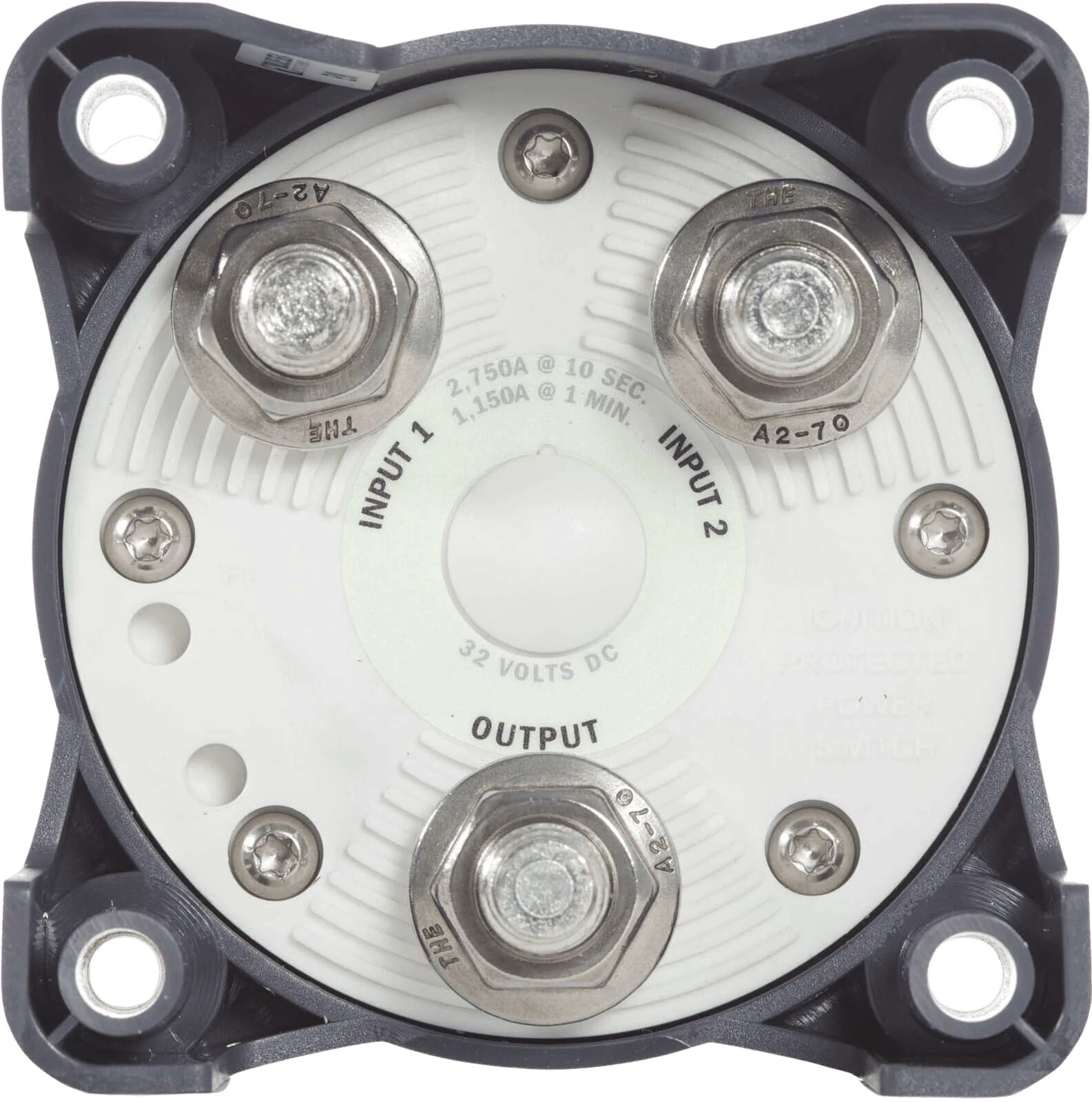

Highlights:Input 1 Terminal: Connection stud for first battery bank,Input 2 Terminal: Connection stud for second battery bank,Output Terminal: Common output connection to load or engine,Mounting Hole: Corner mounting point for secure installation.
Regular price
$188.00
Availability:
Backorder
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Confident control of dual battery banks for marine and RV power
Managing multiple battery banks on a boat, 4WD or caravan often means balancing two priorities: keeping critical loads powered and protecting your charging system. The Blue Sea HD-Series 4-position battery selector switch with AFD is built for high-current installations where dependable changeover and battery isolation matter. It gives you clear, manual control to run from Battery 1, Battery 2, both combined, or OFF—helping you reduce the risk of accidental battery drain and simplify troubleshooting on-board electrical systems.
For Australian conditions and demanding marine environments, this selector switch is designed to suit heavy-duty cable runs and high-load circuits. The HD construction, robust terminals and practical mounting options make it a strong fit for new installs and upgrades where reliability and serviceability are priorities.
Why AFD matters when switching under charge
When an engine is running, abruptly disconnecting the alternator can contribute to voltage spikes that may stress sensitive electronics. This model includes AFD (Alternator Field Disconnect), supporting safer switching practices for systems that require alternator field management. Combined with a make-before-break contact design, it allows you to transition between battery banks without the momentary loss of power that can reset devices such as radios, navigation equipment and onboard control modules.
Built for marine safety and installation flexibility
On petrol-powered vessels, component safety ratings matter. This switch is ignition protected, making it suitable for installation in engine spaces where ignition protection is required. The enclosure is also designed for practical installs, offering surface or rear panel mounting to suit dashboards, switch panels and electrical lockers. With clearance and terminal design intended for large battery cables, it supports tidy, professional cable routing in tight compartments.
Ideal applications
This heavy duty battery isolator/selector is commonly used in:
- Boats with house and start battery banks
- 4WD touring setups with dual batteries and accessory loads
- Caravans and camper trailers needing selectable battery sources
- Workboats and commercial vehicles where downtime and power interruptions are costly
Key features
- 4-position selector for OFF / Battery 1 / Battery 2 / Combined operation
- AFD support to assist alternator field disconnect requirements
- Make-before-break switching to help minimise power interruption during changeover
- Ignition protected design for use on petrol-powered boats where applicable
- Flexible mounting options for cleaner installs and easier servicing
- Heavy duty terminals designed to suit large battery cable connections
Practical benefits for owners and installers
Compared with lighter-duty battery switches, the HD-Series format is aimed at high-current systems where heat, vibration and frequent use can expose weak points. By giving you a clear operating mode and robust changeover, it can help reduce nuisance shutdowns, simplify battery management, and support safer isolation during maintenance. It’s a straightforward upgrade for anyone looking to improve confidence in their marine electrical system, dual battery setup, or auxiliary power distribution.
If you’re building or refreshing a system, pair this switch with correctly sized cables, appropriate circuit protection and a wiring layout that matches your alternator/charging method for best results.
SKU: BS-3003B
SPECIFICATIONS
Specifications
| Switch Type | Selector 4 Position |
|---|---|
| Color | Grey |
| Switch Positions | 4 |
| Battery Combine | Yes |
| Alternator Field Disconnect | Yes |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque |
220 in-lb (24.86 N·m) (approx. 18.3 ft-lb; reference only) |
| Continuous Rating | 400A |
| Intermittent Rating | 700A (5 min) |
| Starting Rating (30 sec) | 1600A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables |
1.10in (27.94 mm) (reference only) |
| Cable Quantity to Meet Ratings | Two Cables / Terminal |
| Cable Size to Meet Ratings |
4/0 AWG (120mm²) (AWG vs mm² is an approximate equivalence; reference only) |
| Mounting Holes |
Accept 1/4" (M6) Screw (1/4" ≈ 6.35 mm; M6 is 6 mm; reference only) |
| Stud Material | Tinned Copper |
| Switching Rating | 25A |
| Terminal Stud Size |
1/2" (M12) (1/2" ≈ 12.70 mm; M12 is 12 mm; reference only) |
| Weight (min / max) |
1.25–1.25 lb (0.57–0.57 kg) (approx. 570 g; reference only) |
| SKU: | BS-3003B |
| Model #: | BS-3003B |
| MPN: | BS-3003B |
