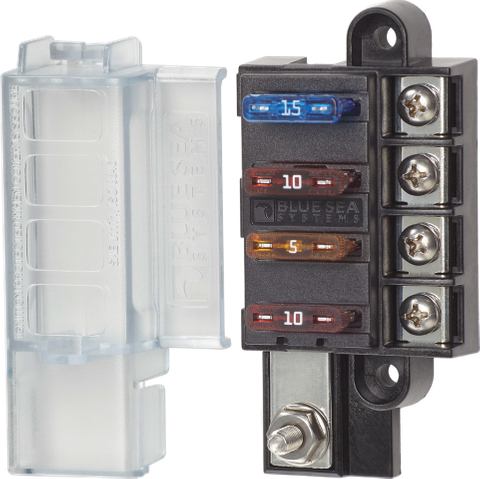

Blue Sea ST Blade Fuse Compact 4-Circuit Fuse Block with Insulating Cover
Blue Sea ST Blade Fuse Compact 4-Circuit Fuse Block with Insulating Cover
Single-Side Wire Entry - Tin-Plated Copper - Ignition Protected
Regular price
$55.60
Availability:
In Stock at Blue Sea Warehouse
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Space-Saving 4-Way Circuit Protection for Marine, 4WD, and Off-Grid Electrical Systems
Organising DC power distribution in confined spaces requires hardware engineered for both spatial efficiency and electrical reliability. The Blue Sea Systems ST Blade Compact 4-Circuit Fuse Block provides consolidated circuit protection for standard ATO and ATC blade fuses. Designed specifically for tight installation footprints in marine vessels, 4WD canopies, caravans, and commercial vehicles, this surface-mount block streamlines wiring layouts while maintaining strict safety compliance.
Single-Side Wire Entry for Tight Mounting Locations
Traditional fuse blocks often require wiring clearances on both sides of the unit, increasing the overall installation footprint. This compact model features a dedicated single-side wire entry design, allowing the positive feed and all four load outputs to enter from the same direction. This configuration lets installers mount the block flush against bulkheads, walls, or adjacent electrical components, maximising usable space inside cramped electrical cabinets or under-dash areas. The unit accepts standard ring or snap-fork type terminals, providing secure mechanical retention against harsh off-road vibrations and heavy sea states.
Marine-Grade Construction and Ignition Protection
Unprotected copper components in humid or coastal environments rapidly oxidise, leading to voltage drop, heat build-up, and intermittent circuit failure. To mitigate these risks, this fuse block is constructed with high-conductivity, tin-plated copper bus bars and fuse clips. The tin plating resists corrosion in harsh marine and automotive environments, maintaining optimal power transfer over the lifespan of the system.
For installations in sensitive areas, the included translucent insulating cover satisfies ABYC and USCG insulation requirements. When the cover is securely latched in place, the fuse block meets ISO 8846 and SAE J1171 standards for ignition protection, making it suitable for installation within petrol engine compartments and fuel storage areas.
Key Features and Benefits
- Single-Side Wire Entry: Consolidates all wiring to one side of the block, minimising the overall mounting footprint in restricted spaces.
- Corrosion-Resistant Materials: Tin-plated copper bus bars and fuse clips deliver reliable conductivity and minimize resistance in marine and humid climates.
- Certified Ignition Protection: Complies with ISO 8846 and SAE J1171 standards for safe use in petrol engine compartments when the insulating cover is secured.
- ABYC and USCG Compliant: Clear insulating cover prevents accidental short circuits from loose wires or falling tools while allowing rapid visual fuse inspection.
- Secure Terminal Compatibility: Accommodates standard ring and snap-fork terminals for dependable, vibration-resistant wire terminations.
- System Organisation: Includes four write-on circuit labels for clear, compliant identification of connected loads during maintenance or troubleshooting.
Practical Applications and Installation Notes
Whether you are wiring auxiliary lighting on a 4WD, installing navigation electronics on a boat, or adding dedicated circuits to a camper trailer, the ST Blade Compact series offers a professional distribution hub. It replaces messy inline fuse holders mounted directly to battery terminals, significantly reducing clutter and simplifying fault finding.
Please note: ATO and ATC blade fuses are sold separately, allowing you to select the exact amperage ratings required for your specific load wiring.
Upgrade Your DC Power Distribution
Select the Blue Sea ST Blade Compact 4-Circuit Fuse Block to establish a safe, organised, and compliant electrical distribution point for your marine, automotive, or off-grid power system.
SKU: BS-5045B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Fuse block |
| Number of circuits | 4 |
| Mounting | Surface mount |
| Compatible fuse formats | ATO and ATC |
| Cover | Insulating cover included; meets ABYC/USCG insulation requirements |
| Bus bars and fuse clips | Tin-plated copper |
| Terminals | Accepts ring or snap-fork type terminals |
| Wire entry | Single-side entry |
| Ignition protection | When the cover is secure; meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment |
| Circuit labels | 4 write-on labels included |
| Fuses | Sold separately |
| SKU: | BS-5045B |
| Model #: | BS-5045B |
| MPN: | BS-5045B |
| HS code: | 8536908585 |
| Country of origin: | MX |
| Package weight: | 0.144 kg |
| Package length: | 0.12 m |
| Package width: | 0.1 m |
| Package height: | 0.06 m |
