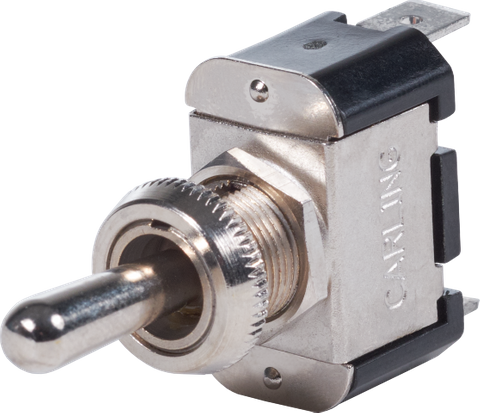

Blue Sea SPST (ON)-OFF-(ON) WeatherDeck Toggle Switch
Blue Sea SPST (ON)-OFF-(ON) WeatherDeck Toggle Switch
Carling Technologies Momentary Marine Switch - Nickel-Plated Brass
Regular price
$12.36
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty Momentary Control for Marine Electrical Systems
Engineered specifically for harsh marine and off-grid environments, this three-position toggle switch provides dependable momentary control for critical onboard accessories. Manufactured by Carling Technologies for seamless integration with Blue Sea Systems WeatherDeck panels, it delivers the mechanical precision required for demanding electrical installations. In brackets, the (ON)-OFF-(ON) configuration indicates a dual momentary action, meaning the actuator springs back to the central off position when released. This makes it an ideal solution for applications requiring temporary engagement, such as trim tabs, windlasses, bilge pump overrides, or intermittent horn and wiper controls.
Engineered for Harsh Marine Environments
Standard switches often fail prematurely in coastal and marine settings due to salt spray, high humidity, and constant vibration. To mitigate the risk of electrical failure and voltage drop caused by oxidation, this component features a specialized nickel-plated brass and phenolic construction. These non-corrosive materials ensure long-term structural integrity and consistent conductivity over repeated actuation cycles, outperforming standard automotive-grade alternatives when exposed to the elements.
For installations exposed to heavy weather, washdowns, or open cockpits, the switch achieves an IP67 ingress protection rating (protected against temporary immersion for up to 30 minutes) when paired with a compatible WeatherDeck Toggle Switch Boot. Please note that the protective boot is required to achieve the IP67 rating and must be sourced separately if not already present on your existing panel.
Key Features and Benefits
- Dual Momentary Operation: Three-position (ON)-OFF-(ON) single-pole single-throw (SPST) action returns automatically to the centre off position, preventing accidental continuous operation of pumps or motors.
- Marine-Grade Materials: Non-corrosive nickel-plated brass actuator and durable phenolic body resist degradation from salt mist, moisture, and UV exposure.
- Purpose-Built Compatibility: Manufactured by Carling Technologies specifically to fit and function within Blue Sea Systems WeatherDeck waterproof panels.
- Streamlined Installation: Equipped with standard quick-connect spade terminals and a threaded mounting bushing with hex and knurled face nuts for secure panel retention.
- Conditional IP67 Protection: Capable of withstanding temporary water immersion up to 30 minutes when installed with the mandatory WeatherDeck Toggle Switch Boot.
Reliable Integration and Installation
Replacing a faulty switch or configuring a custom control panel requires components that install cleanly and maintain a secure connection under vibration. The rear of the switch housing is fitted with standard quick-connect spade terminals, allowing for straightforward wiring with marine-gradeinsulated crimp connectors. The threaded neck includes both a backing hex nut and a knurled face nut, ensuring the switch sits flush and remains tightly fastened within the panel cutout.
Whether you are performing maintenance on an existing WeatherDeck distribution system or designing a custom helm layout for a trailer boat, yacht, or 4WD camper, selecting the correct switching architecture is essential for system safety. Upgrade your vessel's control panel with this Carling Technologies momentary toggle switch to ensure crisp, reliable actuation whenever you are on the water.
SKU: BS-4154B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Toggle switch |
| Switching operation | (ON)-OFF-(ON) |
| Poles and throws | Single-pole single-throw (SPST) |
| Number of positions | 3 |
| Actuator type | Toggle |
| Intended use | Blue Sea Systems WeatherDeck panels |
| Ingress protection | IP67 for temporary immersion for 30 minutes when mounted with a WeatherDeck Toggle Switch Boot |
| Construction | Nickel-plated brass and phenolic; non-corrosive construction |
| SKU: | BS-4154B |
| Model #: | BS-4154B |
| MPN: | BS-4154B |
| Package weight: | 0.06 kg |
| Package length: | 0.08 m |
| Package width: | 0.05 m |
| Package height: | 0.05 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
