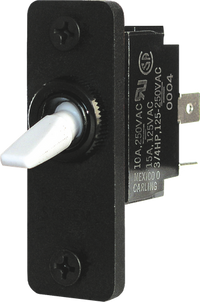

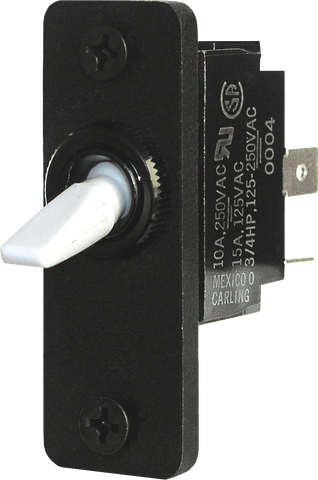

Blue Sea SPDT (ON)OFF(ON) Toggle Switch
Blue Sea SPDT (ON)OFF(ON) Toggle Switch
Momentary Action - Fits A-Series & 5/8" (16mm) Apertures - Marine Grade
Regular price
$27.80
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Momentary Dual-Action Control for Marine and Off-Grid Electrical Panels
Managing critical auxiliary systems requires reliable, responsive control. The Blue Sea SPDT (ON)OFF(ON) Toggle Switch provides precise manual actuation for applications demanding a momentary, dual-throw switching arrangement. In electrical nomenclature, parentheses around the "ON" state signify a momentary action. This means the white toggle actuator stays in a central OFF resting position and only energises the selected circuit while actively held in either of the two ON positions, automatically returning to the centre when released.
This specific switching logic is vital for systems that require temporary engagement in two different modes or directions. It eliminates the risk of accidentally leaving a high-draw or sensitive circuit engaged, protecting starter motors, pumps, and actuators from burnout or battery drain.
Engineered for Seamless A-Series Panel Integration
Achieving a uniform, factory-grade finish on custom dashboards and power distribution boards can be challenging when mixing circuit breakers and standard switches. This unit is specifically designed to mount directly into standard Blue Sea Systems A-Series toggle circuit breaker apertures. It includes a pre-drilled black faceplate that matches the footprint of A-Series breakers, allowing system builders to maintain a clean, consistent aesthetic across the entire panel without awkward gaps or mismatched hardware.
For versatile installation across custom helm stations, caravan control boards, or industrial enclosures, the switch also comes supplied with a dedicated mounting adapter. This allows seamless fitment into a standard 5/8-inch (approx. 16mm) circuit breaker mounting hole, secured firmly via a threaded bushing and knurled nut.
Key Features and Technical Benefits
- Momentary SPDT Configuration: Single Pole Double Throw (ON)OFF(ON) action provides temporary circuit activation in two distinct directions from a central off position.
- A-Series Aperture Compatibility: Mounts flush into A-Series toggle circuit breaker cutouts for a unified panel layout.
- Versatile Mounting Adapter: Includes an adapter to fit standard 5/8-inch (approx. 16mm) circular mounting holes.
- Corrosion-Resistant Materials: Constructed from nickel-plated brass and a durable phenolic body to withstand harsh marine and mobile environments.
- Quick Connect Termination: Equipped with rear flat tab terminals designed for standard spade connectors, simplifying wiring and maintenance.
Built for Harsh Marine and Mobile Environments
Standard automotive switches often fail prematurely when exposed to salt air, high humidity, and constant vibration. Constructed with a non-corrosive nickel-plated brass bushing and a heavy-duty phenolic housing, this toggle switch resists oxidation and mechanical wear. The rear quick-connect tab terminals allow for rapid, secure wiring using standard spade connectors, reducing installation time inside tight console spaces.
Typical Applications
The momentary dual-throw design makes this component ideal for a wide range of marine, RV, and commercial vehicle functions:
- Generator Starters: Safely manage pre-heat and cranking sequences without risking starter motor overrun.
- Bilge Pumps: Toggle between momentary manual override testing and secondary pump purging.
- Engine and Helm Controls: Operate trim tabs, hydraulic jack plates, or dual-tone marine horns.
- Wiper and Washer Systems: Control momentary wash cycles alongside intermittent wiper relays.
Upgrade Your Control Panel
Ensure dependable, corrosion-resistant operation for your critical momentary circuits. Integrate this Blue Sea toggle switch into your A-Series panel or custom dashboard today for professional-grade electrical control.
SKU: BS-8208B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Switching configuration | SPDT (ON)OFF(ON) |
| Actuation | Manual toggle |
| Mounting | Panel mount; fits A-Series toggle circuit breaker apertures |
| Mounting adapter | Supplied for a standard 5/8-inch circuit breaker mounting hole |
| Material | Nickel-plated brass and phenolic |
| Applications | Generator starters, bilge pumps, horns, wipers and engine controls |
| SKU: | BS-8208B |
| Model #: | BS-8208B |
| MPN: | BS-8208B |
| Package weight: | 0.06 kg |
| Package length: | 0.09 m |
| Package width: | 0.04 m |
| Package height: | 0.06 m |
