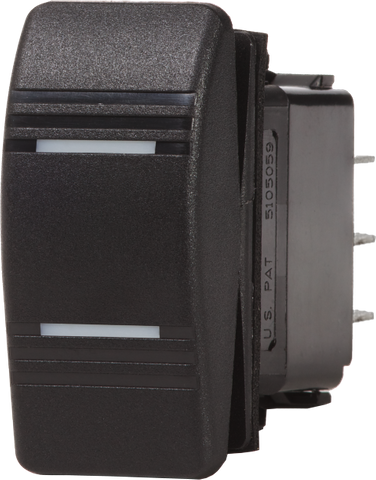

Blue Sea SPDT ON-OFF-ON Three-Position Panel-Mount Switch, Black
Blue Sea SPDT ON-OFF-ON Three-Position Panel-Mount Switch, Black
UL1500 Ignition Protected, Salt Spray & Moisture Resistant
Regular price
$27.80
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable Three-Position Marine Control with Ignition Protection
The Blue Sea Systems SPDT ON-OFF-ON Panel-Mount Switch (BS-8283B) is engineered to deliver dependable, multi-circuit control in demanding marine and off-grid environments. Featuring a Single Pole Double Throw (SPDT) configuration, this rocker switch allows operators to seamlessly alternate between two distinct circuits from a single common source, with a positive centre OFF position to completely isolate the load. Specifically manufactured for integration into Blue Sea Systems water-resistant Contura panels, it provides a clean, professional finish for any helm or custom electrical dashboard.
Engineered for Harsh Marine Environments
Standard automotive switches frequently fail when exposed to coastal conditions due to rapid corrosion of internal contacts and brittle plastics. This Blue Sea Systems rocker switch solves these reliability issues through specialised marine-grade construction. It is rigorously tested to withstand extreme vibration, physical shock, thermoshock, moisture ingress, and corrosive salt spray. When installed correctly with its integrated weatherproof mounting gasket, it maintains the water-resistant integrity of your switch panel, significantly reducing the risk of short circuits and premature component failure in open cockpit vessels or rugged 4WD setups.
Critical Safety for Petrol Vessels
Electrical arcing inside a standard switch can be a severe hazard when flammable fumes are present. This switch features an enclosed, ignition-protected housing that strictly complies with both UL1500 and ISO8846 safety standards. This critical engineering feature ensures that the switch is entirely safe for installation aboard petrol-powered (gasoline) boats, including near bilge areas, fuel tank compartments, and engine bays where vapour accumulation is a known risk.
Key Features and Benefits
- Versatile SPDT Switching: The three-position ON-OFF-ON action is ideal for controlling dual-function equipment without needing multiple switches.
- Certified Ignition Protection: Meets UL1500 and ISO8846 standards, making it safe for use in petrol-powered marine vessels and hazardous locations.
- Superior Environmental Resistance: Built to endure constant vibration, shock, thermoshock, moisture, and salt spray for long-term durability.
- Tactile Rocker Actuator: Features a black rocker face with clear white position indicator bars for easy status identification at a glance.
- Streamlined Installation: Equipped with three rear-facing quick-connect blade terminals for straightforward wiring and secure electrical connections.
- Seamless Panel Integration: Designed specifically to snap into Blue Sea Systems water-resistant panels with an integrated gasket seal.
Typical Applications
The ON-OFF-ON configuration makes this switch indispensable for a wide variety of marine and mobile 12V or 24V electrical systems. Common applications include:
- Navigation and Anchor Lights: Easily switch between running lights (ON), all lights off (OFF), and anchor light only (ON).
- Bilge Pump Control: Toggle between manual override operation, complete system isolation, and automatic float switch mode.
- Dual Battery or Tank Monitoring: Select between two separate auxiliary battery banks or fluid tank senders on a single gauge.
- Windshield Wipers: Control two-speed wiper motors (Low, Off, High) on boats, RVs, and heavy machinery.
Upgrade your vessel or off-grid vehicle's electrical system with a switch built to handle the elements. Select the Blue Sea Systems BS-8283B SPDT switch today for safe, reliable control across your critical circuits.
SKU: BS-8283B
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Switch type | SPDT |
| Switching function | ON-OFF-ON |
| Number of positions | 3 |
| Colour | Black |
| Mounting | Panel mount; manufactured for Blue Sea Systems water-resistant panels |
| Environmental resistance | Vibration, shock, thermoshock, moisture and salt spray resistant |
| Ignition protection | Ignition protected; safe for installation aboard gasoline-powered boats |
| Standards / compliance | UL1500; ISO8846 ignition protection requirements |
| SKU: | BS-8283B |
| Model #: | BS-8283B |
| MPN: | BS-8283B |
| Package weight: | 0.06 kg |
| Package length: | 0.09 m |
| Package width: | 0.05 m |
| Package height: | 0.08 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
