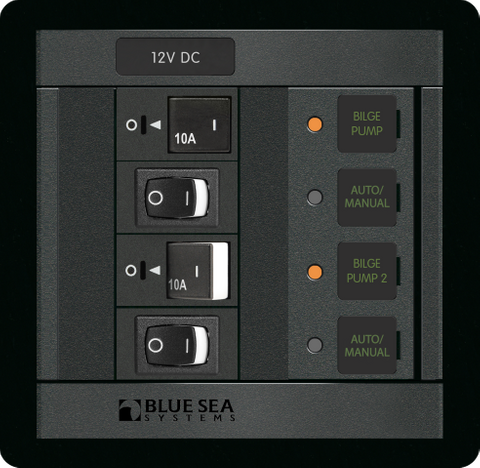

Blue Sea Panel 360 Dual Bilge Pump Control Switch Panel
Blue Sea Panel 360 Dual Bilge Pump Control Switch Panel
12V DC with 10A Restricted-Off Breakers, Manual Override & Status LEDs
Regular price
$268.72
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable Dual Bilge Pump Management and 24-Hour Circuit Protection
Maintaining a dry and safe hull is critical for any marine vessel, and managing dual bilge systems requires absolute dependability. The Blue Sea Systems 360 Panel provides centralised, intuitive control and monitoring for two independent bilge pumps. Engineered specifically for demanding marine electrical systems, this panel streamlines helm or cabin installations while providing vital circuit protection for your vessel's primary and secondary dewatering systems.
Uninterrupted 24-Hour Float Switch Protection
One of the biggest risks in marine electrical setups is the accidental deactivation of automatic bilge systems when isolating or switching off helm controls. Standard switch panels often lack safeguards against accidental shut-off, leaving vessels vulnerable to water ingress when unattended. This panel resolves that risk by utilising specialised restricted-off 10A circuit breakers.
These breakers are designed to provide continuous, 24-hour circuit protection directly to the bilge pump float switches. By preventing casual or accidental switching to the off position, the panel ensures your automatic pump-control circuits remain live and protected while moored or underway, while still allowing intentional disconnection during maintenance.
Clear Visual Status and Manual Override
In an emergency or during routine checks, knowing the exact status of your bilge pumps at a glance is essential. This marine switch panel incorporates a dual-LED indicator system alongside backlit labels for effortless readability in low-light conditions or night navigation:
- Float Switch Power Indication: Dedicated LEDs confirm that continuous power is actively available at each bilge pump float switch, giving you peace of mind that the automatic circuit is armed.
- Active Pump Operation LEDs: The manual override switches feature integrated On-indicating LEDs. These illuminate not only when you manually engage the pump, but also whenever the pump is automatically triggered by the float switch, providing immediate visual feedback of water in the bilge.
- Manual Override Control: Allows the skipper to instantly bypass the automatic float switch and engage either bilge pump manually if high water levels are suspected or for routine system testing.
- 10A Restricted-Off Circuit Breakers: Integrated magnetic-hydraulic style protection safeguards wiring and pumps from overcurrent faults without the need for separate fuse blocks.
- 360 Panel System Integration: Built to the modular Blue Sea 360 Panel standard, allowing seamless integration with existing marine switchboards and enclosures.
Engineered for Marine Durability
Inferior switching panels often suffer from corrosion, failed indicator globes, and unclear labelling, which can lead to confusion during high-stress situations on the water. Designed for standard 12V DC marine electrical systems, this unit consolidates circuit protection, manual switching, and operational diagnostics into one clean, professional interface. Whether managing forward and aft compartments on a cruiser, port and starboard hulls on a catamaran, or a primary and high-water backup pump configuration, this panel reduces wiring complexity and enhances onboard safety.
Upgrade Your Vessel's Safety System
Ensure your primary and secondary bilge pumps are properly protected, monitored, and ready for action. Integrate the Blue Sea 360 Dual Bilge Pump Control Switch Panel into your marine electrical system today for dependable, round-the-clock vessel protection.
SKU: BS-1522B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Switch panel |
| Function | Controls two bilge pumps |
| Circuit protection | Restricted-off circuit breakers provide 24-hour circuit protection to the bilge pump float switch |
| Power indication | On-indicating LED indicates power is available at the bilge pump float switch |
| Manual override | Manual Override switch with On-indicating LED provides visual indication when the pump is running; the LED also illuminates when the pump runs as a result of float switch operation |
| SKU: | BS-1522B |
| Model #: | BS-1522B |
| MPN: | BS-1522B |
| Package weight: | 0.36 kg |
| Package length: | 0.17 m |
| Package width: | 0.15 m |
| Package height: | 0.1 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
